IslandPath Analysis: Staphylococcus aureus RF122

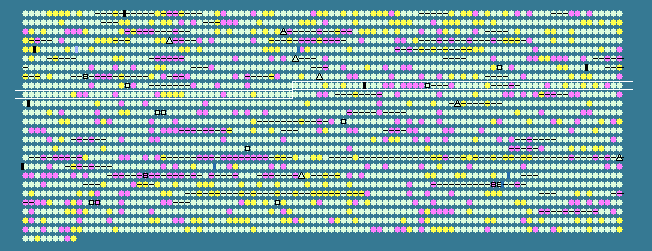

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
846	 35.95	0	953217..954785	+	522	82750625	-	SAB0879	-	sodium/alanine symporter family protein
847	 31.62	0	954928..955686	+	252	82750626	-	SAB0880	-	hypothetical protein
848	 34.31	0	955880..956389	+	169	82750627	-	SAB0881	-	hypothetical protein
849	 32.24	0	956502..957692	-	396	82750628	-	SAB0882c	-	hypothetical protein
850	 32.57	0	957670..958845	-	391	82750629	-	SAB0883c	-	diacylglycerol glucosyltransferase
851	 37.17	+1	959278..960762	+	494	82750630	murE	SAB0884	-	UDP-N-acetylmuramoylalanyl-D-glutamate 2,6-diaminopimelate ligase
852	 30.95	0	960752..961003	+	83	82750631	-	SAB0885	-	hypothetical protein
853	 34.29	0	961003..962565	+	520	82750632	prfC	SAB0886	-	peptide chain release factor 3
854	 36.82	+1	962867..963670	+	267	82750633	-	SAB0887	-	toxic anion resistance membrane protein
855	 31.17	0	963904..966213	+	769	82750634	-	SAB0888	-	serine proteinase
856	 32.01	0	966230..967588	+	452	82750635	-	SAB0889	-	Na+ transporting ATP synthase
857	 32.21	0	967724..969238	+	504	82750636	-	SAB0890	-	5' nucleotidase
858	 30.35	0	969737..970306	-	189	82750637	-	SAB0891c	-	transcription factor
859	 34.21	0	970507..970734	+	75	82750638	-	SAB0892	-	hypothetical protein
860	 30.50	0	970815..971801	-	328	82750639	-	SAB0893c	-	lipoate-protein ligase A
861	 27.53	-1	972191..972793	+	200	82750640	-	SAB0894	-	hypothetical protein
862	 26.77	-1	974136..976100	+	654	82750641	-	SAB0896	-	hypothetical protein
863	 29.94	0	976103..976426	+	107	82750642	-	SAB0897	-	hypothetical protein
864	 28.45	-1	976468..977061	+	197	82750643	-	SAB0898	-	ABC transporter ATP-binding protein
865	 26.46	-1	977149..977439	-	96	82750644	-	SAB0899c	-	hypothetical protein
866	 25.35	-2	977772..978059	+	95	82750645	-	SAB0900	-	hypothetical protein
867	 26.99	-1	978065..979546	+	493	82750646	-	SAB0901	-	glycosyl transferase
868	 33.93	0	979690..980364	-	224	82750647	-	SAB0902c	-	transposase
869	 32.50	0	980434..980793	-	119	82750648	-	SAB0903c	-	hypothetical protein
870	 33.02	0	981279..981593	+	104	82750649	-	SAB0904	-	iron transport protein
871	 33.18	0	981584..982234	+	216	82750650	-	SAB0905	-	iron transport protein
872	 26.80	-1	982475..982765	-	96	82750651	-	SAB0906c	-	hypothetical protein
873	 32.43	0	982855..983406	+	183	82750652	-	SAB0907	-	hypothetical protein
874	 34.82	0	983457..984395	-	312	82750653	-	SAB0908c	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
875	 31.57	0	984577..985938	+	453	82750654	-	SAB0909	-	menaquinone-specific isochorismate synthase
876	 33.93	0	985925..987598	+	557	82750655	-	SAB0910	-	2-oxoglutarate decarboxylase
877	 32.59	0	987585..988388	+	267	82750656	-	SAB0911	-	hydrolase
878	 38.32	+1	988381..989202	+	273	82750657	menB	SAB0912	-	naphthoate synthase
879	 30.00	0	989441..989770	-	109	82750658	sspC	SAB0913c	-	cysteine protease
880	 30.54	0	989808..990989	-	393	82750659	sspB	SAB0914c	-	cysteine protease precursor
881	 36.51	+1	991071..992045	-	324	82750660	sspA	SAB0915c	-	glutamyl endopeptidase serine protease
882	 24.85	-2	992243..992407	-	54	82750661	-	SAB0916c	-	hypothetical protein
883	 32.12	0	992573..993727	-	384	82750662	-	SAB0917c	-	aromatic amino acid transferase
884	 34.94	0	995714..999505	-	1263	82750663	atl	SAB0919c	-	autolysin
885	 35.17	0	999711..1000145	-	144	82750664	-	SAB0920c	-	acetyltransferase family protein
886	 31.00	0	1000300..1000770	-	156	82750665	-	SAB0921c	-	hypothetical protein
887	 32.44	0	1000818..1002044	-	408	82750666	-	SAB0922c	-	hypothetical protein
888	 27.89	-1	1002493..1003686	+	397	82750667	fmt	SAB0923	-	autolysis and methicillin resistant-related protein
889	 35.40	0	1004223..1004513	-	96	82750668	qoxD	SAB0924c	-	quinol oxidase polypeptide IV
890	 35.97	0	1004510..1005115	-	201	82750669	qoxC	SAB0925c	-	quinol oxidase polypeptide III
891	 36.80	+1	1005105..1007093	-	662	82750670	qoxB	SAB0926c	-	quinol oxidase polypeptide I
892	 34.15	0	1007093..1008193	-	366	82750671	qoxA	SAB0927c	-	quinol oxidase polypeptide II
893	 32.39	0	1008766..1009083	-	105	82750672	-	SAB0928c	-	hypothetical protein
894	 44.62	+2	1009372..1009557	-	61	82750673	-	SAB0929c	-	hypothetical protein
895	 34.49	0	1009864..1010724	-	286	82750674	folD	SAB0930c	-	bifunctional methylenetetrahydrofolate dehydrogenase and methenyltetrahydrofolate
896	 38.30	+1	1010925..1011407	+	160	82750675	purE	SAB0931	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
897	 32.98	0	1011394..1012518	+	374	82750676	purK	SAB0932	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
898	 29.08	-1	1012522..1013226	+	234	82750677	purC	SAB0933	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
899	 32.20	0	1013226..1013489	+	87	82750678	-	SAB0934	-	hypothetical protein
900	 34.38	0	1013491..1014162	+	223	82750679	purQ	SAB0935	-	phosphoribosylformylglycinamidine synthase I
901	 35.02	0	1014155..1016344	+	729	82750680	purL	SAB0936	-	phosphoribosylformylglycinamidine synthase II
902	 35.76	0	1016323..1017807	+	494	82750681	purF	SAB0937	-	amidophosphoribosyltransferase
903	 35.76	0	1017800..1018828	+	342	82750682	purM	SAB0938	-	phosphoribosylaminoimidazole synthetase
904	 31.92	0	1018831..1019397	+	188	82750683	purN	SAB0939	-	phosphoribosylformylglycinamidine formyltransferase
905	 34.69	0	1019412..1020890	+	492	82750684	purH	SAB0940	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
906	 35.82	0	1020912..1022159	+	415	82750685	purD	SAB0941	-	phosphoribosylamine--glycine ligase
907	 31.10	0	1022425..1023231	-	268	82750686	-	SAB0942c	-	membrane transporter
908	 33.12	0	1023224..1024624	-	466	82750687	-	SAB0943c	-	cation ATP-binding ABC transporter protein
909	 36.98	+1	1024639..1025214	-	191	82750688	-	SAB0944c	-	hypothetical protein
910	 29.17	-1	1026020..1027315	+	431	82750689	-	SAB0945	-	hypothetical protein
911	 25.49	-2	1027336..1027539	-	67	82750690	-	SAB0946c	-	hypothetical protein
912	 31.46	0	1027740..1028912	+	390	82750691	-	SAB0947	-	hypothetical protein
913	 29.83	0	1028966..1029508	+	180	82750692	-	SAB0948	-	hypothetical protein
914	 34.83	0	1029662..1029928	+	88	82750693	ptsH	SAB0949	-	phosphocarrier protein HPr
915	 35.14	0	1029931..1031649	+	572	82750694	ptsI	SAB0950	-	phosphoenolpyruvate-protein phosphatase
916	 28.21	-1	1031884..1032117	-	77	82750695	-	SAB0951c	-	hypothetical protein
917	 34.07	0	1032314..1033675	+	453	82750696	-	SAB0952	-	cytochrome d ubiquinol oxidase subunit I
918	 30.29	0	1033672..1034691	+	339	82750697	-	SAB0953	-	cytochrome d ubiquinol oxidase subunit II
919	 34.99	0	1034824..1035486	+	220	82750698	-	SAB0954	-	potassium uptake protein
920	 34.04	0	1035600..1037297	-	565	82750699	-	SAB0955c	-	hypothetical protein
921	 31.05	0	1037297..1037515	-	72	82750700	-	SAB0956c	-	hypothetical protein
922	 35.87	0	1037997..1038548	-	183	82750701	def	SAB0957c	-	peptide deformylase
923	 27.75	-1	1038913..1039539	+	208	82750702	-	SAB0958	-	hypothetical protein
924	 37.20	+1	1039710..1040822	+	370	82750703	pdhA	SAB0959	-	pyruvate dehydrogenase E1 component alpha subunit
925	 38.34	+1	1040826..1041803	+	325	82750704	pdhB	SAB0960	-	pyruvate dehydrogenase E1 component beta subunit
926	 38.05	+1	1041894..1043186	+	430	82750705	pdhC	SAB0961	-	branched-chain alpha-keto acid dehydrogenase subunit E2
927	 37.03	+1	1043190..1044596	+	468	82750706	pdhD	SAB0962	-	dihydrolipoamide dehydrogenase
928	 31.16	0	1044764..1045039	+	91	82750707	-	SAB0963	-	hypothetical protein
929	 30.00	0	1045183..1045722	+	179	82750708	-	SAB0964	-	transcriptional regulator
930	 31.51	0	1045734..1046828	+	364	82750709	-	SAB0965	-	spermidine/putrescine ATP-binding ABC transporter protein
931	 30.25	0	1047625..1048434	+	269	82750710	-	SAB0967	-	spermidine/putrescine ABC transporter permease protein
932	 31.75	0	1048434..1049507	+	357	82750711	-	SAB0968	-	spermidine/putrescine-binding periplasmic protein precursor
933	 31.46	0	1049581..1050594	+	337	82750712	-	SAB0969	-	hypothetical protein
934	 29.05	-1	1050877..1051296	+	139	82750713	-	SAB0970	-	hypothetical protein
935	 32.59	0	1051378..1052730	-	450	82750714	-	SAB0971c	-	Mn2+/Fe2+ transporter
936	 32.68	0	1052914..1053528	-	204	82750715	-	SAB0972c	-	hypothetical protein
937	 34.42	0	1053685..1054512	+	275	82750716	-	SAB0973	-	inositol-1-monophosphatase
938	 35.28	0	1054959..1056806	+	615	82750717	-	SAB0974	-	GTP-binding elongation factor protein
939	 37.50	+1	1056946..1057113	-	55	82750718	-	SAB0975c	-	hypothetical protein
940	 32.09	0	1057115..1057597	-	160	82750719	-	SAB0976c	-	hypothetical protein
941	 31.52	0	1057738..1058013	+	91	82750720	-	SAB0977	-	hypothetical protein
942	 31.70	0	1058327..1059553	+	408	82750721	-	SAB0978	-	cell division protein
943	 35.42	0	1060107..1063559	+	1150	82750722	-	SAB0979	-	pyruvate carboxylase
944	 33.89	0	1063699..1064769	-	356	82750723	ctaA	SAB0980c	-	heme O-oxygenase
945	 32.24	0	1065050..1065961	+	303	82750724	ctaB	SAB0981	-	protoheme IX farnesyltransferase
33.03	MEAN

3.30	STD DEV
