IslandPath Analysis: Staphylococcus aureus RF122

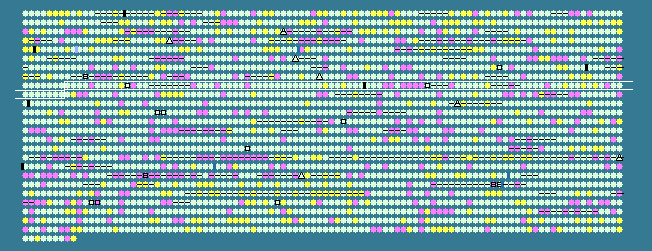

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.03   STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
808	 35.38	0	909442..910758	-	438	82750587	-	SAB0839c	-	coenzyme A disulfide reductase
809	 31.15	0	910810..911634	-	274	82750588	-	SAB0840c	-	hydrolase
810	 36.25	0	911748..912056	+	102	82750589	-	SAB0841	-	hypothetical protein
811	 33.79	0	914712..917321	+	869	82750590	clpB	SAB0843	-	putative ATP-dependent protease protein
812	 27.24	-1	917380..918249	-	289	82750591	-	SAB0844c	-	LysR family regulatory protein
813	 31.79	0	918442..918894	+	150	82750592	-	SAB0845	-	hypothetical protein
814	 32.41	0	919205..919639	+	144	82750593	-	SAB0846	-	hypothetical protein
815	 31.43	0	919819..920133	+	104	82750594	-	SAB0847	-	hypothetical protein
816	 35.67	0	920376..921317	+	313	82750595	fabH	SAB0848	-	3-oxoacyl-(acyl carrier protein) synthase III
817	 39.12	+1	921329..922573	+	414	82750596	fabF	SAB0849	-	3-oxoacyl-ACP synthase II
818	 30.83	0	922627..923943	-	438	82750597	-	SAB0850c	-	transposase
819	 26.88	-1	924142..924513	-	123	82750598	-	SAB0851c	-	hypothetical protein
820	 32.79	0	924756..925682	+	308	82750599	oppB	SAB0852	-	oligopeptide transport system permease protein
821	 34.17	0	925682..926752	+	356	82750600	oppC	SAB0853	-	oligopeptide transport system permease protein
822	 35.64	0	926768..927850	+	360	82750601	oppD	SAB0854	-	oligopeptide transport system ATP-binding protein
823	 32.80	0	927840..928781	+	313	82750602	oppF	SAB0855	-	oligopeptide transport system ATP-binding protein
824	 33.21	0	928800..930455	+	551	82750603	-	SAB0856	-	oligopeptide binding protein
825	 31.20	0	930624..931559	+	311	82750604	-	SAB0857	-	oligopeptide transport system permease protein
826	 30.29	0	931549..932568	+	339	82750605	-	SAB0858	-	oligopeptide transport system permease protein
827	 33.73	0	932654..933664	+	336	82750606	-	SAB0859	-	oligopeptide transport system ATP-binding protein
828	 30.18	0	933654..934574	+	306	82750607	appD	SAB0860	-	oligopeptide transport system ATP-binding protein
829	 28.65	-1	934603..935457	+	284	82750608	-	SAB0861	-	oligopeptide ATP-binding protein
830	 35.15	0	936344..937333	-	329	82750609	trpS	SAB0863c	-	tryptophanyl-tRNA synthetase
831	 32.58	0	937628..938023	+	131	161777621	spxA	SAB0864	-	transcriptional regulator Spx
832	 32.08	0	938394..939113	+	239	82750611	-	SAB0865	-	adaptor protein
833	 29.08	-1	939233..940219	+	328	82750612	-	SAB0866	-	competence-related protein
834	 31.90	0	940267..942075	+	602	82750613	pepB	SAB0867	-	thimet oligopeptidase
835	 30.15	0	942535..943320	-	261	82750614	-	SAB0868c	-	hypothetical protein
836	 36.07	0	943364..943729	-	121	82750615	-	SAB0869c	-	hypothetical protein
837	 29.63	-1	943833..944426	-	197	82750616	-	SAB0870c	-	hypothetical protein
838	 29.31	-1	944612..944959	+	115	82750617	-	SAB0871	-	hypothetical protein
839	 33.65	0	944976..945611	+	211	82750618	-	SAB0872	-	GTP pyrophosphokinase
840	 34.94	0	945628..946437	+	269	82750619	ppnK	SAB0873	-	inorganic polyphosphate/ATP-NAD kinase
841	 30.53	0	946434..947288	+	284	82750620	-	SAB0874	-	RNA pseudoridylate synthase
842	 33.91	0	947309..948694	+	461	82750621	-	SAB0875	-	magnesium transporter
843	 31.65	0	948704..950548	+	614	82750622	-	SAB0876	-	Na+/H+ antiporter protein
844	 35.28	0	950826..951596	+	256	82750623	fabI	SAB0877	-	enoyl-(acyl carrier protein) reductase
845	 30.85	0	951790..952875	-	361	82750624	-	SAB0878c	-	hypothetical protein
846	 35.95	0	953217..954785	+	522	82750625	-	SAB0879	-	sodium/alanine symporter family protein
847	 31.62	0	954928..955686	+	252	82750626	-	SAB0880	-	hypothetical protein
848	 34.31	0	955880..956389	+	169	82750627	-	SAB0881	-	hypothetical protein
849	 32.24	0	956502..957692	-	396	82750628	-	SAB0882c	-	hypothetical protein
850	 32.57	0	957670..958845	-	391	82750629	-	SAB0883c	-	diacylglycerol glucosyltransferase
851	 37.17	+1	959278..960762	+	494	82750630	murE	SAB0884	-	UDP-N-acetylmuramoylalanyl-D-glutamate 2,6-diaminopimelate ligase
852	 30.95	0	960752..961003	+	83	82750631	-	SAB0885	-	hypothetical protein
853	 34.29	0	961003..962565	+	520	82750632	prfC	SAB0886	-	peptide chain release factor 3
854	 36.82	+1	962867..963670	+	267	82750633	-	SAB0887	-	toxic anion resistance membrane protein
855	 31.17	0	963904..966213	+	769	82750634	-	SAB0888	-	serine proteinase
856	 32.01	0	966230..967588	+	452	82750635	-	SAB0889	-	Na+ transporting ATP synthase
857	 32.21	0	967724..969238	+	504	82750636	-	SAB0890	-	5' nucleotidase
858	 30.35	0	969737..970306	-	189	82750637	-	SAB0891c	-	transcription factor
859	 34.21	0	970507..970734	+	75	82750638	-	SAB0892	-	hypothetical protein
860	 30.50	0	970815..971801	-	328	82750639	-	SAB0893c	-	lipoate-protein ligase A
861	 27.53	-1	972191..972793	+	200	82750640	-	SAB0894	-	hypothetical protein
862	 26.77	-1	974136..976100	+	654	82750641	-	SAB0896	-	hypothetical protein
863	 29.94	0	976103..976426	+	107	82750642	-	SAB0897	-	hypothetical protein
864	 28.45	-1	976468..977061	+	197	82750643	-	SAB0898	-	ABC transporter ATP-binding protein
865	 26.46	-1	977149..977439	-	96	82750644	-	SAB0899c	-	hypothetical protein
866	 25.35	-2	977772..978059	+	95	82750645	-	SAB0900	-	hypothetical protein
867	 26.99	-1	978065..979546	+	493	82750646	-	SAB0901	-	glycosyl transferase
868	 33.93	0	979690..980364	-	224	82750647	-	SAB0902c	-	transposase
869	 32.50	0	980434..980793	-	119	82750648	-	SAB0903c	-	hypothetical protein
870	 33.02	0	981279..981593	+	104	82750649	-	SAB0904	-	iron transport protein
871	 33.18	0	981584..982234	+	216	82750650	-	SAB0905	-	iron transport protein
872	 26.80	-1	982475..982765	-	96	82750651	-	SAB0906c	-	hypothetical protein
873	 32.43	0	982855..983406	+	183	82750652	-	SAB0907	-	hypothetical protein
874	 34.82	0	983457..984395	-	312	82750653	-	SAB0908c	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
875	 31.57	0	984577..985938	+	453	82750654	-	SAB0909	-	menaquinone-specific isochorismate synthase
876	 33.93	0	985925..987598	+	557	82750655	-	SAB0910	-	2-oxoglutarate decarboxylase
877	 32.59	0	987585..988388	+	267	82750656	-	SAB0911	-	hydrolase
878	 38.32	+1	988381..989202	+	273	82750657	menB	SAB0912	-	naphthoate synthase
879	 30.00	0	989441..989770	-	109	82750658	sspC	SAB0913c	-	cysteine protease
880	 30.54	0	989808..990989	-	393	82750659	sspB	SAB0914c	-	cysteine protease precursor
881	 36.51	+1	991071..992045	-	324	82750660	sspA	SAB0915c	-	glutamyl endopeptidase serine protease
882	 24.85	-2	992243..992407	-	54	82750661	-	SAB0916c	-	hypothetical protein
883	 32.12	0	992573..993727	-	384	82750662	-	SAB0917c	-	aromatic amino acid transferase
884	 34.94	0	995714..999505	-	1263	82750663	atl	SAB0919c	-	autolysin
885	 35.17	0	999711..1000145	-	144	82750664	-	SAB0920c	-	acetyltransferase family protein
886	 31.00	0	1000300..1000770	-	156	82750665	-	SAB0921c	-	hypothetical protein
887	 32.44	0	1000818..1002044	-	408	82750666	-	SAB0922c	-	hypothetical protein
888	 27.89	-1	1002493..1003686	+	397	82750667	fmt	SAB0923	-	autolysis and methicillin resistant-related protein
889	 35.40	0	1004223..1004513	-	96	82750668	qoxD	SAB0924c	-	quinol oxidase polypeptide IV
890	 35.97	0	1004510..1005115	-	201	82750669	qoxC	SAB0925c	-	quinol oxidase polypeptide III
891	 36.80	+1	1005105..1007093	-	662	82750670	qoxB	SAB0926c	-	quinol oxidase polypeptide I
892	 34.15	0	1007093..1008193	-	366	82750671	qoxA	SAB0927c	-	quinol oxidase polypeptide II
893	 32.39	0	1008766..1009083	-	105	82750672	-	SAB0928c	-	hypothetical protein
894	 44.62	+2	1009372..1009557	-	61	82750673	-	SAB0929c	-	hypothetical protein
895	 34.49	0	1009864..1010724	-	286	82750674	folD	SAB0930c	-	bifunctional methylenetetrahydrofolate dehydrogenase and methenyltetrahydrofolate
896	 38.30	+1	1010925..1011407	+	160	82750675	purE	SAB0931	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
897	 32.98	0	1011394..1012518	+	374	82750676	purK	SAB0932	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
898	 29.08	-1	1012522..1013226	+	234	82750677	purC	SAB0933	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
899	 32.20	0	1013226..1013489	+	87	82750678	-	SAB0934	-	hypothetical protein
900	 34.38	0	1013491..1014162	+	223	82750679	purQ	SAB0935	-	phosphoribosylformylglycinamidine synthase I
901	 35.02	0	1014155..1016344	+	729	82750680	purL	SAB0936	-	phosphoribosylformylglycinamidine synthase II
902	 35.76	0	1016323..1017807	+	494	82750681	purF	SAB0937	-	amidophosphoribosyltransferase
903	 35.76	0	1017800..1018828	+	342	82750682	purM	SAB0938	-	phosphoribosylaminoimidazole synthetase
904	 31.92	0	1018831..1019397	+	188	82750683	purN	SAB0939	-	phosphoribosylformylglycinamidine formyltransferase
905	 34.69	0	1019412..1020890	+	492	82750684	purH	SAB0940	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
906	 35.82	0	1020912..1022159	+	415	82750685	purD	SAB0941	-	phosphoribosylamine--glycine ligase
907	 31.10	0	1022425..1023231	-	268	82750686	-	SAB0942c	-	membrane transporter
33.03	MEAN

3.30	STD DEV
