IslandPath Analysis: Staphylococcus aureus RF122

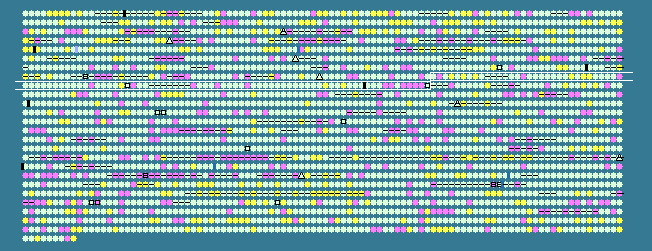

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.03   STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
769	 29.88	0	865809..867023	+	404	82750548	dltB	SAB0799	-	D-alanine lipoteichoic acid and wall teichoic acid esterification protein
770	 29.11	-1	867041..867277	+	78	82750549	dltC	SAB0800	-	D-alanine--poly(phosphoribitol) ligase subunit 2
771	 32.40	0	867274..868449	+	391	82750550	dltD	SAB0801	-	D-alanine lipoteichoic acid and wall teichoic acid esterification secreted protein
772	 39.92	+2	868712..868954	-	80	82750551	-	SAB0802c	-	hypothetical protein
773	 31.48	0	869055..869378	+	107	82750552	-	SAB0803	-	hypothetical protein
774	 36.53	+1	869438..870502	-	354	82750553	-	SAB0804c	-	NADH dehydrogenase
775	 35.02	0	870819..871055	+	78	82750554	-	SAB0805	-	hypothetical protein
776	 37.50	+1	871068..871427	+	119	82750555	-	SAB0806	-	hypothetical protein
777	 35.57	0	871881..873089	+	402	82750556	-	SAB0807	-	NADH dehydrogenase
778	 33.60	0	873220..874695	+	491	82750557	-	SAB0808	-	cytosol aminopeptidase
779	 32.35	0	875106..876422	+	438	82750558	-	SAB0809	-	transporter protein
780	 32.53	0	876441..876815	+	124	82750559	-	SAB0810	-	hypothetical protein
781	 34.63	0	878382..879536	-	384	82750560	-	SAB0812c	-	hypothetical protein
782	 32.77	0	879799..880155	-	118	82750561	mnhG	SAB0813c	-	putative monovalent cation/H+ antiporter subunit G
783	 32.31	0	880133..880426	-	97	82750562	mnhF	SAB0814c	-	putative monovalent cation/H+ antiporter subunit F
784	 28.96	-1	880426..880905	-	159	82750563	mnhE	SAB0815c	-	putative monovalent cation/H+ antiporter subunit E
785	 33.60	0	880907..882403	-	498	82750564	mnhD	SAB0816c	-	putative monovalent cation/H+ antiporter subunit D
786	 34.21	0	882396..882737	-	113	82750565	mnhC	SAB0817c	-	putative monovalent cation/H+ antiporter subunit C
787	 33.33	0	882737..883165	-	142	82750566	mnhC	SAB0818c	-	putative monovalent cation/H+ antiporter subunit B
788	 33.50	0	883158..885563	-	801	82750567	mnhA	SAB0819c	-	monovalent cation/H+ antiporter subunit A
789	 33.07	0	885694..886077	-	127	82750568	-	SAB0820c	-	hypothetical protein
790	 35.35	0	886141..886734	+	197	82750569	-	SAB0821	-	peptidyl-prolyl cis-trans isomerase
791	 32.80	0	887150..887527	+	125	82750570	-	SAB0822	-	hypothetical protein
792	 36.88	+1	887888..889015	+	375	82750571	-	SAB0823	-	NADH-dependent flavin oxidoreductase
793	 35.68	0	889323..890513	+	396	82750572	rocD	SAB0824	-	ornithine--oxo-acid transaminase
794	 36.87	+1	890622..891866	+	414	82750573	-	SAB0825	-	NAD-specific glutamate dehydrogenase
795	 41.09	+2	891975..892103	-	42	82750574	-	SAB0826c	-	hypothetical protein
796	 33.01	0	892203..893132	-	309	82750575	glpQ	SAB0827c	-	glycerophosphoryl diester phosphodiesterase
797	 35.00	0	893374..894753	-	459	82750576	argH	SAB0828c	-	argininosuccinate lyase
798	 34.99	0	894743..895948	-	401	82750577	argG	SAB0829c	-	argininosuccinate synthase
799	 33.33	0	896299..897630	+	443	82750578	pgi	SAB0830	-	glucose-6-phosphate isomerase
800	 22.04	-2	898015..898200	+	61	82750579	-	SAB0831	-	hypothetical protein
801	 30.73	0	898503..899078	+	191	82750580	-	SAB0832	-	hypothetical protein
802	 31.62	0	899083..899607	+	174	82750581	spsA	SAB0833	-	type-I signal peptidase
803	 30.90	0	899623..900198	+	191	82750582	spsB	SAB0834	-	type-I signal peptidase
804	 32.44	0	900358..903834	+	1158	82750583	-	SAB0835	-	ATP-dependent nuclease subunit B
805	 33.25	0	903835..907488	+	1217	82750584	-	SAB0836	-	ATP-dependent nuclease subunit A
806	 33.11	0	907654..908556	+	300	82750585	-	SAB0837	-	fumarylacetoacetate hydrolase family protein
807	 32.05	0	908882..909271	+	129	82750586	-	SAB0838	-	hypothetical protein
808	 35.38	0	909442..910758	-	438	82750587	-	SAB0839c	-	coenzyme A disulfide reductase
809	 31.15	0	910810..911634	-	274	82750588	-	SAB0840c	-	hydrolase
810	 36.25	0	911748..912056	+	102	82750589	-	SAB0841	-	hypothetical protein
811	 33.79	0	914712..917321	+	869	82750590	clpB	SAB0843	-	putative ATP-dependent protease protein
812	 27.24	-1	917380..918249	-	289	82750591	-	SAB0844c	-	LysR family regulatory protein
813	 31.79	0	918442..918894	+	150	82750592	-	SAB0845	-	hypothetical protein
814	 32.41	0	919205..919639	+	144	82750593	-	SAB0846	-	hypothetical protein
815	 31.43	0	919819..920133	+	104	82750594	-	SAB0847	-	hypothetical protein
816	 35.67	0	920376..921317	+	313	82750595	fabH	SAB0848	-	3-oxoacyl-(acyl carrier protein) synthase III
817	 39.12	+1	921329..922573	+	414	82750596	fabF	SAB0849	-	3-oxoacyl-ACP synthase II
818	 30.83	0	922627..923943	-	438	82750597	-	SAB0850c	-	transposase
819	 26.88	-1	924142..924513	-	123	82750598	-	SAB0851c	-	hypothetical protein
820	 32.79	0	924756..925682	+	308	82750599	oppB	SAB0852	-	oligopeptide transport system permease protein
821	 34.17	0	925682..926752	+	356	82750600	oppC	SAB0853	-	oligopeptide transport system permease protein
822	 35.64	0	926768..927850	+	360	82750601	oppD	SAB0854	-	oligopeptide transport system ATP-binding protein
823	 32.80	0	927840..928781	+	313	82750602	oppF	SAB0855	-	oligopeptide transport system ATP-binding protein
824	 33.21	0	928800..930455	+	551	82750603	-	SAB0856	-	oligopeptide binding protein
825	 31.20	0	930624..931559	+	311	82750604	-	SAB0857	-	oligopeptide transport system permease protein
826	 30.29	0	931549..932568	+	339	82750605	-	SAB0858	-	oligopeptide transport system permease protein
827	 33.73	0	932654..933664	+	336	82750606	-	SAB0859	-	oligopeptide transport system ATP-binding protein
828	 30.18	0	933654..934574	+	306	82750607	appD	SAB0860	-	oligopeptide transport system ATP-binding protein
829	 28.65	-1	934603..935457	+	284	82750608	-	SAB0861	-	oligopeptide ATP-binding protein
830	 35.15	0	936344..937333	-	329	82750609	trpS	SAB0863c	-	tryptophanyl-tRNA synthetase
831	 32.58	0	937628..938023	+	131	161777621	spxA	SAB0864	-	transcriptional regulator Spx
832	 32.08	0	938394..939113	+	239	82750611	-	SAB0865	-	adaptor protein
833	 29.08	-1	939233..940219	+	328	82750612	-	SAB0866	-	competence-related protein
834	 31.90	0	940267..942075	+	602	82750613	pepB	SAB0867	-	thimet oligopeptidase
835	 30.15	0	942535..943320	-	261	82750614	-	SAB0868c	-	hypothetical protein
836	 36.07	0	943364..943729	-	121	82750615	-	SAB0869c	-	hypothetical protein
837	 29.63	-1	943833..944426	-	197	82750616	-	SAB0870c	-	hypothetical protein
838	 29.31	-1	944612..944959	+	115	82750617	-	SAB0871	-	hypothetical protein
839	 33.65	0	944976..945611	+	211	82750618	-	SAB0872	-	GTP pyrophosphokinase
840	 34.94	0	945628..946437	+	269	82750619	ppnK	SAB0873	-	inorganic polyphosphate/ATP-NAD kinase
841	 30.53	0	946434..947288	+	284	82750620	-	SAB0874	-	RNA pseudoridylate synthase
842	 33.91	0	947309..948694	+	461	82750621	-	SAB0875	-	magnesium transporter
843	 31.65	0	948704..950548	+	614	82750622	-	SAB0876	-	Na+/H+ antiporter protein
844	 35.28	0	950826..951596	+	256	82750623	fabI	SAB0877	-	enoyl-(acyl carrier protein) reductase
845	 30.85	0	951790..952875	-	361	82750624	-	SAB0878c	-	hypothetical protein
846	 35.95	0	953217..954785	+	522	82750625	-	SAB0879	-	sodium/alanine symporter family protein
847	 31.62	0	954928..955686	+	252	82750626	-	SAB0880	-	hypothetical protein
848	 34.31	0	955880..956389	+	169	82750627	-	SAB0881	-	hypothetical protein
849	 32.24	0	956502..957692	-	396	82750628	-	SAB0882c	-	hypothetical protein
850	 32.57	0	957670..958845	-	391	82750629	-	SAB0883c	-	diacylglycerol glucosyltransferase
851	 37.17	+1	959278..960762	+	494	82750630	murE	SAB0884	-	UDP-N-acetylmuramoylalanyl-D-glutamate 2,6-diaminopimelate ligase
852	 30.95	0	960752..961003	+	83	82750631	-	SAB0885	-	hypothetical protein
853	 34.29	0	961003..962565	+	520	82750632	prfC	SAB0886	-	peptide chain release factor 3
854	 36.82	+1	962867..963670	+	267	82750633	-	SAB0887	-	toxic anion resistance membrane protein
855	 31.17	0	963904..966213	+	769	82750634	-	SAB0888	-	serine proteinase
856	 32.01	0	966230..967588	+	452	82750635	-	SAB0889	-	Na+ transporting ATP synthase
857	 32.21	0	967724..969238	+	504	82750636	-	SAB0890	-	5' nucleotidase
858	 30.35	0	969737..970306	-	189	82750637	-	SAB0891c	-	transcription factor
859	 34.21	0	970507..970734	+	75	82750638	-	SAB0892	-	hypothetical protein
860	 30.50	0	970815..971801	-	328	82750639	-	SAB0893c	-	lipoate-protein ligase A
861	 27.53	-1	972191..972793	+	200	82750640	-	SAB0894	-	hypothetical protein
862	 26.77	-1	974136..976100	+	654	82750641	-	SAB0896	-	hypothetical protein
863	 29.94	0	976103..976426	+	107	82750642	-	SAB0897	-	hypothetical protein
864	 28.45	-1	976468..977061	+	197	82750643	-	SAB0898	-	ABC transporter ATP-binding protein
865	 26.46	-1	977149..977439	-	96	82750644	-	SAB0899c	-	hypothetical protein
866	 25.35	-2	977772..978059	+	95	82750645	-	SAB0900	-	hypothetical protein
867	 26.99	-1	978065..979546	+	493	82750646	-	SAB0901	-	glycosyl transferase
868	 33.93	0	979690..980364	-	224	82750647	-	SAB0902c	-	transposase
33.03	MEAN

3.30	STD DEV
