IslandPath Analysis: Staphylococcus aureus RF122

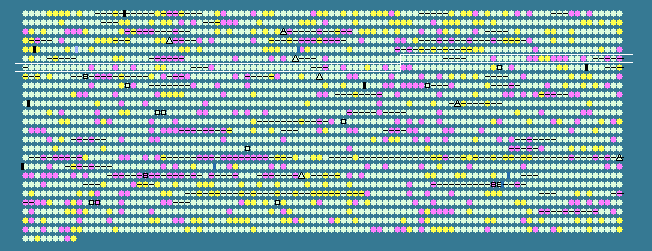

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
564	 32.11	0	654378..655439	+	353	82750343	-	SAB0590	-	teichoic acid biosynthesis enzyme
565	 32.58	0	655502..655900	+	132	82750344	tagD	SAB0591	-	glycerol-3-phosphate cytidylyltransferase
566	 34.57	0	656017..657312	-	431	82750345	pbp4	SAB0592c	-	penicillin binding protein 4
567	 33.10	0	657733..659460	+	575	82750346	-	SAB0593	-	ATP-binding cassette transporter A
568	 34.31	0	659815..661044	+	409	82750347	-	SAB0594	-	nucleoside transport protein
569	 33.57	0	661569..662402	+	277	82750348	-	SAB0595	-	hypothetical protein
570	 34.71	0	662682..663479	+	265	82750349	fhuA	SAB0596	-	ferrichrome transport ATP-binding protein
571	 36.02	0	663515..664519	+	334	82750350	fhuB	SAB0597	-	ferrichrome transport permease
572	 35.59	0	664516..665532	+	338	82750351	fhuD	SAB0598	-	ferrichrome transport permease
573	 35.09	0	665766..666734	+	322	82750352	-	SAB0599	-	dihydroxyacetone kinase
574	 35.38	0	666776..667360	+	194	82750353	-	SAB0600	-	dihydroxyacetone kinase
575	 34.71	0	667353..667715	+	120	82750354	-	SAB0601	-	hypothetical protein
576	 32.53	0	667831..668328	+	165	82750355	-	SAB0602	-	hypothetical protein
577	 32.96	0	668785..669852	+	355	82750356	-	SAB0603	-	hypothetical protein
578	 30.56	0	670003..671046	+	347	82750357	-	SAB0604	-	lipase
579	 27.51	-1	671375..671803	+	142	82750358	-	SAB0605	-	hypothetical protein
580	 33.93	0	672010..672516	-	168	82750359	-	SAB0606c	-	hypothetical protein
581	 31.39	0	672629..673552	+	307	82750360	-	SAB0607	-	hypothetical protein
582	 30.22	0	673568..674242	+	224	82750361	-	SAB0608	-	two-component response regulator
583	 30.36	0	674235..675275	+	346	82750362	-	SAB0609	-	two-component sensor histidine kinase
584	 31.36	0	675419..676180	+	253	82750363	-	SAB0610	-	ATP-binding ABC transport protein
585	 28.73	-1	676170..678059	+	629	82750364	-	SAB0611	-	ABC transporter permease
586	 28.16	-1	678784..679401	+	205	82750365	-	SAB0612	-	hypothetical protein
587	 36.90	+1	679417..680424	+	335	82750366	-	SAB0613	-	low-affinity inorganic phosphate transporter
588	 37.84	+1	681011..681808	-	265	82750367	-	SAB0614c	-	secretory antigen SsaA-like protein
589	 29.30	-1	682169..682813	+	214	82750368	-	SAB0615	-	hypothetical protein
590	 26.82	-1	683507..685657	+	716	82750369	-	SAB0616	-	transcriptional regulator
591	 25.12	-2	685737..686162	+	141	82750370	-	SAB0617	-	hypothetical protein
592	 35.98	0	686352..687068	+	238	82750371	-	SAB0618	-	hypothetical protein
593	 33.54	0	687068..687541	+	157	82750372	-	SAB0619	-	hypothetical protein
594	 29.15	-1	687894..688538	+	214	82750373	-	SAB0620	-	hypothetical protein
595	 32.64	0	688654..689520	+	288	82750374	-	SAB0621	-	LysR family transcriptional regulator
596	 32.19	0	689654..690874	+	406	82750375	-	SAB0622	-	sugar efflux transporter
597	 30.27	0	690871..691359	+	162	82750376	-	SAB0623	-	hypothetical protein
598	 27.97	-1	691458..692147	-	229	82750377	-	SAB0624c	-	hypothetical protein
599	 29.73	0	692274..692717	+	147	82750378	-	SAB0625	-	hypothetical protein
600	 29.23	-1	692790..693179	+	129	82750379	-	SAB0626	-	hypothetical protein
601	 33.33	0	693317..693616	+	99	82750380	-	SAB0627	-	hypothetical protein
602	 33.70	0	693696..694238	+	180	82750381	-	SAB0628	-	hypothetical protein
603	 36.33	+1	694334..694900	-	188	82750382	-	SAB0629c	-	hypothetical protein
604	 33.55	0	694902..695360	-	152	82750383	-	SAB0630c	-	hypothetical protein
605	 30.37	0	695369..696178	-	269	82750384	-	SAB0631c	-	hypothetical protein
606	 32.99	0	696217..697092	-	291	82750385	bacA	SAB0632c	-	undecaprenyl pyrophosphate phosphatase
607	 31.92	0	697311..698942	+	543	82750386	-	SAB0633	-	ABC transporter ATP-binding protein
608	 32.74	0	698939..700612	+	557	82750387	-	SAB0634	-	ABC transporter ATP-binding protein
609	 32.88	0	700739..701182	-	147	82750388	-	SAB0635c	-	MarR family transcriptional regulator
610	 31.28	0	701409..702335	+	308	82750389	-	SAB0636	-	cobalamin synthesis-related protein
611	 33.99	0	702438..703346	+	302	82750390	-	SAB0637	-	oxidoreductase
612	 27.08	-1	703381..703668	+	95	82750391	-	SAB0638	-	hypothetical protein
613	 35.01	0	703951..705504	+	517	82750392	-	SAB0639	-	membrane transporter
614	 32.39	0	705584..706963	+	459	82750393	-	SAB0640	-	DNA photolyase
615	 29.82	0	707035..707319	-	94	82750394	-	SAB0641c	-	hypothetical protein
616	 27.67	-1	707316..707933	-	205	82750395	-	SAB0642c	-	hypothetical protein
617	 32.15	0	708120..708542	-	140	82750396	-	SAB0643c	-	hypothetical protein
618	 32.73	0	708751..709917	+	388	82750397	norA	SAB0644	-	quinolone resistance protein
619	 27.37	-1	710210..710662	+	150	82750398	-	SAB0645	-	hypothetical protein
620	 35.40	0	710836..711318	+	160	82750399	-	SAB0646	-	transcriptional regulator protein
621	 31.89	0	711571..712332	+	253	82750400	-	SAB0647	-	transcriptional repressor of fructose operon
622	 36.26	0	712329..713249	+	306	82750401	-	SAB0648	-	fructose 1-phosphate kinase
623	 37.15	+1	713255..715219	+	654	82750402	fruA	SAB0649	-	fructose specific permease
624	 36.63	+1	715528..716709	+	393	82750403	-	SAB0650	-	N-acetylglucosamine-6-phosphate deacetylase
625	 32.52	0	716930..718279	+	449	82750404	-	SAB0651	-	magnesium and cobalt efflux protein
626	 32.14	0	718501..719340	+	279	82750405	-	SAB0652	-	oxidoreductase
627	 30.59	0	719472..720455	+	327	82750406	-	SAB0653	-	bactoprenol glucosyl transferase or stress response regulator
628	 30.40	0	720527..721582	-	351	82750407	saeS	SAB0654c	-	histidine protein kinase
629	 32.61	0	721582..722268	-	228	82750408	saeR	SAB0655c	-	response regulator
630	 33.76	0	722243..722716	-	157	82750409	-	SAB0656c	-	hypothetical protein
631	 30.84	0	723058..723498	-	146	82750410	-	SAB0657c	-	hypothetical protein
632	 25.64	-2	723778..724362	-	194	82750411	-	SAB0658c	-	hypothetical protein
633	 36.13	0	724461..725174	-	237	82750412	-	SAB0659c	-	coenzyme PQQ synthesis-like protein
634	 32.62	0	725178..725597	-	139	82750413	-	SAB0660c	-	6-pyruvoyl tetrahydrobiopterin synthase
635	 34.68	0	725599..726267	-	222	82750414	-	SAB0661c	-	aluminum resistance protein
636	 33.50	0	726618..727211	+	197	82750415	-	SAB0662	-	anthranilate/para-aminobenzoate synthase component II
637	 32.13	0	727186..728346	+	386	82750416	-	SAB0663	-	anthranilate/para-aminobenzoate synthase component I
638	 31.53	0	728346..728954	+	202	82750417	-	SAB0664	-	anthranilate/para-aminobenzoate synthase component I
639	 31.88	0	729020..729226	+	68	82750418	-	SAB0665	-	hypothetical protein
640	 29.82	0	729314..730024	+	236	82750419	-	SAB0666	-	hypothetical protein
641	 34.03	0	730008..731012	+	334	82750420	-	SAB0667	-	hypothetical protein
642	 31.17	0	731486..733426	+	646	82750421	-	SAB0668	-	transmembrane sulfatase
643	 33.01	0	733697..735580	+	627	82750422	-	SAB0669	-	ATP-binding ABC transporter protein
644	 32.10	0	735592..737373	+	593	82750423	-	SAB0670	-	ATP-dependent DNA helicase
645	 33.23	0	737595..738572	+	325	82750424	-	SAB0671	-	glycine betaine/carnitine/choline ATP-binding ABC transport protein
646	 31.55	0	738565..740079	+	504	82750425	-	SAB0672	-	glycine betaine/carnitine/choline ATP-binding ABC transport protein
647	 33.52	0	740318..741376	+	352	82750426	-	SAB0673	-	histidinol-phosphate aminotransferase
648	 32.41	0	741534..742076	+	180	82750427	-	SAB0674	-	hypothetical protein
649	 31.48	0	742682..743599	-	305	82750428	-	SAB0675c	-	multidrug resistance protein
650	 34.40	0	743881..745386	-	501	82750429	-	SAB0676c	-	peptide ABC transporter
651	 22.81	-2	745469..745696	-	75	82750430	-	SAB0677c	-	hypothetical protein
652	 32.93	0	745726..746226	-	166	82750431	-	SAB0678c	-	7-cyano-7-deazaguanine reductase
653	 33.22	0	746246..747112	-	288	82750432	-	SAB0679c	-	hypothetical protein
654	 23.97	-2	747497..747763	+	88	82750433	-	SAB0680	-	hypothetical protein
655	 34.09	0	747913..748311	+	132	82750434	nrdI	SAB0681	-	ribonucleotide reductase stimulatory protein
656	 32.90	0	748283..750379	+	698	82750435	rir1	SAB0682	-	ribonucleotide-diphosphate reductase subunit alpha
657	 32.72	0	750497..751468	+	323	82750436	nrdF	SAB0683	-	ribonucleotide-diphosphate reductase subunit beta
658	 41.79	+2	751533..751733	+	66	82750437	-	SAB0684	-	hypothetical protein
659	 32.30	0	752103..753074	+	323	82750438	sstA	SAB0685	-	FecCD family ferrichrome transporter permease
660	 29.69	-1	753086..754018	+	310	82750439	sstB	SAB0686	-	FecCD family ferrichrome ATP-binding ABC transporter
661	 29.54	-1	754893..755894	+	333	82750440	sstD	SAB0688	-	ferrichrome ABC transporter lipoprotein
662	 32.70	0	756155..756469	-	104	82750441	-	SAB0689c	-	hypothetical protein
663	 35.06	0	756487..757410	-	307	82750442	-	SAB0690c	-	UDP-N-acetylenolpyruvoylglucosamine reductase
33.03	MEAN

3.30	STD DEV
