IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

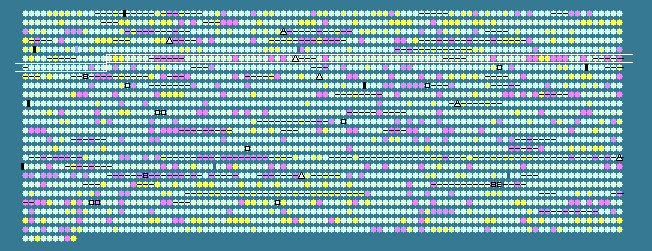

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
515	 33.81	0	603336..604172	+	278	82750294	-	SAB0539	-	lipoate-protein ligase A protein
516	 38.11	+1	604759..605679	+	306	82750295	mvaK1	SAB0540	-	mevalonate kinase
517	 36.99	+1	605684..606667	+	327	82750296	mvaD	SAB0541	-	mevalonate diphosphate decarboxylase
518	 33.52	0	606680..607756	+	358	82750297	mvaK2	SAB0542	-	phosphomevalonate kinase
519	 35.09	0	607933..608274	+	113	82750298	-	SAB0543	-	hypothetical protein
520	 34.92	0	608326..609648	-	440	82750299	-	SAB0544c	-	mercury(II) reductase
521	 32.20	0	609635..610075	-	146	82750300	-	SAB0545c	-	hypothetical protein
522	 34.76	0	610699..612096	+	465	82750301	-	SAB0546	-	hypothetical protein
523	 25.87	-2	612100..612729	+	209	82750302	-	SAB0547	-	hypothetical protein
524	 26.83	-1	613195..613824	+	209	82750303	-	SAB0548	-	hypothetical protein
525	 23.68	-2	614042..614590	+	182	82750304	-	SAB0549	-	hypothetical protein
526	 25.78	-2	614627..615169	+	180	82750305	-	SAB0550	-	hypothetical protein
527	 25.84	-2	615494..616120	+	208	82750306	-	SAB0551	-	hypothetical protein
528	 34.61	0	616390..617328	+	312	82750307	-	SAB0552	-	oxidoreductase
529	 34.82	0	617538..618074	+	178	82750308	-	SAB0553	-	hypothetical protein
530	 31.45	0	618243..618719	+	158	82750309	-	SAB0554	-	hypothetical protein
531	 32.87	0	618759..620054	+	431	82750310	-	SAB0555	-	hypothetical protein
532	 32.74	0	620097..620603	+	168	82750311	-	SAB0556	-	hypothetical protein
533	 36.20	0	621102..622112	+	336	82750312	adhA	SAB0557	-	alcohol dehydrogenase
534	 31.70	0	622375..622803	+	142	82750313	-	SAB0558	-	hypothetical protein
535	 33.09	0	622800..624461	+	553	82750314	argS	SAB0559	-	arginyl-tRNA synthetase
536	 28.46	-1	626171..626806	+	211	82750315	-	SAB0561	-	DNA repair endonuclease
537	 31.76	0	627054..627941	+	295	82750316	-	SAB0562	-	iron-binding transport protein
538	 31.76	0	628092..629042	+	316	82750317	-	SAB0563	-	iron(III) ABC transporter permease protein
539	 30.56	0	629097..629816	+	239	82750318	-	SAB0564	-	haloacid dehalogenase hydrolase
540	 32.21	0	629800..630600	+	266	82750319	-	SAB0565	-	hydrolase
541	 31.36	0	630736..631242	+	168	82750320	-	SAB0566	-	hypothetical protein
542	 26.22	-2	631404..632120	+	238	82750321	-	SAB0567	-	hypothetical protein
543	 30.16	0	632288..633076	+	262	82750322	-	SAB0568	-	esterase or lipase
544	 27.47	-1	633329..633703	-	124	82750323	sarA	SAB0569c	-	staphylococcal accessory regulator A
545	 30.86	0	634651..635580	-	309	82750324	-	SAB0570c	-	hypothetical protein
546	 30.12	0	636378..636938	+	186	82750325	-	SAB0572	-	phage recombinase/integrase
547	 32.13	0	636957..639359	+	800	82750326	-	SAB0573	-	putative monovalent cation/H+ antiporter subunit A
548	 32.63	0	639346..639771	+	141	82750327	-	SAB0574	-	putative monovalent cation/H+ antiporter subunit B
549	 30.72	0	639768..640112	+	114	82750328	-	SAB0575	-	putative monovalent cation/H+ antiporter subunit C
550	 33.47	0	640102..641598	+	498	82750329	-	SAB0576	-	putative monovalent cation/H+ antiporter subunit D
551	 26.50	-1	641599..642081	+	160	82750330	-	SAB0577	-	putative monovalent cation/H+ antiporter subunit E
552	 33.00	0	642078..642380	+	100	82750331	-	SAB0578	-	putative monovalent cation/H+ antiporter subunit F
553	 33.33	0	642355..642792	+	145	82750332	-	SAB0579	-	putative monovalent cation/H+ antiporter subunit G
554	 31.72	0	643132..645174	+	680	82750333	-	SAB0580	-	sodium-hydrogen exhange family protein
555	 31.72	0	646068..646997	-	309	82750334	mntC	SAB0581c	-	iron-repressed lipoprotein
556	 32.14	0	646994..647830	-	278	82750335	mntB	SAB0582c	-	cation ABC transporter
557	 33.33	0	647824..648567	-	247	82750336	mntA	SAB0583c	-	cation ATP-binding ABC transporter
558	 30.70	0	648689..649333	+	214	82750337	mntR	SAB0584	-	iron dependent repressor
559	 30.41	0	649413..650165	-	250	82750338	-	SAB0585c	-	hypothetical protein
560	 34.12	0	650401..651165	+	254	82750339	tagA	SAB0586	-	teichoic acid biosynthesis protein
561	 34.07	0	651226..652041	-	271	82750340	tagH	SAB0587c	-	teichoic acids export protein ATP-binding subunit
562	 31.18	0	652346..653179	+	277	82750341	tagG	SAB0588	-	teichoic acid translocation permease protein
563	 32.25	0	653278..654381	+	367	82750342	tagB	SAB0589	-	teichoic acid biosynthesis protein
564	 32.11	0	654378..655439	+	353	82750343	-	SAB0590	-	teichoic acid biosynthesis enzyme
565	 32.58	0	655502..655900	+	132	82750344	tagD	SAB0591	-	glycerol-3-phosphate cytidylyltransferase
566	 34.57	0	656017..657312	-	431	82750345	pbp4	SAB0592c	-	penicillin binding protein 4
567	 33.10	0	657733..659460	+	575	82750346	-	SAB0593	-	ATP-binding cassette transporter A
568	 34.31	0	659815..661044	+	409	82750347	-	SAB0594	-	nucleoside transport protein
569	 33.57	0	661569..662402	+	277	82750348	-	SAB0595	-	hypothetical protein
570	 34.71	0	662682..663479	+	265	82750349	fhuA	SAB0596	-	ferrichrome transport ATP-binding protein
571	 36.02	0	663515..664519	+	334	82750350	fhuB	SAB0597	-	ferrichrome transport permease
572	 35.59	0	664516..665532	+	338	82750351	fhuD	SAB0598	-	ferrichrome transport permease
573	 35.09	0	665766..666734	+	322	82750352	-	SAB0599	-	dihydroxyacetone kinase
574	 35.38	0	666776..667360	+	194	82750353	-	SAB0600	-	dihydroxyacetone kinase
575	 34.71	0	667353..667715	+	120	82750354	-	SAB0601	-	hypothetical protein
576	 32.53	0	667831..668328	+	165	82750355	-	SAB0602	-	hypothetical protein
577	 32.96	0	668785..669852	+	355	82750356	-	SAB0603	-	hypothetical protein
578	 30.56	0	670003..671046	+	347	82750357	-	SAB0604	-	lipase
579	 27.51	-1	671375..671803	+	142	82750358	-	SAB0605	-	hypothetical protein
580	 33.93	0	672010..672516	-	168	82750359	-	SAB0606c	-	hypothetical protein
581	 31.39	0	672629..673552	+	307	82750360	-	SAB0607	-	hypothetical protein
582	 30.22	0	673568..674242	+	224	82750361	-	SAB0608	-	two-component response regulator
583	 30.36	0	674235..675275	+	346	82750362	-	SAB0609	-	two-component sensor histidine kinase
584	 31.36	0	675419..676180	+	253	82750363	-	SAB0610	-	ATP-binding ABC transport protein
585	 28.73	-1	676170..678059	+	629	82750364	-	SAB0611	-	ABC transporter permease
586	 28.16	-1	678784..679401	+	205	82750365	-	SAB0612	-	hypothetical protein
587	 36.90	+1	679417..680424	+	335	82750366	-	SAB0613	-	low-affinity inorganic phosphate transporter
588	 37.84	+1	681011..681808	-	265	82750367	-	SAB0614c	-	secretory antigen SsaA-like protein
589	 29.30	-1	682169..682813	+	214	82750368	-	SAB0615	-	hypothetical protein
590	 26.82	-1	683507..685657	+	716	82750369	-	SAB0616	-	transcriptional regulator
591	 25.12	-2	685737..686162	+	141	82750370	-	SAB0617	-	hypothetical protein
592	 35.98	0	686352..687068	+	238	82750371	-	SAB0618	-	hypothetical protein
593	 33.54	0	687068..687541	+	157	82750372	-	SAB0619	-	hypothetical protein
594	 29.15	-1	687894..688538	+	214	82750373	-	SAB0620	-	hypothetical protein
595	 32.64	0	688654..689520	+	288	82750374	-	SAB0621	-	LysR family transcriptional regulator
596	 32.19	0	689654..690874	+	406	82750375	-	SAB0622	-	sugar efflux transporter
597	 30.27	0	690871..691359	+	162	82750376	-	SAB0623	-	hypothetical protein
598	 27.97	-1	691458..692147	-	229	82750377	-	SAB0624c	-	hypothetical protein
599	 29.73	0	692274..692717	+	147	82750378	-	SAB0625	-	hypothetical protein
600	 29.23	-1	692790..693179	+	129	82750379	-	SAB0626	-	hypothetical protein
601	 33.33	0	693317..693616	+	99	82750380	-	SAB0627	-	hypothetical protein
602	 33.70	0	693696..694238	+	180	82750381	-	SAB0628	-	hypothetical protein
603	 36.33	+1	694334..694900	-	188	82750382	-	SAB0629c	-	hypothetical protein
604	 33.55	0	694902..695360	-	152	82750383	-	SAB0630c	-	hypothetical protein
605	 30.37	0	695369..696178	-	269	82750384	-	SAB0631c	-	hypothetical protein
606	 32.99	0	696217..697092	-	291	82750385	bacA	SAB0632c	-	undecaprenyl pyrophosphate phosphatase
607	 31.92	0	697311..698942	+	543	82750386	-	SAB0633	-	ABC transporter ATP-binding protein
608	 32.74	0	698939..700612	+	557	82750387	-	SAB0634	-	ABC transporter ATP-binding protein
609	 32.88	0	700739..701182	-	147	82750388	-	SAB0635c	-	MarR family transcriptional regulator
610	 31.28	0	701409..702335	+	308	82750389	-	SAB0636	-	cobalamin synthesis-related protein
611	 33.99	0	702438..703346	+	302	82750390	-	SAB0637	-	oxidoreductase
612	 27.08	-1	703381..703668	+	95	82750391	-	SAB0638	-	hypothetical protein
613	 35.01	0	703951..705504	+	517	82750392	-	SAB0639	-	membrane transporter
614	 32.39	0	705584..706963	+	459	82750393	-	SAB0640	-	DNA photolyase
33.03	MEAN

3.30	STD DEV
