IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

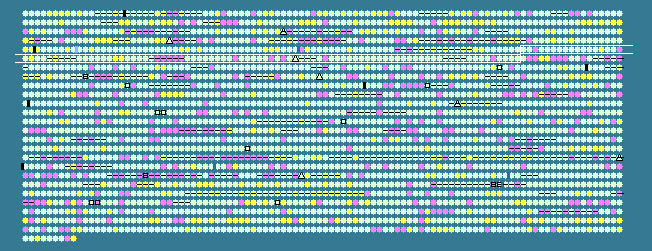

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
484	 34.06	0	569118..569801	+	227	82750263	-	SAB0506	-	hypothetical protein
485	 31.52	0	569917..570579	-	220	82750264	-	SAB0507c	-	deoxypurine kinase subunit
486	 26.38	-2	570572..571189	-	205	82750265	-	SAB0508c	-	deoxypurine kinase subunit
487	 33.79	0	571874..572743	+	289	82750266	-	SAB0510	-	hypothetical protein
488	 30.69	0	572763..573329	+	188	82750267	-	SAB0511	-	hypothetical protein
489	 33.69	0	577061..580402	+	1113	82750268	-	SAB0513	-	Ser-Asp rich fibrinogen-binding/bone sialoprotein-binding protein
490	 30.89	0	580521..581993	+	490	82750269	-	SAB0514	-	poly(glycerol-phosphate) alpha-glucosyltransferase
491	 30.72	0	582117..583610	-	497	82750270	-	SAB0515c	-	poly(glycerol-phosphate) alpha-glucosyltransferase
492	 34.81	0	583893..584771	-	292	82750271	-	SAB0516c	-	putative GTP cyclohydrolase
493	 36.04	0	584784..585449	-	221	82750272	-	SAB0517c	-	hypothetical protein
494	 34.72	0	585463..585822	-	119	82750273	-	SAB0518c	-	hypothetical protein
495	 34.12	0	586101..586859	+	252	82750274	-	SAB0519	-	glucosamine-6-phosphate deaminase
496	 34.60	0	586936..587568	+	210	82750275	-	SAB0520	-	3-hexulose-6-phosphate synthase
497	 36.79	+1	587570..588118	+	182	82750276	-	SAB0521	-	6-phospho-3-hexuloisomerase
498	 34.88	0	588231..588878	+	215	82750277	-	SAB0522	-	hypothetical protein
499	 34.33	0	589380..590780	+	466	82750278	proP	SAB0523	-	proline/betaine transporter
500	 28.64	-1	591030..591242	+	70	82750279	-	SAB0524	-	hypothetical protein
501	 32.03	0	591323..592699	+	458	82750280	-	SAB0525	-	long chain fatty acid CoA ligase
502	 38.25	+1	592701..593840	+	379	82750281	-	SAB0526	-	acetyl-CoA c-acetyltransferase
503	 32.51	0	593815..594180	+	121	82750282	-	SAB0527	-	hypothetical protein
504	 31.54	0	594183..594461	+	92	82750283	-	SAB0528	-	hypothetical protein
505	 29.76	0	594652..594819	-	55	82750284	-	SAB0529c	-	hypothetical protein
506	 37.91	+1	595352..596182	-	276	82750285	-	SAB0530c	-	phosphomethylpyrimidine kinase
507	 35.01	0	596366..597022	+	218	82750286	ung	SAB0531	-	uracil-DNA glycosylase
508	 35.96	0	597023..597403	+	126	82750287	-	SAB0532	-	hypothetical protein
509	 33.06	0	597536..597904	+	122	82750288	-	SAB0533	-	hypothetical protein
510	 35.76	0	598025..599509	+	494	82750289	-	SAB0534	-	amino acid transporter
511	 35.32	0	599651..600103	-	150	82750290	-	SAB0535c	-	hypothetical protein
512	 36.47	+1	600116..600880	-	254	82750291	-	SAB0536c	-	hypothetical protein
513	 33.86	0	601427..602179	-	250	82750292	-	SAB0537c	-	putative heme peroxidase
514	 36.47	+1	602347..603333	+	328	82750293	eutD	SAB0538	-	phosphotransacetylase
515	 33.81	0	603336..604172	+	278	82750294	-	SAB0539	-	lipoate-protein ligase A protein
516	 38.11	+1	604759..605679	+	306	82750295	mvaK1	SAB0540	-	mevalonate kinase
517	 36.99	+1	605684..606667	+	327	82750296	mvaD	SAB0541	-	mevalonate diphosphate decarboxylase
518	 33.52	0	606680..607756	+	358	82750297	mvaK2	SAB0542	-	phosphomevalonate kinase
519	 35.09	0	607933..608274	+	113	82750298	-	SAB0543	-	hypothetical protein
520	 34.92	0	608326..609648	-	440	82750299	-	SAB0544c	-	mercury(II) reductase
521	 32.20	0	609635..610075	-	146	82750300	-	SAB0545c	-	hypothetical protein
522	 34.76	0	610699..612096	+	465	82750301	-	SAB0546	-	hypothetical protein
523	 25.87	-2	612100..612729	+	209	82750302	-	SAB0547	-	hypothetical protein
524	 26.83	-1	613195..613824	+	209	82750303	-	SAB0548	-	hypothetical protein
525	 23.68	-2	614042..614590	+	182	82750304	-	SAB0549	-	hypothetical protein
526	 25.78	-2	614627..615169	+	180	82750305	-	SAB0550	-	hypothetical protein
527	 25.84	-2	615494..616120	+	208	82750306	-	SAB0551	-	hypothetical protein
528	 34.61	0	616390..617328	+	312	82750307	-	SAB0552	-	oxidoreductase
529	 34.82	0	617538..618074	+	178	82750308	-	SAB0553	-	hypothetical protein
530	 31.45	0	618243..618719	+	158	82750309	-	SAB0554	-	hypothetical protein
531	 32.87	0	618759..620054	+	431	82750310	-	SAB0555	-	hypothetical protein
532	 32.74	0	620097..620603	+	168	82750311	-	SAB0556	-	hypothetical protein
533	 36.20	0	621102..622112	+	336	82750312	adhA	SAB0557	-	alcohol dehydrogenase
534	 31.70	0	622375..622803	+	142	82750313	-	SAB0558	-	hypothetical protein
535	 33.09	0	622800..624461	+	553	82750314	argS	SAB0559	-	arginyl-tRNA synthetase
536	 28.46	-1	626171..626806	+	211	82750315	-	SAB0561	-	DNA repair endonuclease
537	 31.76	0	627054..627941	+	295	82750316	-	SAB0562	-	iron-binding transport protein
538	 31.76	0	628092..629042	+	316	82750317	-	SAB0563	-	iron(III) ABC transporter permease protein
539	 30.56	0	629097..629816	+	239	82750318	-	SAB0564	-	haloacid dehalogenase hydrolase
540	 32.21	0	629800..630600	+	266	82750319	-	SAB0565	-	hydrolase
541	 31.36	0	630736..631242	+	168	82750320	-	SAB0566	-	hypothetical protein
542	 26.22	-2	631404..632120	+	238	82750321	-	SAB0567	-	hypothetical protein
543	 30.16	0	632288..633076	+	262	82750322	-	SAB0568	-	esterase or lipase
544	 27.47	-1	633329..633703	-	124	82750323	sarA	SAB0569c	-	staphylococcal accessory regulator A
545	 30.86	0	634651..635580	-	309	82750324	-	SAB0570c	-	hypothetical protein
546	 30.12	0	636378..636938	+	186	82750325	-	SAB0572	-	phage recombinase/integrase
547	 32.13	0	636957..639359	+	800	82750326	-	SAB0573	-	putative monovalent cation/H+ antiporter subunit A
548	 32.63	0	639346..639771	+	141	82750327	-	SAB0574	-	putative monovalent cation/H+ antiporter subunit B
549	 30.72	0	639768..640112	+	114	82750328	-	SAB0575	-	putative monovalent cation/H+ antiporter subunit C
550	 33.47	0	640102..641598	+	498	82750329	-	SAB0576	-	putative monovalent cation/H+ antiporter subunit D
551	 26.50	-1	641599..642081	+	160	82750330	-	SAB0577	-	putative monovalent cation/H+ antiporter subunit E
552	 33.00	0	642078..642380	+	100	82750331	-	SAB0578	-	putative monovalent cation/H+ antiporter subunit F
553	 33.33	0	642355..642792	+	145	82750332	-	SAB0579	-	putative monovalent cation/H+ antiporter subunit G
554	 31.72	0	643132..645174	+	680	82750333	-	SAB0580	-	sodium-hydrogen exhange family protein
555	 31.72	0	646068..646997	-	309	82750334	mntC	SAB0581c	-	iron-repressed lipoprotein
556	 32.14	0	646994..647830	-	278	82750335	mntB	SAB0582c	-	cation ABC transporter
557	 33.33	0	647824..648567	-	247	82750336	mntA	SAB0583c	-	cation ATP-binding ABC transporter
558	 30.70	0	648689..649333	+	214	82750337	mntR	SAB0584	-	iron dependent repressor
559	 30.41	0	649413..650165	-	250	82750338	-	SAB0585c	-	hypothetical protein
560	 34.12	0	650401..651165	+	254	82750339	tagA	SAB0586	-	teichoic acid biosynthesis protein
561	 34.07	0	651226..652041	-	271	82750340	tagH	SAB0587c	-	teichoic acids export protein ATP-binding subunit
562	 31.18	0	652346..653179	+	277	82750341	tagG	SAB0588	-	teichoic acid translocation permease protein
563	 32.25	0	653278..654381	+	367	82750342	tagB	SAB0589	-	teichoic acid biosynthesis protein
564	 32.11	0	654378..655439	+	353	82750343	-	SAB0590	-	teichoic acid biosynthesis enzyme
565	 32.58	0	655502..655900	+	132	82750344	tagD	SAB0591	-	glycerol-3-phosphate cytidylyltransferase
566	 34.57	0	656017..657312	-	431	82750345	pbp4	SAB0592c	-	penicillin binding protein 4
567	 33.10	0	657733..659460	+	575	82750346	-	SAB0593	-	ATP-binding cassette transporter A
568	 34.31	0	659815..661044	+	409	82750347	-	SAB0594	-	nucleoside transport protein
569	 33.57	0	661569..662402	+	277	82750348	-	SAB0595	-	hypothetical protein
570	 34.71	0	662682..663479	+	265	82750349	fhuA	SAB0596	-	ferrichrome transport ATP-binding protein
571	 36.02	0	663515..664519	+	334	82750350	fhuB	SAB0597	-	ferrichrome transport permease
572	 35.59	0	664516..665532	+	338	82750351	fhuD	SAB0598	-	ferrichrome transport permease
573	 35.09	0	665766..666734	+	322	82750352	-	SAB0599	-	dihydroxyacetone kinase
574	 35.38	0	666776..667360	+	194	82750353	-	SAB0600	-	dihydroxyacetone kinase
575	 34.71	0	667353..667715	+	120	82750354	-	SAB0601	-	hypothetical protein
576	 32.53	0	667831..668328	+	165	82750355	-	SAB0602	-	hypothetical protein
577	 32.96	0	668785..669852	+	355	82750356	-	SAB0603	-	hypothetical protein
578	 30.56	0	670003..671046	+	347	82750357	-	SAB0604	-	lipase
579	 27.51	-1	671375..671803	+	142	82750358	-	SAB0605	-	hypothetical protein
580	 33.93	0	672010..672516	-	168	82750359	-	SAB0606c	-	hypothetical protein
581	 31.39	0	672629..673552	+	307	82750360	-	SAB0607	-	hypothetical protein
582	 30.22	0	673568..674242	+	224	82750361	-	SAB0608	-	two-component response regulator
583	 30.36	0	674235..675275	+	346	82750362	-	SAB0609	-	two-component sensor histidine kinase
33.03	MEAN

3.30	STD DEV
