IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

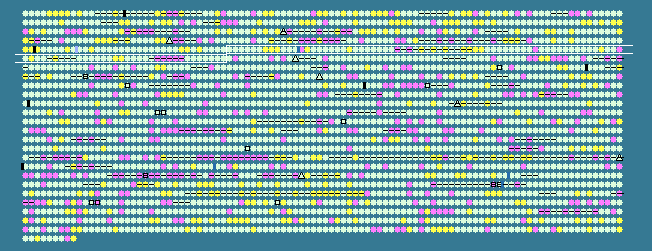

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
435	 34.85	0	504088..504351	+	87	82750213	-	SAB0455	-	hypothetical protein
436	 33.08	0	504369..504761	+	130	82750214	-	SAB0456	-	hypothetical protein
437	 33.83	0	504866..505267	+	133	82750215	-	SAB0457	-	hypothetical protein
438	 30.79	0	505447..506742	+	431	82750216	-	SAB0458	-	hypothetical protein
439	 30.74	0	506747..507286	+	179	82750217	hpt	SAB0459	-	hypoxanthine-guanine phosphoribosyltransferase
440	 35.63	0	507544..509637	+	697	82750218	ftsH	SAB0460	-	cell division protein
441	 36.62	+1	510107..510988	+	293	82750219	-	SAB0461	-	heat shock chaperonin protein 33
442	 37.51	+1	511167..512099	+	310	82750220	-	SAB0462	-	cysteine synthase
443	 36.94	+1	512315..513118	+	267	82750221	folP	SAB0463	-	dihydropteroate synthase
444	 35.52	0	513096..513461	+	121	82750222	folB	SAB0464	-	dihydroneopterin aldolase
445	 33.75	0	513458..513934	+	158	82750223	folK	SAB0465	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
446	 34.81	0	514473..515960	+	495	82750224	lysS	SAB0466	-	lysyl-tRNA synthetase
447	 29.36	-1	524654..526036	-	460	82750225	-	SAB0468c	-	GntR family transcriptional regulator
448	 39.50	+1	526153..527028	+	291	82750226	-	SAB0469	-	pyridoxine biosynthesis protein
449	 33.69	0	527032..527592	+	186	82750227	-	SAB0470	-	glutamine amidotransferase subunit PdxT
450	 33.25	0	527800..529014	-	404	82750228	nupC	SAB0471c	-	pyrimidine nucleoside transport protein
451	 31.60	0	529172..529633	+	153	82750229	-	SAB0472	-	transcriptional repressor of stress genes
452	 33.86	0	529652..530218	+	188	82750230	-	SAB0473	-	hypothetical protein
453	 32.34	0	530208..531215	+	335	82750231	-	SAB0474	-	ATP:guanido phosphotransferase
454	 34.19	0	531229..533685	+	818	82750232	clpC	SAB0475	-	endopeptidase
455	 37.07	+1	534176..535540	+	454	82750233	radA	SAB0476	-	DNA repair protein RadA
456	 30.45	0	535565..536638	+	357	82750234	-	SAB0477	-	hypothetical protein
457	 34.23	0	537195..538649	+	484	82750235	gltX	SAB0478	-	glutamyl-tRNA synthetase
458	 35.49	0	539073..539720	+	215	82750236	cysE	SAB0479	-	serine acetyltransferase
459	 32.76	0	539704..541104	+	466	82750237	cysS	SAB0480	-	cysteinyl-tRNA synthetase
460	 31.60	0	541097..541501	+	134	82750238	-	SAB0481	-	hypothetical protein
461	 35.21	0	541509..542255	+	248	82750239	-	SAB0482	-	tRNA/rRNA methyltransferase
462	 33.33	0	542255..542779	+	174	82750240	-	SAB0483	-	hypothetical protein
463	 28.07	-1	542860..543429	+	189	82750241	-	SAB0484	-	hypothetical protein
464	 32.64	0	543544..543687	+	47	82750242	rpmG	SAB0485	-	50S ribosomal protein L33
465	 28.96	-1	543743..543925	+	60	82750243	secE	SAB0486	-	preprotein translocase subunit SecE
466	 35.52	0	543938..544486	+	182	82750244	nusG	SAB0487	-	transcription antitermination protein
467	 38.53	+1	544667..545089	+	140	82750245	rplK	SAB0488	-	50S ribosomal protein L11
468	 36.51	+1	545297..545989	+	230	82750246	rplA	SAB0489	-	50S ribosomal protein L1
469	 37.13	+1	546261..546761	+	166	82750247	rplJ	SAB0490	-	50S ribosomal protein L10
470	 33.83	0	547344..547952	+	202	82750249	-	SAB0492	-	hypothetical protein
471	 37.73	+1	548167..551718	+	1183	82750250	rpoB	SAB0493	-	DNA-directed RNA polymerase subunit beta
472	 36.15	0	551855..555478	+	1207	82750251	rpoC	SAB0494	-	DNA-directed RNA polymerase subunit beta'
473	 31.85	0	555600..555869	+	89	82750252	-	SAB0495	-	putative ribosomal protein L7Ae-like
474	 37.44	+1	555967..556380	+	137	82750253	rpsL	SAB0496	-	30S ribosomal protein S12
475	 38.43	+1	556446..556916	+	156	82750254	rpsG	SAB0497	-	30S ribosomal protein S7
476	 39.10	+1	557039..559120	+	693	82750255	fus	SAB0498	-	elongation factor G
477	 40.51	+2	559337..560521	+	394	82750256	tuf	SAB0499	-	elongation factor Tu
478	 35.03	0	560803..561978	-	391	82750257	-	SAB0500c	-	N-acyl-L-amino acid amidohydrolase
479	 33.92	0	562149..563336	+	395	82750258	kbl	SAB0501	-	2-amino-3-ketobutyrate coenzyme A ligase
480	 34.58	0	563603..564481	+	292	82750259	-	SAB0502	-	chaperone protein HchA
481	 32.72	0	564640..566277	+	545	82750260	-	SAB0503	-	ribulokinase
482	 35.09	0	566491..567456	+	321	82750261	-	SAB0504	-	L-threonine 3-dehydrogenase
483	 35.00	0	567791..568867	+	358	82750262	-	SAB0505	-	branched-chain amino acid aminotransferase
484	 34.06	0	569118..569801	+	227	82750263	-	SAB0506	-	hypothetical protein
485	 31.52	0	569917..570579	-	220	82750264	-	SAB0507c	-	deoxypurine kinase subunit
486	 26.38	-2	570572..571189	-	205	82750265	-	SAB0508c	-	deoxypurine kinase subunit
487	 33.79	0	571874..572743	+	289	82750266	-	SAB0510	-	hypothetical protein
488	 30.69	0	572763..573329	+	188	82750267	-	SAB0511	-	hypothetical protein
489	 33.69	0	577061..580402	+	1113	82750268	-	SAB0513	-	Ser-Asp rich fibrinogen-binding/bone sialoprotein-binding protein
490	 30.89	0	580521..581993	+	490	82750269	-	SAB0514	-	poly(glycerol-phosphate) alpha-glucosyltransferase
491	 30.72	0	582117..583610	-	497	82750270	-	SAB0515c	-	poly(glycerol-phosphate) alpha-glucosyltransferase
492	 34.81	0	583893..584771	-	292	82750271	-	SAB0516c	-	putative GTP cyclohydrolase
493	 36.04	0	584784..585449	-	221	82750272	-	SAB0517c	-	hypothetical protein
494	 34.72	0	585463..585822	-	119	82750273	-	SAB0518c	-	hypothetical protein
495	 34.12	0	586101..586859	+	252	82750274	-	SAB0519	-	glucosamine-6-phosphate deaminase
496	 34.60	0	586936..587568	+	210	82750275	-	SAB0520	-	3-hexulose-6-phosphate synthase
497	 36.79	+1	587570..588118	+	182	82750276	-	SAB0521	-	6-phospho-3-hexuloisomerase
498	 34.88	0	588231..588878	+	215	82750277	-	SAB0522	-	hypothetical protein
499	 34.33	0	589380..590780	+	466	82750278	proP	SAB0523	-	proline/betaine transporter
500	 28.64	-1	591030..591242	+	70	82750279	-	SAB0524	-	hypothetical protein
501	 32.03	0	591323..592699	+	458	82750280	-	SAB0525	-	long chain fatty acid CoA ligase
502	 38.25	+1	592701..593840	+	379	82750281	-	SAB0526	-	acetyl-CoA c-acetyltransferase
503	 32.51	0	593815..594180	+	121	82750282	-	SAB0527	-	hypothetical protein
504	 31.54	0	594183..594461	+	92	82750283	-	SAB0528	-	hypothetical protein
505	 29.76	0	594652..594819	-	55	82750284	-	SAB0529c	-	hypothetical protein
506	 37.91	+1	595352..596182	-	276	82750285	-	SAB0530c	-	phosphomethylpyrimidine kinase
507	 35.01	0	596366..597022	+	218	82750286	ung	SAB0531	-	uracil-DNA glycosylase
508	 35.96	0	597023..597403	+	126	82750287	-	SAB0532	-	hypothetical protein
509	 33.06	0	597536..597904	+	122	82750288	-	SAB0533	-	hypothetical protein
510	 35.76	0	598025..599509	+	494	82750289	-	SAB0534	-	amino acid transporter
511	 35.32	0	599651..600103	-	150	82750290	-	SAB0535c	-	hypothetical protein
512	 36.47	+1	600116..600880	-	254	82750291	-	SAB0536c	-	hypothetical protein
513	 33.86	0	601427..602179	-	250	82750292	-	SAB0537c	-	putative heme peroxidase
514	 36.47	+1	602347..603333	+	328	82750293	eutD	SAB0538	-	phosphotransacetylase
515	 33.81	0	603336..604172	+	278	82750294	-	SAB0539	-	lipoate-protein ligase A protein
516	 38.11	+1	604759..605679	+	306	82750295	mvaK1	SAB0540	-	mevalonate kinase
517	 36.99	+1	605684..606667	+	327	82750296	mvaD	SAB0541	-	mevalonate diphosphate decarboxylase
518	 33.52	0	606680..607756	+	358	82750297	mvaK2	SAB0542	-	phosphomevalonate kinase
519	 35.09	0	607933..608274	+	113	82750298	-	SAB0543	-	hypothetical protein
520	 34.92	0	608326..609648	-	440	82750299	-	SAB0544c	-	mercury(II) reductase
521	 32.20	0	609635..610075	-	146	82750300	-	SAB0545c	-	hypothetical protein
522	 34.76	0	610699..612096	+	465	82750301	-	SAB0546	-	hypothetical protein
523	 25.87	-2	612100..612729	+	209	82750302	-	SAB0547	-	hypothetical protein
524	 26.83	-1	613195..613824	+	209	82750303	-	SAB0548	-	hypothetical protein
525	 23.68	-2	614042..614590	+	182	82750304	-	SAB0549	-	hypothetical protein
526	 25.78	-2	614627..615169	+	180	82750305	-	SAB0550	-	hypothetical protein
527	 25.84	-2	615494..616120	+	208	82750306	-	SAB0551	-	hypothetical protein
528	 34.61	0	616390..617328	+	312	82750307	-	SAB0552	-	oxidoreductase
529	 34.82	0	617538..618074	+	178	82750308	-	SAB0553	-	hypothetical protein
530	 31.45	0	618243..618719	+	158	82750309	-	SAB0554	-	hypothetical protein
531	 32.87	0	618759..620054	+	431	82750310	-	SAB0555	-	hypothetical protein
532	 32.74	0	620097..620603	+	168	82750311	-	SAB0556	-	hypothetical protein
533	 36.20	0	621102..622112	+	336	82750312	adhA	SAB0557	-	alcohol dehydrogenase
534	 31.70	0	622375..622803	+	142	82750313	-	SAB0558	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
