IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

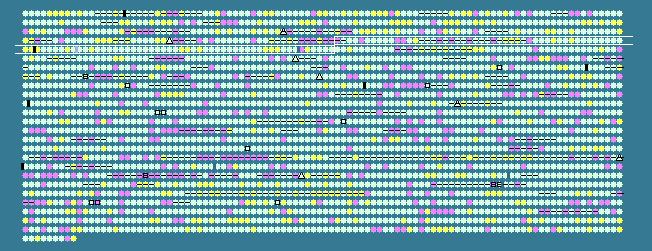

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
353	 28.43	-1	408681..409088	+	135	82750131	-	SAB0371	-	hypothetical protein
354	 32.71	0	409135..409617	+	160	82750132	-	SAB0372	-	hypothetical protein
355	 31.94	0	410029..410388	-	119	82750133	-	SAB0373c	-	hypothetical protein
356	 35.61	0	410464..411252	-	262	82750134	-	SAB0374c	-	hypothetical protein
357	 29.50	-1	411321..411581	-	86	82750135	-	SAB0375c	-	hypothetical protein
358	 31.42	0	411724..412404	+	226	82750136	set11	SAB0376	-	superantigen-like protein
359	 29.60	-1	412692..413387	+	231	82750137	set10	SAB0377	-	superantigen-like protein
360	 34.67	0	413678..414724	+	348	82750138	set9	SAB0378	-	superantigen-like protein
361	 30.57	0	415089..415739	+	216	82750139	set7	SAB0379	-	superantigen-like protein 5
362	 31.32	0	416237..416932	+	231	82750140	set5	SAB0380	-	superantigen-like protein 7
363	 28.76	-1	417271..417969	+	232	82750141	set4	SAB0381	-	superantigen-like protein
364	 28.76	-1	418346..419044	+	232	82750142	set3	SAB0382	-	superantigen-like protein
365	 30.91	0	419410..420069	+	219	82750143	set2	SAB0383	-	superantigen-like protein
366	 37.89	+1	420356..421912	+	518	82750144	hsdM	SAB0384	-	type I site-specific deoxyribonuclease
367	 30.32	0	423535..424230	+	231	82750145	set1	SAB0386	-	superantigen-like protein
368	 31.35	0	424252..425760	+	502	82750146	-	SAB0387	-	hypothetical protein
369	 34.95	0	425869..426177	-	102	82750147	-	SAB0388c	-	hypothetical protein
370	 26.69	-1	426542..427324	+	260	82750148	-	SAB0389	-	lipoprotein
371	 30.19	0	427372..427785	+	137	82750149	-	SAB0390	-	lipoprotein
372	 25.62	-2	427791..428153	+	120	82750150	-	SAB0391	-	hypothetical protein
373	 30.92	0	428201..428986	+	261	82750151	-	SAB0392	-	hypothetical protein
374	 30.22	0	429014..429784	+	256	82750152	-	SAB0393	-	hypothetical protein
375	 28.93	-1	429813..430607	+	264	82750153	-	SAB0394	-	hypothetical protein
376	 29.86	0	430677..431453	+	258	82750154	-	SAB0395	-	hypothetical protein
377	 31.05	0	431654..432442	+	262	82750155	-	SAB0396	-	hypothetical protein
378	 30.62	0	432435..433760	+	441	82750156	-	SAB0397	-	hypothetical protein
379	 26.85	-1	433757..434080	+	107	82750157	-	SAB0398	-	hypothetical protein
380	 30.26	0	434713..434907	-	64	82750158	-	SAB0400c	-	hypothetical protein
381	 36.74	+1	435092..436294	+	400	82750159	-	SAB0401	-	hypothetical protein
382	 37.10	+1	437880..439364	+	494	82750160	-	SAB0402	-	NADH dehydrogenase subunit 5
383	 38.73	+1	439377..442082	+	901	82750161	-	SAB0403	-	hypothetical protein
384	 33.33	0	442244..442606	+	120	82750162	-	SAB0404	-	hypothetical protein
385	 27.38	-1	442835..443170	-	111	82750163	-	SAB0405c	-	hypothetical protein
386	 33.78	0	443289..443963	+	224	82750164	-	SAB0406	-	hypothetical protein
387	 33.74	0	444000..444734	+	244	82750165	-	SAB0407	-	hypothetical protein
388	 34.53	0	445139..446479	+	446	82750166	-	SAB0408	-	sodium-dependent transporter
389	 38.73	+1	446675..447601	+	308	82750167	-	SAB0409	-	cysteine synthase
390	 35.70	0	447594..448736	+	380	82750168	-	SAB0410	-	cystathionine gamma-synthase
391	 34.99	0	449031..450056	+	341	82750169	-	SAB0411	-	ABC transporter ATP-binding protein
392	 36.67	+1	450060..450719	+	219	82750170	-	SAB0412	-	ABC transporter ATP-binding protein
393	 32.86	0	450756..451598	+	280	82750171	-	SAB0413	-	membrane lipoprotein
394	 36.31	0	451931..452938	+	335	82750172	-	SAB0414	-	autolysin
395	 32.96	0	453125..453394	-	89	82750173	-	SAB0415c	-	hypothetical protein
396	 34.57	0	453535..453939	+	134	82750174	-	SAB0416	-	hypothetical protein
397	 35.60	0	453929..454414	+	161	82750175	-	SAB0417	-	hypothetical protein
398	 32.57	0	454583..455365	-	260	82750176	-	SAB0418c	-	hypothetical protein
399	 33.51	0	455362..456480	-	372	82750177	-	SAB0419c	-	hypothetical protein
400	 32.43	0	456595..457479	-	294	82750178	-	SAB0420c	-	transcriptional activator of glutamate synthase operon
401	 37.62	+1	457660..462159	+	1499	82750179	gltA	SAB0421	-	glutamate synthase large subunit
402	 38.32	+1	462177..463640	+	487	82750180	gltD	SAB0422	-	glutamate synthase subunit beta
403	 37.54	+1	464475..465902	+	475	82750181	-	SAB0423	-	PTS system trehalose-specific IIBC component
404	 36.14	0	465966..467606	+	546	82750182	-	SAB0424	-	alpha-glucosidase
405	 33.76	0	467652..468359	+	235	82750183	-	SAB0425	-	trehalose operon transcriptional repressor
406	 33.52	0	469000..469524	+	174	82750184	-	SAB0426	-	acetyltransferase family protein
407	 36.22	0	469593..471290	+	565	82750185	dnaX	SAB0427	-	DNA polymerase III gamma and tau subunits
408	 39.62	+1	471380..471697	+	105	82750186	-	SAB0428	-	hypothetical protein
409	 36.18	0	471704..472300	+	198	82750187	recR	SAB0429	-	recombination protein RecR
410	 32.44	0	478882..480219	+	445	82750188	-	SAB0430	-	lysine decarboxylase
411	 33.17	0	480221..480838	+	205	82750189	tmk	SAB0431	-	thymidylate kinase
412	 37.27	+1	480866..481195	+	109	82750190	-	SAB0432	-	hypothetical protein
413	 30.74	0	481409..482335	+	308	82750191	holB	SAB0433	-	DNA polymerase III delta prime subunit
414	 33.08	0	482336..483139	+	267	82750192	-	SAB0434	-	signal peptidase II
415	 32.18	0	483156..483503	+	115	82750193	-	SAB0435	-	DNA replication intiation control protein YabA
416	 33.33	0	483777..484502	+	241	82750194	-	SAB0436	-	hypothetical protein
417	 33.73	0	484495..484743	+	82	82750195	-	SAB0437	-	hypothetical protein
418	 35.48	0	484745..485584	+	279	82750196	-	SAB0438	-	tetrapyrrole methylase family protein
419	 33.94	0	485869..487842	+	657	82750197	metG	SAB0439	-	methionyl-tRNA synthetase
420	 36.43	+1	487873..488646	+	257	82750198	-	SAB0440	-	sec-independent hydrolase
421	 35.75	0	488813..489349	+	178	82750199	-	SAB0441	-	hypothetical protein
422	 32.46	0	489342..490253	+	303	82750200	ksgA	SAB0442	-	dimethyladenosine transferase
423	 32.58	0	490353..490616	+	87	82750201	-	SAB0443	-	hypothetical protein
424	 34.98	0	490926..491774	+	282	82750202	-	SAB0444	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
425	 32.36	0	491788..492612	+	274	82750203	purR	SAB0445	-	purine operon repressor
426	 33.33	0	492629..493009	+	126	82750204	yabJ	SAB0446	-	translation initiation inhibitor
427	 36.63	+1	493081..493383	+	100	82750205	spoVG	SAB0447	-	regulatory protein SpoVG
428	 39.07	+1	493720..495078	+	452	82750206	gcaD	SAB0448	-	UDP-N-acetylglucosamine pyrophosphorylase
429	 35.20	0	495225..496190	+	321	82750207	prs	SAB0449	-	ribose-phosphate pyrophosphokinase
430	 37.61	+1	496340..496993	+	217	82750208	prs	SAB0450	-	50S ribosomal protein L25/general stress protein Ctc
431	 32.98	0	497304..497876	+	190	82750209	-	SAB0451	-	peptidyl-tRNA hydrolase
432	 34.16	0	497876..501382	+	1168	82750210	-	SAB0452	-	transcription-repair coupling factor
433	 33.14	0	501372..502898	+	508	82750211	-	SAB0453	-	membrane spanning protein
434	 35.01	0	502898..504091	+	397	82750212	-	SAB0454	-	tetrapyrrole methylase
435	 34.85	0	504088..504351	+	87	82750213	-	SAB0455	-	hypothetical protein
436	 33.08	0	504369..504761	+	130	82750214	-	SAB0456	-	hypothetical protein
437	 33.83	0	504866..505267	+	133	82750215	-	SAB0457	-	hypothetical protein
438	 30.79	0	505447..506742	+	431	82750216	-	SAB0458	-	hypothetical protein
439	 30.74	0	506747..507286	+	179	82750217	hpt	SAB0459	-	hypoxanthine-guanine phosphoribosyltransferase
440	 35.63	0	507544..509637	+	697	82750218	ftsH	SAB0460	-	cell division protein
441	 36.62	+1	510107..510988	+	293	82750219	-	SAB0461	-	heat shock chaperonin protein 33
442	 37.51	+1	511167..512099	+	310	82750220	-	SAB0462	-	cysteine synthase
443	 36.94	+1	512315..513118	+	267	82750221	folP	SAB0463	-	dihydropteroate synthase
444	 35.52	0	513096..513461	+	121	82750222	folB	SAB0464	-	dihydroneopterin aldolase
445	 33.75	0	513458..513934	+	158	82750223	folK	SAB0465	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
446	 34.81	0	514473..515960	+	495	82750224	lysS	SAB0466	-	lysyl-tRNA synthetase
447	 29.36	-1	524654..526036	-	460	82750225	-	SAB0468c	-	GntR family transcriptional regulator
448	 39.50	+1	526153..527028	+	291	82750226	-	SAB0469	-	pyridoxine biosynthesis protein
449	 33.69	0	527032..527592	+	186	82750227	-	SAB0470	-	glutamine amidotransferase subunit PdxT
450	 33.25	0	527800..529014	-	404	82750228	nupC	SAB0471c	-	pyrimidine nucleoside transport protein
451	 31.60	0	529172..529633	+	153	82750229	-	SAB0472	-	transcriptional repressor of stress genes
452	 33.86	0	529652..530218	+	188	82750230	-	SAB0473	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
