IslandPath Analysis: Staphylococcus aureus RF122

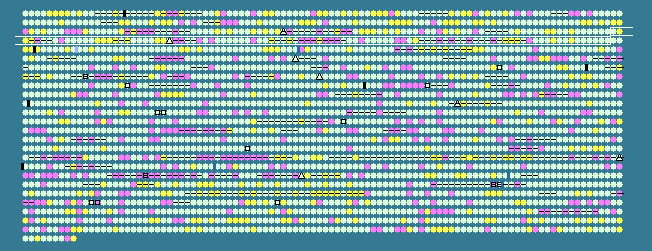

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.03   STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
299	 31.77	0	365662..365853	-	63	82750076	-	SAB0315c	-	hypothetical protein
300	 38.05	+1	366097..366393	+	98	82750077	rpsF	SAB0316	-	30S ribosomal protein S6
301	 38.10	+1	366414..366917	+	167	82750078	ssb	SAB0317	-	single-strand DNA-binding protein
302	 37.04	+1	366969..367211	+	80	82750079	rpsR	SAB0318	-	30S ribosomal protein S18
303	 28.40	-1	367487..368479	-	330	82750080	-	SAB0319c	-	hypothetical protein
304	 30.72	0	369384..369995	+	203	82750082	-	SAB0321	-	hypothetical protein
305	 32.25	0	370364..370732	+	122	82750083	-	SAB0322	-	hypothetical protein
306	 30.72	0	370912..371484	+	190	82750084	-	SAB0323	-	hypothetical protein
307	 28.03	-1	371622..371885	-	87	82750085	-	SAB0324c	-	hypothetical protein
308	 35.29	0	372178..372432	+	84	82750086	-	SAB0325	-	hypothetical protein
309	 32.13	0	372858..373439	+	193	82750087	-	SAB0326	-	hypothetical protein
310	 31.04	0	373505..373897	-	130	82750088	-	SAB0327c	-	hypothetical protein
311	 29.67	-1	374157..374783	-	208	82750089	-	SAB0328c	-	hypothetical protein
312	 32.65	0	374855..375148	-	97	82750090	-	SAB0329c	-	hypothetical protein
313	 37.40	+1	375227..376750	-	507	82750091	ahpF	SAB0330c	-	alkyl hydroperoxide reductase subunit F
314	 37.02	+1	376766..377335	-	189	82750092	ahpC	SAB0331c	-	alkyl hydroperoxide reductase subunit C
315	 37.70	+1	377827..378582	+	251	82750093	-	SAB0332	-	nitro/flavin reductase
316	 39.38	+1	378662..380050	-	462	82750094	-	SAB0333c	-	proton/sodium-glutamate symport protein
317	 32.54	0	380315..380692	-	125	82750095	-	SAB0334c	-	hypothetical protein
318	 37.10	+1	381031..381987	-	318	82750096	-	SAB0335c	-	hypothetical protein
319	 30.02	0	382105..382767	-	220	82750097	-	SAB0336c	-	hypothetical protein
320	 33.33	0	382910..383317	-	135	82750098	-	SAB0337c	-	hypothetical protein
321	 35.58	0	383830..384408	+	192	82750099	xpt	SAB0338	-	xanthine phosphoribosyltransferase
322	 35.86	0	384408..385676	+	422	82750100	pbuX	SAB0339	-	xanthine permease
323	 37.56	+1	385714..387180	+	488	82750101	guaB	SAB0340	-	inositol-monophosphate dehydrogenase
324	 37.16	+1	387205..388746	+	513	82750102	guaA	SAB0341	-	bifunctional GMP synthase/glutamine amidotransferase protein
325	 33.16	0	388840..389976	-	378	82750103	-	SAB0342c	-	integrase
326	 27.99	-1	390060..390845	-	261	82750104	-	SAB0343c	-	pathogenicity island protein
327	 27.63	-1	390962..391189	+	75	82750105	-	SAB0344	-	pathogenicity island protein
328	 33.72	0	391235..391495	+	86	82750106	-	SAB0345	-	pathogenicity island protein
329	 30.13	0	391542..391697	+	51	82750107	-	SAB0346	-	pathogenicity island protein
330	 27.94	-1	391682..391885	+	67	82750108	-	SAB0347	-	pathogenicity island protein
331	 30.47	0	391887..392270	+	127	82750109	-	SAB0348	-	pathogenicity island protein
332	 28.93	-1	392271..392588	+	105	82750110	-	SAB0349	-	pathogenicity island protein
333	 34.83	0	392652..393521	+	289	82750111	-	SAB0350	-	pathogenicity island protein
334	 33.10	0	393535..395244	+	569	82750112	-	SAB0351	-	pathogenicity island protein
335	 32.55	0	395575..395955	+	126	82750113	-	SAB0352	-	pathogenicity island protein
336	 35.05	0	395952..396593	+	213	82750114	-	SAB0353	-	pathogenicity island protein
337	 32.75	0	396940..397281	+	113	82750115	-	SAB0354	-	pathogenicity island protein
338	 29.71	-1	397293..397871	+	192	82750116	-	SAB0355	-	pathogenicity island protein
339	 28.77	-1	397889..398107	+	72	82750117	-	SAB0356	-	pathogenicity island protein
340	 32.29	0	398110..398685	+	191	82750118	-	SAB0357	-	pathogenicity island protein
341	 30.12	0	398688..399029	+	113	82750119	-	SAB0358	-	pathogenicity island protein
342	 36.67	+1	399026..399595	+	189	82750120	-	SAB0359	-	pathogenicity island protein
343	 31.49	0	399750..400454	-	234	82750121	tsst-1	SAB0360c	-	toxic shock syndrome toxin-1
344	 34.19	0	400915..401265	+	116	82750122	-	SAB0361	-	pathogenicity island protein
345	 38.40	+1	401383..401895	+	170	82750123	-	SAB0362	-	pathogenicity island protein
346	 29.78	0	402652..403467	+	271	82750124	sec-bov	SAB0363	-	staphylococcal enterotoxin C-bovine
347	 28.49	-1	403634..404356	-	240	82750125	sel	SAB0364c	-	staphylococcal enterotoxin L
348	 26.97	-1	404861..405253	-	130	82750126	-	SAB0365c	-	hypothetical protein
349	 26.37	-2	405878..406078	-	66	82750127	-	SAB0367c	-	hypothetical protein
350	 38.26	+1	406679..406942	+	87	82750128	-	SAB0368	-	hypothetical protein
351	 28.03	-1	407602..408186	-	194	82750129	-	SAB0369c	-	hypothetical protein
352	 28.57	-1	408432..408599	+	55	82750130	-	SAB0370	-	hypothetical protein
353	 28.43	-1	408681..409088	+	135	82750131	-	SAB0371	-	hypothetical protein
354	 32.71	0	409135..409617	+	160	82750132	-	SAB0372	-	hypothetical protein
355	 31.94	0	410029..410388	-	119	82750133	-	SAB0373c	-	hypothetical protein
356	 35.61	0	410464..411252	-	262	82750134	-	SAB0374c	-	hypothetical protein
357	 29.50	-1	411321..411581	-	86	82750135	-	SAB0375c	-	hypothetical protein
358	 31.42	0	411724..412404	+	226	82750136	set11	SAB0376	-	superantigen-like protein
359	 29.60	-1	412692..413387	+	231	82750137	set10	SAB0377	-	superantigen-like protein
360	 34.67	0	413678..414724	+	348	82750138	set9	SAB0378	-	superantigen-like protein
361	 30.57	0	415089..415739	+	216	82750139	set7	SAB0379	-	superantigen-like protein 5
362	 31.32	0	416237..416932	+	231	82750140	set5	SAB0380	-	superantigen-like protein 7
363	 28.76	-1	417271..417969	+	232	82750141	set4	SAB0381	-	superantigen-like protein
364	 28.76	-1	418346..419044	+	232	82750142	set3	SAB0382	-	superantigen-like protein
365	 30.91	0	419410..420069	+	219	82750143	set2	SAB0383	-	superantigen-like protein
366	 37.89	+1	420356..421912	+	518	82750144	hsdM	SAB0384	-	type I site-specific deoxyribonuclease
367	 30.32	0	423535..424230	+	231	82750145	set1	SAB0386	-	superantigen-like protein
368	 31.35	0	424252..425760	+	502	82750146	-	SAB0387	-	hypothetical protein
369	 34.95	0	425869..426177	-	102	82750147	-	SAB0388c	-	hypothetical protein
370	 26.69	-1	426542..427324	+	260	82750148	-	SAB0389	-	lipoprotein
371	 30.19	0	427372..427785	+	137	82750149	-	SAB0390	-	lipoprotein
372	 25.62	-2	427791..428153	+	120	82750150	-	SAB0391	-	hypothetical protein
373	 30.92	0	428201..428986	+	261	82750151	-	SAB0392	-	hypothetical protein
374	 30.22	0	429014..429784	+	256	82750152	-	SAB0393	-	hypothetical protein
375	 28.93	-1	429813..430607	+	264	82750153	-	SAB0394	-	hypothetical protein
376	 29.86	0	430677..431453	+	258	82750154	-	SAB0395	-	hypothetical protein
377	 31.05	0	431654..432442	+	262	82750155	-	SAB0396	-	hypothetical protein
378	 30.62	0	432435..433760	+	441	82750156	-	SAB0397	-	hypothetical protein
379	 26.85	-1	433757..434080	+	107	82750157	-	SAB0398	-	hypothetical protein
380	 30.26	0	434713..434907	-	64	82750158	-	SAB0400c	-	hypothetical protein
381	 36.74	+1	435092..436294	+	400	82750159	-	SAB0401	-	hypothetical protein
382	 37.10	+1	437880..439364	+	494	82750160	-	SAB0402	-	NADH dehydrogenase subunit 5
383	 38.73	+1	439377..442082	+	901	82750161	-	SAB0403	-	hypothetical protein
384	 33.33	0	442244..442606	+	120	82750162	-	SAB0404	-	hypothetical protein
385	 27.38	-1	442835..443170	-	111	82750163	-	SAB0405c	-	hypothetical protein
386	 33.78	0	443289..443963	+	224	82750164	-	SAB0406	-	hypothetical protein
387	 33.74	0	444000..444734	+	244	82750165	-	SAB0407	-	hypothetical protein
388	 34.53	0	445139..446479	+	446	82750166	-	SAB0408	-	sodium-dependent transporter
389	 38.73	+1	446675..447601	+	308	82750167	-	SAB0409	-	cysteine synthase
390	 35.70	0	447594..448736	+	380	82750168	-	SAB0410	-	cystathionine gamma-synthase
391	 34.99	0	449031..450056	+	341	82750169	-	SAB0411	-	ABC transporter ATP-binding protein
392	 36.67	+1	450060..450719	+	219	82750170	-	SAB0412	-	ABC transporter ATP-binding protein
393	 32.86	0	450756..451598	+	280	82750171	-	SAB0413	-	membrane lipoprotein
394	 36.31	0	451931..452938	+	335	82750172	-	SAB0414	-	autolysin
395	 32.96	0	453125..453394	-	89	82750173	-	SAB0415c	-	hypothetical protein
396	 34.57	0	453535..453939	+	134	82750174	-	SAB0416	-	hypothetical protein
397	 35.60	0	453929..454414	+	161	82750175	-	SAB0417	-	hypothetical protein
398	 32.57	0	454583..455365	-	260	82750176	-	SAB0418c	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
