IslandPath Analysis: Staphylococcus aureus RF122

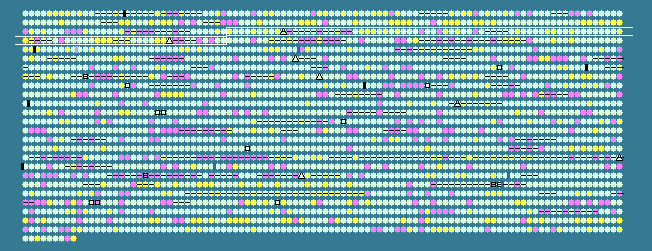

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.03   STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
235	 37.55	+1	300452..301375	+	307	82750012	-	SAB0249	-	hypothetical protein
236	 33.09	0	301386..302606	+	406	82750013	-	SAB0250	-	nucleoside transporter permease
237	 36.07	0	302711..304243	-	510	82750014	-	SAB0251c	-	transport protein
238	 35.15	0	304283..305164	-	293	82750015	-	SAB0252c	-	N-acetylneuraminate lyase
239	 36.66	+1	305281..306183	+	300	82750016	-	SAB0253	-	kinase
240	 33.46	0	306460..307260	-	266	82750017	-	SAB0254c	-	hypothetical protein
241	 37.67	+1	307400..308068	+	222	82750018	-	SAB0255	-	N-acetylmannosamine-6-phosphate 2-epimerase
242	 35.46	0	308198..309559	-	453	82750019	-	SAB0256c	-	hypothetical protein
243	 37.21	+1	309929..311887	+	652	82750020	geh	SAB0257	-	glycerol ester hydrolase
244	 32.01	0	311957..313162	-	401	82750021	-	SAB0258c	-	phage-related integrase
245	 27.68	-1	313262..313915	-	217	82750022	-	SAB0259c	-	hypothetical protein
246	 34.51	0	314357..314611	+	84	82750023	-	SAB0260	-	phage-like protein
247	 34.08	0	314611..316077	+	488	82750024	-	SAB0261	-	phage-like protein
248	 31.03	0	316077..316466	+	129	82750025	-	SAB0262	-	phage-like protein
249	 30.30	0	316459..316623	+	54	82750026	-	SAB0263	-	phage-like protein
250	 29.00	-1	316669..316968	+	99	82750027	-	SAB0264	-	phage-like protein
251	 31.95	0	317562..318794	+	410	82750028	-	SAB0265	-	type-I specificity determinant subunit
252	 32.34	0	318846..319148	+	100	82750029	-	SAB0266	-	phage-related holin
253	 36.67	+1	320847..321056	+	69	82750030	-	SAB0268	-	hypothetical protein
254	 24.83	-2	321668..322255	+	195	82750031	-	SAB0269	-	hypothetical protein
255	 28.07	-1	322252..322707	+	151	82750032	-	SAB0270	-	hypothetical protein
256	 34.66	0	323332..324159	-	275	82750033	-	SAB0271c	-	hypothetical protein
257	 39.25	+1	324232..325431	-	399	82750034	-	SAB0272c	-	trimethylamine dehydrogenase
258	 37.92	+1	325733..326734	+	333	82750035	-	SAB0273	-	luciferase family protein
259	 36.64	+1	326768..327100	+	110	82750036	-	SAB0274	-	glycine cleavage system H protein
260	 36.33	+1	327101..327901	+	266	82750037	-	SAB0275	-	hypothetical protein
261	 37.97	+1	327888..328835	+	315	82750038	-	SAB0276	-	hypothetical protein
262	 34.02	0	328813..329835	+	340	82750039	-	SAB0277	-	lipoate-protein ligase
263	 38.08	+1	329979..331325	-	448	82750040	ulaA	SAB0278c	-	ascorbate-specific PTS system enzyme IIC
264	 36.14	0	331340..331624	-	94	82750041	-	SAB0279c	-	PTS system component
265	 35.81	0	331626..332069	-	147	82750042	-	SAB0280c	-	PTS system component
266	 34.25	0	332074..334029	-	651	82750043	-	SAB0281c	-	PTS system regulator
267	 27.48	-1	334016..334237	-	73	82750044	-	SAB0282c	-	hypothetical protein
268	 33.57	0	334241..334660	+	139	82750045	-	SAB0283	-	MarR family regulatory protein
269	 32.45	0	334767..336122	+	451	82750046	-	SAB0284	-	hypothetical protein
270	 28.80	-1	336229..336669	+	146	82750047	-	SAB0285	-	hypothetical protein
271	 36.79	+1	336753..338111	-	452	82750048	-	SAB0286c	-	glycerol-3-phosphate transporter
272	 34.74	0	338423..339349	+	308	82750049	-	SAB0287	-	glyoxylase family protein
273	 36.82	+1	339363..340424	+	353	82750050	-	SAB0288	-	luciferase-like monooxygenase
274	 33.86	0	340438..341004	+	188	82750051	-	SAB0289	-	NADH-dependent FMN reductase
275	 35.04	0	341064..342059	-	331	82750052	-	SAB0290c	-	hypothetical protein
276	 29.25	-1	342058..342351	+	97	82750053	-	SAB0291	-	hypothetical protein
277	 34.43	0	342364..342909	+	181	82750054	-	SAB0292	-	serine N-acetyltransferase
278	 30.88	0	343174..344028	+	284	82750055	-	SAB0293	-	lipoprotein
279	 34.38	0	345235..346947	+	570	82750056	-	SAB0295	-	hypothetical protein
280	 34.19	0	347196..347897	-	233	82750057	-	SAB0296c	-	sec-independent protein translocase protein
281	 35.19	0	347914..348129	-	71	82750058	-	SAB0297c	-	protein translocase subunit
282	 32.82	0	348237..348626	-	129	82750059	-	SAB0298c	-	hypothetical protein
283	 39.22	+1	348866..349069	+	67	82750060	-	SAB0299	-	DNA-binding protein
284	 31.23	0	349066..349779	+	237	82750061	-	SAB0300	-	hypothetical protein
285	 32.38	0	349804..350646	+	280	82750062	-	SAB0301	-	ABC transporter ATP-binding protein
286	 32.54	0	350646..351275	+	209	82750063	-	SAB0302	-	hypothetical protein
287	 32.10	0	351665..352798	-	377	82750064	-	SAB0303c	-	hypothetical protein
288	 38.32	+1	353336..354517	+	393	82750065	th1	SAB0304	-	acetyl-CoA acetyltransferase protein
289	 37.72	+1	354600..355352	-	250	82750066	-	SAB0305c	-	hypothetical protein
290	 34.01	0	355395..357623	-	742	82750067	metE1	SAB0306c	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
291	 36.26	0	357620..359461	-	613	82750068	metE2	SAB0307c	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
292	 38.24	+1	359430..360590	-	386	82750069	-	SAB0308c	-	cystathionine beta-lyase
293	 35.69	0	360587..361690	-	367	82750070	-	SAB0309c	-	cystathionine gamma-synthase
294	 32.45	0	361898..362236	+	112	82750071	-	SAB0310	-	hypothetical protein
295	 34.28	0	362354..363199	+	281	82750072	-	SAB0311	-	hypothetical protein
296	 31.18	0	363353..364234	+	293	82750073	-	SAB0312	-	hypothetical protein
297	 30.88	0	364264..364467	+	67	82750074	-	SAB0313	-	hypothetical protein
298	 35.70	0	364479..365576	+	365	82750075	-	SAB0314	-	translation-associated GTPase
299	 31.77	0	365662..365853	-	63	82750076	-	SAB0315c	-	hypothetical protein
300	 38.05	+1	366097..366393	+	98	82750077	rpsF	SAB0316	-	30S ribosomal protein S6
301	 38.10	+1	366414..366917	+	167	82750078	ssb	SAB0317	-	single-strand DNA-binding protein
302	 37.04	+1	366969..367211	+	80	82750079	rpsR	SAB0318	-	30S ribosomal protein S18
303	 28.40	-1	367487..368479	-	330	82750080	-	SAB0319c	-	hypothetical protein
304	 30.72	0	369384..369995	+	203	82750082	-	SAB0321	-	hypothetical protein
305	 32.25	0	370364..370732	+	122	82750083	-	SAB0322	-	hypothetical protein
306	 30.72	0	370912..371484	+	190	82750084	-	SAB0323	-	hypothetical protein
307	 28.03	-1	371622..371885	-	87	82750085	-	SAB0324c	-	hypothetical protein
308	 35.29	0	372178..372432	+	84	82750086	-	SAB0325	-	hypothetical protein
309	 32.13	0	372858..373439	+	193	82750087	-	SAB0326	-	hypothetical protein
310	 31.04	0	373505..373897	-	130	82750088	-	SAB0327c	-	hypothetical protein
311	 29.67	-1	374157..374783	-	208	82750089	-	SAB0328c	-	hypothetical protein
312	 32.65	0	374855..375148	-	97	82750090	-	SAB0329c	-	hypothetical protein
313	 37.40	+1	375227..376750	-	507	82750091	ahpF	SAB0330c	-	alkyl hydroperoxide reductase subunit F
314	 37.02	+1	376766..377335	-	189	82750092	ahpC	SAB0331c	-	alkyl hydroperoxide reductase subunit C
315	 37.70	+1	377827..378582	+	251	82750093	-	SAB0332	-	nitro/flavin reductase
316	 39.38	+1	378662..380050	-	462	82750094	-	SAB0333c	-	proton/sodium-glutamate symport protein
317	 32.54	0	380315..380692	-	125	82750095	-	SAB0334c	-	hypothetical protein
318	 37.10	+1	381031..381987	-	318	82750096	-	SAB0335c	-	hypothetical protein
319	 30.02	0	382105..382767	-	220	82750097	-	SAB0336c	-	hypothetical protein
320	 33.33	0	382910..383317	-	135	82750098	-	SAB0337c	-	hypothetical protein
321	 35.58	0	383830..384408	+	192	82750099	xpt	SAB0338	-	xanthine phosphoribosyltransferase
322	 35.86	0	384408..385676	+	422	82750100	pbuX	SAB0339	-	xanthine permease
323	 37.56	+1	385714..387180	+	488	82750101	guaB	SAB0340	-	inositol-monophosphate dehydrogenase
324	 37.16	+1	387205..388746	+	513	82750102	guaA	SAB0341	-	bifunctional GMP synthase/glutamine amidotransferase protein
325	 33.16	0	388840..389976	-	378	82750103	-	SAB0342c	-	integrase
326	 27.99	-1	390060..390845	-	261	82750104	-	SAB0343c	-	pathogenicity island protein
327	 27.63	-1	390962..391189	+	75	82750105	-	SAB0344	-	pathogenicity island protein
328	 33.72	0	391235..391495	+	86	82750106	-	SAB0345	-	pathogenicity island protein
329	 30.13	0	391542..391697	+	51	82750107	-	SAB0346	-	pathogenicity island protein
330	 27.94	-1	391682..391885	+	67	82750108	-	SAB0347	-	pathogenicity island protein
331	 30.47	0	391887..392270	+	127	82750109	-	SAB0348	-	pathogenicity island protein
332	 28.93	-1	392271..392588	+	105	82750110	-	SAB0349	-	pathogenicity island protein
333	 34.83	0	392652..393521	+	289	82750111	-	SAB0350	-	pathogenicity island protein
334	 33.10	0	393535..395244	+	569	82750112	-	SAB0351	-	pathogenicity island protein
33.03	MEAN

3.30	STD DEV
