IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

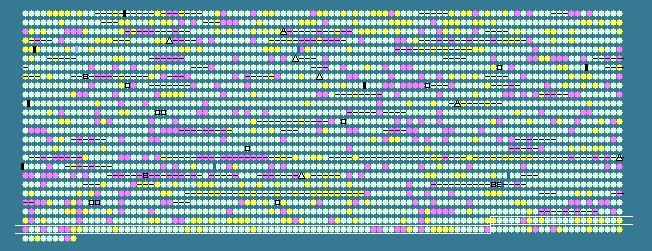

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2379	 37.30	+1	2594021..2594851	+	276	82752162	-	SAB2455	-	hypothetical protein
2380	 36.03	0	2594998..2595888	-	296	82752163	-	SAB2456c	-	cobalmin synthesis protein
2381	 34.53	0	2595988..2597328	-	446	82752164	-	SAB2457c	-	hypothetical protein
2382	 35.32	0	2597322..2598428	-	368	82752165	-	SAB2458c	-	hypothetical protein
2383	 29.89	0	2598488..2598661	-	57	82752166	-	SAB2459c	-	hypothetical protein
2384	 26.94	-1	2598764..2599060	-	98	82752167	-	SAB2460c	-	hypothetical protein
2385	 36.59	+1	2599048..2599416	-	122	82752168	-	SAB2461c	-	hypothetical protein
2386	 31.88	0	2599431..2599706	-	91	82752169	-	SAB2462c	-	hypothetical protein
2387	 38.75	+1	2600046..2600912	-	288	82752170	-	SAB2463c	-	hypothetical protein
2388	 35.68	0	2601130..2602194	+	354	82752171	-	SAB2464	-	dihydroorotate dehydrogenase 2
2389	 30.80	0	2602349..2602624	+	91	82752172	-	SAB2465	-	hypothetical protein
2390	 33.47	0	2602810..2603532	-	240	82752173	-	SAB2466c	-	hypothetical protein
2391	 36.22	0	2603882..2604331	+	149	82752174	-	SAB2467	-	hypothetical protein
2392	 30.27	0	2604412..2604999	-	195	82752175	-	SAB2468c	-	hypothetical protein
2393	 36.54	+1	2605142..2606824	+	560	82752176	-	SAB2469	-	hypothetical protein
2394	 33.59	0	2606953..2607336	-	127	82752177	panD	SAB2470c	-	aspartate alpha-decarboxylase
2395	 36.62	+1	2607338..2608189	-	283	82752178	panC	SAB2471c	-	pantoate--beta-alanine ligase
2396	 36.39	+1	2608182..2609000	-	272	82752179	panB	SAB2472c	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2397	 37.63	+1	2609073..2609933	+	286	82752180	-	SAB2473	-	2-dehydropantoate 2-reductase
2398	 36.31	0	2610019..2610723	-	234	82752181	-	SAB2474c	-	alpha-acetolactate decarboxylase
2399	 35.31	0	2611001..2611960	-	319	82752182	ldh	SAB2475c	-	L-lactate dehydrogenase
2400	 37.47	+1	2612647..2614095	+	482	82752183	-	SAB2476	-	cationic amino acid transporter
2401	 28.06	-1	2615766..2616182	+	138	82752184	-	SAB2478	-	hypothetical protein
2402	 34.68	0	2616305..2617195	+	296	82752185	fda	SAB2479	-	fructose-1,6-bisphosphate aldolase
2403	 36.01	0	2617390..2618886	-	498	82752186	mqo	SAB2480c	-	malate:quinone oxidoreductase
2404	 27.71	-1	2619263..2619511	+	82	82752187	-	SAB2481	-	hypothetical protein
2405	 36.23	0	2619571..2621190	-	539	82752188	-	SAB2482c	-	acetate-CoA ligase
2406	 31.31	0	2621363..2621806	-	147	82752189	-	SAB2483c	-	hypothetical protein
2407	 26.19	-2	2621844..2622011	-	55	82752190	-	SAB2484c	-	hypothetical protein
2408	 27.23	-1	2622086..2622298	-	70	82752191	-	SAB2485c	-	hypothetical protein
2409	 38.89	+1	2622578..2624287	-	569	82752192	cudB	SAB2486c	-	choline dehydrogenase
2410	 37.09	+1	2624548..2626038	-	496	82752193	cudA	SAB2487c	-	glycine betaine aldehyde dehydrogenase
2411	 35.56	0	2626270..2626854	+	194	82752194	-	SAB2488	-	hypothetical protein
2412	 35.49	0	2627024..2628646	-	540	82752195	cudT	SAB2489c	-	choline transporter
2413	 32.59	0	2629163..2629699	-	178	82752196	nrdG	SAB2490c	-	anaerobic ribonucleotide reductase small subunit
2414	 34.63	0	2629696..2631546	-	616	82752197	nrdD	SAB2491c	-	anaerobic ribonucleoside triphosphate reductase
2415	 36.03	0	2631793..2633163	-	456	82752198	-	SAB2492c	-	magnesium citrate secondary transporter
2416	 36.63	+1	2633637..2634242	-	201	82752199	-	SAB2493c	-	precorrin-2 dehydrogenase
2417	 34.98	0	2634305..2636185	-	626	82752200	cysJ	SAB2494c	-	sulfite reductase flavoprotein
2418	 31.33	0	2636580..2637077	-	165	82752201	-	SAB2495c	-	glutathione peroxidase
2419	 31.80	0	2637087..2637347	-	86	82752202	-	SAB2496c	-	hypothetical protein
2420	 31.48	0	2638501..2640501	-	666	82752203	-	SAB2497c	-	hypothetical protein
2421	 34.13	0	2640498..2641253	-	251	82752204	-	SAB2498c	-	ABC transporter ATP-binding protein
2422	 29.73	0	2641361..2642248	-	295	82752205	-	SAB2499c	-	two-component sensor histidine kinase
2423	 29.88	0	2642259..2642924	-	221	82752206	-	SAB2500c	-	two-component sensor response regulator
2424	 31.34	0	2642950..2643150	-	66	82752207	-	SAB2501c	-	hypothetical protein
2425	 35.30	0	2643348..2644772	+	474	82752208	phoB	SAB2502	-	alkaline phosphatase III precursor
2426	 31.80	0	2645055..2645510	-	151	82752209	-	SAB2503c	-	MarR family transcriptional regulator
2427	 33.46	0	2645755..2646516	-	253	82752210	-	SAB2504c	-	tributyrin esterase
2428	 39.06	+1	2646630..2649215	-	861	82752211	clfB	SAB2505c	-	clumping factor B
2429	 29.65	-1	2649565..2650269	-	234	82752212	-	SAB2506c	-	transcriptional regulator
2430	 36.94	+1	2650368..2651309	-	313	161777615	arcC	SAB2507c	-	carbamate kinase
2431	 35.15	0	2651326..2652756	-	476	82752214	arcD	SAB2508c	-	arginine-ornithine antiporter
2432	 33.04	0	2652847..2653857	-	336	82752215	arcB	SAB2509c	-	ornithine carbamoyltransferase
2433	 34.22	0	2653890..2655125	-	411	82752216	arcA	SAB2510c	-	arginine deiminase
2434	 29.56	-1	2655472..2655921	-	149	82752217	argR	SAB2511c	-	arginine repressor
2435	 35.95	0	2656287..2657816	-	509	82752218	aur	SAB2512c	-	zinc metalloproteinase aureolysin
2436	 31.44	0	2658240..2658767	-	175	82752219	isaB	SAB2513c	-	immunodominant antigen B
2437	 34.20	0	2659025..2659483	+	152	82752220	-	SAB2514	-	hypothetical protein
2438	 30.99	0	2659723..2661597	+	624	82752221	-	SAB2515	-	antiterminator transcriptional regulator
2439	 38.20	+1	2661673..2663625	+	650	82752222	-	SAB2516	-	PTS system fructose-specific II component
2440	 36.00	0	2663639..2664577	+	312	82752223	pmi	SAB2517	-	mannose-6-phosphate isomerase
2441	 35.01	0	2664689..2667664	-	991	82752224	-	SAB2518c	-	hypothetical protein
2442	 32.53	0	2667875..2669734	+	619	82752225	-	SAB2519	-	N-acetylmuramoyl-L-alanine amidase
2443	 35.65	0	2670001..2670561	-	186	82752226	-	SAB2520c	-	hypothetical protein
2444	 31.70	0	2670733..2672628	-	631	82752227	-	SAB2521c	-	surface anchored protein
2445	 33.33	0	2672870..2674228	-	452	82752228	-	SAB2522c	-	hypothetical protein
2446	 34.26	0	2674221..2675729	-	502	82752229	-	SAB2523c	-	glycosyl transferase
2447	 32.60	0	2678127..2679086	-	319	82752230	-	SAB2525c	-	hypothetical protein
2448	 36.01	0	2679064..2680632	-	522	82752231	-	SAB2526c	-	hypothetical protein
2449	 33.98	0	2680622..2682175	-	517	82752232	-	SAB2527c	-	hypothetical protein
2450	 29.80	0	2682186..2683232	-	348	82752233	-	SAB2528c	-	preprotein translocase subunit SecY
2451	 31.43	0	2689915..2690859	+	314	82752234	-	SAB2531	-	lipoprotein
2452	 32.03	0	2690843..2691148	+	101	82752235	-	SAB2532	-	hypothetical protein
2453	 34.17	0	2691297..2691656	+	119	82752236	-	SAB2533	-	hypothetical protein
2454	 35.13	0	2691741..2692352	-	203	82752237	-	SAB2534c	-	hypothetical protein
2455	 35.64	0	2692431..2692907	-	158	82752238	-	SAB2535c	-	methionine sulfoxide reductase A
2456	 32.93	0	2692910..2693410	-	166	82752239	-	SAB2536c	-	acetyltransferase
2457	 32.55	0	2693645..2694412	-	255	82752240	-	SAB2537c	-	capsular polysaccharide biosynthesis protein
2458	 35.06	0	2694409..2695101	-	230	82752241	-	SAB2538c	-	capsular polysaccharide biosynthesis protein
2459	 29.26	-1	2695118..2695804	-	228	82752242	-	SAB2539c	-	capsular polysaccharide biosynthesis protein
2460	 27.45	-1	2696628..2697188	-	186	82752243	icaR	SAB2540c	-	ica operon transcription regulator
2461	 33.82	0	2697352..2698590	+	412	82752244	icaA	SAB2541	-	N-glycosyltransferase PgaC
2462	 32.70	0	2698541..2698858	+	105	82752245	icaD	SAB2542	-	intercellular adhesion protein D
2463	 29.32	-1	2698855..2699727	+	290	82752246	icaB	SAB2543	-	intercellular adhesion protein B
2464	 26.97	-1	2699714..2700766	+	350	82752247	icaC	SAB2544	-	intercellular adhesion protein C
2465	 42.31	+2	2700775..2700930	-	51	82752248	-	SAB2545c	-	hypothetical protein
2466	 34.16	0	2701076..2703121	-	681	82752249	lip	SAB2546c	-	triacylglycerol lipase precursor
2467	 23.11	-2	2703841..2704104	-	87	82752250	-	SAB2547c	-	hypothetical protein
2468	 34.76	0	2704640..2705272	-	210	82752251	hisIE	SAB2548c	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2469	 37.29	+1	2705269..2706027	-	252	82752252	hisF	SAB2549c	-	imidazole glycerol phosphate synthase subunit
2470	 39.72	+2	2706024..2706728	-	234	82752253	hisA	SAB2550c	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2471	 36.61	+1	2706721..2707299	-	192	82752254	hisH	SAB2551c	-	imidazole glycerol phosphate synthase subunit HisH
2472	 36.61	+1	2707296..2707874	-	192	82752255	hisB	SAB2552c	-	imidazoleglycerol-phosphate dehydratase
2473	 35.81	0	2708871..2710121	-	416	82752256	hisD	SAB2554c	-	histidinol dehydrogenase
2474	 34.63	0	2710114..2710728	-	204	82752257	hisG	SAB2555c	-	ATP phosphoribosyltransferase catalytic subunit
2475	 34.80	0	2710746..2711564	-	272	82752258	hisZ	SAB2556c	-	ATP phosphoribosyltransferase regulatory subunit
2476	 32.36	0	2711868..2712992	-	374	82752259	-	SAB2557c	-	hypothetical protein
2477	 30.52	0	2713110..2713607	-	165	82752260	-	SAB2558c	-	hypothetical protein
2478	 29.38	-1	2713654..2714487	-	277	82752261	-	SAB2559c	-	cobalt ABC transporter
33.03	MEAN

3.30	STD DEV
