IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

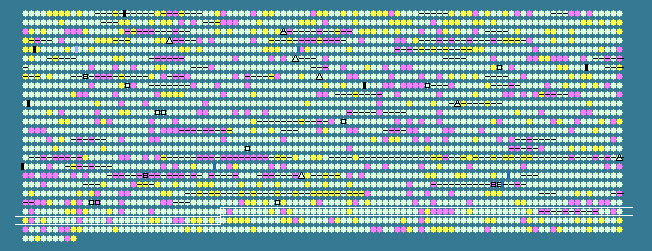

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2234	 32.34	0	2433141..2433947	+	268	82752017	hlgB	SAB2302	-	gamma-hemolysin component B
2235	 29.49	-1	2434169..2434636	-	155	82752018	-	SAB2303c	-	hypothetical protein
2236	 33.33	0	2434647..2435339	-	230	82752019	-	SAB2304c	-	6-carboxyhexanoate--CoA ligase
2237	 30.65	0	2435350..2436465	-	371	82752020	-	SAB2305c	-	hypothetical protein
2238	 33.43	0	2436443..2437450	-	335	82752021	bioB	SAB2306c	-	biotin synthase
2239	 33.70	0	2437452..2438810	-	452	82752022	bioA	SAB2307c	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2240	 31.88	0	2438788..2439474	-	228	82752023	-	SAB2308c	-	dethiobiotin synthetase
2241	 31.45	0	2441663..2443360	-	565	82752024	-	SAB2310c	-	truncated ATP-binding ABC transporter
2242	 40.51	+2	2443573..2443767	-	64	82752025	-	SAB2311c	-	hypothetical protein
2243	 35.86	0	2443995..2444231	+	78	82752026	-	SAB2312	-	hypothetical protein
2244	 27.65	-1	2444233..2444619	-	128	82752027	-	SAB2313c	-	hypothetical protein
2245	 38.67	+1	2444887..2446029	+	380	82752028	-	SAB2314	-	glycerate kinase
2246	 31.97	0	2446089..2446748	+	219	82752029	-	SAB2315	-	hypothetical protein
2247	 34.90	0	2446931..2448142	+	403	82752030	-	SAB2316	-	transporter protein
2248	 35.86	0	2448265..2448738	-	157	82752031	-	SAB2317c	-	hypothetical protein
2249	 35.62	0	2448851..2449507	+	218	82752032	-	SAB2318	-	hypothetical protein
2250	 34.32	0	2449570..2450376	-	268	82752033	-	SAB2319c	-	hypothetical protein
2251	 35.18	0	2450662..2452071	+	469	82752034	-	SAB2320	-	amino acid ABC transporter
2252	 32.28	0	2452208..2454286	+	692	82752035	-	SAB2321	-	sodium hydrogen exchanger family protein
2253	 34.15	0	2454427..2456256	-	609	82752036	-	SAB2322c	-	hypothetical protein
2254	 31.53	0	2456488..2457987	+	499	82752037	-	SAB2323	-	drug resistance-involved membrane protein
2255	 36.89	+1	2458094..2458936	-	280	82752038	-	SAB2324c	-	hypothetical protein
2256	 35.04	0	2459278..2460213	-	311	82752039	-	SAB2325c	-	2-dehydropantoate 2-reductase
2257	 34.33	0	2460439..2461839	-	466	82752040	-	SAB2326c	-	transmembrane efflux protein
2258	 35.63	0	2462133..2462828	-	231	82752041	opuCD	SAB2327c	-	betaine-carnitine-choline ABC transporter
2259	 35.56	0	2462828..2463769	-	313	82752042	opuCC	SAB2328c	-	betaine-carnitine-choline ABC transporter
2260	 36.32	0	2463786..2464421	-	211	82752043	opuCB	SAB2329c	-	betaine-carnitine-choline ABC transporter
2261	 35.78	0	2464418..2465644	-	408	82752044	opuCA	SAB2330c	-	betaine-carnitine-choline ABC transporter
2262	 36.14	0	2467092..2468729	+	545	82752045	-	SAB2332	-	amino acid transporter permease
2263	 34.89	0	2468957..2470309	+	450	82752046	-	SAB2333	-	carboxylesterase
2264	 35.27	0	2470371..2471555	-	394	82752047	-	SAB2334c	-	membrane transporter
2265	 36.16	0	2471951..2472727	-	258	82752048	-	SAB2335c	-	hypothetical protein
2266	 33.63	0	2472720..2473382	-	220	82752049	-	SAB2336c	-	ATP-binding ABC transporter
2267	 27.91	-1	2473470..2473598	-	42	82752050	-	SAB2337c	-	hypothetical protein
2268	 37.51	+1	2473728..2474804	-	358	82752051	-	SAB2338c	-	endo-1,4-beta-glucanase
2269	 28.09	-1	2475160..2475426	-	88	82752052	-	SAB2339c	-	hypothetical protein
2270	 28.68	-1	2475426..2475683	-	85	82752053	-	SAB2340c	-	hypothetical protein
2271	 27.12	-1	2475807..2475983	-	58	82752054	-	SAB2341c	-	hypothetical protein
2272	 28.07	-1	2476042..2476497	+	151	82752055	-	SAB2342	-	lipoprotein
2273	 35.74	0	2476665..2478242	-	525	82752056	-	SAB2343c	-	glutamate synthase-ferredoxin large subunit
2274	 30.27	0	2478436..2479185	+	249	82752057	-	SAB2344	-	hypothetical protein
2275	 36.52	+1	2479409..2480602	-	397	82752058	-	SAB2345c	-	antibiotic resistance transport protein
2276	 35.47	0	2480614..2481363	-	249	82752059	opp1F	SAB2346c	-	oligopeptide transporter ATPase subunit
2277	 35.05	0	2481356..2482171	-	271	82752060	opp1D	SAB2347c	-	oligopeptide transporter ATPase subunit
2278	 35.75	0	2482168..2483037	-	289	82752061	opp1C	SAB2348c	-	oligopeptide transporter permease
2279	 33.65	0	2483034..2483969	-	311	82752062	opp1B	SAB2349c	-	oligopeptide transporter permease
2280	 34.90	0	2483982..2485580	-	532	82752063	opp1A	SAB2350c	-	oligopeptide transporter substrate binding protein
2281	 36.10	0	2485723..2487024	-	433	82752064	-	SAB2351c	-	hypothetical protein
2282	 33.33	0	2487017..2487835	-	272	82752065	-	SAB2352c	-	hypothetical protein
2283	 35.40	0	2487846..2488667	-	273	82752066	-	SAB2353c	-	hypothetical protein
2284	 36.20	0	2489356..2490123	-	255	82752067	-	SAB2354c	-	hypothetical protein
2285	 39.93	+2	2490224..2491042	-	272	82752068	-	SAB2355c	-	short chain dehydrogenase
2286	 36.26	0	2491276..2492814	+	512	82752069	-	SAB2356	-	transport protein
2287	 28.37	-1	2492926..2493348	-	140	82752070	-	SAB2357c	-	hypothetical protein
2288	 28.33	-1	2493804..2494223	-	139	82752071	-	SAB2358c	-	hypothetical protein
2289	 34.75	0	2496540..2496821	+	93	82752072	-	SAB2362	-	hypothetical protein
2290	 35.42	0	2497081..2497272	-	63	82752073	-	SAB2363c	-	hypothetical protein
2291	 20.51	-2	2497340..2497495	-	51	82752074	-	SAB2364c	-	hypothetical protein
2292	 33.33	0	2498278..2498565	-	95	82752075	-	SAB2365c	-	hypothetical protein
2293	 29.55	-1	2498568..2498831	-	87	82752076	-	SAB2366c	-	hypothetical protein
2294	 33.56	0	2498894..2500219	-	441	82752077	-	SAB2367c	-	hypothetical protein
2295	 31.02	0	2501562..2502770	-	402	82752078	-	SAB2369c	-	DNA modification methylase
2296	 28.63	-1	2502840..2504432	-	530	82752079	-	SAB2370c	-	hypothetical protein
2297	 34.64	0	2504564..2506327	+	587	82752080	-	SAB2371	-	phosphoglucomutase
2298	 31.09	0	2506611..2506877	+	88	82752081	-	SAB2372	-	hypothetical protein
2299	 28.48	-1	2507022..2507330	+	102	82752082	-	SAB2373	-	hypothetical protein
2300	 36.33	+1	2507457..2508323	-	288	82752083	gtaB	SAB2374c	-	UTP-glucose-1-phosphate uridyltransferase
2301	 36.76	+1	2508503..2511475	-	990	82752084	fnbA	SAB2375c	-	fibronectin-binding protein
2302	 28.10	-1	2511675..2511884	-	69	82752085	-	SAB2376c	-	hypothetical protein
2303	 36.35	+1	2511931..2513289	-	452	82752086	gntP	SAB2377c	-	gluconate permease
2304	 37.77	+1	2513406..2514959	-	517	82752087	gntK	SAB2378c	-	gluconokinase
2305	 35.54	0	2514984..2515664	-	226	82752088	gntR	SAB2379c	-	gluconate operon transcriptional repressor
2306	 34.64	0	2515817..2516581	-	254	82752089	-	SAB2380c	-	MerR family transcriptional regulator
2307	 31.89	0	2516746..2517438	-	230	82752090	-	SAB2381c	-	hypothetical protein
2308	 34.36	0	2517669..2518157	-	162	82752091	-	SAB2382c	-	hypothetical protein
2309	 32.18	0	2518225..2520225	-	666	82752092	-	SAB2383c	-	hypothetical protein
2310	 23.53	-2	2520560..2520763	-	67	82752093	-	SAB2384c	-	hypothetical protein
2311	 36.23	0	2520959..2522236	-	425	82752094	-	SAB2385c	-	transport protein
2312	 32.68	0	2522783..2523394	+	203	82752095	-	SAB2386	-	alkaline phosphatase
2313	 32.88	0	2523470..2523691	+	73	82752096	-	SAB2387	-	hypothetical protein
2314	 31.32	0	2523912..2524607	+	231	82752097	-	SAB2388	-	ABC transporter
2315	 26.20	-2	2524609..2525379	+	256	82752098	-	SAB2389	-	membrane-spanning protein
2316	 34.50	0	2525882..2527846	+	654	82752099	-	SAB2390	-	fructose-bisphosphatase
2317	 35.65	0	2528189..2529268	+	359	82752100	-	SAB2391	-	hypothetical protein
2318	 36.03	0	2529373..2529966	-	197	82752101	-	SAB2392c	-	hypothetical protein
2319	 35.81	0	2529988..2530956	-	322	82752102	-	SAB2393c	-	glyoxylase family protein
2320	 35.86	0	2531034..2531468	-	144	82752103	-	SAB2394c	-	MarR family transcriptional regulator
2321	 33.33	0	2531694..2531978	+	94	82752104	-	SAB2395	-	hypothetical protein
2322	 37.79	+1	2532153..2532959	+	268	82752105	-	SAB2396	-	hypothetical protein
2323	 37.35	+1	2533078..2533749	-	223	82752106	-	SAB2397c	-	NADH-dependent flavin reductase
2324	 32.96	0	2533956..2534765	+	269	82752107	ddh	SAB2398	-	D-lactate dehydrogenase
2325	 34.58	0	2535012..2535812	-	266	82752108	-	SAB2399c	-	hypothetical protein
2326	 24.37	-2	2536133..2536768	+	211	82752109	-	SAB2400	-	ABC transporter ATP-binding protein
2327	 27.52	-1	2536783..2537505	+	240	82752110	-	SAB2401	-	hypothetical protein
2328	 32.69	0	2537666..2538286	-	206	82752111	srtA	SAB2402c	-	sortase
2329	 36.79	+1	2538480..2538971	+	163	82752112	-	SAB2403	-	phosphinothricin N-acetyltransferase
2330	 41.00	+2	2539469..2540368	-	299	82752113	-	SAB2404c	-	L-serine dehydratase alpha subunit
2331	 32.01	0	2540382..2541062	-	226	82752114	-	SAB2405c	-	L-serine dehydratase beta subunit
2332	 37.36	+1	2541065..2542108	-	347	82752115	-	SAB2406c	-	surface-exposed regulatory protein
2333	 33.94	0	2542989..2543153	+	54	82752116	-	SAB2407	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
