IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

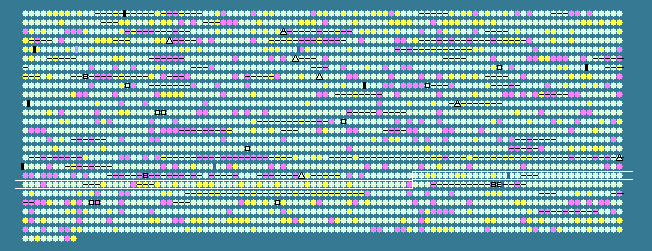

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1866	 31.73	0	2056451..2058379	+	642	82751649	-	SAB1931	-	ATP-binding ABC transporter protein
1867	 30.23	0	2058748..2060358	+	536	82751650	-	SAB1932	-	hypothetical protein
1868	 41.41	+2	2060506..2060703	+	65	82751651	-	SAB1933	-	hypothetical protein
1869	 37.43	+1	2060786..2061811	-	341	82751652	-	SAB1934c	-	O-sialoglycoprotein endopeptidase
1870	 32.04	0	2061804..2062268	-	154	82751653	-	SAB1935c	-	ribosomal-protein-alanine acetyltransferase
1871	 34.99	0	2062241..2062903	-	220	82751654	-	SAB1936c	-	hypothetical protein
1872	 31.17	0	2062884..2063345	-	153	82751655	-	SAB1937c	-	hypothetical protein
1873	 40.26	+2	2063851..2065539	+	562	82751656	-	SAB1938	-	dihydroxy-acid dehydratase
1874	 36.67	+1	2065567..2067336	+	589	82751657	ilvB	SAB1939	-	acetolactate synthase large subunit
1875	 30.59	0	2067336..2067590	+	84	82751658	ilvH	SAB1940	-	acetolactate synthase 1 regulatory subunit
1876	 35.02	0	2067727..2068731	+	334	82751659	ilvC	SAB1941	-	ketol-acid reductoisomerase
1877	 36.14	0	2068761..2070290	+	509	82751660	leuA	SAB1942	-	2-isopropylmalate synthase
1878	 35.63	0	2070293..2071339	+	348	82751661	leuB	SAB1943	-	3-isopropylmalate dehydrogenase
1879	 38.15	+1	2071353..2072723	+	456	82751662	leuC	SAB1944	-	isopropylmalate isomerase large subunit
1880	 33.16	0	2072724..2073296	+	190	82751663	leuD	SAB1945	-	isopropylmalate isomerase small subunit
1881	 32.07	0	2073311..2074579	+	422	82751664	ilvA	SAB1946	-	threonine dehydratase
1882	 33.33	0	2080842..2081306	-	154	82751665	-	SAB1947c	-	hypothetical protein
1883	 33.38	0	2081290..2083440	-	716	82751666	-	SAB1948c	-	hypothetical protein
1884	 34.50	0	2083874..2084644	-	256	82751667	sigB	SAB1949c	-	RNA polymerase sigma factor SigB
1885	 32.71	0	2084619..2085098	-	159	82751668	rsbW	SAB1950c	-	serine-protein kinase RsbW
1886	 31.50	0	2085100..2085426	-	108	82751669	rsbV	SAB1951c	-	anti-sigma B factor antagonist
1887	 31.44	0	2085545..2086546	-	333	82751670	rsbU	SAB1952c	-	indirect positive regulator of sigma B
1888	 33.05	0	2086904..2087257	-	117	82751671	-	SAB1953c	-	hypothetical protein
1889	 33.33	0	2087254..2087424	-	56	82751672	-	SAB1954c	-	hypothetical protein
1890	 35.94	0	2087509..2088657	-	382	82751673	alr	SAB1955c	-	alanine racemase
1891	 35.28	0	2088723..2089082	-	119	82751674	acpS	SAB1956c	-	holo-acyl-carrier protein synthase
1892	 33.74	0	2089086..2089577	-	163	82751675	-	SAB1957c	-	hypothetical protein
1893	 31.88	0	2089570..2091147	-	525	82751676	-	SAB1958c	-	hypothetical protein
1894	 30.21	0	2091140..2091619	-	159	82751677	-	SAB1959c	-	hypothetical protein
1895	 34.76	0	2091823..2092383	-	186	82751678	kdpC	SAB1960c	-	potassium-transporting ATPase C chain
1896	 35.01	0	2092403..2094430	-	675	82751679	kdpB	SAB1961c	-	potassium-transporting ATPase B chain
1897	 32.86	0	2094449..2096125	-	558	82751680	kdpA	SAB1962c	-	potassium-transporting ATPase subunit A
1898	 31.64	0	2096397..2099054	+	885	82751681	kdpD	SAB1963	-	two component sensor protein
1899	 32.33	0	2099054..2099749	+	231	82751682	kdpE	SAB1964	-	two component sensor protein
1900	 36.49	+1	2100100..2101620	-	506	82751683	-	SAB1965c	-	ATP-dependent RNA helicase
1901	 32.97	0	2102137..2103495	-	452	82751684	-	SAB1966c	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate-D-alanyl-D-alanine ligase
1902	 33.52	0	2103510..2104580	-	356	82751685	ddl	SAB1967c	-	D-alanyl-alanine synthetase A
1903	 32.67	0	2104898..2106100	+	400	82751686	-	SAB1968	-	hypothetical protein
1904	 26.81	-1	2106364..2106501	-	45	82751687	-	SAB1969c	-	hypothetical protein
1905	 30.48	0	2106629..2106838	-	69	82751688	-	SAB1970c	-	hypothetical protein
1906	 33.67	0	2106850..2107143	-	97	82751689	-	SAB1971c	-	hypothetical protein
1907	 32.05	0	2107309..2108793	+	494	82751690	-	SAB1972	-	cardiolipin synthetase
1908	 34.26	0	2108821..2109468	+	215	82751691	-	SAB1973	-	hypothetical protein
1909	 33.79	0	2110132..2111004	-	290	82751692	-	SAB1974c	-	membrane-embedded lipoprotein precursor
1910	 35.05	0	2111090..2111731	-	213	82751693	thiE	SAB1975c	-	thiamine-phosphate pyrophosphorylase
1911	 35.35	0	2111733..2112524	-	263	82751694	thiM	SAB1976c	-	hydroxyethylthiazole kinase
1912	 32.03	0	2113330..2114019	-	229	82751695	tenA	SAB1978c	-	transcriptional activator
1913	 34.07	0	2114282..2114554	+	90	82751696	-	SAB1979	-	hypothetical protein
1914	 39.22	+1	2114544..2115239	-	231	82751697	-	SAB1980c	-	hypothetical protein
1915	 30.30	0	2115628..2116023	-	131	82751698	-	SAB1981c	-	single strand DNA binding protein
1916	 29.76	0	2116154..2116657	+	167	82751699	-	SAB1982	-	hypothetical protein
1917	 33.79	0	2116714..2117154	-	146	82751700	fabZ	SAB1983c	-	3R-hydroxymyristoyl ACP dehydratase
1918	 35.94	0	2117188..2118453	-	421	82751701	murA1	SAB1984c	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1919	 28.63	-1	2118564..2118797	-	77	82751702	-	SAB1985c	-	hypothetical protein
1920	 36.54	+1	2119321..2119725	-	134	82751703	atpC	SAB1986c	-	F0F1 ATP synthase subunit epsilon
1921	 38.85	+1	2119745..2121157	-	470	82751704	atpD	SAB1987c	-	F0F1 ATP synthase subunit beta
1922	 34.83	0	2121179..2122045	-	288	82751705	atpG	SAB1988c	-	F0F1 ATP synthase subunit gamma
1923	 37.18	+1	2122076..2123584	-	502	82751706	atpA	SAB1989c	-	F0F1 ATP synthase subunit alpha
1924	 29.63	-1	2123606..2124145	-	179	82751707	atpH	SAB1990c	-	F0F1 ATP synthase subunit delta
1925	 36.02	0	2124145..2124666	-	173	82751708	atpF	SAB1991c	-	F0F1 ATP synthase subunit B
1926	 40.38	+2	2124864..2125076	-	70	82751709	atpE	SAB1992c	-	F0F1 ATP synthase subunit C
1927	 35.53	0	2125119..2125847	-	242	82751710	atpB	SAB1993c	-	F0F1 ATP synthase subunit A
1928	 30.23	0	2125868..2126221	-	117	82751711	atpI	SAB1994c	-	hypothetical protein
1929	 34.75	0	2126388..2127518	-	376	82751712	mnaA	SAB1995c	-	UDP-GlcNAc 2-epimerase
1930	 36.83	+1	2127539..2128168	-	209	82751713	upp	SAB1996c	-	uracil phosphoribosyltransferase
1931	 36.97	+1	2128196..2129434	-	412	82751714	glyA	SAB1997c	-	serine hydroxymethyltransferase
1932	 36.57	+1	2129461..2129985	-	174	82751715	-	SAB1998c	-	hypothetical protein
1933	 32.86	0	2130092..2130511	-	139	82751716	-	SAB1999c	-	hypothetical protein
1934	 35.15	0	2130508..2131554	-	348	82751717	-	SAB2000c	-	hypothetical protein
1935	 34.65	0	2131638..2132474	-	278	82751718	-	SAB2001c	-	hypothetical protein
1936	 35.19	0	2132461..2133537	-	358	82751719	prfA	SAB2002c	-	peptide chain release factor 1
1937	 36.83	+1	2133538..2134137	-	199	82751720	-	SAB2003c	-	thymidine kinase
1938	 35.69	0	2134484..2134738	-	84	82751721	rpmE2	SAB2004c	-	50S ribosomal protein L31 type B
1939	 35.61	0	2134856..2136172	-	438	82751722	rho	SAB2005c	-	transcription termination factor Rho
1940	 36.69	+1	2136419..2137846	-	475	82751723	-	SAB2006c	-	aldehyde dehydrogenase
1941	 35.40	0	2138085..2138423	-	112	82751724	-	SAB2007c	-	hypothetical protein
1942	 34.60	0	2138509..2139768	-	419	82751725	murA2	SAB2008c	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1943	 36.59	+1	2140234..2141094	-	286	82751726	-	SAB2009c	-	fructose-bisphosphate aldolase
1944	 31.61	0	2141312..2141833	+	173	82751727	-	SAB2010	-	hypothetical protein
1945	 34.08	0	2141942..2143552	-	536	82751728	pyrG	SAB2011c	-	CTP synthetase
1946	 31.26	0	2143888..2144418	-	176	82751729	rpoE	SAB2012c	-	DNA-directed RNA polymerase subunit delta
1947	 32.98	0	2144530..2145390	-	286	82751730	-	SAB2013c	-	hypothetical protein
1948	 36.94	+1	2145815..2146618	+	267	82751731	-	SAB2014	-	pantothenate kinase
1949	 32.29	0	2146748..2147419	-	223	82751732	-	SAB2015c	-	hypothetical protein
1950	 33.75	0	2147818..2149011	-	397	82751733	-	SAB2016c	-	hypothetical protein
1951	 36.79	+1	2149011..2150195	-	394	82751734	-	SAB2017c	-	amidase
1952	 33.55	0	2150506..2150976	+	156	82751735	luxS	SAB2018	-	S-ribosylhomocysteinase
1953	 31.91	0	2151128..2151478	-	116	82751736	-	SAB2019c	-	hypothetical protein
1954	 36.41	+1	2151492..2152793	-	433	82751737	pyn	SAB2020c	-	pyrimidine-nucleoside phosphorylase
1955	 40.42	+2	2153073..2153735	-	220	82751738	deoC2	SAB2021c	-	deoxyribose-phosphate aldolase
1956	 34.60	0	2154049..2154759	+	236	82751739	deoD	SAB2022	-	purine nucleoside phosphorylase
1957	 32.66	0	2154880..2155323	-	147	82751740	-	SAB2023c	-	general stress protein 20U
1958	 32.37	0	2155523..2155936	-	137	82751741	-	SAB2024c	-	hypothetical protein
1959	 31.66	0	2156394..2157767	-	457	82751742	-	SAB2025c	-	hypothetical protein
1960	 35.50	0	2158441..2158671	-	76	82751743	-	SAB2026c	-	hypothetical protein
1961	 34.19	0	2158702..2159640	-	312	82751744	-	SAB2027c	-	mannose-6-phosphate isomerase
1962	 34.38	0	2160076..2160741	-	221	82751745	-	SAB2028c	-	hypothetical protein
1963	 34.27	0	2160893..2161213	+	106	82751746	czrA	SAB2029	-	zinc and cobalt transport repressor protein
1964	 33.33	0	2161215..2162195	+	326	82751747	czrB	SAB2030	-	cation-efflux system membrane protein
1965	 27.18	-1	2162460..2163515	+	351	82751748	-	SAB2031	-	membrane-embedded lytic regulatory protein
33.03	MEAN

3.30	STD DEV
