IslandPath Analysis: Staphylococcus aureus RF122

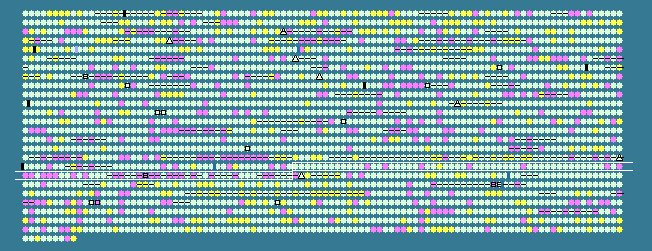

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.03   STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1746	 34.88	0	1943843..1944358	-	171	82751528	-	SAB1807c	-	hypothetical protein
1747	 31.48	0	1944488..1944649	-	53	82751529	-	SAB1808c	-	hypothetical protein
1748	 33.42	0	1944872..1946023	+	383	82751530	-	SAB1809	-	hypothetical protein
1749	 36.35	+1	1946284..1946814	-	176	82751531	-	SAB1810c	-	hypothetical protein
1750	 33.97	0	1946904..1948151	-	415	82751532	-	SAB1811c	-	aminopeptidase
1751	 30.85	0	1948163..1948363	-	66	82751533	-	SAB1812c	-	hypothetical protein
1752	 33.76	0	1948510..1948974	+	154	82751534	-	SAB1813	-	protein tyrosine phosphatase
1753	 33.33	0	1948981..1949256	+	91	82751535	-	SAB1814	-	hypothetical protein
1754	 32.59	0	1949534..1950751	+	405	82751536	-	SAB1815	-	hypothetical protein
1755	 33.81	0	1950864..1951493	-	209	82751537	-	SAB1816c	-	two-component response regulator
1756	 32.18	0	1951483..1952526	-	347	82751538	vraS	SAB1817c	-	two-component sensor histidine kinase
1757	 30.20	0	1952523..1953224	-	233	82751539	-	SAB1818c	-	hypothetical protein
1758	 25.84	-2	1953239..1953625	-	128	82751540	-	SAB1819c	-	hypothetical protein
1759	 36.23	0	1953842..1954600	-	252	82751541	-	SAB1820c	-	methionine aminopeptidase
1760	 32.22	0	1955012..1955998	+	328	82751542	-	SAB1821	-	hypothetical protein
1761	 26.57	-1	1956428..1956841	-	137	82751543	-	SAB1822c	-	hypothetical protein
1762	 31.01	0	1957066..1957797	-	243	82751544	-	SAB1823c	-	cobyric acid synthase
1763	 34.40	0	1957799..1959112	-	437	82751545	-	SAB1824c	-	UDP-N-acetylmuramyl tripeptide synthase
1764	 34.13	0	1959407..1959907	+	166	82751546	ftn	SAB1825	-	ferritin
1765	 31.71	0	1960298..1960852	+	184	82751547	-	SAB1826	-	DNA polymerase III alpha chain
1766	 34.95	0	1961004..1961990	-	328	82751548	-	SAB1827c	-	DNA polymerase IV
1767	 28.81	-1	1962237..1962767	-	176	82751549	-	SAB1828c	-	hypothetical protein
1768	 33.04	0	1962937..1964298	-	453	82751550	-	SAB1829c	-	RNA methyltransferase
1769	 34.07	0	1964379..1965326	-	315	82751551	-	SAB1830c	-	putative lipid kinase
1770	 42.42	+2	1965417..1965647	-	76	82751552	-	SAB1831c	-	hypothetical protein
1771	 34.80	0	1966094..1967521	-	475	82751553	gatB	SAB1832c	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1772	 34.02	0	1967534..1968991	-	485	82751554	gatA	SAB1833c	-	glutamyl-tRNA amidotransferase subunit A
1773	 35.97	0	1968993..1969295	-	100	82751555	gatC	SAB1834c	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1774	 35.74	0	1969661..1971199	+	512	82751556	putP	SAB1835	-	high affinity proline permease
1775	 29.10	-1	1971358..1971711	-	117	82751557	-	SAB1836c	-	transcriptional regulator
1776	 34.69	0	1971836..1972795	+	319	82751558	-	SAB1837	-	hypothetical protein
1777	 31.00	0	1973079..1974278	-	399	82751559	-	SAB1838c	-	lipoprotein
1778	 34.18	0	1974291..1976294	-	667	82751560	lig	SAB1839c	-	DNA ligase
1779	 34.06	0	1976298..1978490	-	730	82751561	pcrA	SAB1840c	-	ATP-dependent DNA helicase
1780	 33.62	0	1978487..1979179	-	230	82751562	-	SAB1841c	-	geranylgeranylglyceryl phosphate synthase-like protein
1781	 32.34	0	1979351..1979653	-	100	82751563	-	SAB1842c	-	hypothetical protein
1782	 35.57	0	1979762..1981057	-	431	82751564	purB	SAB1843c	-	adenylosuccinate lyase
1783	 31.79	0	1981918..1983084	+	388	82751566	-	SAB1845	-	staphopain cysteine proteinase
1784	 26.91	-1	1983115..1983441	+	108	82751567	-	SAB1846	-	hypothetical protein
1785	 33.91	0	1983733..1983906	-	57	82751568	-	SAB1847c	-	hypothetical protein
1786	 32.01	0	1983887..1984489	-	200	82751569	-	SAB1848c	-	hypothetical protein
1787	 33.70	0	1984759..1985580	-	273	82751570	nadE	SAB1849c	-	NAD synthetase
1788	 33.27	0	1985573..1987042	-	489	82751571	-	SAB1850c	-	nicotinate phosphoribosyltransferase
1789	 33.24	0	1987226..1988302	+	358	82751572	-	SAB1851	-	nitric oxide synthase
1790	 32.70	0	1988322..1989116	+	264	82751573	-	SAB1852	-	hypothetical protein
1791	 34.68	0	1989306..1990868	-	520	82751574	-	SAB1853c	-	sodium-sulfate symport protein
1792	 32.60	0	1991074..1992171	-	365	82751575	-	SAB1854c	-	hypothetical protein
1793	 34.40	0	1992543..1993103	+	186	82751576	-	SAB1855	-	bifunctional pyrazinamidase/nicotinamidase
1794	 33.66	0	1993156..1994085	+	309	82751577	ppaC	SAB1856	-	putative manganese-dependent inorganic pyrophosphatase
1795	 33.62	0	1994503..1995882	+	459	82751578	-	SAB1857	-	aldehyde dehydrogenase
1796	 33.04	0	1996002..1997030	-	342	82751579	-	SAB1858c	-	hypothetical protein
1797	 32.84	0	1997301..1997702	+	133	82751580	-	SAB1859	-	hypothetical protein
1798	 24.71	-2	1997759..1997932	-	57	82751581	-	SAB1860c	-	hypothetical protein
1799	 34.39	0	1998383..1999423	+	346	82751582	-	SAB1861	-	hypothetical protein
1800	 29.18	-1	1999480..2000322	-	280	82751583	-	SAB1862c	-	hypothetical protein
1801	 28.32	-1	2000319..2000876	-	185	82751584	-	SAB1863c	-	hypothetical protein
1802	 28.19	-1	2000936..2001460	-	174	82751585	-	SAB1864c	-	hypothetical protein
1803	 31.56	0	2001581..2002144	+	187	82751586	-	SAB1865	-	hypothetical protein
1804	 26.72	-1	2002210..2002950	-	246	82751587	-	SAB1866c	-	hypothetical protein
1805	 29.10	-1	2002950..2003822	-	290	82751588	-	SAB1867c	-	transport protein
1806	 26.87	-1	2003819..2004499	-	226	82751589	-	SAB1868c	-	hypothetical protein
1807	 31.22	0	2004500..2005396	-	298	82751590	-	SAB1869c	-	ABC transporter
1808	 32.28	0	2005393..2005773	-	126	82751591	-	SAB1870c	-	GntR family transcriptional regulator
1809	 24.86	-2	2006271..2006447	-	58	82751592	-	SAB1871c	-	hypothetical protein
1810	 33.64	0	2006988..2008274	+	428	82751593	-	SAB1872	-	hypothetical protein
1811	 27.61	-1	2008883..2009965	-	360	82751594	-	SAB1873c	-	cell surface protein
1812	 33.23	0	2010354..2011346	+	330	82751595	-	SAB1874	-	beta-hemolysin
1813	 30.19	0	2011862..2012878	-	338	82751596	-	SAB1875c	-	leukocidin F subunit
1814	 29.83	0	2012900..2013955	-	351	82751597	-	SAB1876c	-	leukocidin S subunit
1815	 33.33	0	2014391..2015614	+	407	82751598	-	SAB1877	-	succinyl-diaminopimelate desuccinylase
1816	 28.02	-1	2016112..2016450	-	112	82751599	-	SAB1878c	-	hypothetical protein
1817	 27.98	-1	2016572..2016982	-	136	82751600	-	SAB1879c	-	hypothetical protein
1818	 29.88	0	2016985..2018055	-	356	82751601	-	SAB1880c	-	5-aminolevulinate synthase
1819	 32.82	0	2018495..2018689	-	64	82751602	-	SAB1881c	-	hypothetical protein
1820	 28.67	-1	2018763..2020070	+	435	82751603	-	SAB1882	-	sodium transport protein
1821	 25.68	-2	2020407..2020628	+	73	82751604	-	SAB1883	-	transposase
1822	 28.39	-1	2020648..2021274	-	208	82751605	-	SAB1884c	-	phage-like protein
1823	 27.22	-1	2021271..2021450	-	59	82751606	-	SAB1885c	-	hypothetical protein
1824	 31.11	0	2023094..2023228	-	44	82751607	-	SAB1888c	-	hypothetical protein
1825	 24.95	-2	2023929..2024429	-	166	82751608	-	SAB1889c	-	hypothetical protein
1826	 25.64	-2	2024780..2024896	+	38	82751609	-	SAB1890	-	hypothetical protein
1827	 29.39	-1	2025043..2025726	+	227	82751610	-	SAB1891	-	hypothetical protein
1828	 32.65	0	2025927..2027396	-	489	82751611	-	SAB1892c	-	multidrug resistance protein
1829	 18.37	-2	2027398..2027544	-	48	82751612	-	SAB1893c	-	hypothetical protein
1830	 29.82	0	2028146..2028487	-	113	82751613	-	SAB1895c	-	mobile element-associated protein
1831	 32.29	0	2028490..2029065	-	191	82751614	-	SAB1896c	-	mobile element-associated protein
1832	 28.77	-1	2029068..2029286	-	72	82751615	-	SAB1897c	-	mobile element-associated protein
1833	 29.71	-1	2029304..2029882	-	192	82751616	-	SAB1898c	-	mobile element-associated protein
1834	 33.04	0	2029894..2030235	-	113	82751617	-	SAB1899c	-	mobile element-associated protein
1835	 34.13	0	2030416..2030541	-	41	82751618	-	SAB1900c	-	hypothetical protein
1836	 28.16	-1	2030553..2030726	-	57	82751619	-	SAB1901c	-	hypothetical protein
1837	 35.20	0	2030752..2031393	-	213	82751620	-	SAB1902c	-	mobile element-associated protein
1838	 31.50	0	2031390..2031770	-	126	82751621	-	SAB1903c	-	mobile element-associated protein
1839	 31.99	0	2032079..2033788	-	569	82751622	-	SAB1904c	-	mobile element-associated protein
1840	 34.37	0	2033802..2034671	-	289	82751623	-	SAB1905c	-	mobile element-associated protein
1841	 28.62	-1	2034738..2035055	-	105	82751624	-	SAB1906c	-	mobile element-associated protein
1842	 27.37	-1	2035056..2035424	-	122	82751625	-	SAB1907c	-	hypothetical protein
1843	 31.46	0	2035417..2035629	-	70	82751626	-	SAB1908c	-	mobile element-associated protein
1844	 31.13	0	2035765..2036082	-	105	82751627	-	SAB1909c	-	hypothetical protein
1845	 31.22	0	2036086..2036274	-	62	82751628	-	SAB1910c	-	SaPI1 Orf21
33.03	MEAN

3.30	STD DEV
