IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

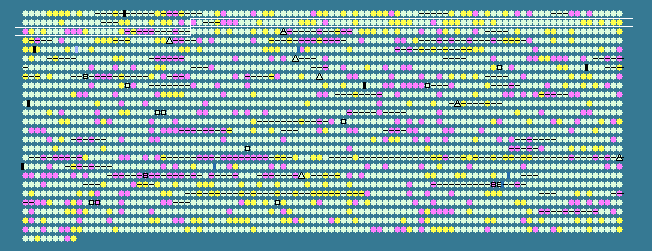

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
129	 29.17	-1	170266..170865	-	199	82749906	-	SAB0136c	-	hypothetical protein
130	 30.10	0	170989..172101	+	370	82749907	-	SAB0137	-	hypothetical protein
131	 31.42	0	172098..172778	+	226	82749908	-	SAB0138	-	ABC transporter ATP-binding protein
132	 30.70	0	172967..173953	+	328	82749909	-	SAB0139	-	ABC transporter ATP-binding protein
133	 41.44	+2	174161..174382	+	73	82749910	-	SAB0140	-	hypothetical protein
134	 23.31	-2	174453..176138	+	561	82749911	-	SAB0141	-	hypothetical protein
135	 25.68	-2	176196..176639	+	147	82749912	-	SAB0142	-	hypothetical protein
136	 26.69	-1	176651..177373	+	240	82749913	-	SAB0143	-	ABC transporter ATP-binding protein
137	 32.52	0	179783..181261	+	492	82749914	-	SAB0145	-	oligopeptide ABC transporter permease protein
138	 34.11	0	181267..182430	+	387	82749915	-	SAB0146	-	oligopeptide ABC transporter
139	 33.56	0	182447..184222	+	591	82749916	-	SAB0147	-	RGD-containing lipoprotein
140	 38.32	+1	184260..186266	+	668	82749917	-	SAB0148	-	gamma-glutamyltransferase
141	 33.33	0	186804..187430	-	208	161777622	-	SAB0149c	-	azoreductase
142	 35.58	0	187639..188217	+	192	82749919	-	SAB0150	-	hypothetical protein
143	 34.88	0	188600..189697	+	365	82749920	-	SAB0151	-	multiple sugar-binding transport ATP-binding protein
144	 34.12	0	189710..190981	+	423	82749921	-	SAB0152	-	maltose/maltodextrin transport system protein
145	 35.07	0	190984..192252	+	422	82749922	-	SAB0153	-	maltose/maltodextrin transport permease protein
146	 33.93	0	192254..193093	+	279	82749923	-	SAB0154	-	maltose/maltodextrin transport system protein
147	 42.25	+2	193135..193392	+	85	82749924	-	SAB0155	-	hypothetical protein
148	 38.98	+1	193451..194530	+	359	82749925	-	SAB0156	-	NADH-dependent dehydrogenase
149	 39.77	+2	194555..195595	+	346	82749926	-	SAB0157	-	NADH-dependent dehydrogenase
150	 35.91	0	195650..196618	+	322	82749927	-	SAB0158	-	hypothetical protein
151	 26.06	-2	196979..197473	-	164	82749928	-	SAB0159c	-	hypothetical protein
152	 35.65	0	197706..199085	+	459	82749929	uhpT	SAB0160	-	sugar phosphate antiporter
153	 33.07	0	199444..200202	-	252	82749930	-	SAB0161c	-	two-component response regulator
154	 32.88	0	200195..201751	-	518	82749931	-	SAB0162c	-	two-component sensor histidine kinase
155	 34.26	0	201748..202716	-	322	82749932	-	SAB0163c	-	periplasmic iron binding protein
156	 36.67	+1	203304..205553	+	749	82749933	-	SAB0164	-	formate acetyltransferase
157	 35.98	0	205576..206331	+	251	82749934	-	SAB0165	-	formate acetyltransferase activating enzyme
158	 32.36	0	206321..206629	+	102	82749935	-	SAB0166	-	hypothetical protein
159	 30.78	0	206667..208430	+	587	82749936	-	SAB0167	-	hypothetical protein
160	 31.88	0	208595..208939	-	114	82749937	-	SAB0168c	-	hyothetical protein
161	 35.40	0	209129..211012	+	627	82749938	-	SAB0169	-	staphylocoagulase precursor
162	 42.55	+2	211599..212792	-	397	82749939	-	SAB0170c	-	3-ketoacyl-CoA transferase
163	 37.53	+1	212813..215074	-	753	82749940	-	SAB0171c	-	3-hydroxyacyl-CoA dehydrogenase
164	 37.38	+1	216583..218088	-	501	82749941	-	SAB0173c	-	acyl-CoA synthetase
165	 36.81	+1	218114..219694	-	526	82749942	-	SAB0174c	-	acetyl-CoA/acetoacetyl-CoA transferase
166	 34.07	0	220045..221274	+	409	82749943	-	SAB0175	-	hypothetical protein
167	 31.50	0	221588..223063	-	491	82749944	-	SAB0176c	-	peptide ABC transporter
168	 35.57	0	223261..223617	-	118	82749945	-	SAB0177c	-	hypothetical protein
169	 25.86	-2	223774..223947	-	57	82749946	-	SAB0178c	-	hypothetical protein
170	 34.64	0	223973..225118	-	381	82749947	-	SAB0179c	-	flavohemoprotein
171	 37.21	+1	225690..226643	+	317	82749948	-	SAB0180	-	L-lactate dehydrogenase
172	 38.99	+1	226964..228412	-	482	82749949	-	SAB0181c	-	phosphotransferase system enzyme II
173	 39.42	+1	228854..229789	+	311	82749950	-	SAB0182	-	inosine-uridine preferring nucleoside hydrolase family protein
174	 34.83	0	232214..232681	+	155	82749951	-	SAB0184	-	phosphotransferase system enzyme
175	 32.42	0	232704..232922	+	72	82749952	-	SAB0185	-	phosphotransferase system galactitol-specific enzyme II, B component
176	 36.75	+1	233205..234464	+	419	82749953	-	SAB0186	-	phosphotransferase system galactitol-specific enzyme II, C component
177	 36.65	+1	234482..235537	+	351	82749954	-	SAB0187	-	zinc-binding sorbitol dehydrogenase
178	 30.61	0	235539..235685	+	48	82749955	-	SAB0188	-	hypothetical protein
179	 37.55	+1	235709..236752	+	347	82749956	-	SAB0189	-	zinc-binding sorbitol dehydrogenase
180	 32.78	0	237280..237996	+	238	82749957	-	SAB0190	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
181	 32.63	0	239037..240731	+	564	82749958	-	SAB0192	-	teichoic acid biosynthesis protein B
182	 33.76	0	241159..242328	+	389	82749959	-	SAB0193	-	teichoic acid biosynthesis protein F
183	 32.50	0	242604..243320	+	238	82749960	ispD	SAB0194	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
184	 33.24	0	243313..244338	+	341	82749961	-	SAB0195	-	xylitol dehydrogenase
185	 32.03	0	244360..246048	+	562	82749962	-	SAB0196	-	teichoic acid biosynthesis protein B
186	 32.35	0	246081..247802	+	573	82749963	-	SAB0197	-	glycosyl transferase
187	 32.15	0	247946..248620	+	224	82749964	scdA	SAB0198	-	cell wall biosynthesis protein ScdA
188	 35.67	0	248866..250620	+	584	82749965	lytS	SAB0199	-	two-component sensor histidine kinase
189	 31.31	0	250623..251363	+	246	82749966	lytR	SAB0200	-	two-component sensor histidine kinase
190	 34.46	0	251476..251919	+	147	82749967	lrgA	SAB0201	-	murein hydrolase regulator LrgA
191	 36.47	+1	251912..252613	+	233	82749968	lrgB	SAB0202	-	antiholin-like protein LrgB
192	 33.19	0	252721..253425	-	234	82749969	-	SAB0203c	-	GntR family transcriptional regulator
193	 34.85	0	253574..254365	+	263	82749970	-	SAB0204	-	PTS system transport protein
194	 36.52	+1	254405..255817	+	470	82749971	bglA	SAB0205	-	6-phospho-beta-glucosidase
195	 40.48	+2	255881..256174	+	97	82749972	-	SAB0206	-	hypothetical protein
196	 34.12	0	256336..257097	-	253	82749973	-	SAB0207c	-	hypothetical protein
197	 37.49	+1	257347..258261	-	304	82749974	-	SAB0208c	-	ribokinase
198	 32.84	0	258289..258693	-	134	82749975	-	SAB0209c	-	D-ribose pyranase
199	 37.87	+1	258708..259589	-	293	82749976	-	SAB0210c	-	ribose transporter
200	 37.24	+1	259821..260819	-	332	82749977	-	SAB0211c	-	ribose operon transcriptional regulator
201	 26.41	-2	261200..261589	+	129	82749978	-	SAB0212	-	hypothetical protein
202	 37.25	+1	261718..263094	-	458	82749979	-	SAB0213c	-	membrane transporter
203	 35.25	0	263328..264320	+	330	82749980	-	SAB0214	-	penicillin-related choloylglycine hydrolase
204	 39.43	+1	264640..265590	+	316	82749981	lytM	SAB0215	-	peptidoglycan hydrolase
205	 31.67	0	265642..266301	-	219	82749982	-	SAB0216c	-	ABC transporter ATP-binding protein
206	 31.70	0	266315..267235	-	306	82749983	-	SAB0217c	-	hypothetical protein
207	 32.56	0	267232..268398	-	388	82749984	-	SAB0218c	-	hypothetical protein
208	 28.61	-1	268466..269989	-	507	82749985	-	SAB0219c	-	hypothetical protein
209	 28.57	-1	270492..270911	+	139	82749986	-	SAB0220	-	hypothetical protein
210	 27.53	-1	270945..271547	+	200	82749987	-	SAB0221	-	hypothetical protein
211	 38.10	+1	272817..273110	+	97	82749988	-	SAB0223	-	hypothetical protein
212	 30.59	0	273193..276222	+	1009	82749989	-	SAB0224	-	hypothetical protein
213	 29.63	-1	276651..276893	+	80	82749990	-	SAB0226	-	hypothetical protein
214	 29.81	0	276906..278240	+	444	82749991	-	SAB0227	-	hypothetical protein
215	 34.10	0	278262..282701	+	1479	82749992	-	SAB0228	-	DNA segregation ATPase and related protein
216	 31.04	0	282731..283123	+	130	82749993	-	SAB0229	-	hypothetical protein
217	 38.41	+1	283139..283453	+	104	82749994	-	SAB0230	-	hypothetical protein
218	 29.20	-1	283450..284127	+	225	82749995	-	SAB0231	-	hypothetical protein
219	 38.36	+1	284127..284444	+	105	82749996	-	SAB0232	-	hypothetical protein
220	 27.85	-1	286309..286800	+	163	82749997	-	SAB0234	-	hypothetical protein
221	 26.90	-1	287002..287685	+	227	82749998	-	SAB0235	-	hypothetical protein
222	 27.40	-1	287954..288442	+	162	82749999	-	SAB0236	-	hypothetical protein
223	 31.54	0	288660..289160	+	166	82750000	-	SAB0237	-	hypothetical protein
224	 30.74	0	289171..289671	+	166	82750001	-	SAB0238	-	hypothetical protein
225	 31.20	0	289655..290170	+	171	82750002	-	SAB0239	-	hypothetical protein
226	 26.19	-2	290773..291150	+	125	82750003	-	SAB0240	-	hypothetical protein
227	 31.20	0	291321..291695	+	124	82750004	-	SAB0241	-	hypothetical protein
228	 33.09	0	291949..292770	-	273	82750005	-	SAB0242c	-	formate/nitrate transporter
33.03	MEAN

3.30	STD DEV
