IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

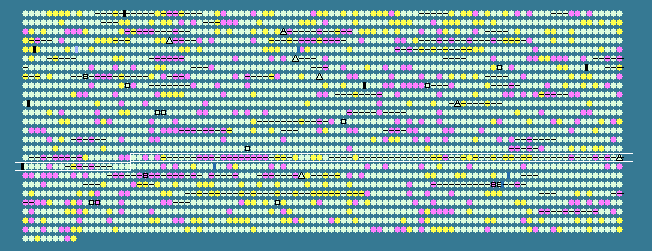

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1619	 29.73	-1	1822439..1823131	-	230	82751400	-	SAB1678c	-	transport protein
1620	 33.41	0	1823154..1824527	-	457	82751401	-	SAB1679c	-	serine protease precursor
1621	 26.20	-2	1824537..1825055	-	172	82751402	-	SAB1680c	-	hypothetical protein
1622	 29.64	-1	1825071..1826315	-	414	82751403	-	SAB1681c	-	hypothetical protein
1623	 27.45	-1	1826308..1829301	-	997	82751404	-	SAB1682c	-	hypothetical protein
1624	 38.19	+1	1829366..1829509	-	47	82751405	-	SAB1683c	-	hypothetical protein
1625	 29.69	-1	1829951..1830142	+	63	82751406	-	SAB1684	-	hypothetical protein
1626	 35.42	0	1830243..1830386	-	47	82751407	-	SAB1685c	-	hypothetical protein
1627	 31.81	0	1830626..1831609	-	327	82751408	lukD	SAB1686c	-	leukotoxin D subunit
1628	 32.48	0	1831611..1832546	-	311	82751409	lukE	SAB1687c	-	leukotoxin E subunit
1629	 32.46	0	1833270..1833383	+	37	82751410	-	SAB1688	-	hypothetical protein
1630	 22.22	-2	1833727..1833870	-	47	82751411	-	SAB1689c	-	hypothetical protein
1631	 23.45	-2	1834173..1834769	+	198	82751412	-	SAB1690	-	hypothetical protein
1632	 26.35	-2	1834937..1836283	+	448	82751413	-	SAB1691	-	hypothetical protein
1633	 31.88	0	1836565..1836771	+	68	82751414	-	SAB1692	-	hypothetical protein
1634	 27.85	-1	1836869..1837105	+	78	82751415	-	SAB1693	-	hypothetical protein
1635	 26.46	-1	1837147..1837902	+	251	82751416	-	SAB1694	-	hypothetical protein
1636	 29.01	-1	1838050..1838211	+	53	82751417	-	SAB1695	-	hypothetical protein
1637	 27.67	-1	1838630..1839247	-	205	82751418	seg	SAB1696c	-	enterotoxin G
1638	 25.00	-2	1839538..1840293	-	251	82751419	sen	SAB1697c	-	enterotoxin N
1639	 26.84	-1	1840332..1841117	-	261	82751420	sec-variant	SAB1698c	-	enterotoxin type C variant
1640	 27.43	-1	1841271..1841999	-	242	82751421	sei	SAB1699c	-	enterotoxin I
1641	 25.88	-2	1843037..1843801	-	254	82751422	seo	SAB1701c	-	enterotoxin O
1642	 36.47	+1	1844600..1844854	-	84	82751423	-	SAB1702c	-	hypothetical protein
1643	 41.15	+2	1844930..1846375	-	481	82751424	-	SAB1703c	-	phage-related amidase
1644	 38.81	+1	1846356..1846793	-	145	82751425	-	SAB1704c	-	phage-related holin
1645	 35.87	0	1846844..1848856	-	670	82751426	-	SAB1705c	-	phage-related tail fiber
1646	 37.38	+1	1848869..1850773	-	634	82751427	-	SAB1706c	-	phage-related cell wall hydrolase
1647	 32.03	0	1850910..1851215	-	101	82751428	-	SAB1707c	-	phage-like protein
1648	 34.31	0	1851403..1851810	-	135	82751429	-	SAB1708c	-	phage-like protein
1649	 36.68	+1	1851810..1853633	-	607	82751430	-	SAB1709c	-	phage-like protein
1650	 36.84	+1	1853633..1855543	-	636	82751431	-	SAB1710c	-	phage-like protein
1651	 35.17	0	1855558..1857459	-	633	82751432	-	SAB1711c	-	phage-like protein
1652	 31.54	0	1857468..1858415	-	315	82751433	-	SAB1712c	-	phage-like protein
1653	 34.89	0	1858428..1861892	-	1154	82751434	-	SAB1713c	-	phage-like protein
1654	 31.88	0	1861909..1862253	-	114	82751435	-	SAB1714c	-	phage-like protein
1655	 36.34	+1	1862283..1862648	-	121	82751436	-	SAB1715c	-	phage-like protein
1656	 38.49	+1	1862710..1863291	-	193	82751437	-	SAB1716c	-	phage-like protein
1657	 33.85	0	1863309..1863692	-	127	82751438	-	SAB1717c	-	phage-like protein
1658	 34.20	0	1863704..1864051	-	115	82751439	-	SAB1718c	-	phage-like protein
1659	 34.32	0	1864051..1864353	-	100	82751440	-	SAB1719c	-	phage-like protein
1660	 34.23	0	1864350..1864682	-	110	82751441	-	SAB1720c	-	phage-like protein
1661	 33.33	0	1864691..1864978	-	95	82751442	-	SAB1721c	-	phage-like protein
1662	 34.56	0	1865000..1865974	-	324	82751443	-	SAB1722c	-	phage-related head protein
1663	 32.85	0	1865988..1866602	-	204	82751444	-	SAB1723c	-	phage-like protein
1664	 34.83	0	1866980..1867912	-	310	82751445	-	SAB1724c	-	phage-like protein
1665	 33.46	0	1867976..1869517	-	513	82751446	-	SAB1725c	-	phage-like protein
1666	 33.72	0	1869528..1870817	-	429	82751447	-	SAB1726c	-	phage-associated terminase large subunit
1667	 36.47	+1	1870820..1871329	-	169	82751448	-	SAB1727c	-	mobile-element-associated protein
1668	 32.62	0	1871502..1871921	-	139	82751449	-	SAB1728c	-	mobile-element-associated regulatory protein
1669	 39.08	+1	1872083..1872256	-	57	82751450	rinB	SAB1729c	-	int gene transcriptional activator
1670	 37.20	+1	1872253..1872459	-	68	82751451	-	SAB1730c	-	phage-like protein
1671	 26.02	-2	1872456..1872701	-	81	82751452	-	SAB1731c	-	phage-like protein
1672	 32.40	0	1872738..1873274	-	178	82751453	-	SAB1732c	-	phage-like protein
1673	 36.47	+1	1873422..1873676	-	84	82751454	-	SAB1733c	-	phage-like protein
1674	 40.08	+2	1873736..1873972	-	78	82751455	-	SAB1734c	-	phage-like protein
1675	 38.55	+1	1873981..1874229	-	82	82751456	-	SAB1735c	-	phage-like protein
1676	 37.65	+1	1874229..1874483	-	84	82751457	-	SAB1736c	-	phage-like protein
1677	 35.81	0	1874483..1874845	-	120	82751458	-	SAB1737c	-	phage-like protein
1678	 35.31	0	1875036..1875440	-	134	82751459	-	SAB1738c	-	phage-like protein
1679	 37.84	+1	1875451..1875672	-	73	82751460	-	SAB1739c	-	phage-like protein
1680	 34.72	0	1875675..1875890	-	71	82751461	-	SAB1740c	-	hypothetical protein
1681	 36.55	+1	1875887..1877128	-	413	82751462	dnaB	SAB1741c	-	replicative DNA helicase
1682	 37.54	+1	1877125..1877481	-	118	82751463	-	SAB1742c	-	hypothetical protein
1683	 33.20	0	1877481..1878236	-	251	82751464	-	SAB1743c	-	phage-like protein
1684	 38.10	+1	1878233..1878904	-	223	82751465	-	SAB1744c	-	phage-like protein
1685	 38.97	+1	1878918..1879343	-	141	82751466	-	SAB1745c	-	single strand DNA binding protein
1686	 35.43	0	1879346..1879966	-	206	82751467	-	SAB1746c	-	phage-like protein
1687	 35.14	0	1879959..1880180	-	73	82751468	-	SAB1747c	-	phage-like protein
1688	 32.95	0	1880190..1880450	-	86	82751469	-	SAB1748c	-	phage-like protein
1689	 32.34	0	1880455..1880757	-	100	82751470	-	SAB1749c	-	phage-like protein
1690	 29.84	0	1880822..1881136	-	104	82751471	-	SAB1750c	-	hypothetical protein
1691	 36.26	0	1881141..1881311	-	56	82751472	-	SAB1751c	-	hypothetical protein
1692	 28.70	-1	1881326..1881541	-	71	82751473	-	SAB1752c	-	hypothetical protein
1693	 34.13	0	1881557..1882306	-	249	82751474	-	SAB1753c	-	phage anti-repressor protein
1694	 33.50	0	1882363..1882953	+	196	82751475	-	SAB1754	-	phage-like protein
1695	 35.61	0	1883134..1883922	-	262	82751476	-	SAB1755c	-	phage anti-repressor protein
1696	 28.70	-1	1883938..1884153	-	71	82751477	-	SAB1756c	-	phage-like protein
1697	 31.54	0	1884309..1884977	+	222	82751478	-	SAB1757	-	transcriptional repressor
1698	 28.54	-1	1885034..1885534	+	166	82751479	-	SAB1758	-	hypothetical protein
1699	 35.08	0	1885538..1886053	+	171	82751480	-	SAB1759	-	hypothetical protein
1700	 30.23	0	1886112..1887176	+	354	82751481	-	SAB1760	-	integrase
1701	 33.87	0	1888575..1889129	-	184	82751483	-	SAB1762c	-	hypothetical protein
1702	 35.47	0	1889449..1890849	-	466	82751484	hemY	SAB1763c	-	protoporphyrinogen oxidase
1703	 33.44	0	1890873..1891796	-	307	82751485	hemH	SAB1764c	-	ferrochelatase
1704	 34.87	0	1891854..1892891	-	345	82751486	hemE	SAB1765c	-	uroporphyrinogen decarboxylase
1705	 28.77	-1	1893152..1893655	+	167	82751487	traP	SAB1766	-	signal transduction protein
1706	 29.98	0	1893779..1895002	-	407	82751488	-	SAB1767c	-	ABC transporter
1707	 34.82	0	1894995..1895735	-	246	82751489	-	SAB1768c	-	ABC transporter ATP-binding protein
1708	 30.02	0	1895869..1896291	+	140	82751490	-	SAB1769	-	cell cycle regulation protein
1709	 36.61	+1	1896433..1896798	+	121	82751491	-	SAB1770	-	hypothetical protein
1710	 25.60	-2	1896776..1896982	+	68	82751492	-	SAB1771	-	hypothetical protein
1711	 34.00	0	1897321..1897470	+	49	82751493	-	SAB1772	-	hypothetical protein
1712	 24.73	-2	1897531..1898088	+	185	82751494	-	SAB1773	-	hypothetical protein
1713	 30.63	0	1898293..1899255	+	320	82751495	-	SAB1774	-	peptidyl-prolyl cis-isomerase
1714	 33.55	0	1899376..1900317	-	313	82751496	-	SAB1775c	-	3'-5' exoribonuclease YhaM
1715	 30.71	0	1900314..1903250	-	978	82751497	-	SAB1776c	-	hypothetical protein
1716	 30.24	0	1903240..1904436	-	398	82751498	-	SAB1777c	-	hypothetical protein
1717	 32.17	0	1905520..1905864	-	114	82751499	-	SAB1778c	-	hypothetical protein
1718	 29.96	0	1905933..1907057	-	374	82751500	-	SAB1779c	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
