IslandPath Analysis: Staphylococcus aureus RF122

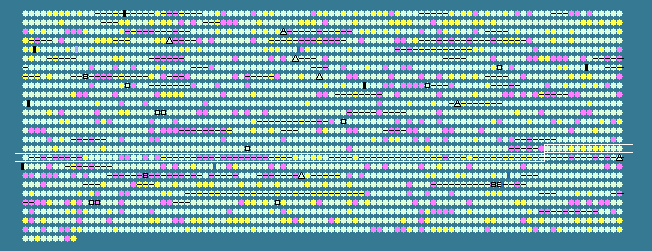

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1588	 34.01	0	1785864..1786307	+	147	82751368	-	SAB1641	-	intergral membrane protein
1589	 31.64	0	1786304..1786657	+	117	82751369	-	SAB1642	-	hypothetical protein
1590	 34.41	0	1786906..1787739	-	277	82751370	-	SAB1643c	-	aldo-keto reductase family protein
1591	 30.47	0	1787950..1788858	-	302	82751371	-	SAB1644c	-	hypothetical protein
1592	 37.60	+1	1788983..1790176	-	397	161777618	-	SAB1645c	-	S-adenosylmethionine synthetase
1593	 34.59	0	1790547..1792139	+	530	82751373	pckA	SAB1646	-	phosphoenolpyruvate carboxykinase
1594	 38.13	+1	1792436..1793206	-	256	82751374	-	SAB1647c	-	hypothetical protein
1595	 34.83	0	1793187..1793720	-	177	82751375	-	SAB1648c	-	hypothetical protein
1596	 37.98	+1	1793726..1793983	+	85	82751376	-	SAB1649	-	hypothetical protein
1597	 36.63	+1	1793980..1794981	-	333	82751377	-	SAB1650c	-	o-succinylbenzoic acid synthetase
1598	 35.50	0	1794986..1796464	-	492	82751378	-	SAB1651c	-	O-succinylbenzoate-CoA ligase
1599	 33.01	0	1797416..1798030	+	204	82751379	-	SAB1653	-	hypothetical protein
1600	 35.94	0	1798111..1799106	+	331	82751380	-	SAB1654	-	hypothetical protein
1601	 31.58	0	1799182..1799808	+	208	82751381	-	SAB1655	-	lipoprotein
1602	 30.99	0	1799849..1800190	+	113	82751382	-	SAB1656	-	hypothetical protein
1603	 32.29	0	1800291..1800863	+	190	82751383	-	SAB1657	-	hypothetical protein
1604	 27.48	-1	1801196..1801639	-	147	82751384	-	SAB1658c	-	hypothetical protein
1605	 30.89	0	1801639..1802088	-	149	82751385	-	SAB1659c	-	hypothetical protein
1606	 27.69	-1	1802088..1802282	-	64	82751386	-	SAB1660c	-	hypothetical protein
1607	 25.40	-2	1802279..1802530	-	83	82751387	-	SAB1661c	-	hypothetical protein
1608	 29.50	-1	1802530..1802973	-	147	82751388	-	SAB1662c	-	hypothetical protein
1609	 31.02	0	1803492..1805915	+	807	82751389	hysA1	SAB1663	-	hyaluronate lyase precursor
1610	 23.28	-2	1806041..1806418	-	125	82751390	-	SAB1664c	-	hypothetical protein
1611	 37.96	+1	1813003..1814559	-	518	82751391	hsdM	SAB1668c	-	type I restriction-modification system M subunit
1612	 34.03	0	1814922..1815641	-	239	82751392	splF	SAB1669c	-	serine proteinase
1613	 34.55	0	1815810..1816550	-	246	82751393	splE	SAB1670c	-	serine proteinase
1614	 31.94	0	1816651..1817370	-	239	82751394	splC	SAB1671c	-	serine proteinase
1615	 32.92	0	1817428..1818150	-	240	82751395	-	SAB1672c	-	serine proteinase
1616	 30.40	0	1819934..1820512	+	192	82751397	-	SAB1675	-	hypothetical protein
1617	 26.75	-1	1820986..1821684	-	232	82751398	-	SAB1676c	-	hypothetical protein
1618	 27.03	-1	1821681..1822442	-	253	82751399	-	SAB1677c	-	transport protein
1619	 29.73	-1	1822439..1823131	-	230	82751400	-	SAB1678c	-	transport protein
1620	 33.41	0	1823154..1824527	-	457	82751401	-	SAB1679c	-	serine protease precursor
1621	 26.20	-2	1824537..1825055	-	172	82751402	-	SAB1680c	-	hypothetical protein
1622	 29.64	-1	1825071..1826315	-	414	82751403	-	SAB1681c	-	hypothetical protein
1623	 27.45	-1	1826308..1829301	-	997	82751404	-	SAB1682c	-	hypothetical protein
1624	 38.19	+1	1829366..1829509	-	47	82751405	-	SAB1683c	-	hypothetical protein
1625	 29.69	-1	1829951..1830142	+	63	82751406	-	SAB1684	-	hypothetical protein
1626	 35.42	0	1830243..1830386	-	47	82751407	-	SAB1685c	-	hypothetical protein
1627	 31.81	0	1830626..1831609	-	327	82751408	lukD	SAB1686c	-	leukotoxin D subunit
1628	 32.48	0	1831611..1832546	-	311	82751409	lukE	SAB1687c	-	leukotoxin E subunit
1629	 32.46	0	1833270..1833383	+	37	82751410	-	SAB1688	-	hypothetical protein
1630	 22.22	-2	1833727..1833870	-	47	82751411	-	SAB1689c	-	hypothetical protein
1631	 23.45	-2	1834173..1834769	+	198	82751412	-	SAB1690	-	hypothetical protein
1632	 26.35	-2	1834937..1836283	+	448	82751413	-	SAB1691	-	hypothetical protein
1633	 31.88	0	1836565..1836771	+	68	82751414	-	SAB1692	-	hypothetical protein
1634	 27.85	-1	1836869..1837105	+	78	82751415	-	SAB1693	-	hypothetical protein
1635	 26.46	-1	1837147..1837902	+	251	82751416	-	SAB1694	-	hypothetical protein
1636	 29.01	-1	1838050..1838211	+	53	82751417	-	SAB1695	-	hypothetical protein
1637	 27.67	-1	1838630..1839247	-	205	82751418	seg	SAB1696c	-	enterotoxin G
1638	 25.00	-2	1839538..1840293	-	251	82751419	sen	SAB1697c	-	enterotoxin N
1639	 26.84	-1	1840332..1841117	-	261	82751420	sec-variant	SAB1698c	-	enterotoxin type C variant
1640	 27.43	-1	1841271..1841999	-	242	82751421	sei	SAB1699c	-	enterotoxin I
1641	 25.88	-2	1843037..1843801	-	254	82751422	seo	SAB1701c	-	enterotoxin O
1642	 36.47	+1	1844600..1844854	-	84	82751423	-	SAB1702c	-	hypothetical protein
1643	 41.15	+2	1844930..1846375	-	481	82751424	-	SAB1703c	-	phage-related amidase
1644	 38.81	+1	1846356..1846793	-	145	82751425	-	SAB1704c	-	phage-related holin
1645	 35.87	0	1846844..1848856	-	670	82751426	-	SAB1705c	-	phage-related tail fiber
1646	 37.38	+1	1848869..1850773	-	634	82751427	-	SAB1706c	-	phage-related cell wall hydrolase
1647	 32.03	0	1850910..1851215	-	101	82751428	-	SAB1707c	-	phage-like protein
1648	 34.31	0	1851403..1851810	-	135	82751429	-	SAB1708c	-	phage-like protein
1649	 36.68	+1	1851810..1853633	-	607	82751430	-	SAB1709c	-	phage-like protein
1650	 36.84	+1	1853633..1855543	-	636	82751431	-	SAB1710c	-	phage-like protein
1651	 35.17	0	1855558..1857459	-	633	82751432	-	SAB1711c	-	phage-like protein
1652	 31.54	0	1857468..1858415	-	315	82751433	-	SAB1712c	-	phage-like protein
1653	 34.89	0	1858428..1861892	-	1154	82751434	-	SAB1713c	-	phage-like protein
1654	 31.88	0	1861909..1862253	-	114	82751435	-	SAB1714c	-	phage-like protein
1655	 36.34	+1	1862283..1862648	-	121	82751436	-	SAB1715c	-	phage-like protein
1656	 38.49	+1	1862710..1863291	-	193	82751437	-	SAB1716c	-	phage-like protein
1657	 33.85	0	1863309..1863692	-	127	82751438	-	SAB1717c	-	phage-like protein
1658	 34.20	0	1863704..1864051	-	115	82751439	-	SAB1718c	-	phage-like protein
1659	 34.32	0	1864051..1864353	-	100	82751440	-	SAB1719c	-	phage-like protein
1660	 34.23	0	1864350..1864682	-	110	82751441	-	SAB1720c	-	phage-like protein
1661	 33.33	0	1864691..1864978	-	95	82751442	-	SAB1721c	-	phage-like protein
1662	 34.56	0	1865000..1865974	-	324	82751443	-	SAB1722c	-	phage-related head protein
1663	 32.85	0	1865988..1866602	-	204	82751444	-	SAB1723c	-	phage-like protein
1664	 34.83	0	1866980..1867912	-	310	82751445	-	SAB1724c	-	phage-like protein
1665	 33.46	0	1867976..1869517	-	513	82751446	-	SAB1725c	-	phage-like protein
1666	 33.72	0	1869528..1870817	-	429	82751447	-	SAB1726c	-	phage-associated terminase large subunit
1667	 36.47	+1	1870820..1871329	-	169	82751448	-	SAB1727c	-	mobile-element-associated protein
1668	 32.62	0	1871502..1871921	-	139	82751449	-	SAB1728c	-	mobile-element-associated regulatory protein
1669	 39.08	+1	1872083..1872256	-	57	82751450	rinB	SAB1729c	-	int gene transcriptional activator
1670	 37.20	+1	1872253..1872459	-	68	82751451	-	SAB1730c	-	phage-like protein
1671	 26.02	-2	1872456..1872701	-	81	82751452	-	SAB1731c	-	phage-like protein
1672	 32.40	0	1872738..1873274	-	178	82751453	-	SAB1732c	-	phage-like protein
1673	 36.47	+1	1873422..1873676	-	84	82751454	-	SAB1733c	-	phage-like protein
1674	 40.08	+2	1873736..1873972	-	78	82751455	-	SAB1734c	-	phage-like protein
1675	 38.55	+1	1873981..1874229	-	82	82751456	-	SAB1735c	-	phage-like protein
1676	 37.65	+1	1874229..1874483	-	84	82751457	-	SAB1736c	-	phage-like protein
1677	 35.81	0	1874483..1874845	-	120	82751458	-	SAB1737c	-	phage-like protein
1678	 35.31	0	1875036..1875440	-	134	82751459	-	SAB1738c	-	phage-like protein
1679	 37.84	+1	1875451..1875672	-	73	82751460	-	SAB1739c	-	phage-like protein
1680	 34.72	0	1875675..1875890	-	71	82751461	-	SAB1740c	-	hypothetical protein
1681	 36.55	+1	1875887..1877128	-	413	82751462	dnaB	SAB1741c	-	replicative DNA helicase
1682	 37.54	+1	1877125..1877481	-	118	82751463	-	SAB1742c	-	hypothetical protein
1683	 33.20	0	1877481..1878236	-	251	82751464	-	SAB1743c	-	phage-like protein
1684	 38.10	+1	1878233..1878904	-	223	82751465	-	SAB1744c	-	phage-like protein
1685	 38.97	+1	1878918..1879343	-	141	82751466	-	SAB1745c	-	single strand DNA binding protein
1686	 35.43	0	1879346..1879966	-	206	82751467	-	SAB1746c	-	phage-like protein
1687	 35.14	0	1879959..1880180	-	73	82751468	-	SAB1747c	-	phage-like protein
33.03	MEAN

3.30	STD DEV
