IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

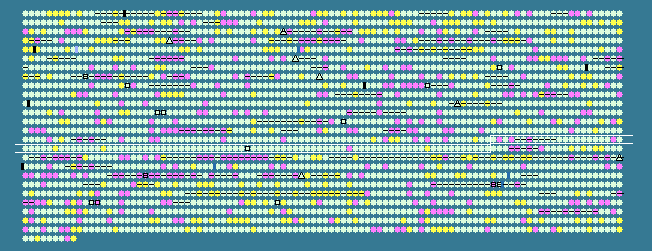

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1479	 34.52	0	1649652..1650578	-	308	82751259	hemC	SAB1530c	-	porphobilinogen deaminase
1480	 28.43	-1	1650620..1651435	-	271	82751260	-	SAB1531c	-	membrane uroporphyrinogen III methylase
1481	 33.48	0	1651457..1652803	-	448	82751261	hemA	SAB1532c	-	glutamyl-tRNA reductase
1482	 28.93	-1	1653020..1653610	-	196	82751262	-	SAB1533c	-	GTPase EngB
1483	 34.13	0	1653764..1655026	-	420	82751263	clpX	SAB1534c	-	ATP-dependent protease ATP-binding subunit
1484	 33.72	0	1655177..1656478	-	433	82751264	tig	SAB1535c	-	trigger factor
1485	 29.03	-1	1656641..1657570	-	309	82751265	-	SAB1536c	-	hypothetical protein
1486	 32.84	0	1657589..1658197	-	202	82751266	-	SAB1537c	-	hypothetical protein
1487	 36.41	+1	1658339..1658695	-	118	82751267	rplT	SAB1538c	-	50S ribosomal protein L20
1488	 35.32	0	1658742..1658942	-	66	82751268	rpmI	SAB1539c	-	50S ribosomal protein L35
1489	 34.66	0	1658971..1659498	-	175	82751269	infC	SAB1540c	-	translation initiation factor IF-3
1490	 35.07	0	1659727..1661220	-	497	82751270	lysP	SAB1541c	-	lysine specific permease
1491	 35.14	0	1661647..1663584	-	645	82751271	thrS	SAB1542c	-	threonyl-tRNA synthetase
1492	 34.42	0	1663995..1664915	-	306	82751272	dnaI	SAB1543c	-	primosomal protein DnaI
1493	 32.76	0	1664915..1666315	-	466	82751273	dnaB	SAB1544c	-	chromosome replication initiation and membrane attachment protein
1494	 35.46	0	1666316..1666786	-	156	82751274	-	SAB1545c	-	transcriptional regulator NrdR
1495	 33.04	0	1666996..1668021	-	341	82751275	gap	SAB1546c	-	glyceraldehyde 3-phosphate dehydrogenase 2
1496	 34.13	0	1668191..1668814	-	207	82751276	coaE	SAB1547c	-	dephospho-CoA kinase
1497	 32.19	0	1668830..1669702	-	290	82751277	-	SAB1548c	-	formamidopyrimidine-DNA glycosylase
1498	 32.31	0	1669718..1672348	-	876	82751278	polA	SAB1549c	-	DNA polymerase I
1499	 28.97	-1	1672642..1674129	-	495	82751279	-	SAB1550c	-	hypothetical protein
1500	 31.05	0	1674628..1676292	-	554	82751280	phoR	SAB1551c	-	alkaline phosphatase synthesis sensor protein
1501	 33.90	0	1676289..1676993	-	234	82751281	phoP	SAB1552c	-	alkaline phosphatase synthesis transcriptional regulatory protein
1502	 34.99	0	1677382..1678650	-	422	82751282	citC	SAB1553c	-	isocitrate dehydrogenase
1503	 36.36	+1	1678699..1679820	-	373	82751283	citZ	SAB1554c	-	methylcitrate synthase
1504	 34.65	0	1680168..1681529	+	453	82751284	cycA	SAB1555	-	D-serine, D-alanine, glycine transporter
1505	 34.76	0	1681879..1683636	-	585	82751285	pyk	SAB1556c	-	pyruvate kinase
1506	 36.95	+1	1683658..1684626	-	322	82751286	pfkA	SAB1557c	-	6-phosphofructokinase
1507	 34.39	0	1684895..1685839	-	314	82751287	accA	SAB1558c	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1508	 34.62	0	1685839..1686696	-	285	82751288	accD	SAB1559c	-	acetyl-CoA carboxylase subunit beta
1509	 35.77	0	1686891..1688120	-	409	82751289	-	SAB1560c	-	NAD-dependent malic enzyme
1510	 31.49	0	1688570..1691767	-	1065	82751290	dnaE	SAB1561c	-	DNA polymerase III alpha subunit
1511	 35.24	0	1691788..1692729	-	313	82751291	-	SAB1562c	-	hypothetical protein
1512	 33.80	0	1693068..1694366	-	432	82751292	-	SAB1563c	-	DNA-binding protein
1513	 33.33	0	1694571..1694984	+	137	82751293	-	SAB1564	-	hypothetical protein
1514	 40.80	+2	1695062..1695463	+	133	82751294	-	SAB1565	-	hypothetical protein
1515	 33.62	0	1695544..1696233	-	229	82751295	-	SAB1566c	-	metallo-beta-lactamase superfamily protein
1516	 33.52	0	1696387..1697463	+	358	82751296	-	SAB1567	-	Xaa-Pro dipeptidase-like protein
1517	 35.84	0	1697779..1698897	-	372	82751297	ald	SAB1568c	-	alanine dehydrogenase
1518	 35.13	0	1699038..1699538	+	166	82751298	-	SAB1569	-	stress response protein
1519	 35.16	0	1699784..1700986	-	400	82751299	ackA	SAB1570c	-	acetate kinase
1520	 32.07	0	1701074..1702021	-	315	82751300	-	SAB1571c	-	hypothetical protein
1521	 35.35	0	1702144..1702638	-	164	82751301	-	SAB1572c	-	thiol peroxidase
1522	 32.68	0	1702736..1703506	-	256	82751302	-	SAB1573c	-	hypothetical protein
1523	 33.42	0	1703550..1704773	-	407	82751303	-	SAB1574c	-	thiamine biosynthesis protein
1524	 31.94	0	1704773..1705921	-	382	82751304	-	SAB1575c	-	aminotransferase
1525	 31.09	0	1706247..1707941	-	564	82751305	-	SAB1576c	-	septation ring formation regulator EzrA
1526	 36.34	+1	1708078..1708542	+	154	82751306	-	SAB1577	-	hypothetical protein
1527	 35.66	0	1708786..1709388	+	200	82751307	rpsD	SAB1578	-	30S ribosomal protein S4
1528	 32.12	0	1709602..1710345	-	247	82751308	-	SAB1579c	-	hypothetical protein
1529	 35.12	0	1710425..1710871	+	148	82751309	-	SAB1580	-	osmotic stress-related protein
1530	 33.94	0	1710986..1712146	+	386	82751310	-	SAB1581	-	soluble hydrogenase subunit
1531	 34.45	0	1712133..1713737	+	534	82751311	-	SAB1582	-	D-3-phosphoglycerate dehydrogenase
1532	 31.74	0	1713887..1715017	-	376	82751312	-	SAB1583c	-	hypothetical protein
1533	 34.36	0	1715124..1716590	-	488	82751313	-	SAB1584c	-	PTS system N-acetylglucosamine-specific IIABC component
1534	 31.23	0	1716718..1717335	-	205	82751314	-	SAB1585c	-	1-acylglycerol-3-phosphate O-acyltransferase
1535	 34.51	0	1717507..1718781	+	424	82751315	-	SAB1586	-	serine protease
1536	 33.41	0	1718875..1720137	-	420	82751316	tyrS	SAB1587c	-	tyrosyl-tRNA synthetase
1537	 30.35	0	1720518..1721423	+	301	82751317	-	SAB1588	-	penicillin-binding protein 1A
1538	 30.90	0	1721534..1722850	-	438	82751318	-	SAB1589c	-	transposase
1539	 33.50	0	1723135..1724988	-	617	82751319	-	SAB1590c	-	iron-regulated surface protein
1540	 33.59	0	1725040..1725816	-	258	82751320	-	SAB1591c	-	surface-anchored iron-regulated surface protein
1541	 36.45	+1	1726149..1727816	-	555	82751321	fhs	SAB1592c	-	formate--tetrahydrofolate ligase
1542	 36.50	+1	1728256..1729962	-	568	82751322	acsA	SAB1593c	-	acetyl-CoA synthetase
1543	 34.12	0	1730131..1730763	+	210	82751323	acuA	SAB1594	-	acetoin utilization protein
1544	 34.53	0	1730788..1731957	+	389	82751324	acuC	SAB1595	-	acetoin utilization protein
1545	 33.23	0	1732055..1733044	-	329	82751325	ccpA	SAB1596c	-	catabolite control protein A
1546	 33.70	0	1733582..1734673	-	363	82751326	aroA	SAB1597c	-	bifunctional 3-deoxy-7-phosphoheptulonate synthase/chorismate mutase
1547	 31.34	0	1735368..1736318	-	316	82751327	-	SAB1598c	-	hypothetical protein
1548	 33.33	0	1736392..1736883	-	163	82751328	-	SAB1599c	-	hypothetical protein
1549	 31.07	0	1736957..1738195	-	412	82751329	murC	SAB1600c	-	UDP-N-acetylmuramate--L-alanine ligase
1550	 34.19	0	1738295..1742125	-	1276	82751330	-	SAB1601c	-	SpoIIIE family cell division protein
1551	 31.49	0	1742146..1742742	-	198	82751331	-	SAB1602c	-	phenylalanyl-tRNA synthetase beta subunit
1552	 30.30	0	1742771..1743628	-	285	82751332	-	SAB1603c	-	hypothetical protein
1553	 33.33	0	1743728..1744039	-	103	82751333	-	SAB1604c	-	thioredoxin family protein
1554	 33.89	0	1744104..1745180	-	358	82751334	-	SAB1605c	-	endo-1,4-beta-glucanase
1555	 27.88	-1	1745267..1745578	+	103	82751335	-	SAB1606	-	hypothetical protein
1556	 34.76	0	1745703..1746545	-	280	82751336	-	SAB1607c	-	hypothetical protein
1557	 31.94	0	1747016..1747660	-	214	82751337	-	SAB1608c	-	tRNA guanine methyltransferase
1558	 34.85	0	1747675..1748466	-	263	82751338	-	SAB1609c	-	hypothetical protein
1559	 32.63	0	1749013..1749861	-	282	82751339	dat	SAB1610c	-	D-alanine aminotransferase
1560	 34.75	0	1749865..1751274	-	469	82751340	-	SAB1611c	-	dipeptidase PepV
1561	 30.02	0	1751872..1752294	-	140	82751341	-	SAB1612c	-	hypothetical protein
1562	 29.74	0	1752311..1753006	-	231	82751342	-	SAB1613c	-	16S RNA pseudouridylate synthase
1563	 32.25	0	1753003..1754664	-	553	82751343	-	SAB1614c	-	polysaccharide transporter
1564	 35.30	0	1755071..1756339	+	422	82751344	-	SAB1615	-	hypothetical protein
1565	 32.69	0	1762651..1762962	-	103	82751345	-	SAB1617c	-	hypothetical protein
1566	 34.29	0	1762984..1765398	-	804	82751346	leuS	SAB1618c	-	leucyl-tRNA synthetase
1567	 35.19	0	1765690..1766871	-	393	82751347	-	SAB1619c	-	multidrug resistance protein B
1568	 36.79	+1	1766981..1767934	+	317	82751348	-	SAB1620	-	hypothetical protein
1569	 32.62	0	1767931..1768494	+	187	82751349	-	SAB1621	-	hypothetical protein
1570	 31.94	0	1768614..1769114	-	166	82751350	rot	SAB1622c	-	repressor of toxins transcriptional regulator
1571	 32.49	0	1769587..1770414	-	275	82751351	-	SAB1623c	-	hypothetical protein
1572	 32.83	0	1770648..1771649	+	333	82751352	-	SAB1624	-	proline oxidase
1573	 33.98	0	1771771..1772235	-	154	82751353	ribH	SAB1625c	-	6,7-dimethyl-8-ribityllumazine synthase
1574	 34.35	0	1772248..1773429	-	393	82751354	ribA	SAB1626c	-	riboflavin biosynthesis protein
1575	 33.18	0	1773440..1774072	-	210	82751355	ribE	SAB1627c	-	riboflavin synthase subunit alpha
1576	 34.48	0	1774079..1775122	-	347	82751356	ribD	SAB1628c	-	riboflavin specific deaminase
1577	 31.07	0	1775603..1777105	-	500	82751357	-	SAB1629c	-	hypothetical protein
1578	 30.79	0	1777627..1777941	+	104	82751358	arsR	SAB1630	-	arsenical resistance operon repressor
33.03	MEAN

3.30	STD DEV
