IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

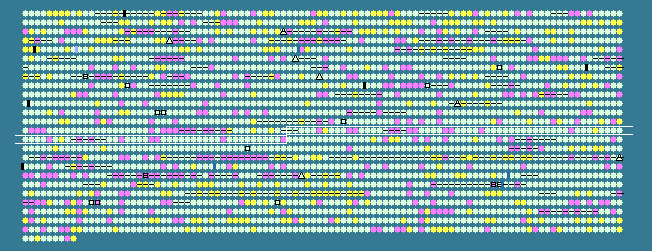

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1345	 30.02	0	1517246..1517698	-	150	82751125	argR	SAB1393c	-	arginine repressor
1346	 33.90	0	1518129..1519010	-	293	82751126	-	SAB1394c	-	geranyltranstransferase
1347	 30.74	0	1518988..1519218	-	76	82751127	-	SAB1395c	-	exodeoxyribonuclease VII small subunit
1348	 31.39	0	1519211..1520548	-	445	82751128	xseA	SAB1396c	-	exodeoxyribonuclease VII large subunit
1349	 30.26	0	1520565..1520954	-	129	82751129	nusB	SAB1397c	-	transcription antitermination protein NusB
1350	 29.20	-1	1521014..1521376	-	120	82751130	-	SAB1398c	-	hypothetical protein
1351	 36.58	+1	1521391..1522746	-	451	82751131	accC	SAB1399c	-	acetyl-CoA carboxylase biotin carboxylase subunit
1352	 35.70	0	1522746..1523210	-	154	82751132	accB	SAB1400c	-	acetyl-CoA carboxylase biotin carboxyl carrier subunit
1353	 32.97	0	1523684..1524241	-	185	82751133	efp	SAB1401c	-	elongation factor P
1354	 32.39	0	1524267..1525328	-	353	82751134	-	SAB1402c	-	proline dipeptidase
1355	 27.84	-1	1525433..1526014	+	193	82751135	-	SAB1403	-	hypothetical protein
1356	 28.77	-1	1526028..1526246	+	72	82751136	-	SAB1404	-	hypothetical protein
1357	 34.78	0	1526310..1527140	-	276	82751137	-	SAB1405c	-	lipoate-protein ligase A
1358	 33.85	0	1527298..1527684	+	128	82751138	-	SAB1406	-	hypothetical protein
1359	 34.62	0	1528048..1529520	-	490	82751139	-	SAB1407c	-	glycine dehydrogenase subunit 2
1360	 34.59	0	1529513..1530868	-	451	82751140	-	SAB1408c	-	glycine dehydrogenase subunit 1
1361	 31.59	0	1530879..1531970	-	363	82751141	gcvT	SAB1409c	-	glycine cleavage system aminomethyltransferase T
1362	 28.38	-1	1532129..1532653	-	174	82751142	-	SAB1410c	-	hypothetical protein
1363	 26.92	-1	1532886..1533353	-	155	82751143	-	SAB1411c	-	hypothetical protein
1364	 30.00	0	1533301..1533600	-	99	82751144	-	SAB1412c	-	hypothetical protein
1365	 26.17	-2	1533587..1534033	-	148	82751145	-	SAB1413c	-	hypothetical protein
1366	 29.17	-1	1534011..1534322	-	103	82751146	-	SAB1414c	-	exogenous DNA-binding protein
1367	 31.08	0	1535378..1536352	-	324	82751147	-	SAB1416c	-	late competence protein
1368	 32.53	0	1536404..1537027	-	207	82751148	-	SAB1417c	-	metallo-beta-lactamase superfamily protein
1369	 31.21	0	1537024..1537353	-	109	82751149	-	SAB1418c	-	hypothetical protein
1370	 34.65	0	1537353..1538339	-	328	82751150	glkA	SAB1419c	-	glucokinase
1371	 26.47	-1	1538336..1538539	-	67	82751151	-	SAB1420c	-	hypothetical protein
1372	 27.53	-1	1538520..1539983	-	487	82751152	-	SAB1421c	-	hypothetical protein
1373	 29.81	0	1539995..1540534	-	179	82751153	-	SAB1422c	-	hypothetical protein
1374	 34.00	0	1540743..1540892	-	49	82751154	rpmG	SAB1423c	-	50S ribosomal protein L33
1375	 33.33	0	1541005..1543080	-	691	82751155	pbpF	SAB1424c	-	penicillin-binding protein 3
1376	 34.83	0	1543201..1543800	-	199	82751156	sodA	SAB1425c	-	superoxide dismutase
1377	 28.47	-1	1544076..1544486	-	136	82751157	zur	SAB1426c	-	zinc-specific metalloregulator
1378	 32.07	0	1544473..1545345	-	290	82751158	mreB	SAB1427c	-	ABC transporter protein
1379	 30.03	0	1545378..1546163	-	261	82751159	mreA	SAB1428c	-	ABC transporter protein
1380	 33.56	0	1546289..1547179	-	296	82751160	-	SAB1429c	-	endonuclease IV
1381	 32.59	0	1547189..1548535	-	448	82751161	-	SAB1430c	-	ATP-dependent RNA helicase
1382	 30.97	0	1548649..1549749	-	366	82751162	-	SAB1431c	-	hypothetical protein
1383	 32.01	0	1549752..1550429	-	225	82751163	-	SAB1432c	-	hypothetical protein
1384	 33.88	0	1550560..1551666	-	368	82751164	rpoD	SAB1433c	-	RNA polymerase sigma factor RpoD
1385	 32.00	0	1551890..1553689	-	599	82751165	dnaG	SAB1434c	-	DNA primase
1386	 32.72	0	1553750..1554568	-	272	82751166	-	SAB1435c	-	hypothetical protein
1387	 30.37	0	1554579..1555118	-	179	82751167	-	SAB1436c	-	hypothetical protein
1388	 34.41	0	1555537..1556928	+	463	82751168	glyS	SAB1437	-	glycyl-tRNA synthetase
1389	 32.27	0	1557079..1557831	-	250	82751169	-	SAB1438c	-	recombination protein
1390	 33.00	0	1557853..1558752	-	299	82751170	era	SAB1439c	-	GTP-binding protein Era
1391	 35.56	0	1558753..1559157	-	134	82751171	cdd	SAB1440c	-	cytidine deaminase
1392	 28.70	-1	1559168..1559512	-	114	82751172	-	SAB1441c	-	diacylglycerol kinase
1393	 32.05	0	1559515..1559982	-	155	82751173	-	SAB1442c	-	hypothetical protein
1394	 35.23	0	1559983..1560930	-	315	82751174	-	SAB1443c	-	phosphate starvation-induced protein
1395	 32.19	0	1561230..1561928	-	232	82751175	-	SAB1444c	-	hypothetical protein
1396	 37.47	+1	1561945..1562934	-	329	82751176	-	SAB1445c	-	hypothetical protein
1397	 32.20	0	1562952..1563659	-	235	82751177	-	SAB1446c	-	hypothetical protein
1398	 32.20	0	1563879..1564055	-	58	82751178	rpsU	SAB1447c	-	30S ribosomal protein S21
1399	 34.60	0	1564348..1565694	-	448	82751179	-	SAB1448c	-	hypothetical protein
1400	 31.61	0	1565701..1566453	-	250	82751180	-	SAB1449c	-	hypothetical protein
1401	 34.72	0	1566455..1567393	-	312	82751181	-	SAB1450c	-	methyltransferase
1402	 35.70	0	1567397..1568536	-	379	82751182	dnaJ	SAB1451c	-	chaperone protein
1403	 35.46	0	1568672..1570504	-	610	82751183	dnaK	SAB1452c	-	chaperone protein
1404	 30.78	0	1570573..1571199	-	208	82751184	grpE	SAB1453c	-	heat shock molecular chaperone protein
1405	 28.83	-1	1571231..1572208	-	325	82751185	hrcA	SAB1454c	-	heat-inducible transcription repressor
1406	 32.44	0	1572308..1573432	-	374	82751186	-	SAB1455c	-	coproporphyrinogen III oxidase
1407	 38.89	+1	1573604..1573855	-	83	82751187	-	SAB1456c	-	hypothetical protein
1408	 34.05	0	1573993..1575816	-	607	82751188	lepA	SAB1457c	-	GTP-binding protein LepA
1409	 31.35	0	1576162..1576413	+	83	82751189	rpsT	SAB1458	-	30S ribosomal protein S20
1410	 26.97	-1	1576458..1577432	-	324	82751190	holA	SAB1459c	-	DNA polymerase III subunit delta
1411	 33.12	0	1579697..1580158	-	153	82751191	-	SAB1461c	-	late competence deaminase protein
1412	 28.91	-1	1580250..1580927	-	225	82751192	-	SAB1462c	-	competence-related membrane protein
1413	 29.71	-1	1580976..1581692	-	238	82751193	-	SAB1463c	-	hypothetical protein
1414	 33.33	0	1581695..1582048	-	117	82751194	-	SAB1464c	-	hypothetical protein
1415	 31.45	0	1582049..1582633	-	194	82751195	-	SAB1465c	-	hypothetical protein
1416	 33.68	0	1582623..1583192	-	189	82751196	-	SAB1466c	-	nicotinate-nucleotide adenylyltransferase
1417	 29.21	-1	1583195..1583485	-	96	82751197	-	SAB1467c	-	hypothetical protein
1418	 31.10	0	1583489..1584295	-	268	82751198	aroE	SAB1468c	-	shikimate 5-dehydrogenase
1419	 33.79	0	1584309..1585409	-	366	82751199	-	SAB1469c	-	GTP-binding protein YqeH
1420	 32.95	0	1585410..1585937	-	175	82751200	-	SAB1470c	-	hypothetical protein
1421	 32.90	0	1585957..1586643	-	228	82751201	-	SAB1471c	-	hypothetical protein
1422	 26.67	-1	1586955..1587224	+	89	82751202	-	SAB1472	-	hypothetical protein
1423	 26.70	-1	1588596..1589816	-	406	82751203	-	SAB1474c	-	hypothetical protein
1424	 33.33	0	1590107..1591336	-	409	82751204	-	SAB1475c	-	hypothetical protein
1425	 35.06	0	1591348..1592100	-	250	82751205	-	SAB1476c	-	hypothetical protein
1426	 35.76	0	1592100..1593461	-	453	82751206	accC	SAB1477c	-	acetyl-CoA biotin carboxylase
1427	 31.33	0	1593475..1593924	-	149	82751207	accB	SAB1478c	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
1428	 34.72	0	1593926..1594936	-	336	82751208	-	SAB1479c	-	hypothetical protein
1429	 33.20	0	1594926..1595684	-	252	82751209	-	SAB1480c	-	hypothetical protein
1430	 33.33	0	1595986..1596462	-	158	82751210	greA	SAB1481c	-	transcription elongation factor
1431	 33.33	0	1596490..1597113	-	207	82751211	udk	SAB1482c	-	uridine kinase
1432	 35.46	0	1597113..1598381	-	422	82751212	-	SAB1483c	-	proteinase
1433	 34.30	0	1598393..1599322	-	309	82751213	-	SAB1484c	-	proteinase
1434	 28.95	-1	1599319..1599957	-	212	82751214	-	SAB1485c	-	hypothetical protein
1435	 32.36	0	1600242..1600550	-	102	82751215	-	SAB1486c	-	hypothetical protein
1436	 32.63	0	1600565..1600993	-	142	82751216	-	SAB1487c	-	hypothetical protein
1437	 30.27	0	1600997..1601257	-	86	82751217	-	SAB1488c	-	hypothetical protein
1438	 35.23	0	1601320..1603950	-	876	82751218	alaS	SAB1489c	-	alanyl-tRNA synthetase
1439	 32.81	0	1604293..1606770	-	825	82751219	-	SAB1490c	-	deoxyribonuclease
1440	 31.09	0	1606772..1607440	-	222	82751220	-	SAB1491c	-	hypothetical protein
1441	 34.67	0	1607906..1609024	-	372	82751221	trmU	SAB1492c	-	5-methylaminomethyl-2-thiouridylate- methyltransferase tRNA
1442	 34.65	0	1609025..1610167	-	380	82751222	-	SAB1493c	-	iron-sulfur cofactor synthesis protein
1443	 36.19	0	1610479..1611492	+	337	82751223	-	SAB1494	-	oxygenase
1444	 25.93	-2	1611680..1611895	+	71	82751224	-	SAB1495	-	hypothetical protein
33.03	MEAN

3.30	STD DEV
