IslandPath Analysis: Staphylococcus aureus RF122

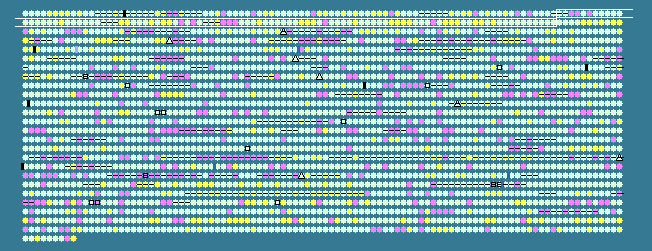

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
90	 34.50	0	117364..118473	+	369	82749867	capF	SAB0095	-	capsular polysaccharide synthesis enzyme CapF
91	 33.60	0	118477..119601	+	374	82749868	capG	SAB0096	-	capsular polysaccharide synthesis enzyme CapG
92	 27.31	-1	119604..120683	+	359	82749869	cap8H	SAB0097	-	capsular polysaccharide synthesis enzyme CapH
93	 28.75	-1	120676..122070	+	464	82749870	cap8I	SAB0098	-	capsular polysaccharide synthesis enzyme CapI
94	 32.62	0	122067..122624	+	185	82749871	cap8J	SAB0099	-	capsular polysaccharide synthesis enzyme CapJ
95	 27.20	-1	122633..123871	+	412	82749872	cap8K	SAB0100	-	capsular polysaccharide synthesis enzyme CapK
96	 35.16	0	123905..125110	+	401	82749873	capL	SAB0101	-	capsular polysaccharide synthesis enzyme CapL
97	 32.08	0	125121..125678	+	185	82749874	capM	SAB0102	-	capsular polysaccharide synthesis enzyme CapM
98	 33.11	0	125678..126565	+	295	82749875	capN	SAB0103	-	capsular polysaccharide synthesis enzyme CapN
99	 34.05	0	126619..127881	+	420	82749876	capO	SAB0104	-	capsular polysaccharide synthesis enzyme CapO
100	 36.14	0	127928..129103	+	391	82749877	capP	SAB0105	-	capsular polysaccharide synthesis enzyme CapP
101	 30.99	0	129501..129884	-	127	82749878	-	SAB0107c	-	hypothetical protein
102	 36.02	0	130311..131798	+	495	82749879	aldA	SAB0108	-	aldehyde dehdydrogenase
103	 32.19	0	132442..133401	+	319	82749880	-	SAB0109	-	cation-efflux system membrane protein
104	 31.37	0	133462..133665	-	67	82749881	-	SAB0110c	-	hypothetical protein
105	 33.72	0	133844..134356	+	170	82749882	-	SAB0111	-	hypothetical protein
106	 35.22	0	134697..135437	+	246	82749883	-	SAB0112	-	nitrate/nitrite system ATP-binding ABC transporter
107	 37.03	+1	135451..136425	+	324	82749884	-	SAB0113	-	lipoprotein
108	 35.43	0	136422..137183	+	253	82749885	-	SAB0114	-	ABC transporter permease
109	 35.47	0	137196..138227	+	343	82749886	-	SAB0115	-	hypothetical protein
110	 34.51	0	138444..138698	+	84	82749887	-	SAB0116	-	hypothetical protein
111	 34.93	0	138873..140000	+	375	82749888	-	SAB0117	-	formate dehydrogenase
112	 32.69	0	140385..141635	+	416	82749889	-	SAB0118	-	integral membrane transport protein
113	 34.95	0	142064..149254	+	2396	82749890	-	SAB0119	-	surfactin/siderophore synthetase
114	 33.80	0	149267..149911	+	214	82749891	-	SAB0120	-	4'-phosphopantetheinyl transferase superfamily protein
115	 35.35	0	150240..150734	-	164	82749892	-	SAB0121c	-	hypothetical protein
116	 34.89	0	151005..151775	-	256	82749893	-	SAB0122c	-	acetylglutamate kinase
117	 37.12	+1	151791..153032	-	413	82749894	argJ	SAB0123c	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
118	 37.89	+1	154114..155298	-	394	82749895	-	SAB0125c	-	ornithine aminotransferase
119	 32.82	0	155547..156902	-	451	82749896	-	SAB0126c	-	branched chain amino acid ABC transporter carrier protein
120	 35.48	0	157179..157736	-	185	82749897	-	SAB0127c	-	hydrolase
121	 36.26	0	157802..159442	-	546	82749898	-	SAB0128c	-	pyruvate decarboxylase
122	 38.12	+1	159714..161759	-	681	82749899	glcA	SAB0129c	-	phosphotransferase system enzyme II glucose-specific factor IIA
123	 35.07	0	162345..163379	+	344	82749900	-	SAB0130	-	hypothetical protein
124	 38.11	+1	163397..164296	+	299	82749901	murQ	SAB0131	-	N-acetylmuramic acid-6-phosphate etherase
125	 37.94	+1	164308..165762	+	484	82749902	-	SAB0132	-	PTS system sucrose-specific IIBC component
126	 34.25	0	165765..166640	+	291	82749903	-	SAB0133	-	RpiR family transcriptional regulator
127	 28.72	-1	166836..167117	-	93	82749904	-	SAB0134c	-	hypothetical protein
128	 33.01	0	167330..170119	+	929	82749905	-	SAB0135	-	type I restriction enzyme restriction chain
129	 29.17	-1	170266..170865	-	199	82749906	-	SAB0136c	-	hypothetical protein
130	 30.10	0	170989..172101	+	370	82749907	-	SAB0137	-	hypothetical protein
131	 31.42	0	172098..172778	+	226	82749908	-	SAB0138	-	ABC transporter ATP-binding protein
132	 30.70	0	172967..173953	+	328	82749909	-	SAB0139	-	ABC transporter ATP-binding protein
133	 41.44	+2	174161..174382	+	73	82749910	-	SAB0140	-	hypothetical protein
134	 23.31	-2	174453..176138	+	561	82749911	-	SAB0141	-	hypothetical protein
135	 25.68	-2	176196..176639	+	147	82749912	-	SAB0142	-	hypothetical protein
136	 26.69	-1	176651..177373	+	240	82749913	-	SAB0143	-	ABC transporter ATP-binding protein
137	 32.52	0	179783..181261	+	492	82749914	-	SAB0145	-	oligopeptide ABC transporter permease protein
138	 34.11	0	181267..182430	+	387	82749915	-	SAB0146	-	oligopeptide ABC transporter
139	 33.56	0	182447..184222	+	591	82749916	-	SAB0147	-	RGD-containing lipoprotein
140	 38.32	+1	184260..186266	+	668	82749917	-	SAB0148	-	gamma-glutamyltransferase
141	 33.33	0	186804..187430	-	208	161777622	-	SAB0149c	-	azoreductase
142	 35.58	0	187639..188217	+	192	82749919	-	SAB0150	-	hypothetical protein
143	 34.88	0	188600..189697	+	365	82749920	-	SAB0151	-	multiple sugar-binding transport ATP-binding protein
144	 34.12	0	189710..190981	+	423	82749921	-	SAB0152	-	maltose/maltodextrin transport system protein
145	 35.07	0	190984..192252	+	422	82749922	-	SAB0153	-	maltose/maltodextrin transport permease protein
146	 33.93	0	192254..193093	+	279	82749923	-	SAB0154	-	maltose/maltodextrin transport system protein
147	 42.25	+2	193135..193392	+	85	82749924	-	SAB0155	-	hypothetical protein
148	 38.98	+1	193451..194530	+	359	82749925	-	SAB0156	-	NADH-dependent dehydrogenase
149	 39.77	+2	194555..195595	+	346	82749926	-	SAB0157	-	NADH-dependent dehydrogenase
150	 35.91	0	195650..196618	+	322	82749927	-	SAB0158	-	hypothetical protein
151	 26.06	-2	196979..197473	-	164	82749928	-	SAB0159c	-	hypothetical protein
152	 35.65	0	197706..199085	+	459	82749929	uhpT	SAB0160	-	sugar phosphate antiporter
153	 33.07	0	199444..200202	-	252	82749930	-	SAB0161c	-	two-component response regulator
154	 32.88	0	200195..201751	-	518	82749931	-	SAB0162c	-	two-component sensor histidine kinase
155	 34.26	0	201748..202716	-	322	82749932	-	SAB0163c	-	periplasmic iron binding protein
156	 36.67	+1	203304..205553	+	749	82749933	-	SAB0164	-	formate acetyltransferase
157	 35.98	0	205576..206331	+	251	82749934	-	SAB0165	-	formate acetyltransferase activating enzyme
158	 32.36	0	206321..206629	+	102	82749935	-	SAB0166	-	hypothetical protein
159	 30.78	0	206667..208430	+	587	82749936	-	SAB0167	-	hypothetical protein
160	 31.88	0	208595..208939	-	114	82749937	-	SAB0168c	-	hyothetical protein
161	 35.40	0	209129..211012	+	627	82749938	-	SAB0169	-	staphylocoagulase precursor
162	 42.55	+2	211599..212792	-	397	82749939	-	SAB0170c	-	3-ketoacyl-CoA transferase
163	 37.53	+1	212813..215074	-	753	82749940	-	SAB0171c	-	3-hydroxyacyl-CoA dehydrogenase
164	 37.38	+1	216583..218088	-	501	82749941	-	SAB0173c	-	acyl-CoA synthetase
165	 36.81	+1	218114..219694	-	526	82749942	-	SAB0174c	-	acetyl-CoA/acetoacetyl-CoA transferase
166	 34.07	0	220045..221274	+	409	82749943	-	SAB0175	-	hypothetical protein
167	 31.50	0	221588..223063	-	491	82749944	-	SAB0176c	-	peptide ABC transporter
168	 35.57	0	223261..223617	-	118	82749945	-	SAB0177c	-	hypothetical protein
169	 25.86	-2	223774..223947	-	57	82749946	-	SAB0178c	-	hypothetical protein
170	 34.64	0	223973..225118	-	381	82749947	-	SAB0179c	-	flavohemoprotein
171	 37.21	+1	225690..226643	+	317	82749948	-	SAB0180	-	L-lactate dehydrogenase
172	 38.99	+1	226964..228412	-	482	82749949	-	SAB0181c	-	phosphotransferase system enzyme II
173	 39.42	+1	228854..229789	+	311	82749950	-	SAB0182	-	inosine-uridine preferring nucleoside hydrolase family protein
174	 34.83	0	232214..232681	+	155	82749951	-	SAB0184	-	phosphotransferase system enzyme
175	 32.42	0	232704..232922	+	72	82749952	-	SAB0185	-	phosphotransferase system galactitol-specific enzyme II, B component
176	 36.75	+1	233205..234464	+	419	82749953	-	SAB0186	-	phosphotransferase system galactitol-specific enzyme II, C component
177	 36.65	+1	234482..235537	+	351	82749954	-	SAB0187	-	zinc-binding sorbitol dehydrogenase
178	 30.61	0	235539..235685	+	48	82749955	-	SAB0188	-	hypothetical protein
179	 37.55	+1	235709..236752	+	347	82749956	-	SAB0189	-	zinc-binding sorbitol dehydrogenase
180	 32.78	0	237280..237996	+	238	82749957	-	SAB0190	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
181	 32.63	0	239037..240731	+	564	82749958	-	SAB0192	-	teichoic acid biosynthesis protein B
182	 33.76	0	241159..242328	+	389	82749959	-	SAB0193	-	teichoic acid biosynthesis protein F
183	 32.50	0	242604..243320	+	238	82749960	ispD	SAB0194	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
184	 33.24	0	243313..244338	+	341	82749961	-	SAB0195	-	xylitol dehydrogenase
185	 32.03	0	244360..246048	+	562	82749962	-	SAB0196	-	teichoic acid biosynthesis protein B
186	 32.35	0	246081..247802	+	573	82749963	-	SAB0197	-	glycosyl transferase
187	 32.15	0	247946..248620	+	224	82749964	scdA	SAB0198	-	cell wall biosynthesis protein ScdA
188	 35.67	0	248866..250620	+	584	82749965	lytS	SAB0199	-	two-component sensor histidine kinase
189	 31.31	0	250623..251363	+	246	82749966	lytR	SAB0200	-	two-component sensor histidine kinase
33.03	MEAN

3.30	STD DEV
