IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

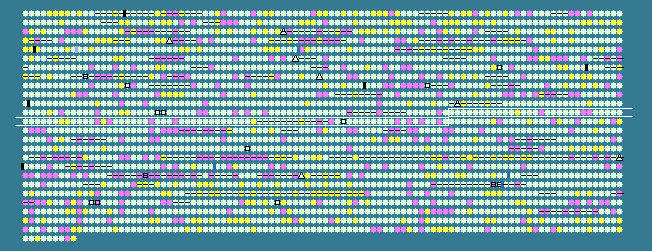

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1172	 30.96	0	1329247..1331769	+	840	82750952	mprF	SAB1216	-	hypothetical protein
1173	 33.73	0	1331972..1332481	-	169	82750953	msrA1	SAB1217c	-	methionine sulfoxide reductase A
1174	 33.43	0	1332618..1333601	+	327	82750954	-	SAB1218	-	peptide methionine sulfoxide reductase regulator
1175	 33.49	0	1334022..1335284	+	420	82750955	-	SAB1219	-	DNA damage repair protein
1176	 33.15	0	1335421..1336512	-	363	82750956	-	SAB1220c	-	prephenate dehydrogenase
1177	 33.04	0	1336677..1337708	+	343	82750957	-	SAB1221	-	peptidase
1178	 32.27	0	1338201..1339607	+	468	82750958	trpE	SAB1222	-	anthranilate synthase component I
1179	 34.92	0	1339604..1340170	+	188	82750959	trpG	SAB1223	-	anthranilate synthase component II
1180	 33.93	0	1340167..1341174	+	335	82750960	trpD	SAB1224	-	anthranilate phosphoribosyltransferase
1181	 31.29	0	1341176..1341958	+	260	82750961	trpC	SAB1225	-	indole-3-glycerol-phosphate synthase
1182	 32.07	0	1341958..1342590	+	210	82750962	trpF	SAB1226	-	N-5'-phosphoribosyl-anthranilate isomerase
1183	 38.02	+1	1342583..1343797	+	404	82750963	trpB	SAB1227	-	tryptophan synthase subunit beta
1184	 33.88	0	1343790..1344518	+	242	82750964	trpA	SAB1228	-	tryptophan synthase subunit alpha
1185	 31.34	0	1344801..1346102	+	433	82750965	femA	SAB1229	-	factor essential for expression of methicillin resistance
1186	 31.43	0	1346121..1347380	+	419	82750966	femB	SAB1230	-	methicillin resistance factor protein
1187	 23.56	-2	1347667..1348413	+	248	82750967	-	SAB1231	-	hypothetical protein
1188	 34.63	0	1348653..1349039	+	128	82750968	-	SAB1232	-	hypothetical protein
1189	 33.12	0	1349241..1349714	-	157	82750969	-	SAB1233c	-	hypothetical protein
1190	 32.91	0	1349838..1350539	-	233	82750970	-	SAB1234c	-	oligopeptide transporter ATPase
1191	 31.65	0	1350532..1351305	-	257	82750971	-	SAB1235c	-	oligopeptide transporter ATPase
1192	 32.73	0	1351292..1352122	-	276	82750972	-	SAB1236c	-	oligopeptide membrane permease
1193	 30.90	0	1352115..1353101	-	328	82750973	-	SAB1237c	-	oligopeptide membrane permease
1194	 26.29	-2	1353231..1353443	-	70	82750974	-	SAB1238c	-	hypothetical protein
1195	 27.25	-1	1353406..1353750	-	114	82750975	-	SAB1239c	-	hypothetical protein
1196	 33.44	0	1353955..1355769	+	604	82750976	-	SAB1240	-	oligoendopeptidase F
1197	 31.62	0	1355911..1356552	-	213	82750977	-	SAB1241c	-	phosphate transporter PhoU
1198	 33.10	0	1356559..1357410	-	283	82750978	-	SAB1242c	-	phosphate import ATP-binding protein
1199	 35.51	0	1357457..1358374	-	305	82750979	-	SAB1243c	-	phosphate ABC transporter permease
1200	 35.49	0	1358376..1359302	-	308	82750980	-	SAB1244c	-	phosphate ABC transporter permease
1201	 31.91	0	1359493..1360476	-	327	82750981	-	SAB1245c	-	phosphate-binding lipoprotein
1202	 34.99	0	1360848..1361750	-	300	82750982	-	SAB1246c	-	hypothetical protein
1203	 33.21	0	1361896..1363497	+	533	82750983	-	SAB1247	-	ATP-binding ABC transporter protein
1204	 34.08	0	1364269..1365474	+	401	82750984	lysC	SAB1248	-	aspartate kinase
1205	 35.56	0	1365538..1366527	+	329	82750985	asd	SAB1249	-	aspartate semialdehyde dehydrogenase
1206	 34.91	0	1366529..1367416	+	295	82750986	dapA	SAB1250	-	dihydrodipicolinate synthase
1207	 37.07	+1	1367413..1368135	+	240	82750987	dapB	SAB1251	-	dihydrodipicolinate reductase
1208	 37.64	+1	1368162..1368881	+	239	82750988	dapD	SAB1252	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1209	 34.29	0	1369024..1370175	+	383	82750989	-	SAB1253	-	peptidase
1210	 33.98	0	1370180..1371265	+	361	82750990	alr	SAB1254	-	alanine racemase
1211	 33.73	0	1371255..1372520	+	421	82750991	lysA	SAB1255	-	diaminopimelate decarboxylase
1212	 31.39	0	1372614..1373231	-	205	82750992	-	SAB1256c	-	transcriptional regulator
1213	 21.39	-2	1373365..1373766	-	133	82750993	-	SAB1257c	-	hypothetical protein
1214	 37.81	+1	1373964..1374164	-	66	82750994	cspA	SAB1258c	-	cold shock protein
1215	 27.83	-1	1374335..1374643	-	102	82750995	-	SAB1259c	-	hypothetical protein
1216	 35.93	0	1374802..1375071	+	89	82750996	-	SAB1260	-	hypothetical protein
1217	 29.84	0	1375090..1375719	+	209	82750997	-	SAB1261	-	hypothetical protein
1218	 32.98	0	1375751..1376887	+	378	82750998	-	SAB1262	-	toxic ion resistance protein
1219	 32.14	0	1376961..1378304	-	447	82750999	-	SAB1263c	-	branched-chain amino acid carrier II protein
1220	 31.64	0	1378529..1380415	-	628	82751000	-	SAB1264c	-	hypothetical protein
1221	 32.45	0	1380429..1381220	-	263	82751001	-	SAB1265c	-	nitric oxide reductase protein
1222	 28.43	-1	1381401..1381604	-	67	82751002	-	SAB1266c	-	hypothetical protein
1223	 34.57	0	1381632..1382441	-	269	82751003	-	SAB1267c	-	hypothetical protein
1224	 34.52	0	1383021..1384289	-	422	82751004	odhB	SAB1268c	-	dihydrolipoamide acetyltransferase
1225	 35.55	0	1384303..1387101	-	932	82751005	kgd	SAB1269c	-	alpha-ketoglutarate decarboxylase
1226	 29.35	-1	1387390..1388745	-	451	82751006	arlS	SAB1270c	-	two-component sensor histidine kinase
1227	 32.58	0	1388742..1389401	-	219	82751007	arlR	SAB1271c	-	two-component response regulator
1228	 32.03	0	1390486..1391100	-	204	82751008	-	SAB1272c	-	hypothetical protein
1229	 29.79	0	1391117..1392187	-	356	82751009	murG	SAB1273c	-	N-acetylglucosaminyl transferase
1230	 33.53	0	1392199..1392708	-	169	82751010	-	SAB1274c	-	hypothetical protein
1231	 30.92	0	1393108..1394598	-	496	82751011	-	SAB1275c	-	carboxy-terminal processing proteinase
1232	 34.23	0	1394780..1395001	-	73	82751012	-	SAB1276c	-	hypothetical protein
1233	 34.13	0	1395001..1395501	-	166	82751013	-	SAB1277c	-	phosphotransferase system glucose-specific IIA component
1234	 31.93	0	1395513..1395941	-	142	82751014	-	SAB1278c	-	methionine sulfoxide reductase B
1235	 35.77	0	1395934..1396467	-	177	82751015	msrA	SAB1279c	-	methionine sulfoxide reductase A
1236	 31.31	0	1396553..1397392	-	279	82751016	-	SAB1280c	-	hypothetical protein
1237	 34.17	0	1397407..1397886	-	159	82751017	dfrB	SAB1281c	-	dihydrofolate reductase
1238	 33.65	0	1398086..1399042	-	318	82751018	thyA	SAB1282c	-	thymidylate synthase
1239	 36.99	+1	1399466..1399903	-	145	82751019	-	SAB1283c	-	hypothetical protein
1240	 35.20	0	1399919..1401043	-	374	82751020	-	SAB1284c	-	hypothetical protein
1241	 32.94	0	1401081..1401332	-	83	82751021	-	SAB1285c	-	hypothetical protein
1242	 33.85	0	1401344..1401538	-	64	82751022	-	SAB1286c	-	hypothetical protein
1243	 31.06	0	1401783..1402487	+	234	82751023	-	SAB1287	-	hypothetical protein
1244	 33.58	0	1402728..1403129	+	133	82751024	-	SAB1288	-	cell wall enzyme
1245	 34.12	0	1403175..1408925	-	1916	82751025	-	SAB1289c	-	truncated cell surface fibronectin-binding protein
1246	 36.39	+1	1408971..1410803	-	610	82751026	-	SAB1290c	-	truncated cell surface fibronectin-binding protein
1247	 36.56	+1	1410800..1415167	-	1455	82751027	-	SAB1291c	-	truncated cell surface fibronectin-binding protein
1248	 34.42	0	1415268..1416185	-	305	82751028	-	SAB1292c	-	truncated cell surface fibronectin-binding protein
1249	 33.08	0	1416357..1416749	-	130	82751029	-	SAB1293c	-	truncated cell surface fibronectin-binding protein
1250	 28.89	-1	1417124..1417303	+	59	82751030	-	SAB1295	-	hypothetical protein
1251	 32.10	0	1418565..1419536	-	323	82751031	-	SAB1296c	-	alcohol dehydrogenase
1252	 26.90	-1	1419659..1420078	+	139	82751032	-	SAB1297	-	hypothetical protein
1253	 32.35	0	1420349..1420960	+	203	82751033	-	SAB1298	-	recombinase
1254	 34.07	0	1421380..1422054	+	224	82751034	-	SAB1299	-	transposase for IS-like element
1255	 33.65	0	1422064..1423005	-	313	82751035	-	SAB1300c	-	truncated cell surface fibronectin-binding protein
1256	 32.41	0	1423403..1424923	-	506	82751036	-	SAB1301c	-	transmembrane efflux protein
1257	 35.13	0	1425156..1426271	-	371	82751037	-	SAB1302c	-	amino acid permease protein
1258	 34.66	0	1426440..1427342	-	300	82751038	tdcB	SAB1303c	-	threonine dehydratase
1259	 35.48	0	1427437..1428555	-	372	82751039	ald	SAB1304c	-	alanine dehydrogenase
1260	 32.42	0	1429029..1429907	-	292	82751040	-	SAB1305c	-	5'-3' exonuclease
1261	 30.72	0	1429927..1433367	-	1146	82751041	-	SAB1306c	-	hypothetical protein
1262	 32.81	0	1433671..1435011	+	446	82751042	-	SAB1307	-	hypothetical protein
1263	 28.83	-1	1435170..1435502	-	110	82751043	-	SAB1308c	-	hypothetical protein
1264	 35.86	0	1435586..1436731	-	381	82751044	-	SAB1309c	-	hypothetical protein
1265	 27.54	-1	1437383..1437727	-	114	82751045	-	SAB1310c	-	hypothetical protein
1266	 31.56	0	1437741..1438304	-	187	82751046	-	SAB1311c	-	hypothetical protein
1267	 29.06	-1	1438297..1438647	-	116	82751047	-	SAB1312c	-	hypothetical protein
1268	 32.06	0	1439187..1439813	+	208	82751048	recU	SAB1313	-	Holliday junction-specific endonuclease
1269	 35.21	0	1439810..1441993	+	727	82751049	pbp2	SAB1314	-	penicillin-binding protein 2
1270	 27.78	-1	1442501..1442842	-	113	82751050	-	SAB1315c	-	hypothetical protein
1271	 34.70	0	1442847..1443506	-	219	82751051	-	SAB1316c	-	endonuclease III-like protein
33.03	MEAN

3.30	STD DEV
