IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus RF122

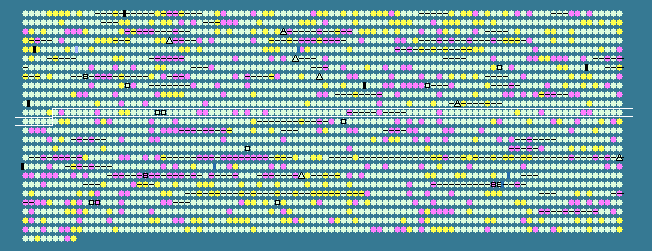

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1106	 36.03	0	1247241..1248800	+	519	82750886	-	SAB1148	-	phosphodiesterase
1107	 27.31	-1	1249097..1249312	-	71	82750887	-	SAB1149c	-	hypothetical protein
1108	 34.84	0	1249486..1250283	+	265	82750888	-	SAB1150	-	hypothetical protein
1109	 35.06	0	1250393..1252183	+	596	82750889	-	SAB1151	-	pyruvate ferredoxin oxidoreductase alpha chain
1110	 34.26	0	1252184..1253050	+	288	82750890	-	SAB1152	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1111	 31.29	0	1253144..1253437	+	97	82750891	-	SAB1153	-	hypothetical protein
1112	 32.88	0	1253571..1255115	+	514	82750892	-	SAB1154	-	hypothetical protein
1113	 29.51	-1	1255116..1255481	+	121	82750893	-	SAB1155	-	hypothetical protein
1114	 34.15	0	1255508..1255999	+	163	82750894	-	SAB1156	-	hypothetical protein
1115	 32.11	0	1256302..1258920	+	872	82750895	mutS	SAB1157	-	DNA mismatch repair protein
1116	 29.78	0	1260956..1261489	+	177	82750896	glpP	SAB1159	-	glycerol uptake operon antiterminator regulatory protein
1117	 37.73	+1	1261964..1262782	+	272	82750897	glpF	SAB1160	-	glycerol uptake facilitator
1118	 36.67	+1	1262912..1264408	+	498	82750898	glpK	SAB1161	-	glycerol kinase
1119	 34.38	0	1264518..1266239	+	573	82750899	glpD	SAB1162	-	aerobic glycerol-3-phosphate dehydrogenase
1120	 30.71	0	1266389..1267303	+	304	82750900	-	SAB1163	-	lysophospholipase
1121	 32.07	0	1267309..1268256	+	315	82750901	-	SAB1164	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1122	 33.76	0	1268271..1268504	+	77	82750902	-	SAB1165	-	phage-related host factor-I protein
1123	 29.63	-1	1268707..1269489	-	260	82750903	-	SAB1166c	-	transposase
1124	 33.33	0	1269528..1270028	-	166	82750904	-	SAB1167c	-	transposase
1125	 33.54	0	1270237..1270713	-	158	82750905	-	SAB1168c	-	glutathione peroxidase
1126	 31.11	0	1270825..1272084	+	419	82750906	-	SAB1169	-	GTP-binding protein
1127	 35.35	0	1272081..1273319	+	412	82750907	-	SAB1170	-	hypothetical protein
1128	 32.52	0	1273563..1273931	+	122	82750908	glnR	SAB1171	-	glutamine synthetase repressor
1129	 35.12	0	1273950..1275290	+	446	82750909	glnA	SAB1172	-	glutamine synthetase
1130	 26.87	-1	1278611..1278811	+	66	82750910	-	SAB1173	-	hypothetical protein
1131	 22.54	-2	1279323..1279739	+	138	82750911	-	SAB1174	-	hypothetical protein
1132	 33.33	0	1279804..1280025	-	73	82750912	-	SAB1175c	-	hypothetical protein
1133	 33.11	0	1280574..1281908	+	444	82750913	-	SAB1176	-	hypothetical protein
1134	 33.83	0	1282401..1282601	+	66	82750914	-	SAB1177	-	hypothetical protein
1135	 33.43	0	1283647..1284702	-	351	82750915	-	SAB1178c	-	hypothetical protein
1136	 23.23	-2	1284942..1285139	+	65	82750916	-	SAB1179	-	hypothetical protein
1137	 31.38	0	1285196..1286677	+	493	82750917	-	SAB1180	-	cardiolipin synthase
1138	 28.57	-1	1287063..1287251	-	62	82750918	-	SAB1181c	-	hypothetical protein
1139	 31.27	0	1287390..1287923	+	177	82750919	nucI	SAB1182	-	thermonuclease
1140	 29.59	-1	1288064..1288918	-	284	82750920	-	SAB1183c	-	hypothetical protein
1141	 29.27	-1	1289234..1289824	+	196	82750921	-	SAB1184	-	hypothetical protein
1142	 31.31	0	1289878..1291260	-	460	82750922	-	SAB1185c	-	aspartate kinase
1143	 32.40	0	1291451..1292731	+	426	82750923	-	SAB1186	-	homoserine dehydrogenase
1144	 35.31	0	1292737..1293798	+	353	82750924	thrC	SAB1187	-	threonine synthase
1145	 35.96	0	1293800..1294714	+	304	82750925	thrB	SAB1188	-	homoserine kinase
1146	 32.59	0	1294772..1295575	+	267	82750926	-	SAB1189	-	hypothetical protein
1147	 31.43	0	1295904..1296218	-	104	82750927	-	SAB1190c	-	hypothetical protein
1148	 33.20	0	1296436..1297890	-	484	82750928	-	SAB1191c	-	amino acid permease
1149	 35.96	0	1298088..1299611	+	507	82750929	-	SAB1192	-	catalase
1150	 33.33	0	1299702..1299851	+	49	161777619	rpmG	SAB1193	-	50S ribosomal protein L33
1151	 32.59	0	1300305..1300574	+	89	82750931	rpsN	SAB1194	-	30S ribosomal protein S14
1152	 33.74	0	1300731..1301708	+	325	82750932	-	SAB1195	-	guanosine 5'-monophosphate oxidoreductase
1153	 36.22	0	1303125..1303748	-	207	82750933	dinR	SAB1197c	-	LexA repressor
1154	 32.49	0	1303888..1304124	+	78	82750934	-	SAB1198	-	hypothetical protein
1155	 27.50	-1	1304261..1304500	+	79	82750935	-	SAB1199	-	hypothetical protein
1156	 36.30	0	1304621..1306609	+	662	82750936	-	SAB1200	-	transketolase
1157	 31.28	0	1306887..1307129	+	80	82750937	-	SAB1201	-	hypothetical protein
1158	 30.77	0	1307308..1307775	+	155	82750938	-	SAB1202	-	hypothetical protein
1159	 31.11	0	1307899..1309020	+	373	82750939	-	SAB1203	-	exonuclease
1160	 28.46	-1	1309024..1311996	+	990	82750940	-	SAB1204	-	exonuclease
1161	 30.85	0	1312124..1312486	-	120	82750941	mscL	SAB1205c	-	large-conductance mechanosensitive channel
1162	 35.94	0	1312690..1314336	+	548	82750942	opuD	SAB1206	-	glycine betaine transporter
1163	 35.74	0	1314926..1317631	+	901	82750943	citB	SAB1207	-	aconitate hydratase
1164	 32.26	0	1317810..1318277	+	155	82750944	-	SAB1208	-	hypothetical protein
1165	 33.33	0	1318484..1318780	-	98	82750945	-	SAB1209c	-	hypothetical protein
1166	 33.83	0	1319158..1319766	-	202	82750946	-	SAB1210c	-	hypothetical protein
1167	 34.78	0	1319966..1321963	+	665	82750947	grlB	SAB1211	-	DNA topoisomerase IV subunit B
1168	 32.17	0	1321963..1324365	+	800	82750948	grlA	SAB1212	-	DNA topoisomerase IV subunit A
1169	 35.31	0	1324615..1326081	+	488	82750949	-	SAB1213	-	amino acid carrier protein
1170	 27.46	-1	1326571..1327422	+	283	82750950	-	SAB1214	-	transcription antiterminator
1171	 30.60	0	1327557..1328765	+	402	82750951	-	SAB1215	-	hypothetical protein
1172	 30.96	0	1329247..1331769	+	840	82750952	mprF	SAB1216	-	hypothetical protein
1173	 33.73	0	1331972..1332481	-	169	82750953	msrA1	SAB1217c	-	methionine sulfoxide reductase A
1174	 33.43	0	1332618..1333601	+	327	82750954	-	SAB1218	-	peptide methionine sulfoxide reductase regulator
1175	 33.49	0	1334022..1335284	+	420	82750955	-	SAB1219	-	DNA damage repair protein
1176	 33.15	0	1335421..1336512	-	363	82750956	-	SAB1220c	-	prephenate dehydrogenase
1177	 33.04	0	1336677..1337708	+	343	82750957	-	SAB1221	-	peptidase
1178	 32.27	0	1338201..1339607	+	468	82750958	trpE	SAB1222	-	anthranilate synthase component I
1179	 34.92	0	1339604..1340170	+	188	82750959	trpG	SAB1223	-	anthranilate synthase component II
1180	 33.93	0	1340167..1341174	+	335	82750960	trpD	SAB1224	-	anthranilate phosphoribosyltransferase
1181	 31.29	0	1341176..1341958	+	260	82750961	trpC	SAB1225	-	indole-3-glycerol-phosphate synthase
1182	 32.07	0	1341958..1342590	+	210	82750962	trpF	SAB1226	-	N-5'-phosphoribosyl-anthranilate isomerase
1183	 38.02	+1	1342583..1343797	+	404	82750963	trpB	SAB1227	-	tryptophan synthase subunit beta
1184	 33.88	0	1343790..1344518	+	242	82750964	trpA	SAB1228	-	tryptophan synthase subunit alpha
1185	 31.34	0	1344801..1346102	+	433	82750965	femA	SAB1229	-	factor essential for expression of methicillin resistance
1186	 31.43	0	1346121..1347380	+	419	82750966	femB	SAB1230	-	methicillin resistance factor protein
1187	 23.56	-2	1347667..1348413	+	248	82750967	-	SAB1231	-	hypothetical protein
1188	 34.63	0	1348653..1349039	+	128	82750968	-	SAB1232	-	hypothetical protein
1189	 33.12	0	1349241..1349714	-	157	82750969	-	SAB1233c	-	hypothetical protein
1190	 32.91	0	1349838..1350539	-	233	82750970	-	SAB1234c	-	oligopeptide transporter ATPase
1191	 31.65	0	1350532..1351305	-	257	82750971	-	SAB1235c	-	oligopeptide transporter ATPase
1192	 32.73	0	1351292..1352122	-	276	82750972	-	SAB1236c	-	oligopeptide membrane permease
1193	 30.90	0	1352115..1353101	-	328	82750973	-	SAB1237c	-	oligopeptide membrane permease
1194	 26.29	-2	1353231..1353443	-	70	82750974	-	SAB1238c	-	hypothetical protein
1195	 27.25	-1	1353406..1353750	-	114	82750975	-	SAB1239c	-	hypothetical protein
1196	 33.44	0	1353955..1355769	+	604	82750976	-	SAB1240	-	oligoendopeptidase F
1197	 31.62	0	1355911..1356552	-	213	82750977	-	SAB1241c	-	phosphate transporter PhoU
1198	 33.10	0	1356559..1357410	-	283	82750978	-	SAB1242c	-	phosphate import ATP-binding protein
1199	 35.51	0	1357457..1358374	-	305	82750979	-	SAB1243c	-	phosphate ABC transporter permease
1200	 35.49	0	1358376..1359302	-	308	82750980	-	SAB1244c	-	phosphate ABC transporter permease
1201	 31.91	0	1359493..1360476	-	327	82750981	-	SAB1245c	-	phosphate-binding lipoprotein
1202	 34.99	0	1360848..1361750	-	300	82750982	-	SAB1246c	-	hypothetical protein
1203	 33.21	0	1361896..1363497	+	533	82750983	-	SAB1247	-	ATP-binding ABC transporter protein
1204	 34.08	0	1364269..1365474	+	401	82750984	lysC	SAB1248	-	aspartate kinase
1205	 35.56	0	1365538..1366527	+	329	82750985	asd	SAB1249	-	aspartate semialdehyde dehydrogenase
33.03	MEAN

3.30	STD DEV
