IslandPath Analysis: Staphylococcus aureus RF122

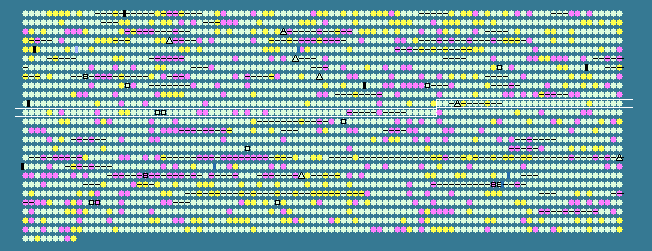

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1070	 31.50	0	1201167..1202039	+	290	82750850	smf	SAB1111	-	DNA processing protein
1071	 34.78	0	1202213..1204288	+	691	82750851	topA	SAB1112	-	DNA topoisomerase I
1072	 35.86	0	1204444..1205751	+	435	82750852	gid	SAB1113	-	tRNA (uracil-5-)-methyltransferase Gid
1073	 32.22	0	1206170..1207066	+	298	82750853	-	SAB1114	-	integrase/recombinase
1074	 39.38	+1	1207063..1207608	+	181	82750854	hslV	SAB1115	-	ATP-dependent protease peptidase subunit
1075	 34.83	0	1207674..1209077	+	467	82750855	hslU	SAB1116	-	ATP-dependent protease ATP-binding subunit
1076	 32.04	0	1209102..1209875	+	257	82750856	codY	SAB1117	-	transcriptional repressor CodY
1077	 35.29	0	1210217..1210984	+	255	82750857	rpsB	SAB1118	-	30S ribosomal protein S2
1078	 36.96	+1	1211166..1212047	+	293	82750858	tsf	SAB1119	-	elongation factor Ts
1079	 35.96	0	1212184..1212906	+	240	82750859	smbA	SAB1120	-	uridylate kinase
1080	 34.77	0	1212925..1213479	+	184	82750860	frr	SAB1121	-	ribosome recycling factor
1081	 29.96	0	1213852..1214622	+	256	82750861	uppS	SAB1122	-	undecaprenyl pyrophosphate synthetase
1082	 32.31	0	1214629..1215411	+	260	82750862	cdsA	SAB1123	-	phosphatidate cytidylyltransferase
1083	 32.63	0	1215623..1216909	+	428	82750863	-	SAB1124	-	zinc metalloprotease
1084	 34.98	0	1216929..1218632	+	567	82750864	proS	SAB1125	-	prolyl-tRNA synthetase
1085	 34.70	0	1218890..1223206	+	1438	82750865	polC	SAB1126	-	DNA polymerase III PolC
1086	 32.69	0	1223496..1223963	+	155	82750866	-	SAB1127	-	hypothetical protein
1087	 35.88	0	1223984..1225159	+	391	82750867	nusA	SAB1128	-	transcription elongation factor NusA
1088	 30.88	0	1225180..1225464	+	94	82750868	-	SAB1129	-	hypothetical protein
1089	 32.08	0	1225461..1225778	+	105	82750869	-	SAB1130	-	ribosomal protein
1090	 34.18	0	1225783..1227900	+	705	82750870	infB	SAB1131	-	translation initiation factor IF-2
1091	 30.20	0	1228287..1228637	+	116	82750871	rbfA	SAB1132	-	ribosome-binding factor A
1092	 32.24	0	1228807..1229724	+	305	82750872	truB	SAB1133	-	tRNA-pseudouridine 5S synthase
1093	 32.92	0	1229739..1230710	+	323	82750873	ribC	SAB1134	-	bifunctional protein including riboflavin kinase and FAD synthase
1094	 35.93	0	1230825..1231094	+	89	82750874	rpsO	SAB1135	-	30S ribosomal protein S15
1095	 36.96	+1	1231463..1233559	+	698	82750875	pnpA	SAB1136	-	polynucleotide phosphorylase/polyadenylase
1096	 33.65	0	1233871..1235469	+	532	82750876	-	SAB1137	-	metallo-beta-lactamase superfamily protein
1097	 33.76	0	1235726..1238095	+	789	82750877	-	SAB1138	-	SpoIII family DNA translocase
1098	 31.51	0	1238100..1238813	+	237	82750878	-	SAB1139	-	GntR family transcriptional regulator
1099	 29.78	0	1238844..1240109	+	421	82750879	-	SAB1140	-	hypothetical protein
1100	 30.92	0	1240109..1241395	+	428	82750880	-	SAB1141	-	protease (zinc) protein
1101	 32.85	0	1242205..1243032	+	275	82750881	-	SAB1143	-	hypothetical protein
1102	 30.28	0	1243051..1243443	+	130	82750882	-	SAB1144	-	DNA-binding protein
1103	 30.74	0	1243477..1244055	+	192	82750883	pgsA	SAB1145	-	phosphatidylglycerophosphate synthase
1104	 30.90	0	1244528..1245679	+	383	82750884	cinA	SAB1146	-	competence-damage inducible protein
1105	 37.07	+1	1245844..1246887	+	347	82750885	recA	SAB1147	-	recombinase A
1106	 36.03	0	1247241..1248800	+	519	82750886	-	SAB1148	-	phosphodiesterase
1107	 27.31	-1	1249097..1249312	-	71	82750887	-	SAB1149c	-	hypothetical protein
1108	 34.84	0	1249486..1250283	+	265	82750888	-	SAB1150	-	hypothetical protein
1109	 35.06	0	1250393..1252183	+	596	82750889	-	SAB1151	-	pyruvate ferredoxin oxidoreductase alpha chain
1110	 34.26	0	1252184..1253050	+	288	82750890	-	SAB1152	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1111	 31.29	0	1253144..1253437	+	97	82750891	-	SAB1153	-	hypothetical protein
1112	 32.88	0	1253571..1255115	+	514	82750892	-	SAB1154	-	hypothetical protein
1113	 29.51	-1	1255116..1255481	+	121	82750893	-	SAB1155	-	hypothetical protein
1114	 34.15	0	1255508..1255999	+	163	82750894	-	SAB1156	-	hypothetical protein
1115	 32.11	0	1256302..1258920	+	872	82750895	mutS	SAB1157	-	DNA mismatch repair protein
1116	 29.78	0	1260956..1261489	+	177	82750896	glpP	SAB1159	-	glycerol uptake operon antiterminator regulatory protein
1117	 37.73	+1	1261964..1262782	+	272	82750897	glpF	SAB1160	-	glycerol uptake facilitator
1118	 36.67	+1	1262912..1264408	+	498	82750898	glpK	SAB1161	-	glycerol kinase
1119	 34.38	0	1264518..1266239	+	573	82750899	glpD	SAB1162	-	aerobic glycerol-3-phosphate dehydrogenase
1120	 30.71	0	1266389..1267303	+	304	82750900	-	SAB1163	-	lysophospholipase
1121	 32.07	0	1267309..1268256	+	315	82750901	-	SAB1164	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1122	 33.76	0	1268271..1268504	+	77	82750902	-	SAB1165	-	phage-related host factor-I protein
1123	 29.63	-1	1268707..1269489	-	260	82750903	-	SAB1166c	-	transposase
1124	 33.33	0	1269528..1270028	-	166	82750904	-	SAB1167c	-	transposase
1125	 33.54	0	1270237..1270713	-	158	82750905	-	SAB1168c	-	glutathione peroxidase
1126	 31.11	0	1270825..1272084	+	419	82750906	-	SAB1169	-	GTP-binding protein
1127	 35.35	0	1272081..1273319	+	412	82750907	-	SAB1170	-	hypothetical protein
1128	 32.52	0	1273563..1273931	+	122	82750908	glnR	SAB1171	-	glutamine synthetase repressor
1129	 35.12	0	1273950..1275290	+	446	82750909	glnA	SAB1172	-	glutamine synthetase
1130	 26.87	-1	1278611..1278811	+	66	82750910	-	SAB1173	-	hypothetical protein
1131	 22.54	-2	1279323..1279739	+	138	82750911	-	SAB1174	-	hypothetical protein
1132	 33.33	0	1279804..1280025	-	73	82750912	-	SAB1175c	-	hypothetical protein
1133	 33.11	0	1280574..1281908	+	444	82750913	-	SAB1176	-	hypothetical protein
1134	 33.83	0	1282401..1282601	+	66	82750914	-	SAB1177	-	hypothetical protein
1135	 33.43	0	1283647..1284702	-	351	82750915	-	SAB1178c	-	hypothetical protein
1136	 23.23	-2	1284942..1285139	+	65	82750916	-	SAB1179	-	hypothetical protein
1137	 31.38	0	1285196..1286677	+	493	82750917	-	SAB1180	-	cardiolipin synthase
1138	 28.57	-1	1287063..1287251	-	62	82750918	-	SAB1181c	-	hypothetical protein
1139	 31.27	0	1287390..1287923	+	177	82750919	nucI	SAB1182	-	thermonuclease
1140	 29.59	-1	1288064..1288918	-	284	82750920	-	SAB1183c	-	hypothetical protein
1141	 29.27	-1	1289234..1289824	+	196	82750921	-	SAB1184	-	hypothetical protein
1142	 31.31	0	1289878..1291260	-	460	82750922	-	SAB1185c	-	aspartate kinase
1143	 32.40	0	1291451..1292731	+	426	82750923	-	SAB1186	-	homoserine dehydrogenase
1144	 35.31	0	1292737..1293798	+	353	82750924	thrC	SAB1187	-	threonine synthase
1145	 35.96	0	1293800..1294714	+	304	82750925	thrB	SAB1188	-	homoserine kinase
1146	 32.59	0	1294772..1295575	+	267	82750926	-	SAB1189	-	hypothetical protein
1147	 31.43	0	1295904..1296218	-	104	82750927	-	SAB1190c	-	hypothetical protein
1148	 33.20	0	1296436..1297890	-	484	82750928	-	SAB1191c	-	amino acid permease
1149	 35.96	0	1298088..1299611	+	507	82750929	-	SAB1192	-	catalase
1150	 33.33	0	1299702..1299851	+	49	161777619	rpmG	SAB1193	-	50S ribosomal protein L33
1151	 32.59	0	1300305..1300574	+	89	82750931	rpsN	SAB1194	-	30S ribosomal protein S14
1152	 33.74	0	1300731..1301708	+	325	82750932	-	SAB1195	-	guanosine 5'-monophosphate oxidoreductase
1153	 36.22	0	1303125..1303748	-	207	82750933	dinR	SAB1197c	-	LexA repressor
1154	 32.49	0	1303888..1304124	+	78	82750934	-	SAB1198	-	hypothetical protein
1155	 27.50	-1	1304261..1304500	+	79	82750935	-	SAB1199	-	hypothetical protein
1156	 36.30	0	1304621..1306609	+	662	82750936	-	SAB1200	-	transketolase
1157	 31.28	0	1306887..1307129	+	80	82750937	-	SAB1201	-	hypothetical protein
1158	 30.77	0	1307308..1307775	+	155	82750938	-	SAB1202	-	hypothetical protein
1159	 31.11	0	1307899..1309020	+	373	82750939	-	SAB1203	-	exonuclease
1160	 28.46	-1	1309024..1311996	+	990	82750940	-	SAB1204	-	exonuclease
1161	 30.85	0	1312124..1312486	-	120	82750941	mscL	SAB1205c	-	large-conductance mechanosensitive channel
1162	 35.94	0	1312690..1314336	+	548	82750942	opuD	SAB1206	-	glycine betaine transporter
1163	 35.74	0	1314926..1317631	+	901	82750943	citB	SAB1207	-	aconitate hydratase
1164	 32.26	0	1317810..1318277	+	155	82750944	-	SAB1208	-	hypothetical protein
1165	 33.33	0	1318484..1318780	-	98	82750945	-	SAB1209c	-	hypothetical protein
1166	 33.83	0	1319158..1319766	-	202	82750946	-	SAB1210c	-	hypothetical protein
1167	 34.78	0	1319966..1321963	+	665	82750947	grlB	SAB1211	-	DNA topoisomerase IV subunit B
1168	 32.17	0	1321963..1324365	+	800	82750948	grlA	SAB1212	-	DNA topoisomerase IV subunit A
1169	 35.31	0	1324615..1326081	+	488	82750949	-	SAB1213	-	amino acid carrier protein
33.03	MEAN

3.30	STD DEV
