IslandPath Analysis: Staphylococcus aureus RF122

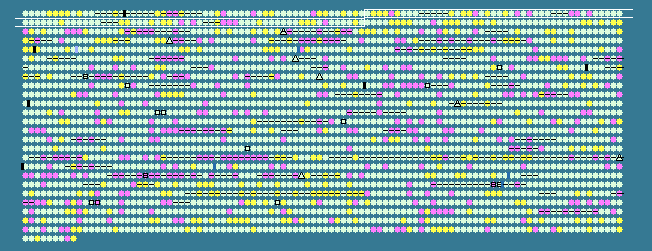

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.03 STD DEV: 3.30
Staphylococcus aureus RF122, complete genome - 1..2742531
2509 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
58	 35.92	0	78485..80263	+	592	82749835	-	SAB0060	-	siderophore biosynthesis protein
59	 39.90	+2	80238..81014	+	258	82749836	-	SAB0061	-	aldolase
60	 36.82	+1	81014..82216	+	400	82749837	-	SAB0062	-	diaminopimelate decarboxylase protein
61	 37.39	+1	82220..82984	+	254	82749838	-	SAB0063	-	hypothetical protein
62	 29.18	-1	83609..84403	+	264	82749839	-	SAB0065	-	hypothetical protein
63	 40.80	+2	84615..85391	+	258	82749840	-	SAB0066	-	acetoin reductase
64	 31.79	0	85737..86708	+	323	82749841	-	SAB0067	-	UDP-glucose 4-epimerase
65	 33.62	0	86671..87363	+	230	82749842	cap5M	SAB0068	-	capsular polysaccharide biosynthesis glycosyltransferase
66	 33.59	0	87573..88739	+	388	82749843	cap8H	SAB0069	-	capsular glycosyltransferase
67	 30.51	0	88720..89958	+	412	82749844	cps2H	SAB0070	-	hypothetical protein
68	 31.73	0	89948..91378	+	476	82749845	-	SAB0071	-	lipopolysaccharide flipase protein
69	 35.17	0	91647..92246	+	199	82749846	sodM	SAB0072	-	manganese/iron superoxide dismutase
70	 34.99	0	92615..93340	+	241	82749847	-	SAB0073	-	surface protein
71	 35.22	0	93531..94271	-	246	82749848	-	SAB0074c	-	transcriptional regulator
72	 37.57	+1	94522..95229	+	235	82749849	deoD1	SAB0075	-	purine nucleoside phosphorylase
73	 31.86	0	95230..96588	+	452	82749850	-	SAB0076	-	membrane transporter
74	 39.97	+2	96669..97331	+	220	82749851	deoC1	SAB0077	-	deoxyribose-phosphate aldolase 1
75	 36.90	+1	97359..98537	+	392	82749852	drm	SAB0078	-	phosphopentomutase
76	 21.33	-2	98761..98985	-	74	82749853	-	SAB0079c	-	hypothetical protein
77	 29.63	-1	99008..99547	-	179	82749854	-	SAB0080c	-	hypothetical protein
78	 36.64	+1	99992..100807	-	271	82749855	-	SAB0081c	-	phosphonate ABC transporter permease
79	 34.50	0	101604..102377	-	257	82749856	-	SAB0083c	-	transport system protein
80	 30.83	0	102591..103547	-	318	82749857	-	SAB0084c	-	transport protein
81	 36.76	+1	103777..105321	+	514	82749858	-	SAB0085	-	hypothetical protein
82	 36.35	+1	105372..106865	+	497	82749859	cpdB	SAB0086	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase
83	 28.32	-1	107836..109011	+	391	82749860	-	SAB0088	-	transcriptional regulator
84	 36.05	0	109399..112008	+	869	82749861	-	SAB0089	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
85	 29.45	-1	112353..113021	+	222	82749862	capA	SAB0090	-	capsular polysaccharide synthesis enzyme CapA
86	 32.90	0	113037..113723	+	228	82749863	capB	SAB0091	-	capsular polysaccharide synthesis enzyme CapB
87	 32.03	0	113726..114490	+	254	82749864	capC	SAB0092	-	capsular polysaccharide synthesis enzyme CapC
88	 34.92	0	114510..116333	+	607	82749865	capD	SAB0093	-	capsular polysaccharide synthesis enzyme CapD
89	 34.21	0	116323..117351	+	342	82749866	capE	SAB0094	-	capsular polysaccharide synthesis enzyme CapE
90	 34.50	0	117364..118473	+	369	82749867	capF	SAB0095	-	capsular polysaccharide synthesis enzyme CapF
91	 33.60	0	118477..119601	+	374	82749868	capG	SAB0096	-	capsular polysaccharide synthesis enzyme CapG
92	 27.31	-1	119604..120683	+	359	82749869	cap8H	SAB0097	-	capsular polysaccharide synthesis enzyme CapH
93	 28.75	-1	120676..122070	+	464	82749870	cap8I	SAB0098	-	capsular polysaccharide synthesis enzyme CapI
94	 32.62	0	122067..122624	+	185	82749871	cap8J	SAB0099	-	capsular polysaccharide synthesis enzyme CapJ
95	 27.20	-1	122633..123871	+	412	82749872	cap8K	SAB0100	-	capsular polysaccharide synthesis enzyme CapK
96	 35.16	0	123905..125110	+	401	82749873	capL	SAB0101	-	capsular polysaccharide synthesis enzyme CapL
97	 32.08	0	125121..125678	+	185	82749874	capM	SAB0102	-	capsular polysaccharide synthesis enzyme CapM
98	 33.11	0	125678..126565	+	295	82749875	capN	SAB0103	-	capsular polysaccharide synthesis enzyme CapN
99	 34.05	0	126619..127881	+	420	82749876	capO	SAB0104	-	capsular polysaccharide synthesis enzyme CapO
100	 36.14	0	127928..129103	+	391	82749877	capP	SAB0105	-	capsular polysaccharide synthesis enzyme CapP
101	 30.99	0	129501..129884	-	127	82749878	-	SAB0107c	-	hypothetical protein
102	 36.02	0	130311..131798	+	495	82749879	aldA	SAB0108	-	aldehyde dehdydrogenase
103	 32.19	0	132442..133401	+	319	82749880	-	SAB0109	-	cation-efflux system membrane protein
104	 31.37	0	133462..133665	-	67	82749881	-	SAB0110c	-	hypothetical protein
105	 33.72	0	133844..134356	+	170	82749882	-	SAB0111	-	hypothetical protein
106	 35.22	0	134697..135437	+	246	82749883	-	SAB0112	-	nitrate/nitrite system ATP-binding ABC transporter
107	 37.03	+1	135451..136425	+	324	82749884	-	SAB0113	-	lipoprotein
108	 35.43	0	136422..137183	+	253	82749885	-	SAB0114	-	ABC transporter permease
109	 35.47	0	137196..138227	+	343	82749886	-	SAB0115	-	hypothetical protein
110	 34.51	0	138444..138698	+	84	82749887	-	SAB0116	-	hypothetical protein
111	 34.93	0	138873..140000	+	375	82749888	-	SAB0117	-	formate dehydrogenase
112	 32.69	0	140385..141635	+	416	82749889	-	SAB0118	-	integral membrane transport protein
113	 34.95	0	142064..149254	+	2396	82749890	-	SAB0119	-	surfactin/siderophore synthetase
114	 33.80	0	149267..149911	+	214	82749891	-	SAB0120	-	4'-phosphopantetheinyl transferase superfamily protein
115	 35.35	0	150240..150734	-	164	82749892	-	SAB0121c	-	hypothetical protein
116	 34.89	0	151005..151775	-	256	82749893	-	SAB0122c	-	acetylglutamate kinase
117	 37.12	+1	151791..153032	-	413	82749894	argJ	SAB0123c	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
118	 37.89	+1	154114..155298	-	394	82749895	-	SAB0125c	-	ornithine aminotransferase
119	 32.82	0	155547..156902	-	451	82749896	-	SAB0126c	-	branched chain amino acid ABC transporter carrier protein
120	 35.48	0	157179..157736	-	185	82749897	-	SAB0127c	-	hydrolase
121	 36.26	0	157802..159442	-	546	82749898	-	SAB0128c	-	pyruvate decarboxylase
122	 38.12	+1	159714..161759	-	681	82749899	glcA	SAB0129c	-	phosphotransferase system enzyme II glucose-specific factor IIA
123	 35.07	0	162345..163379	+	344	82749900	-	SAB0130	-	hypothetical protein
124	 38.11	+1	163397..164296	+	299	82749901	murQ	SAB0131	-	N-acetylmuramic acid-6-phosphate etherase
125	 37.94	+1	164308..165762	+	484	82749902	-	SAB0132	-	PTS system sucrose-specific IIBC component
126	 34.25	0	165765..166640	+	291	82749903	-	SAB0133	-	RpiR family transcriptional regulator
127	 28.72	-1	166836..167117	-	93	82749904	-	SAB0134c	-	hypothetical protein
128	 33.01	0	167330..170119	+	929	82749905	-	SAB0135	-	type I restriction enzyme restriction chain
129	 29.17	-1	170266..170865	-	199	82749906	-	SAB0136c	-	hypothetical protein
130	 30.10	0	170989..172101	+	370	82749907	-	SAB0137	-	hypothetical protein
131	 31.42	0	172098..172778	+	226	82749908	-	SAB0138	-	ABC transporter ATP-binding protein
132	 30.70	0	172967..173953	+	328	82749909	-	SAB0139	-	ABC transporter ATP-binding protein
133	 41.44	+2	174161..174382	+	73	82749910	-	SAB0140	-	hypothetical protein
134	 23.31	-2	174453..176138	+	561	82749911	-	SAB0141	-	hypothetical protein
135	 25.68	-2	176196..176639	+	147	82749912	-	SAB0142	-	hypothetical protein
136	 26.69	-1	176651..177373	+	240	82749913	-	SAB0143	-	ABC transporter ATP-binding protein
137	 32.52	0	179783..181261	+	492	82749914	-	SAB0145	-	oligopeptide ABC transporter permease protein
138	 34.11	0	181267..182430	+	387	82749915	-	SAB0146	-	oligopeptide ABC transporter
139	 33.56	0	182447..184222	+	591	82749916	-	SAB0147	-	RGD-containing lipoprotein
140	 38.32	+1	184260..186266	+	668	82749917	-	SAB0148	-	gamma-glutamyltransferase
141	 33.33	0	186804..187430	-	208	161777622	-	SAB0149c	-	azoreductase
142	 35.58	0	187639..188217	+	192	82749919	-	SAB0150	-	hypothetical protein
143	 34.88	0	188600..189697	+	365	82749920	-	SAB0151	-	multiple sugar-binding transport ATP-binding protein
144	 34.12	0	189710..190981	+	423	82749921	-	SAB0152	-	maltose/maltodextrin transport system protein
145	 35.07	0	190984..192252	+	422	82749922	-	SAB0153	-	maltose/maltodextrin transport permease protein
146	 33.93	0	192254..193093	+	279	82749923	-	SAB0154	-	maltose/maltodextrin transport system protein
147	 42.25	+2	193135..193392	+	85	82749924	-	SAB0155	-	hypothetical protein
148	 38.98	+1	193451..194530	+	359	82749925	-	SAB0156	-	NADH-dependent dehydrogenase
149	 39.77	+2	194555..195595	+	346	82749926	-	SAB0157	-	NADH-dependent dehydrogenase
150	 35.91	0	195650..196618	+	322	82749927	-	SAB0158	-	hypothetical protein
151	 26.06	-2	196979..197473	-	164	82749928	-	SAB0159c	-	hypothetical protein
152	 35.65	0	197706..199085	+	459	82749929	uhpT	SAB0160	-	sugar phosphate antiporter
153	 33.07	0	199444..200202	-	252	82749930	-	SAB0161c	-	two-component response regulator
154	 32.88	0	200195..201751	-	518	82749931	-	SAB0162c	-	two-component sensor histidine kinase
155	 34.26	0	201748..202716	-	322	82749932	-	SAB0163c	-	periplasmic iron binding protein
156	 36.67	+1	203304..205553	+	749	82749933	-	SAB0164	-	formate acetyltransferase
157	 35.98	0	205576..206331	+	251	82749934	-	SAB0165	-	formate acetyltransferase activating enzyme
33.03	MEAN

3.30	STD DEV
