IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

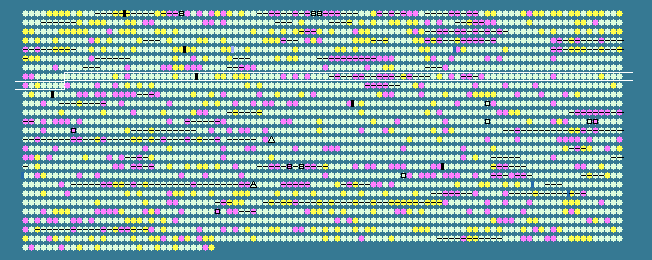

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.85   STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
708	 30.63	0	794712..795782	-	356	21282437	-	MW0708	-	hypothetical protein
709	 31.63	0	796100..797155	+	351	21282438	llm	MW0709	-	lipophilic protein affecting lysis rate and methicillin resistance level protein
710	 34.11	0	797327..797968	-	213	21282439	-	MW0710	-	hypothetical protein
711	 34.26	0	798112..798978	+	288	21282440	-	MW0711	-	hypothetical protein
712	 31.84	0	799486..800424	+	312	21282441	-	MW0712	-	hypothetical protein
713	 30.96	0	800417..801091	+	224	21282442	-	MW0713	-	hypothetical protein
714	 33.16	0	801152..801724	+	190	21282443	-	MW0714	-	hypothetical protein
715	 34.99	0	802138..804669	+	843	21282444	secA	MW0715	-	preprotein translocase subunit SecA
716	 37.21	+1	805219..806094	+	291	21282445	prfB	MW0716	-	peptide chain release factor 2
717	 35.71	0	806503..807342	+	279	21282446	-	MW0717	-	hypothetical protein
718	 28.42	-1	807516..808166	+	216	21282447	-	MW0718	-	hypothetical protein
719	 30.38	0	808163..808399	+	78	21282448	-	MW0719	-	hypothetical protein
720	 35.09	0	808662..810653	+	663	21282449	uvrB	MW0720	-	excinuclease ABC subunit B
721	 35.41	0	810661..813507	+	948	21282450	uvrA	MW0721	-	exinuclease ABC subunit A
722	 35.58	0	814114..815046	+	310	21282451	hprK	MW0722	-	HPr kinase/phosphorylase
723	 32.50	0	815052..815891	+	279	21282452	lgt	MW0723	-	prolipoprotein diacylglyceryl transferase
724	 31.48	0	815899..816384	+	161	21282453	-	MW0724	-	hypothetical protein
725	 29.65	0	816392..817831	+	479	21282454	-	MW0725	-	hypothetical protein
726	 37.29	+1	817898..818833	+	311	21282455	trxB	MW0726	-	thioredoxine reductase
727	 31.47	0	819598..820509	+	303	21282456	-	MW0727	-	hypothetical protein
728	 33.43	0	820506..821501	+	331	21282457	-	MW0728	-	hypothetical protein
729	 32.70	0	821612..822556	+	314	21282458	-	MW0729	-	hypothetical protein
730	 34.35	0	823129..823716	+	195	21282459	clpP	MW0730	-	hypothetical protein
731	 33.78	0	823959..824861	-	300	21282460	-	MW0731	-	hypothetical protein
732	 35.40	0	825564..826193	+	209	21282461	-	MW0732	-	hypothetical protein
733	 37.48	+1	826835..827848	+	337	21282462	gapR	MW0733	-	glycolytic operon regulator
734	 37.98	+1	827901..828911	+	336	21282463	gap	MW0734	-	glyceraldehyde-3-phosphate dehydrogenase
735	 34.68	0	829050..830240	+	396	21282464	pgk	MW0735	-	phosphoglycerate kinase
736	 36.88	+1	830362..831123	+	253	21282465	tpi	MW0736	-	triosephosphate isomerase
737	 36.63	+1	831126..832643	+	505	21282466	pgm	MW0737	-	phosphoglyceromutase
738	 36.93	+1	832773..834077	+	434	21282467	eno	MW0738	-	enolase (2-phosphoglycerate dehydrogenase)
739	 31.81	0	834416..834874	+	152	21282468	-	MW0739	-	hypothetical protein
740	 30.34	0	834941..835174	+	77	21282469	secG	MW0740	-	preprotein translocase subunit SecG
741	 33.33	0	835290..836030	+	246	21282470	-	MW0741	-	hypothetical protein
742	 34.22	0	836064..838436	+	790	21282471	rnr	MW0742	-	ribonuclease R
743	 36.13	0	838458..838922	+	154	21282472	smpB	MW0743	-	SsrA-binding protein
744	 21.30	-2	839478..839693	-	71	21282473	-	MW0744	-	hypothetical protein
745	 33.78	0	839705..840820	-	371	21282474	int	MW0745	-	hypothetical protein
746	 22.90	-2	840826..841563	-	245	21282475	-	MW0746	-	hypothetical protein
747	 30.14	0	841715..841933	+	72	21282476	-	MW0747	-	hypothetical protein
748	 26.53	-1	841945..842091	+	48	21282477	-	MW0748	-	hypothetical protein
749	 30.22	0	842084..842308	+	74	21282478	-	MW0749	-	hypothetical protein
750	 30.67	0	842309..842608	+	99	21282479	-	MW0750	-	hypothetical protein
751	 30.55	0	842700..845072	+	790	21282480	-	MW0751	-	putative primase
752	 31.59	0	845745..846089	+	114	21282481	-	MW0752	-	hypothetical protein
753	 26.57	-1	846314..846520	+	68	21282482	-	MW0753	-	hypothetical protein
754	 31.63	0	846507..847565	+	352	21282483	-	MW0754	-	hypothetical protein
755	 29.67	0	847747..848238	+	163	21282484	-	MW0755	-	hypothetical protein
756	 22.90	-2	848599..849576	+	325	21282485	-	MW0756	-	hypothetical protein
757	 19.79	-2	849592..850152	+	186	21282486	-	MW0757	-	hypothetical protein
758	 29.55	0	850452..851006	-	184	21282487	ear	MW0758	-	Ear
759	 29.59	0	851795..852595	+	266	21282488	sec4	MW0759	-	enterotoxin type C precursor
760	 28.22	-1	852762..853484	-	240	21282489	sel2	MW0760	-	extracellular enterotoxin L
761	 27.30	-1	854223..854951	-	242	21282490	-	MW0761	-	hypothetical protein
762	 27.78	-1	855549..856070	+	173	21282491	-	MW0762	-	hypothetical protein
763	 34.27	0	856209..856739	+	176	21282492	-	MW0763	-	hypothetical protein
764	 39.28	+1	857002..859842	+	946	21282493	clfA	MW0764	-	fibrinogen-binding protein
765	 28.30	-1	860063..860539	+	158	21282494	-	MW0765	-	truncated secreted von Willebrand factor-binding protein VWbp
766	 30.33	0	860591..861589	+	332	21282495	-	MW0766	-	truncated secreted von Willebrand factor-binding protein VWbp
767	 31.67	0	861940..862962	+	340	21282496	ssp	MW0767	-	extracellular ECM and plasma binding protein
768	 29.69	0	863297..863818	+	173	21282497	-	MW0768	-	hypothetical protein
769	 34.50	0	864159..864845	+	228	21282498	-	MW0769	-	staphylococcal nuclease
770	 39.80	+2	865202..865402	+	66	21282499	cspC	MW0770	-	cold-shock protein C
771	 31.05	0	865898..866116	-	72	21282500	-	MW0771	-	hypothetical protein
772	 27.72	-1	866178..866462	-	94	21282501	-	MW0772	-	hypothetical protein
773	 31.05	0	866550..867119	-	189	21282502	-	MW0773	-	hypothetical protein
774	 28.57	-1	867307..867495	-	62	21282503	-	MW0774	-	hypothetical protein
775	 24.90	-2	867524..867784	-	86	21282504	-	MW0775	-	hypothetical protein
776	 31.86	0	868124..868327	+	67	21282505	-	MW0776	-	hypothetical protein
777	 27.00	-1	868324..868560	-	78	21282506	-	MW0777	-	hypothetical protein
778	 34.71	0	868784..869365	+	193	21282507	-	MW0778	-	hypothetical protein
779	 30.91	0	869438..870055	-	205	21282508	-	MW0779	-	hypothetical protein
780	 29.49	0	870210..870704	-	164	21282509	-	MW0780	-	hypothetical protein
781	 35.70	0	871103..871525	-	140	21282510	-	MW0781	-	hypothetical protein
782	 32.50	0	871673..872389	+	238	21282511	-	MW0782	-	3-dehydroquinate dehydratase
783	 32.59	0	872472..873011	+	179	21282512	-	MW0783	-	hypothetical protein
784	 34.58	0	873161..873481	-	106	21282513	-	MW0784	-	hypothetical protein
785	 29.97	0	873625..873981	+	118	21282514	-	MW0785	-	hypothetical protein
786	 33.60	0	874139..874519	+	126	21282515	-	MW0786	-	glycine cleavage system protein H
787	 32.99	0	874698..875576	+	292	21282516	-	MW0787	-	hypothetical protein
788	 30.49	0	876317..876703	+	128	21282517	-	MW0788	-	hypothetical protein
789	 27.61	-1	876696..876992	+	98	21282518	-	MW0789	-	hypothetical protein
790	 34.80	0	877242..878267	+	341	21282519	-	MW0790	-	hypothetical protein
791	 34.91	0	878260..878955	+	231	21282520	-	MW0791	-	hypothetical protein
792	 29.93	0	878973..879794	+	273	21282521	-	MW0792	-	hypothetical protein
793	 29.74	0	880148..880342	+	64	21282522	-	MW0793	-	hypothetical protein
794	 33.10	0	880575..881426	-	283	21282523	-	MW0794	-	hypothetical protein
795	 33.86	0	881754..882515	+	253	21282524	-	MW0795	-	hypothetical protein
796	 34.17	0	882613..883920	+	435	21282525	-	MW0796	-	hypothetical protein
797	 37.28	+1	884035..885276	+	413	21282526	-	MW0797	-	hypothetical protein
798	 36.13	0	885266..885730	+	154	21282527	-	MW0798	-	hypothetical protein
799	 34.41	0	885881..887278	+	465	21282528	-	MW0799	-	hypothetical protein
800	 29.71	0	887465..887602	+	45	21282529	-	MW0800	-	hypothetical protein
801	 26.67	-1	887608..887922	-	104	21282530	-	MW0801	-	hypothetical protein
802	 32.47	0	888287..889327	+	346	21282531	-	MW0802	-	hypothetical protein
803	 37.64	+1	889341..890408	+	355	21282532	-	MW0803	-	hypothetical protein
804	 33.45	0	890584..891432	+	282	21282533	-	MW0804	-	hypothetical protein
805	 32.25	0	891445..892272	+	275	21282534	-	MW0805	-	hypothetical protein
806	 33.41	0	892299..893618	+	439	21282535	-	MW0806	-	hypothetical protein
807	 36.27	+1	893702..894619	+	305	21282536	lipA	MW0807	-	lipoyl synthase
32.85	MEAN

3.41	STD DEV
