IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

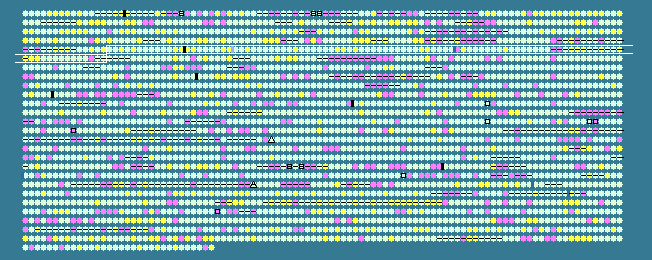

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
415	 35.96	0	465980..467122	+	380	21282144	metB	MW0415	-	cystathionine gamma-synthase
416	 34.99	0	467419..468444	+	341	21282145	-	MW0416	-	hypothetical protein
417	 36.52	+1	468448..469107	+	219	21282146	-	MW0417	-	hypothetical protein
418	 33.33	0	469144..469986	+	280	21282147	-	MW0418	-	hypothetical protein
419	 36.52	+1	470318..471322	+	334	21282148	-	MW0419	-	hypothetical protein
420	 32.59	0	471507..471776	-	89	21282149	-	MW0420	-	hypothetical protein
421	 34.09	0	471925..472320	+	131	21282150	-	MW0421	-	hypothetical protein
422	 36.01	0	472310..472795	+	161	21282151	-	MW0422	-	hypothetical protein
423	 32.82	0	472964..473746	-	260	21282152	-	MW0423	-	hypothetical protein
424	 33.51	0	473743..474855	-	370	21282153	-	MW0424	-	hypothetical protein
425	 33.22	0	474976..475860	-	294	21282154	gltC	MW0425	-	transcription activator of glutamate synthase operon
426	 37.71	+1	476042..480541	+	1499	21282155	gltB	MW0426	-	glutamate synthase large subunit
427	 38.32	+1	480559..482022	+	487	21282156	gltD	MW0427	-	glutamate synthase subunit beta
428	 37.54	+1	482853..484280	+	475	21282157	treP	MW0428	-	PTS enzyme II
429	 36.44	+1	484344..485984	+	546	21282158	-	MW0429	-	alpha-glucosidase
430	 33.88	0	486009..486737	+	242	21282159	-	MW0430	-	hypothetical protein
431	 33.33	0	487177..487242	+	21	21282160	-	MW0431	-	hypothetical protein
432	 32.95	0	487380..487904	+	174	21282161	-	MW0432	-	hypothetical protein
433	 36.10	0	487973..489670	+	565	21282162	dnaX	MW0433	-	DNA polymerase III gamma and tau subunits
434	 39.62	+1	489760..490077	+	105	21282163	-	MW0434	-	hypothetical protein
435	 36.35	+1	490084..490680	+	198	21282164	recR	MW0435	-	recombination protein RecR
436	 32.96	0	497404..498741	+	445	21282165	-	MW0436	-	hypothetical protein
437	 33.66	0	498743..499360	+	205	21282166	tmk	MW0437	-	hypothetical protein
438	 37.27	+1	499388..499717	+	109	21282167	-	MW0438	-	hypothetical protein
439	 30.74	0	499931..500857	+	308	21282168	holB	MW0439	-	DNA polymerase III delta prime subunit
440	 32.71	0	500858..501661	+	267	21282169	-	MW0440	-	hypothetical protein
441	 31.90	0	501678..502025	+	115	21282170	-	MW0441	-	DNA replication intiation control protein YabA
442	 33.61	0	502299..503024	+	241	21282171	-	MW0442	-	hypothetical protein
443	 33.73	0	503017..503265	+	82	21282172	-	MW0443	-	hypothetical protein
444	 35.48	0	503267..504106	+	279	21282173	-	MW0444	-	hypothetical protein
445	 34.09	0	504391..506364	+	657	21282174	metS	MW0445	-	methionyl-tRNA synthetase
446	 36.69	+1	506395..507168	+	257	21282175	-	MW0446	-	hypothetical protein
447	 35.20	0	507335..507871	+	178	21282176	-	MW0447	-	hypothetical protein
448	 32.77	0	507882..508775	+	297	21282177	ksgA	MW0448	-	dimethyladenosine transferase
449	 32.20	0	508875..509138	+	87	21282178	veg	MW0449	-	hypothetical protein
450	 34.86	0	509448..510296	+	282	21282179	-	MW0450	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
451	 32.36	0	510310..511134	+	274	21282180	purR	MW0451	-	purine operon repressor
452	 34.65	0	511151..511531	+	126	21282181	-	MW0452	-	hypothetical protein
453	 36.63	+1	511603..511905	+	100	21282182	spoVG	MW0453	-	regulatory protein SpoVG
454	 39.39	+1	512249..513601	+	450	21282183	gcaD	MW0454	-	hypothetical protein
455	 35.51	0	513748..514713	+	321	21282184	prs	MW0455	-	ribose-phosphate pyrophosphokinase
456	 37.61	+1	514863..515516	+	217	21282185	rplY	MW0456	-	50S ribosomal protein L25/general stress protein Ctc
457	 32.98	0	515827..516399	+	190	21282186	pth	MW0457	-	peptidyl-tRNA hydrolase
458	 34.22	0	516399..519905	+	1168	21282187	mfd	MW0458	-	transcription-repair coupling factor
459	 32.94	0	519895..521421	+	508	21282188	-	MW0459	-	hypothetical protein
460	 35.01	0	521421..522614	+	397	21282189	-	MW0460	-	hypothetical protein
461	 34.85	0	522611..522874	+	87	21282190	-	MW0461	-	hypothetical protein
462	 33.08	0	522892..523284	+	130	21282191	-	MW0462	-	hypothetical protein
463	 34.33	0	523389..523790	+	133	21282192	-	MW0463	-	hypothetical protein
464	 30.94	0	523970..525265	+	431	21282193	-	MW0464	-	hypothetical protein
465	 30.37	0	525270..525809	+	179	21282194	-	MW0465	-	hypothetical protein
466	 35.63	0	526066..528159	+	697	21282195	ftsH	MW0466	-	cell-division protein (ATP-dependent Zn metallopeptidase)
467	 36.51	+1	528388..529269	+	293	21282196	-	MW0467	-	hypothetical protein
468	 38.05	+1	529448..530380	+	310	21282197	cysK	MW0468	-	hypothetical protein
469	 36.07	0	530596..531399	+	267	21282198	folP	MW0469	-	dihydropteroate synthase
470	 36.07	0	531377..531742	+	121	21282199	folB	MW0470	-	dihydroneopterin aldolase
471	 33.33	0	531739..532215	+	158	21282200	folK	MW0471	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridin e pyrophosphokinase
472	 34.81	0	532754..534241	+	495	21282201	lysS	MW0472	-	lysyl-tRNA synthetase
473	 29.28	-1	546677..548059	-	460	21282202	-	MW0473	-	hypothetical protein
474	 39.08	+1	548163..549050	+	295	21282203	-	MW0474	-	pyridoxine biosynthesis protein
475	 34.05	0	549054..549614	+	186	21282204	-	MW0475	-	glutamine amidotransferase subunit PdxT
476	 33.33	0	549820..551034	-	404	21282205	nupC	MW0476	-	pyrimidine nucleoside transport protein
477	 30.95	0	551192..551653	+	153	21282206	ctsR	MW0477	-	hypothetical protein
478	 34.04	0	551672..552238	+	188	21282207	-	MW0478	-	hypothetical protein
479	 32.44	0	552228..553235	+	335	21282208	-	MW0479	-	ATP:guanido phosphotransferase
480	 33.98	0	553249..555705	+	818	21282209	clpC	MW0480	-	endopeptidase
481	 36.85	+1	556189..557553	+	454	21282210	radA	MW0481	-	DNA repair protein RadA
482	 30.45	0	557578..558651	+	357	21282211	-	MW0482	-	hypothetical protein
483	 34.16	0	559208..560662	+	484	21282212	gltX	MW0483	-	glutamyl-tRNA synthetase
484	 35.51	0	561091..561732	+	213	21282213	cysE	MW0484	-	hypothetical protein
485	 33.12	0	561716..563116	+	466	21282214	cysS	MW0485	-	cysteinyl-tRNA synthetase
486	 32.10	0	563109..563513	+	134	21282215	-	MW0486	-	hypothetical protein
487	 35.48	0	563521..564267	+	248	21282216	-	MW0487	-	hypothetical protein
488	 32.57	0	564267..564791	+	174	21282217	-	MW0488	-	hypothetical protein
489	 27.89	-1	564872..565441	+	189	21282218	-	MW0489	-	hypothetical protein
490	 28.96	-1	565755..565937	+	60	21282219	secE	MW0490	-	preprotein translocase subunit SecE
491	 35.34	0	565950..566498	+	182	21282220	nusG	MW0491	-	transcription antitermination protein
492	 38.77	+1	566679..567101	+	140	21282221	rplK	MW0492	-	50S ribosomal protein L11
493	 36.36	+1	567309..568001	+	230	21282222	rplA	MW0493	-	50S ribosomal protein L1
494	 37.33	+1	568273..568773	+	166	21282223	rplJ	MW0494	-	50S ribosomal protein L10
495	 35.77	0	568816..569184	+	122	21282224	rplL	MW0495	-	50S ribosomal protein L7/L12
496	 33.83	0	569359..569967	+	202	21282225	-	MW0496	-	hypothetical protein
497	 37.64	+1	570182..573733	+	1183	21282226	rpoB	MW0497	-	DNA-directed RNA polymerase subunit beta
498	 36.20	0	573870..577493	+	1207	21282227	rpoC	MW0498	-	DNA-directed RNA polymerase subunit beta'
499	 32.16	0	577630..577884	+	84	21282228	-	MW0499	-	putative ribosomal protein L7Ae-like
500	 37.68	+1	577982..578395	+	137	21282229	rpsL	MW0500	-	30S ribosomal protein S12
501	 38.43	+1	578461..578931	+	156	21282230	rpsG	MW0501	-	30S ribosomal protein S7
502	 39.15	+1	579054..581135	+	693	21282231	fus	MW0502	-	elongation factor G
503	 40.68	+2	581352..582536	+	394	21282232	tuf	MW0503	-	elongation factor Tu
504	 35.03	0	582818..583993	-	391	21282233	-	MW0504	-	hypothetical protein
505	 33.92	0	584164..585351	+	395	21282234	-	MW0505	-	2-amino-3-ketobutyrate coenzyme A ligase
506	 34.02	0	585618..586496	+	292	21282235	-	MW0506	-	chaperone protein HchA
507	 32.66	0	586655..588292	+	545	21282236	araB	MW0507	-	ribulokinase
508	 35.40	0	588506..589471	+	321	21282237	-	MW0508	-	hypothetical protein
509	 34.91	0	589806..590882	+	358	21282238	ilvE	MW0509	-	branched-chain amino acid aminotransferase
510	 34.94	0	591133..591816	+	227	21282239	-	MW0510	-	hypothetical protein
511	 32.28	0	591932..592594	-	220	21282240	-	MW0511	-	hypothetical protein
512	 26.54	-1	592587..593204	-	205	21282241	-	MW0512	-	hypothetical protein
513	 36.31	+1	593271..593741	+	156	21282242	-	MW0513	-	hypothetical protein
514	 33.79	0	593888..594757	+	289	21282243	-	MW0514	-	hypothetical protein
32.85	MEAN

3.41	STD DEV
