IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

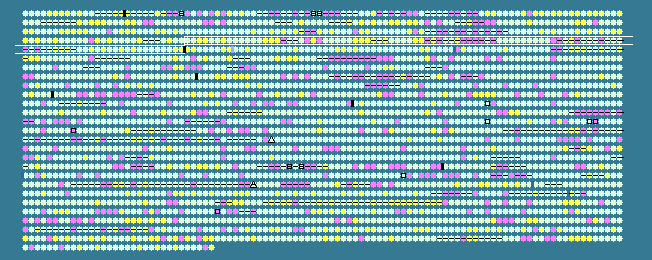

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.85   STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
328	 32.70	0	376168..376797	+	209	21282057	-	MW0328	-	hypothetical protein
329	 31.75	0	377187..378320	-	377	21282058	-	MW0329	-	hypothetical protein
330	 38.58	+1	378859..380040	+	393	21282059	-	MW0330	-	hypothetical protein
331	 37.18	+1	380123..380875	-	250	21282060	-	MW0331	-	hypothetical protein
332	 34.37	0	380918..383146	-	742	21282061	metE	MW0332	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
333	 36.26	+1	383143..384984	-	613	21282062	-	MW0333	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
334	 37.98	+1	384953..386113	-	386	21282063	-	MW0334	-	hypothetical protein
335	 35.87	0	386110..387213	-	367	21282064	-	MW0335	-	hypothetical protein
336	 33.57	0	387886..388722	+	278	21282065	-	MW0336	-	hypothetical protein
337	 30.61	0	388879..389760	+	293	21282066	-	MW0337	-	hypothetical protein
338	 29.41	-1	389790..389993	+	67	21282067	-	MW0338	-	hypothetical protein
339	 35.25	0	390005..391102	+	365	21282068	-	MW0339	-	translation-associated GTPase
340	 31.77	0	391188..391379	-	63	21282069	-	MW0340	-	hypothetical protein
341	 38.38	+1	391623..391919	+	98	21282070	rpsF	MW0341	-	30S ribosomal protein S6
342	 38.10	+1	391940..392443	+	167	21282071	ssb	MW0342	-	single-strand DNA-binding protein of phage phi Sa 2mw
343	 37.04	+1	392495..392737	+	80	21282072	rpsR	MW0343	-	30S ribosomal protein S18
344	 28.21	-1	393003..393977	-	324	21282073	-	MW0344	-	hypothetical protein
345	 30.07	0	394900..395511	+	203	21282074	-	MW0345	-	hypothetical protein
346	 31.59	0	395880..396281	+	133	21282075	-	MW0346	-	hypothetical protein
347	 31.06	0	396429..397001	+	190	21282076	-	MW0347	-	hypothetical protein
348	 29.17	-1	397139..397402	-	87	21282077	-	MW0348	-	hypothetical protein
349	 36.51	+1	397696..397947	+	83	21282078	-	MW0349	-	hypothetical protein
350	 27.62	-1	397986..398195	-	69	21282079	-	MW0350	-	hypothetical protein
351	 32.13	0	398373..398954	+	193	21282080	-	MW0351	-	hypothetical protein
352	 30.99	0	399020..399403	-	127	21282081	-	MW0352	-	hypothetical protein
353	 30.30	0	399491..399589	+	32	21282082	-	MW0353	-	hypothetical protein
354	 30.62	0	399658..400284	-	208	21282083	-	MW0354	-	hypothetical protein
355	 29.86	0	400357..401967	-	536	21282084	-	MW0355	-	hypothetical protein
356	 37.86	+1	402082..403605	-	507	21282085	ahpF	MW0356	-	alkyl hydroperoxide reductase subunit F
357	 37.19	+1	403621..404190	-	189	21282086	ahpC	MW0357	-	alkyl hydroperoxide reductase subunit C
358	 37.83	+1	404682..405437	+	251	21282087	-	MW0358	-	hypothetical protein
359	 39.31	+1	405518..406906	-	462	21282088	-	MW0359	-	hypothetical protein
360	 31.31	0	406991..407089	+	32	21282089	-	MW0360	-	hypothetical protein
361	 37.51	+1	408080..409036	-	318	21282090	-	MW0361	-	hypothetical protein
362	 30.02	0	409154..409816	-	220	21282091	-	MW0362	-	hypothetical protein
363	 32.84	0	409959..410366	-	135	21282092	-	MW0363	-	hypothetical protein
364	 35.75	0	410879..411457	+	192	21282093	xprT	MW0364	-	xanthine phosphoribosyltransferase
365	 35.62	0	411457..412725	+	422	21282094	pbuX	MW0365	-	xanthine permease
366	 37.83	+1	412763..414229	+	488	21282095	guaB	MW0366	-	inositol-monophosphate dehydrogenase
367	 37.22	+1	414254..415795	+	513	21282096	guaA	MW0367	-	bifunctional GMP synthase/glutamine amidotransferase protein
368	 24.57	-2	416307..417413	+	368	21282097	-	MW0368	-	hypothetical protein
369	 36.72	+1	417866..418042	+	58	21282098	-	MW0369	-	hypothetical protein
370	 26.97	-1	418039..418431	-	130	21282099	-	MW0370	-	hypothetical protein
371	 35.21	0	418453..418932	-	159	21282100	-	MW0372	-	hypothetical protein
372	 29.41	-1	418835..418987	+	50	21282101	-	MW0371	-	hypothetical protein
373	 42.64	+2	419858..420190	+	110	21282102	-	MW0373	-	hypothetical protein
374	 26.98	-1	421295..423121	+	608	21282103	-	MW0374	-	hypothetical protein
375	 25.53	-2	423659..424081	-	140	21282104	-	MW0375	-	hypothetical protein
376	 26.14	-1	424935..425087	-	50	21282105	-	MW0376	-	hypothetical protein
377	 28.92	-1	425450..425857	+	135	21282106	-	MW0377	-	hypothetical protein
378	 32.09	0	425904..426386	+	160	21282107	-	MW0378	-	hypothetical protein
379	 28.55	-1	426586..427275	+	229	21282108	-	MW0379	-	hypothetical protein
380	 32.22	0	427534..427893	-	119	21282109	-	MW0380	-	hypothetical protein
381	 35.46	0	427912..428757	-	281	21282110	-	MW0381	-	hypothetical protein
382	 29.81	0	429229..429909	+	226	21282111	set16	MW0382	-	superantigen-like protein
383	 29.45	0	430195..430890	+	231	21282112	set17	MW0383	-	superantigen-like protein
384	 34.45	0	431181..432251	+	356	21282113	set18	MW0384	-	superantigen-like protein
385	 33.97	0	432616..433563	+	315	21282114	set19	MW0385	-	superantigen-like protein
386	 31.91	0	433927..434631	+	234	21282115	set20	MW0386	-	superantigen-like protein 5
387	 29.47	0	435077..435775	+	232	21282116	set21	MW0387	-	superantigen-like protein
388	 30.32	0	436197..436892	+	231	21282117	set22	MW0388	-	superantigen-like protein 7
389	 28.47	-1	437231..437929	+	232	21282118	set23	MW0389	-	superantigen-like protein
390	 28.90	-1	438308..439006	+	232	21282119	set24	MW0390	-	superantigen-like protein
391	 29.53	0	439365..440048	+	227	21282120	set25	MW0391	-	superantigen-like protein
392	 37.89	+1	440310..441866	+	518	21282121	hsdM	MW0392	-	type I site-specific deoxyribonuclease LldI chain hsdM
393	 28.65	-1	441859..443118	+	419	21282122	hsdS	MW0393	-	specificity determinant HsdS
394	 30.16	0	443524..444216	+	230	21282123	set26	MW0394	-	superantigen-like protein
395	 32.27	0	444238..445740	+	500	21282124	-	MW0395	-	hypothetical protein
396	 33.33	0	445847..446155	-	102	21282125	-	MW0396	-	hypothetical protein
397	 27.80	-1	446491..447303	+	270	21282126	lpl10	MW0397	-	hypothetical protein
398	 29.83	0	447351..448121	+	256	21282127	lpl11	MW0398	-	hypothetical protein
399	 30.68	0	448153..448944	+	263	21282128	lpl12	MW0399	-	hypothetical protein
400	 29.95	0	448996..449793	+	265	21282129	lpl13	MW0400	-	hypothetical protein
401	 29.27	-1	450050..450787	+	245	21282130	lpl14	MW0401	-	hypothetical protein
402	 30.02	0	450777..452102	+	441	21282131	-	MW0402	-	hypothetical protein
403	 26.85	-1	452099..452422	+	107	21282132	-	MW0403	-	hypothetical protein
404	 33.02	0	452441..452755	+	104	21282133	-	MW0404	-	hypothetical protein
405	 30.26	0	453039..453233	-	64	21282134	-	MW0405	-	hypothetical protein
406	 37.16	+1	453431..454633	+	400	21282135	-	MW0406	-	hypothetical protein
407	 37.24	+1	456218..457702	+	494	21282136	ndhF	MW0407	-	NADH dehydrogenase subunit 5
408	 38.69	+1	457715..460420	+	901	21282137	-	MW0408	-	hypothetical protein
409	 33.61	0	460582..460944	+	120	21282138	-	MW0409	-	hypothetical protein
410	 34.22	0	461627..462301	+	224	21282139	-	MW0410	-	hypothetical protein
411	 34.15	0	462338..463072	+	244	21282140	-	MW0411	-	hypothetical protein
412	 44.74	+2	463250..463363	+	37	21282141	-	MW0412	-	hypothetical protein
413	 34.82	0	463525..464865	+	446	21282142	-	MW0413	-	hypothetical protein
414	 38.85	+1	465082..465987	+	301	21282143	cysM	MW0414	-	hypothetical protein
415	 35.96	0	465980..467122	+	380	21282144	metB	MW0415	-	cystathionine gamma-synthase
416	 34.99	0	467419..468444	+	341	21282145	-	MW0416	-	hypothetical protein
417	 36.52	+1	468448..469107	+	219	21282146	-	MW0417	-	hypothetical protein
418	 33.33	0	469144..469986	+	280	21282147	-	MW0418	-	hypothetical protein
419	 36.52	+1	470318..471322	+	334	21282148	-	MW0419	-	hypothetical protein
420	 32.59	0	471507..471776	-	89	21282149	-	MW0420	-	hypothetical protein
421	 34.09	0	471925..472320	+	131	21282150	-	MW0421	-	hypothetical protein
422	 36.01	0	472310..472795	+	161	21282151	-	MW0422	-	hypothetical protein
423	 32.82	0	472964..473746	-	260	21282152	-	MW0423	-	hypothetical protein
424	 33.51	0	473743..474855	-	370	21282153	-	MW0424	-	hypothetical protein
425	 33.22	0	474976..475860	-	294	21282154	gltC	MW0425	-	transcription activator of glutamate synthase operon
426	 37.71	+1	476042..480541	+	1499	21282155	gltB	MW0426	-	glutamate synthase large subunit
427	 38.32	+1	480559..482022	+	487	21282156	gltD	MW0427	-	glutamate synthase subunit beta
32.85	MEAN

3.41	STD DEV
