IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

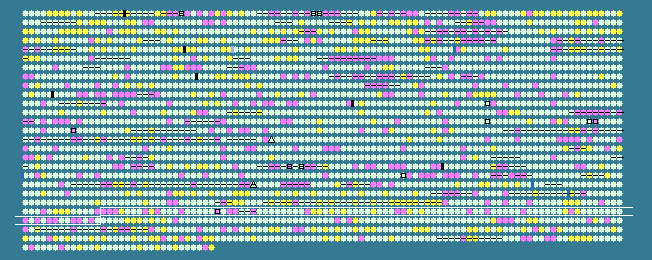

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2214	 26.91	-1	2360055..2360381	-	108	21283943	-	MW2214	-	hypothetical protein
2215	 27.96	-1	2360445..2361188	-	247	21283944	-	MW2215	-	hypothetical protein
2216	 27.97	-1	2361215..2363170	-	651	21283945	-	MW2216	-	hypothetical protein
2217	 38.89	+1	2363780..2364589	+	269	21283946	-	MW2217	-	hypothetical protein
2218	 30.23	0	2364606..2364734	-	42	21283947	-	MW2218	-	hypothetical protein
2219	 35.12	0	2365022..2366422	-	466	21283948	-	MW2219	-	hypothetical protein
2220	 33.33	0	2366517..2367599	-	360	21283949	-	MW2220	-	hypothetical protein
2221	 28.61	-1	2367847..2368269	+	140	21283950	-	MW2221	-	hypothetical protein
2222	 38.12	+1	2368506..2369006	+	166	21283951	ssaA	MW2222	-	hypothetical protein
2223	 29.05	-1	2369102..2369311	+	69	21283952	-	MW2223	-	hypothetical protein
2224	 35.74	0	2369368..2370321	+	317	21283953	-	MW2224	-	glycerate dehydrogenase
2225	 32.98	0	2370402..2371526	-	374	21283954	-	MW2225	-	hypothetical protein
2226	 32.56	0	2372251..2373027	-	258	21283955	-	MW2226	-	hypothetical protein
2227	 27.78	-1	2373049..2373300	-	83	21283956	-	MW2227	-	hypothetical protein
2228	 31.22	0	2373510..2373983	-	157	21283957	-	MW2228	-	hypothetical protein
2229	 35.53	0	2373983..2376937	-	984	21283958	-	MW2229	-	hypothetical protein
2230	 34.92	0	2377539..2378486	-	315	21283959	-	MW2230	-	hypothetical protein
2231	 32.08	0	2378619..2379416	-	265	21283960	-	MW2231	-	hypothetical protein
2232	 30.88	0	2379801..2380493	+	230	21283961	-	MW2232	-	hypothetical protein
2233	 27.94	-1	2380849..2381163	+	104	21283962	-	MW2233	-	putative transposase
2234	 30.35	0	2381140..2381877	-	245	21283963	-	MW2234	-	hypothetical protein
2235	 25.45	-2	2381926..2382255	+	109	21283964	-	MW2235	-	hypothetical protein
2236	 29.32	-1	2382700..2383572	+	290	21283965	-	MW2236	-	hypothetical protein
2237	 34.13	0	2383959..2385338	-	459	21283966	-	MW2237	-	hypothetical protein
2238	 33.89	0	2385618..2385974	+	118	21283967	-	MW2238	-	hypothetical protein
2239	 29.03	-1	2385971..2386156	+	61	21283968	-	MW2239	-	hypothetical protein
2240	 32.29	0	2386252..2386443	-	63	21283969	-	MW2240	-	hypothetical protein
2241	 33.18	0	2386454..2387089	-	211	21283970	-	MW2241	-	hypothetical protein
2242	 34.10	0	2387164..2388081	-	305	21283971	-	MW2242	-	hypothetical protein
2243	 29.76	0	2388349..2388879	+	176	21283972	-	MW2243	-	hypothetical protein
2244	 35.70	0	2388945..2390549	-	534	21283973	glvC	MW2244	-	PTS system arbutin-like IIBC component
2245	 29.93	0	2390879..2391643	+	254	21283974	-	MW2245	-	hypothetical protein
2246	 33.93	0	2391701..2392207	-	168	21283975	-	MW2246	-	hypothetical protein
2247	 35.43	0	2392374..2393753	-	459	21283976	-	MW2247	-	hypothetical protein
2248	 28.25	-1	2393912..2394481	-	189	21283977	-	MW2248	-	hypothetical protein
2249	 39.00	+1	2394968..2395849	-	293	21283978	-	MW2249	-	hypothetical protein
2250	 37.08	+1	2395960..2397081	-	373	21283979	-	MW2250	-	hypothetical protein
2251	 36.24	0	2397357..2398595	-	412	21283980	hutI	MW2251	-	imidazolonepropionase
2252	 39.53	+1	2398595..2400256	-	553	21283981	hutU	MW2252	-	urocanate hydratase
2253	 31.30	0	2400416..2401300	+	294	21283982	-	MW2253	-	hypothetical protein
2254	 36.54	+1	2401793..2402728	-	311	21283983	-	MW2254	-	formimidoylglutamase
2255	 33.57	0	2403018..2404277	+	419	21283984	-	MW2255	-	hypothetical protein
2256	 33.48	0	2404343..2405029	-	228	21283985	-	MW2256	-	hypothetical protein
2257	 33.64	0	2405203..2405856	+	217	21283986	-	MW2257	-	hypothetical protein
2258	 31.57	0	2406092..2407111	-	339	21283987	-	MW2258	-	hypothetical protein
2259	 38.53	+1	2407141..2407467	-	108	21283988	-	MW2259	-	hypothetical protein
2260	 31.31	0	2407685..2408917	-	410	21283989	-	MW2260	-	hypothetical protein
2261	 34.44	0	2408910..2409809	-	299	21283990	-	MW2261	-	hypothetical protein
2262	 30.92	0	2410040..2410660	-	206	21283991	-	MW2263	-	hypothetical protein
2263	 26.83	-1	2410652..2410774	+	40	21283992	-	MW2262	-	hypothetical protein
2264	 26.52	-1	2410840..2410971	+	43	21283993	-	MW2264	-	hypothetical protein
2265	 37.93	+1	2411059..2411667	+	202	21283994	-	MW2265	-	hypothetical protein
2266	 32.51	0	2412004..2413212	+	402	21283995	-	MW2266	-	hypothetical protein
2267	 37.71	+1	2413260..2414309	-	349	21283996	fni	MW2267	-	isopentenyl pyrophosphate isomerase
2268	 29.54	0	2414340..2415287	-	315	21283997	-	MW2268	-	hypothetical protein
2269	 31.91	0	2415384..2415875	+	163	21283998	-	MW2269	-	hypothetical protein
2270	 31.67	0	2415872..2416291	+	139	21283999	-	MW2270	-	hypothetical protein
2271	 32.90	0	2416399..2417319	-	306	21284000	-	MW2271	-	hypothetical protein
2272	 30.83	0	2417527..2418165	+	212	21284001	-	MW2272	-	hypothetical protein
2273	 33.39	0	2418411..2420342	-	643	21284002	-	MW2273	-	hypothetical protein
2274	 33.18	0	2420355..2421002	-	215	21284003	-	MW2274	-	hypothetical protein
2275	 28.99	-1	2421123..2421674	+	183	21284004	-	MW2275	-	hypothetical protein
2276	 33.58	0	2421904..2423112	-	402	21284005	tcaB	MW2276	-	TcaB protein
2277	 31.45	0	2423381..2424763	-	460	21284006	tcaA	MW2277	-	TcaA protein
2278	 28.73	-1	2425003..2425458	-	151	21284007	tcaR	MW2278	-	TcaR transcription regulator
2279	 30.96	0	2425653..2426621	+	322	21284008	-	MW2279	-	hypothetical protein
2280	 35.29	0	2426852..2427517	-	221	21284009	-	MW2280	-	hypothetical protein
2281	 30.40	0	2427517..2428572	-	351	21284010	-	MW2281	-	hypothetical protein
2282	 35.56	0	2428708..2429382	+	224	21284011	-	MW2282	-	hypothetical protein
2283	 31.22	0	2429375..2430748	+	457	21284012	-	MW2283	-	hypothetical protein
2284	 28.38	-1	2430911..2431354	+	147	21284013	-	MW2284	-	hypothetical protein
2285	 30.92	0	2431351..2431806	+	151	21284014	-	MW2285	-	hypothetical protein
2286	 35.94	0	2431872..2433407	-	511	21284015	-	MW2286	-	malate:quinone oxidoreductase
2287	 32.27	0	2433731..2435329	-	532	21284016	-	MW2287	-	hypothetical protein
2288	 32.74	0	2435646..2437319	+	557	21284017	-	MW2288	-	hypothetical protein
2289	 30.24	0	2437473..2438087	-	204	21284018	-	MW2289	-	hypothetical protein
2290	 31.40	0	2438401..2438916	-	171	21284019	-	MW2290	-	hypothetical protein
2291	 36.62	+1	2439107..2440111	+	334	21284020	-	MW2291	-	hypothetical protein
2292	 28.29	-1	2440354..2441601	+	415	21284021	-	MW2292	-	hypothetical protein
2293	 36.57	+1	2441877..2442278	-	133	21284022	-	MW2293	-	hypothetical protein
2294	 35.17	0	2442314..2443348	-	344	21284023	-	MW2294	-	hypothetical protein
2295	 30.79	0	2443580..2444011	-	143	21284024	-	MW2295	-	hypothetical protein
2296	 31.85	0	2444218..2445495	-	425	21284025	-	MW2296	-	hypothetical protein
2297	 30.93	0	2445656..2446279	+	207	21284026	-	MW2297	-	hypothetical protein
2298	 29.84	0	2446325..2447269	+	314	21284027	-	MW2298	-	hypothetical protein
2299	 35.27	0	2447354..2448796	-	480	21284028	scrA	MW2299	-	PTS system sucrose-specific IIBC component
2300	 30.73	0	2448979..2449362	+	127	21284029	-	MW2300	-	hypothetical protein
2301	 28.54	-1	2450850..2452955	+	701	21284030	-	MW2301	-	hypothetical protein
2302	 31.68	0	2453026..2453448	+	140	21284031	-	MW2302	-	hypothetical protein
2303	 28.01	-1	2453713..2454069	+	118	21284032	-	MW2303	-	hypothetical protein
2304	 33.10	0	2454279..2455556	-	425	21284033	gltT	MW2304	-	proton/sodium-glutamate symport protein
2305	 27.05	-1	2455738..2456103	-	121	21284034	-	MW2305	-	hypothetical protein
2306	 28.19	-1	2456501..2456947	+	148	21284035	-	MW2306	-	hypothetical protein
2307	 29.79	0	2457169..2457591	+	140	21284036	-	MW2307	-	hypothetical protein
2308	 34.27	0	2457698..2458867	-	389	21284037	narK	MW2308	-	nitrite extrusion protein
2309	 20.83	-2	2458938..2459057	+	39	21284038	-	MW2309	-	hypothetical protein
2310	 29.33	-1	2459236..2459760	+	174	21284039	-	MW2310	-	hypothetical protein
2311	 32.79	0	2459786..2460151	+	121	21284040	-	MW2311	-	hypothetical protein
2312	 27.94	-1	2460130..2460870	+	246	21284041	-	MW2312	-	hypothetical protein
2313	 33.94	0	2461128..2461781	-	217	21284042	-	MW2313	-	hypothetical protein
32.85	MEAN

3.41	STD DEV
