IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

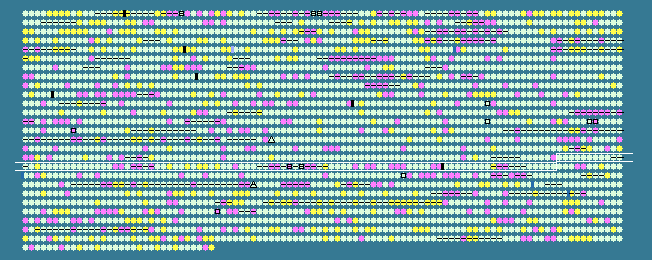

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1690	 34.52	0	1835911..1836753	-	280	21283419	-	MW1690	-	hypothetical protein
1691	 31.78	0	1837223..1837867	-	214	21283420	-	MW1691	-	hypothetical protein
1692	 34.85	0	1837882..1838673	-	263	21283421	-	MW1692	-	hypothetical protein
1693	 32.98	0	1839224..1840072	-	282	21283422	-	MW1693	-	D-alanine aminotransferase
1694	 35.04	0	1840076..1841485	-	469	21283423	-	MW1694	-	dipeptidase PepV
1695	 30.97	0	1842177..1842599	-	140	21283424	-	MW1695	-	hypothetical protein
1696	 29.60	0	1842616..1843311	-	231	21283425	-	MW1696	-	hypothetical protein
1697	 32.31	0	1843308..1844969	-	553	21283426	-	MW1697	-	hypothetical protein
1698	 35.62	0	1845376..1846644	+	422	21283427	-	MW1698	-	hypothetical protein
1699	 35.16	0	1846761..1853321	-	2186	21283428	-	MW1699	-	hypothetical protein
1700	 33.65	0	1853647..1853958	-	103	21283429	-	MW1700	-	hypothetical protein
1701	 34.32	0	1853980..1856403	-	807	21283430	leuS	MW1701	-	leucyl-tRNA synthetase
1702	 34.94	0	1856691..1857872	-	393	21283431	-	MW1702	-	hypothetical protein
1703	 36.79	+1	1857982..1858935	+	317	21283432	-	MW1703	-	hypothetical protein
1704	 32.27	0	1858932..1859495	+	187	21283433	-	MW1704	-	hypothetical protein
1705	 30.95	0	1859615..1860076	-	153	21283434	rot	MW1705	-	repressor of toxins Rot
1706	 32.61	0	1860590..1861417	-	275	21283435	-	MW1706	-	hypothetical protein
1707	 32.73	0	1861651..1862652	+	333	21283436	-	MW1707	-	hypothetical protein
1708	 33.33	0	1862774..1863238	-	154	21283437	ribH	MW1708	-	6,7-dimethyl-8-ribityllumazine synthase
1709	 34.01	0	1863251..1864432	-	393	21283438	ribA	MW1709	-	riboflavin biosynthesis protein
1710	 33.18	0	1864443..1865075	-	210	21283439	ribB	MW1710	-	riboflavin synthase subunit alpha
1711	 34.77	0	1865082..1866125	-	347	21283440	ribD	MW1711	-	riboflavin specific deaminase
1712	 31.34	0	1866606..1868108	-	500	21283441	-	MW1712	-	hypothetical protein
1713	 31.11	0	1868631..1868945	+	104	21283442	-	MW1713	-	hypothetical protein
1714	 32.02	0	1868945..1870237	+	430	21283443	-	MW1714	-	hypothetical protein
1715	 30.99	0	1870324..1871178	-	284	21283444	-	MW1715	-	hypothetical protein
1716	 28.44	-1	1871454..1871678	-	74	21283445	-	MW1716	-	hypothetical protein
1717	 28.03	-1	1871877..1872347	+	156	21283446	-	MW1717	-	hypothetical protein
1718	 29.73	0	1872460..1872903	+	147	21283447	-	MW1718	-	hypothetical protein
1719	 27.03	-1	1872890..1873333	-	147	21283448	-	MW1719	-	hypothetical protein
1720	 28.46	-1	1873629..1874264	+	211	21283449	-	MW1720	-	hypothetical protein
1721	 34.59	0	1874704..1875417	-	237	21283450	-	MW1721	-	putative translaldolase
1722	 25.41	-2	1875677..1875979	+	100	21283451	-	MW1722	-	hypothetical protein
1723	 34.23	0	1876157..1876600	+	147	21283452	-	MW1723	-	hypothetical protein
1724	 31.07	0	1876597..1876950	+	117	21283453	-	MW1724	-	hypothetical protein
1725	 38.33	+1	1877142..1877321	+	59	21283454	-	MW1725	-	hypothetical protein
1726	 34.53	0	1877333..1878166	-	277	21283455	-	MW1726	-	hypothetical protein
1727	 30.37	0	1878378..1879289	-	303	21283456	-	MW1727	-	hypothetical protein
1728	 37.77	+1	1879411..1880604	-	397	21283457	metK	MW1728	-	S-adenosylmethionine synthetase
1729	 34.97	0	1880976..1882568	+	530	21283458	pckA	MW1729	-	phosphoenolpyruvate carboxykinase
1730	 40.11	+2	1882692..1882868	+	58	21283459	-	MW1730	-	hypothetical protein
1731	 38.78	+1	1882946..1883716	-	256	21283460	-	MW1731	-	hypothetical protein
1732	 35.21	0	1883697..1884176	-	159	21283461	-	MW1732	-	hypothetical protein
1733	 37.60	+1	1884236..1884493	+	85	21283462	-	MW1733	-	hypothetical protein
1734	 36.33	+1	1884490..1885491	-	333	21283463	menC	MW1734	-	o-succinylbenzoic acid synthetase
1735	 35.97	0	1885496..1886974	-	492	21283464	menE	MW1735	-	O-succinylbenzoic acid-CoA ligase
1736	 28.57	-1	1887133..1887615	-	160	21283465	-	MW1736	-	hypothetical protein
1737	 33.17	0	1887927..1888541	+	204	21283466	-	MW1737	-	hypothetical protein
1738	 34.94	0	1888622..1889617	+	331	21283467	-	MW1738	-	hypothetical protein
1739	 32.06	0	1889691..1890317	+	208	21283468	-	MW1739	-	hypothetical protein
1740	 30.41	0	1890358..1890699	+	113	21283469	-	MW1740	-	hypothetical protein
1741	 31.94	0	1890800..1891372	+	190	21283470	-	MW1741	-	hypothetical protein
1742	 27.14	-1	1891660..1892127	-	155	21283471	-	MW1742	-	hypothetical protein
1743	 20.34	-2	1892501..1892677	-	58	21283472	-	MW1743	-	hypothetical protein
1744	 33.85	0	1892688..1893071	-	127	21283473	-	MW1744	-	hypothetical protein
1745	 28.10	-1	1893263..1893472	-	69	21283474	tnp	MW1745	-	putative transposase
1746	 34.13	0	1893639..1893764	+	41	21283475	-	MW1746	-	hypothetical protein
1747	 31.94	0	1893675..1893818	-	47	21283476	-	MW1747	-	putative transposase
1748	 23.81	-2	1894688..1895065	-	125	21283477	-	MW1748	-	hypothetical protein
1749	 24.51	-2	1895586..1899698	-	1370	21283478	-	MW1749	-	hypothetical protein
1750	 30.25	0	1900548..1901747	-	399	21283479	hsdS	MW1750	-	specificity determinant HsdS
1751	 38.66	+1	1901740..1903296	-	518	21283480	hsdM	MW1751	-	hypothetical protein
1752	 33.33	0	1903659..1904378	-	239	21283481	splF	MW1752	-	serine protease SplF
1753	 32.78	0	1904499..1905218	-	239	21283482	splC	MW1753	-	serine protease SplC
1754	 33.06	0	1905276..1905998	-	240	21283483	splB	MW1754	-	serine protease SplB
1755	 32.34	0	1906123..1906830	-	235	21283484	splA	MW1755	-	serine protease SplA
1756	 29.22	-1	1907266..1907484	-	72	21283485	-	MW1756	-	hypothetical protein
1757	 31.75	0	1907794..1908360	+	188	21283486	-	MW1757	-	hypothetical protein
1758	 27.04	-1	1908834..1909532	-	232	21283487	bsaG	MW1758	-	hypothetical protein
1759	 28.61	-1	1909529..1910290	-	253	21283488	bsaE	MW1759	-	hypothetical protein
1760	 29.58	0	1910287..1910979	-	230	21283489	bsaF	MW1760	-	hypothetical protein
1761	 33.33	0	1911002..1912375	-	457	21283490	bsaP	MW1761	-	hypothetical protein
1762	 26.78	-1	1912385..1912903	-	172	21283491	bsaD	MW1762	-	hypothetical protein
1763	 28.76	-1	1912919..1914163	-	414	21283492	bsaC	MW1763	-	hypothetical protein
1764	 27.56	-1	1914156..1917149	-	997	21283493	bsaB	MW1764	-	hypothetical protein
1765	 35.42	0	1917214..1917357	-	47	21283494	bsaA2	MW1765	-	hypothetical protein
1766	 35.42	0	1918094..1918237	-	47	21283495	bsaA1	MW1766	-	hypothetical protein
1767	 31.81	0	1918479..1919462	-	327	21283496	lukD	MW1767	-	leukotoxin
1768	 32.69	0	1919464..1920399	-	311	21283497	lukE	MW1768	-	leukotoxin LukE
1769	 27.85	-1	1921296..1921751	+	151	21283498	-	MW1769	-	hypothetical protein
1770	 25.10	-2	1921764..1922552	+	262	21283499	-	MW1770	-	hypothetical protein
1771	 33.69	0	1925009..1925563	-	184	21283500	-	MW1771	-	hypothetical protein
1772	 35.19	0	1925885..1927285	-	466	21283501	hemY	MW1772	-	protoporphyrinogen oxidase
1773	 33.55	0	1927309..1928232	-	307	21283502	hemH	MW1773	-	ferrochelatase
1774	 34.78	0	1928290..1929327	-	345	21283503	hemE	MW1774	-	uroporphyrinogen decarboxylase
1775	 31.75	0	1929590..1930093	+	167	21283504	-	MW1775	-	signal transduction protein TRAP
1776	 29.74	0	1930217..1931440	-	407	21283505	-	MW1776	-	hypothetical protein
1777	 34.95	0	1931433..1932173	-	246	21283506	-	MW1777	-	hypothetical protein
1778	 30.26	0	1932307..1932729	+	140	21283507	hit	MW1778	-	Hit-like protein involved in cell-cycle regulation
1779	 36.61	+1	1932871..1933236	+	121	21283508	-	MW1779	-	hypothetical protein
1780	 26.57	-1	1933214..1933420	+	68	21283509	-	MW1780	-	hypothetical protein
1781	 24.37	-2	1933969..1934526	+	185	21283510	-	MW1781	-	hypothetical protein
1782	 30.94	0	1934731..1935693	+	320	21283511	prsA	MW1782	-	hypothetical protein
1783	 33.76	0	1935814..1936755	-	313	21283512	cbf1	MW1783	-	3'-5' exoribonuclease YhaM
1784	 30.75	0	1936752..1939688	-	978	21283513	-	MW1784	-	hypothetical protein
1785	 30.16	0	1939678..1940874	-	398	21283514	-	MW1785	-	hypothetical protein
1786	 32.17	0	1941756..1942100	-	114	21283515	-	MW1786	-	hypothetical protein
1787	 29.96	0	1942169..1943293	-	374	21283516	-	MW1787	-	hypothetical protein
1788	 31.83	0	1943472..1943936	-	154	21283517	-	MW1788	-	hypothetical protein
1789	 31.57	0	1944292..1944915	-	207	21283518	-	MW1789	-	hypothetical protein
32.85	MEAN

3.41	STD DEV
