IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

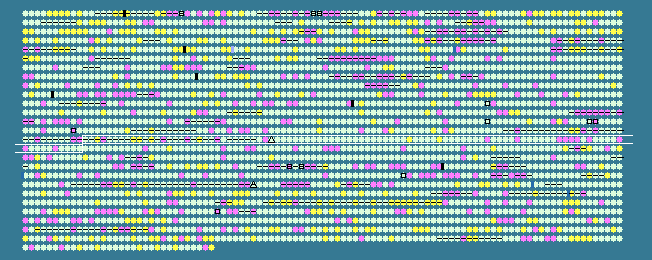

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1411	 35.90	0	1561302..1561457	-	51	21283140	-	MW1411	-	hypothetical protein
1412	 31.34	0	1561457..1561657	-	66	21283141	-	MW1412	-	hypothetical protein
1413	 40.74	+2	1561632..1561820	-	62	21283142	-	MW1413	-	hypothetical protein
1414	 27.85	-1	1561817..1562053	-	78	21283143	-	MW1414	-	hypothetical protein
1415	 31.84	0	1562099..1562632	-	177	21283144	-	MW1415	-	hypothetical protein
1416	 34.57	0	1562647..1562808	-	53	21283145	-	MW1416	-	hypothetical protein
1417	 29.79	0	1562809..1563090	-	93	21283146	-	MW1417	-	hypothetical protein
1418	 31.03	0	1563091..1563264	-	57	21283147	-	MW1418	-	hypothetical protein
1419	 37.65	+1	1563254..1563508	-	84	21283148	-	MW1419	-	hypothetical protein
1420	 37.45	+1	1563520..1563762	-	80	21283149	-	MW1420	-	hypothetical protein
1421	 34.33	0	1563777..1563977	-	66	21283150	-	MW1421	-	hypothetical protein
1422	 38.37	+1	1563980..1564237	-	85	21283151	-	MW1422	-	hypothetical protein
1423	 33.83	0	1564237..1564638	-	133	21283152	-	MW1423	-	hypothetical protein
1424	 29.03	-1	1564638..1564823	-	61	21283153	-	MW1424	-	hypothetical protein
1425	 35.12	0	1564836..1566797	-	653	21283154	-	MW1425	-	DNA polymerase
1426	 34.41	0	1566856..1567413	-	185	21283155	-	MW1426	-	hypothetical protein
1427	 34.62	0	1567439..1568605	-	388	21283156	-	MW1427	-	hypothetical protein
1428	 29.20	-1	1568602..1568964	-	120	21283157	-	MW1428	-	hypothetical protein
1429	 32.72	0	1568979..1569302	-	107	21283158	-	MW1429	-	hypothetical protein
1430	 38.89	+1	1569381..1569542	-	53	21283159	-	MW1430	-	hypothetical protein
1431	 31.06	0	1569555..1569818	-	87	21283160	-	MW1431	-	hypothetical protein
1432	 31.48	0	1569843..1570058	-	71	21283161	-	MW1432	-	hypothetical protein
1433	 28.96	-1	1570113..1570478	+	121	21283162	-	MW1433	-	hypothetical protein
1434	 35.37	0	1570447..1570692	-	81	21283163	-	MW1434	-	hypothetical protein
1435	 30.92	0	1570708..1570956	-	82	21283164	-	MW1435	-	hypothetical protein
1436	 33.02	0	1571120..1571443	+	107	21283165	-	MW1436	-	phage repressor
1437	 36.07	0	1571516..1571917	+	133	21283166	-	MW1437	-	hypothetical protein
1438	 31.26	0	1571935..1572369	+	144	21283167	-	MW1438	-	hypothetical protein
1439	 30.56	0	1572398..1572793	+	131	21283168	-	MW1439	-	hypothetical protein
1440	 36.19	0	1572901..1573005	+	34	21283169	-	MW1440	-	hypothetical protein
1441	 23.72	-2	1572992..1573615	-	207	21283170	-	MW1441	-	hypothetical protein
1442	 29.52	0	1573725..1574930	+	401	21283171	int	MW1442	-	integrase
1443	 29.46	0	1574973..1576859	-	628	21283172	-	MW1443	-	hypothetical protein
1444	 31.24	0	1577011..1577919	-	302	21283173	-	MW1444	-	hypothetical protein
1445	 32.94	0	1578164..1579930	-	588	21283174	srrB	MW1445	-	staphylococcal respiratory response protein SrrB
1446	 34.44	0	1579896..1580621	-	241	21283175	srrA	MW1446	-	staphylococcal respiratory response protein SrrA
1447	 33.88	0	1580754..1581491	-	245	21283176	rluB	MW1447	-	ribosomal large subunit pseudouridine synthase B
1448	 31.86	0	1581484..1582026	-	180	21283177	-	MW1448	-	hypothetical protein
1449	 30.42	0	1582019..1582774	-	251	21283178	-	MW1449	-	hypothetical protein
1450	 32.35	0	1582842..1583348	+	168	21283179	-	MW1450	-	hypothetical protein
1451	 33.56	0	1583426..1584313	-	295	21283180	xerD	MW1451	-	site-specific recombinase
1452	 36.00	0	1584362..1584811	-	149	21283181	-	MW1452	-	hypothetical protein
1453	 31.86	0	1584916..1585458	-	180	21283182	-	MW1453	-	hypothetical protein
1454	 31.79	0	1585540..1586448	+	302	21283183	-	MW1454	-	hypothetical protein
1455	 32.53	0	1586664..1586912	-	82	21283184	-	MW1455	-	hypothetical protein
1456	 33.86	0	1586928..1587683	-	251	21283185	-	MW1456	-	hypothetical protein
1457	 33.82	0	1587825..1588640	+	271	21283186	-	MW1457	-	hypothetical protein
1458	 33.55	0	1588743..1589663	-	306	21283187	-	MW1458	-	hypothetical protein
1459	 33.40	0	1589976..1591460	+	494	21283188	-	MW1459	-	glucose-6-phosphate 1-dehydrogenase
1460	 33.68	0	1591690..1592556	+	288	21283189	-	MW1460	-	hypothetical protein
1461	 34.55	0	1592638..1594287	-	549	21283190	malA	MW1461	-	alpha-D-1,4-glucosidase
1462	 31.37	0	1594303..1595322	-	339	21283191	malR	MW1462	-	maltose operon transcriptional repressor
1463	 33.06	0	1595516..1595887	-	123	21283192	-	MW1463	-	hypothetical protein
1464	 34.19	0	1596106..1597512	-	468	21283193	gnd	MW1464	-	6-phosphogluconate dehydrogenase
1465	 36.51	+1	1597580..1598713	-	377	21283194	-	MW1465	-	hypothetical protein
1466	 29.97	0	1599282..1600262	-	326	21283195	-	MW1466	-	hypothetical protein
1467	 36.30	+1	1600276..1600713	-	145	21283196	-	MW1467	-	hypothetical protein
1468	 33.10	0	1601064..1602338	-	424	21283197	bmfBB	MW1468	-	branched-chain alpha-keto acid dehydrogenase E2
1469	 35.16	0	1602351..1603334	-	327	21283198	bfmBAB	MW1469	-	branched-chain alpha-keto acid dehydrogenase E1
1470	 38.37	+1	1603334..1604326	-	330	21283199	bfmBAA	MW1470	-	branched-chain alpha-keto acid dehydrogenase E1
1471	 34.74	0	1604342..1605763	-	473	21283200	-	MW1471	-	dihydrolipoamide dehydrogenase
1472	 30.83	0	1605914..1607593	-	559	21283201	recN	MW1472	-	DNA repair protein
1473	 30.02	0	1607609..1608061	-	150	21283202	ahrC	MW1473	-	arginine repressor
1474	 34.24	0	1608493..1609374	-	293	21283203	ispA	MW1474	-	hypothetical protein
1475	 30.30	0	1609352..1609582	-	76	21283204	-	MW1475	-	hypothetical protein
1476	 31.24	0	1609575..1610912	-	445	21283205	xseA	MW1476	-	exodeoxyribonuclease VII large subunit
1477	 29.74	0	1610929..1611318	-	129	21283206	nusB	MW1477	-	transcription antitermination protein NusB
1478	 29.20	-1	1611378..1611740	-	120	21283207	-	MW1478	-	hypothetical protein
1479	 36.21	0	1611755..1613110	-	451	21283208	accC	MW1479	-	acetyl-CoA carboxylase biotin carboxylase subunit
1480	 34.84	0	1613110..1613574	-	154	21283209	accB	MW1480	-	acetyl-CoA carboxylase biotin carboxyl carrier subunit
1481	 32.97	0	1614048..1614605	-	185	21283210	-	MW1481	-	elongation factor P
1482	 32.20	0	1614631..1615692	-	353	21283211	-	MW1482	-	Xaa-Pro dipeptidase
1483	 27.52	-1	1615797..1616381	+	194	21283212	-	MW1483	-	hypothetical protein
1484	 29.68	0	1616395..1616613	+	72	21283213	-	MW1484	-	hypothetical protein
1485	 34.54	0	1616677..1617507	-	276	21283214	-	MW1485	-	hypothetical protein
1486	 33.85	0	1617665..1618051	+	128	21283215	-	MW1486	-	hypothetical protein
1487	 34.56	0	1618416..1619888	-	490	21283216	-	MW1487	-	glycine dehydrogenase subunit 2
1488	 34.37	0	1619881..1621227	-	448	21283217	-	MW1488	-	glycine dehydrogenase subunit 1
1489	 31.32	0	1621247..1622338	-	363	21283218	-	MW1489	-	glycine cleavage system aminomethyltransferase T
1490	 28.38	-1	1622497..1623021	-	174	21283219	-	MW1490	-	hypothetical protein
1491	 26.31	-1	1623254..1623751	-	165	21283220	-	MW1491	-	hypothetical protein
1492	 28.41	-1	1623669..1624013	-	114	21283221	-	MW1492	-	hypothetical protein
1493	 25.52	-2	1624000..1624434	-	144	21283222	-	MW1493	-	hypothetical protein
1494	 29.49	0	1624424..1624735	-	103	21283223	-	MW1494	-	exogenous DNA-binding protein comGC
1495	 27.08	-1	1624749..1625819	-	356	21283224	-	MW1495	-	hypothetical protein
1496	 31.28	0	1625791..1626765	-	324	21283225	-	MW1496	-	hypothetical protein
1497	 32.69	0	1626817..1627440	-	207	21283226	-	MW1497	-	hypothetical protein
1498	 31.21	0	1627437..1627766	-	109	21283227	-	MW1498	-	hypothetical protein
1499	 34.65	0	1627766..1628752	-	328	21283228	glcK	MW1499	-	glucokinase
1500	 26.47	-1	1628749..1628952	-	67	21283229	-	MW1500	-	hypothetical protein
1501	 27.73	-1	1628933..1630396	-	487	21283230	-	MW1501	-	hypothetical protein
1502	 29.81	0	1630408..1630947	-	179	21283231	-	MW1502	-	hypothetical protein
1503	 34.00	0	1631156..1631305	-	49	21283232	rpmG	MW1503	-	50S ribosomal protein L33
1504	 33.48	0	1631418..1633493	-	691	21283233	pbp3	MW1504	-	penicillin-binding protein 3
1505	 34.67	0	1633614..1634213	-	199	21283234	sodA	MW1505	-	superoxide dismutase SodA
1506	 28.95	-1	1634489..1634899	-	136	21283235	-	MW1506	-	hypothetical protein
1507	 31.83	0	1634886..1635749	-	287	21283236	-	MW1507	-	hypothetical protein
1508	 29.69	0	1635791..1636558	-	255	21283237	-	MW1508	-	hypothetical protein
1509	 33.33	0	1636702..1637592	-	296	21283238	-	MW1509	-	endonuclease IV
1510	 32.29	0	1637602..1638948	-	448	21283239	-	MW1510	-	hypothetical protein
32.85	MEAN

3.41	STD DEV
