IslandPathversion 1.0

IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

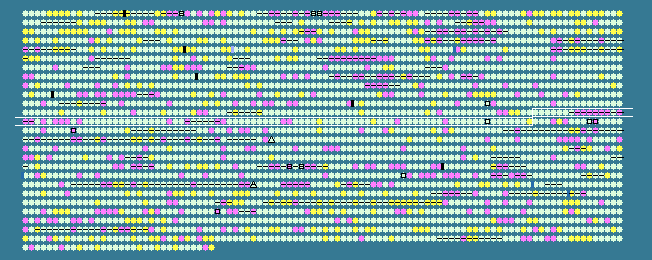

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1186	 31.84	0	1302184..1303119	+	311	21282915	miaA	MW1186	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1187	 34.19	0	1303134..1303367	+	77	21282916	-	MW1187	-	hypothetical protein
1188	 33.54	0	1303589..1304065	-	158	21282917	bsaA	MW1188	-	glutathione peroxidase
1189	 31.40	0	1304177..1305415	+	412	21282918	-	MW1189	-	hypothetical protein
1190	 34.71	0	1305434..1306672	+	412	21282919	-	MW1190	-	hypothetical protein
1191	 32.52	0	1306916..1307284	+	122	21282920	glnR	MW1191	-	glutamine synthetase repressor
1192	 35.27	0	1307303..1308643	+	446	21282921	glnA	MW1192	-	glutamine-ammonia ligase
1193	 24.15	-2	1310546..1310752	+	68	21282922	-	MW1193	-	hypothetical protein
1194	 22.86	-2	1311991..1312095	+	34	21282923	-	MW1194	-	hypothetical protein
1195	 26.67	-1	1312686..1312790	+	34	21282924	-	MW1195	-	hypothetical protein
1196	 25.40	-2	1312919..1313170	+	83	21282925	-	MW1196	-	hypothetical protein
1197	 22.55	-2	1313774..1314079	+	101	21282926	-	MW1197	-	hypothetical protein
1198	 23.58	-2	1314085..1314207	+	40	21282927	-	MW1198	-	hypothetical protein
1199	 34.27	0	1314367..1314579	+	70	21282928	-	MW1199	-	hypothetical protein
1200	 23.58	-2	1314981..1315103	+	40	21282929	-	MW1200	-	hypothetical protein
1201	 27.92	-1	1315360..1315821	+	153	21282930	-	MW1201	-	hypothetical protein
1202	 28.72	-1	1315832..1316026	+	64	21282931	-	MW1202	-	hypothetical protein
1203	 33.43	0	1316587..1317612	-	341	21282932	-	MW1203	-	hypothetical protein
1204	 22.22	-2	1317882..1318079	+	65	21282933	-	MW1204	-	hypothetical protein
1205	 32.28	0	1318100..1319617	+	505	21282934	-	MW1205	-	hypothetical protein
1206	 27.00	-1	1319801..1320700	+	299	21282935	-	MW1206	-	hypothetical protein
1207	 27.87	-1	1320669..1321400	+	243	21282936	-	MW1207	-	hypothetical protein
1208	 26.74	-1	1321404..1322495	+	363	21282937	-	MW1208	-	hypothetical protein
1209	 29.85	0	1322492..1323094	+	200	21282938	-	MW1209	-	hypothetical protein
1210	 26.98	-1	1323207..1323395	-	62	21282939	-	MW1210	-	hypothetical protein
1211	 31.84	0	1323534..1324067	+	177	21282940	nuc	MW1211	-	thermonuclease
1212	 29.71	0	1324210..1325064	-	284	21282941	-	MW1212	-	hypothetical protein
1213	 29.61	0	1325380..1325970	+	196	21282942	-	MW1213	-	hypothetical protein
1214	 31.45	0	1326024..1327406	-	460	21282943	-	MW1214	-	aspartate kinase
1215	 32.63	0	1327597..1328877	+	426	21282944	dhoM	MW1215	-	homoserine dehydrogenase
1216	 35.12	0	1328883..1329944	+	353	21282945	thrC	MW1216	-	threonine synthase
1217	 35.74	0	1329946..1330860	+	304	21282946	thrB	MW1217	-	homoserine kinase
1218	 33.33	0	1330918..1331721	+	267	21282947	-	MW1218	-	hypothetical protein
1219	 30.16	0	1332014..1332328	-	104	21282948	-	MW1219	-	hypothetical protein
1220	 33.20	0	1332546..1334000	-	484	21282949	-	MW1220	-	gamma-aminobutyrate permease
1221	 36.03	0	1334204..1335721	+	505	21282950	katA	MW1221	-	catalase
1222	 33.33	0	1335812..1335961	+	49	21282951	rpmG	MW1222	-	50S ribosomal protein L33
1223	 32.59	0	1336415..1336684	+	89	21282952	rpsN	MW1223	-	30S ribosomal protein S14
1224	 33.44	0	1336841..1337818	+	325	21282953	-	MW1224	-	guanosine 5'-monophosphate oxidoreductase
1225	 28.70	-1	1337993..1338856	+	287	21282954	-	MW1225	-	hypothetical protein
1226	 36.22	0	1339236..1339859	-	207	21282955	lexA	MW1226	-	LexA repressor
1227	 31.62	0	1340002..1340235	+	77	21282956	-	MW1227	-	hypothetical protein
1228	 27.50	-1	1340371..1340610	+	79	21282957	-	MW1228	-	hypothetical protein
1229	 35.95	0	1340731..1342719	+	662	21282958	tkt	MW1229	-	transketolase
1230	 31.28	0	1342997..1343239	+	80	21282959	-	MW1230	-	hypothetical protein
1231	 31.20	0	1343418..1343885	+	155	21282960	-	MW1231	-	hypothetical protein
1232	 30.66	0	1344009..1345130	+	373	21282961	-	MW1232	-	hypothetical protein
1233	 28.42	-1	1345134..1348163	+	1009	21282962	-	MW1233	-	hypothetical protein
1234	 28.83	-1	1348193..1348681	+	162	21282963	-	MW1234	-	hypothetical protein
1235	 30.85	0	1348234..1348596	-	120	21282964	mscL	MW1235	-	large-conductance mechanosensitive channel
1236	 35.82	0	1348800..1350446	+	548	21282965	opuD	MW1236	-	glycine betaine transporter
1237	 35.51	0	1351280..1353985	+	901	21282966	citB	MW1237	-	aconitate hydratase
1238	 32.26	0	1354165..1354632	+	155	21282967	-	MW1238	-	hypothetical protein
1239	 33.67	0	1354839..1355135	-	98	21282968	-	MW1239	-	hypothetical protein
1240	 33.83	0	1355510..1356118	-	202	21282969	-	MW1240	-	hypothetical protein
1241	 34.93	0	1356318..1358315	+	665	21282970	parE	MW1241	-	DNA topoisomerase IV subunit B
1242	 32.13	0	1358315..1360717	+	800	21282971	parC	MW1242	-	DNA topoisomerase IV subunit A
1243	 35.73	0	1360967..1362427	+	486	21282972	alsT	MW1243	-	amino acid carrier protein (sodium/alanine symporter)
1244	 27.82	-1	1362927..1363778	+	283	21282973	glcT	MW1244	-	transcription antiterminator
1245	 26.04	-2	1363825..1363920	+	31	21282974	-	MW1245	-	hypothetical protein
1246	 30.69	0	1363913..1365121	+	402	21282975	-	MW1246	-	hypothetical protein
1247	 31.15	0	1365602..1368124	+	840	21282976	fmtC	MW1247	-	oxacillin resistance-related FmtC protein
1248	 34.31	0	1368327..1368836	-	169	21282977	msrA	MW1248	-	methionine sulfoxide reductase A
1249	 33.43	0	1368973..1369956	+	327	21282978	msrR	MW1249	-	peptide methionine sulfoxide reductase regulator MsrR
1250	 36.51	+1	1370044..1370232	-	62	21282979	-	MW1250	-	4-oxalocrotonate tautomerase
1251	 33.81	0	1370377..1371639	+	420	21282980	-	MW1251	-	hypothetical protein
1252	 33.33	0	1371775..1372866	-	363	21282981	tyrA	MW1252	-	prephenate dehydrogenase
1253	 33.43	0	1373031..1374062	+	343	21282982	-	MW1253	-	hypothetical protein
1254	 31.77	0	1374554..1375960	+	468	21282983	-	MW1254	-	anthranilate synthase component I
1255	 35.80	0	1375957..1376523	+	188	21282984	trpG	MW1255	-	anthranilate synthase component II
1256	 33.83	0	1376529..1377527	+	332	21282985	trpD	MW1256	-	anthranilate phosphoribosyltransferase
1257	 31.67	0	1377529..1378311	+	260	21282986	trpC	MW1257	-	indole-3-glycerol-phosphate synthase
1258	 31.60	0	1378311..1378943	+	210	21282987	trpF	MW1258	-	phosphoriborylanthranilate isomerase
1259	 37.70	+1	1378936..1380150	+	404	21282988	trpB	MW1259	-	tryptophan synthase subunit beta
1260	 34.16	0	1380143..1380871	+	242	21282989	trpA	MW1260	-	tryptophan synthase subunit alpha
1261	 31.75	0	1381193..1382455	+	420	21282990	femA	MW1261	-	factor essential for expression of methicillin resistance
1262	 31.59	0	1382474..1383733	+	419	21282991	femB	MW1262	-	FemB protein
1263	 24.35	-2	1384022..1384678	+	218	21282992	-	MW1263	-	hypothetical protein
1264	 31.65	0	1384999..1385235	+	78	21282993	-	MW1264	-	hypothetical protein
1265	 30.63	0	1385051..1385716	+	221	21282994	-	MW1265	-	hypothetical protein
1266	 32.91	0	1385765..1386238	-	157	21282995	-	MW1266	-	hypothetical protein
1267	 33.05	0	1386362..1387063	-	233	21282996	opp-2F	MW1267	-	oligopeptide transporter ATPase subunit
1268	 31.78	0	1387056..1387829	-	257	21282997	opp-2D	MW1268	-	oligopeptide transport ATPase
1269	 32.25	0	1387816..1388646	-	276	21282998	opp-2C	MW1269	-	oligopeptide transporter permease
1270	 31.31	0	1388639..1389625	-	328	21282999	opp-2B	MW1270	-	oligopeptide transporter permease
1271	 27.25	-1	1389929..1390273	-	114	21283000	-	MW1271	-	hypothetical protein
1272	 33.55	0	1390478..1392292	+	604	21283001	-	MW1272	-	hypothetical protein
1273	 31.93	0	1392431..1393072	-	213	21283002	-	MW1273	-	hypothetical protein
1274	 32.28	0	1393079..1393930	-	283	21283003	pstB	MW1274	-	phosphate ABC transporter ATP-binding protein
1275	 35.40	0	1393977..1394894	-	305	21283004	-	MW1275	-	hypothetical protein
1276	 35.81	0	1394896..1395822	-	308	21283005	-	MW1276	-	hypothetical protein
1277	 31.91	0	1396013..1396996	-	327	21283006	-	MW1277	-	thioredoxine reductase
1278	 29.74	0	1397643..1397837	+	64	21283007	tnp	MW1278	-	putative transposase
1279	 35.22	0	1397972..1398874	-	300	21283008	-	MW1279	-	hypothetical protein
1280	 33.21	0	1399021..1400622	+	533	21283009	-	MW1280	-	hypothetical protein
1281	 34.83	0	1401489..1402694	+	401	21283010	lysC	MW1281	-	aspartate kinase
1282	 35.45	0	1402758..1403747	+	329	21283011	asd	MW1282	-	aspartate semialdehyde dehydrogenase
1283	 35.36	0	1403749..1404636	+	295	21283012	dapA	MW1283	-	dihydrodipicolinate synthase
1284	 36.10	0	1404633..1405355	+	240	21283013	dapB	MW1284	-	dihydrodipicolinate reductase
1285	 38.19	+1	1405382..1406101	+	239	21283014	dapD	MW1285	-	tetrahydrodipicolinate acetyltransferase
32.85	MEAN

3.41	STD DEV
