IslandPath Analysis: Staphylococcus aureus subsp. aureus MW2

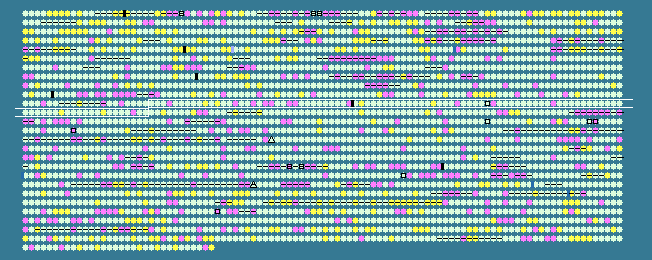

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.85 STD DEV: 3.41
Staphylococcus aureus subsp. aureus MW2, complete genome - 1..2820462
2632 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1022	 34.79	0	1116802..1119204	+	800	21282751	pheT	MW1022	-	Phe-tRNA synthetase beta chain
1023	 32.91	0	1119439..1120377	-	312	21282752	-	MW1023	-	ribonuclease HIII
1024	 32.58	0	1120747..1121013	+	88	21282753	-	MW1024	-	hypothetical protein
1025	 28.54	-1	1121014..1121535	+	173	21282754	-	MW1025	-	hypothetical protein
1026	 32.57	0	1121608..1123320	+	570	21282755	-	MW1026	-	hypothetical protein
1027	 33.04	0	1123330..1125678	+	782	21282756	mutS2	MW1027	-	recombination and DNA strand exchange inhibitor protein
1028	 33.97	0	1125851..1126165	+	104	21282757	trxA	MW1028	-	thioredoxin
1029	 33.05	0	1126489..1128270	+	593	21282758	uvrC	MW1029	-	excinuclease ABC subunit C
1030	 32.03	0	1128594..1129208	+	204	21282759	sdhC	MW1030	-	succinate dehydrogenase cytochrome b-558
1031	 38.60	+1	1129260..1131026	+	588	21282760	sdhA	MW1031	-	succinate dehydrogenase flavoprotein subunit
1032	 35.42	0	1131026..1131841	+	271	21282761	sdhB	MW1032	-	succinate dehydrogenase iron-sulfur subunit
1033	 36.58	+1	1132077..1132877	+	266	21282762	murI	MW1033	-	glutamate racemase
1034	 32.82	0	1132889..1133476	+	195	21282763	-	MW1034	-	hypothetical protein
1035	 31.35	0	1133469..1133972	+	167	21282764	-	MW1035	-	hypothetical protein
1036	 23.19	-2	1134130..1134267	+	45	21282765	-	MW1036	-	hypothetical protein
1037	 29.56	0	1134461..1134778	+	105	21282766	-	MW1037	-	hypothetical protein
1038	 32.33	0	1135148..1135546	-	132	21282767	-	MW1038	-	formyl peptide receptor-like 1 inhibitory protein
1039	 26.04	-2	1136217..1136723	+	168	21282768	-	MW1039	-	hypothetical protein
1040	 30.72	0	1136982..1137479	+	165	21282769	-	MW1040	-	fibrinogen-binding protein
1041	 28.77	-1	1137633..1137983	+	116	21282770	-	MW1041	-	hypothetical protein
1042	 27.96	-1	1138748..1138933	-	61	21282771	-	MW1042	-	hypothetical protein
1043	 29.49	0	1139552..1139785	-	77	21282772	-	MW1043	-	hypothetical protein
1044	 33.96	0	1140262..1141221	-	319	21282773	-	MW1044	-	alpha-hemolysin
1045	 23.13	-2	1141894..1142040	+	48	21282774	-	MW1045	-	hypothetical protein
1046	 28.28	-1	1142024..1142221	+	65	21282775	-	MW1046	-	hypothetical protein
1047	 30.82	0	1142778..1143494	-	238	21282776	-	MW1047	-	superantigen-like protein
1048	 29.48	0	1143602..1144327	-	241	21282777	-	MW1048	-	superantigen-like protein
1049	 30.03	0	1144422..1145147	-	241	21282778	-	MW1049	-	superantigen-like protein
1050	 33.73	0	1145585..1146586	+	333	21282779	argF	MW1050	-	ornithine carbamoyltransferase
1051	 33.76	0	1146609..1147541	+	310	21282780	-	MW1051	-	carbamate kinase
1052	 35.90	0	1147713..1149269	+	518	21282781	-	MW1052	-	hypothetical protein
1053	 29.39	-1	1149576..1149803	+	75	21282782	-	MW1053	-	hypothetical protein
1054	 31.75	0	1150109..1151056	-	315	21282783	-	MW1054	-	hypothetical protein
1055	 28.04	-1	1151305..1151493	+	62	21282784	-	MW1055	-	hypothetical protein
1056	 34.81	0	1152405..1152539	+	44	21282785	-	MW1056	-	hypothetical protein
1057	 40.00	+2	1152596..1152730	+	44	21282786	-	MW1057	-	hypothetical protein
1058	 29.84	0	1152863..1153549	+	228	21282787	-	MW1058	-	hypothetical protein
1059	 32.43	0	1153658..1154098	-	146	21282788	-	MW1059	-	hypothetical protein
1060	 32.28	0	1154293..1155906	+	537	21282789	-	MW1060	-	hypothetical protein
1061	 33.80	0	1156050..1156481	+	143	21282790	-	MW1061	-	cell division protein MraZ
1062	 36.11	0	1156497..1157432	+	311	21282791	-	MW1062	-	hypothetical protein
1063	 32.09	0	1157446..1157847	+	133	21282792	ftsL	MW1063	-	cell division protein
1064	 34.50	0	1157828..1160062	+	744	21282793	pbpA	MW1064	-	penicillin-binding protein 1
1065	 32.40	0	1160354..1161319	+	321	21282794	mraY	MW1065	-	phospho-N-muramic acid-pentapeptide translocase
1066	 32.37	0	1161321..1162670	+	449	21282795	murD	MW1066	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1067	 30.76	0	1162686..1164005	+	439	21282796	div1b	MW1067	-	hypothetical protein
1068	 32.20	0	1164111..1165523	+	470	21282797	ftsA	MW1068	-	cell division protein
1069	 38.45	+1	1165556..1166728	+	390	21282798	ftsZ	MW1069	-	cell division protein FtsZ
1070	 31.94	0	1166988..1167779	+	263	21282799	-	MW1070	-	hypothetical protein
1071	 33.33	0	1167797..1168471	+	224	21282800	-	MW1071	-	hypothetical protein
1072	 35.11	0	1168468..1169031	+	187	21282801	-	MW1072	-	hypothetical protein
1073	 26.80	-1	1169043..1169333	+	96	21282802	-	MW1073	-	hypothetical protein
1074	 30.61	0	1169416..1170222	+	268	21282803	-	MW1074	-	hypothetical protein
1075	 34.47	0	1170246..1170863	+	205	21282804	-	MW1075	-	hypothetical protein
1076	 35.00	0	1171084..1173837	+	917	21282805	ileS	MW1076	-	isoleucyl-tRNA synthetase
1077	 32.21	0	1174127..1174924	+	265	21282806	-	MW1077	-	hypothetical protein
1078	 29.57	0	1175411..1175596	+	61	21282807	tnp	MW1078	-	putative transposase
1079	 26.83	-1	1175777..1176268	+	163	21282808	lsp	MW1079	-	lipoprotein signal peptidase
1080	 33.77	0	1176268..1177185	+	305	21282809	-	MW1080	-	hypothetical protein
1081	 34.28	0	1177585..1178112	+	175	21282810	pyrR	MW1081	-	pyrimidine regulatory protein PyrR
1082	 35.24	0	1178330..1179637	+	435	21282811	pyrP	MW1082	-	uracil permease
1083	 31.63	0	1179665..1180546	+	293	21282812	pyrB	MW1083	-	aspartate carbamoyltransferase catalytic subunit
1084	 35.76	0	1180564..1181838	+	424	21282813	pyrC	MW1084	-	dihydroorotase
1085	 35.42	0	1181840..1182940	+	366	21282814	pyrAA	MW1085	-	carbamoyl phosphate synthase small subunit
1086	 35.73	0	1182933..1186106	+	1057	21282815	carB	MW1086	-	carbamoyl phosphate synthase large subunit
1087	 33.77	0	1186216..1186908	+	230	21282816	pyrF	MW1087	-	orotidine-5-phosphate decarboxylase
1088	 33.17	0	1186908..1187519	+	203	21282817	pyrE	MW1088	-	orotate phosphoribosyltransferase
1089	 26.29	-1	1187549..1187761	+	70	21282818	-	MW1089	-	hypothetical protein
1090	 33.83	0	1188198..1188599	+	133	21282819	-	MW1090	-	hypothetical protein
1091	 31.86	0	1188862..1190559	-	565	21282820	-	MW1091	-	hypothetical protein
1092	 33.49	0	1190834..1191457	+	207	21282821	gmk	MW1092	-	hypothetical protein
1093	 32.42	0	1191457..1191675	+	72	21282822	-	MW1093	-	hypothetical protein
1094	 34.83	0	1191891..1193090	+	399	21282823	-	MW1094	-	hypothetical protein
1095	 34.83	0	1193090..1195498	+	802	21282824	priA	MW1095	-	primosomal protein
1096	 30.92	0	1196001..1196954	+	317	21282825	-	MW1096	-	hypothetical protein
1097	 30.82	0	1197117..1197395	-	92	21282826	-	MW1097	-	hypothetical protein
1098	 33.74	0	1197619..1198107	+	162	21282827	-	MW1098	-	hypothetical protein
1099	 34.94	0	1198100..1199035	+	311	21282828	-	MW1099	-	methionyl-tRNA formyltransferase
1100	 32.87	0	1199032..1200339	+	435	21282829	-	MW1100	-	hypothetical protein
1101	 33.88	0	1200342..1201436	+	364	21282830	-	MW1101	-	hypothetical protein
1102	 32.53	0	1201443..1202186	+	247	21282831	-	MW1102	-	hypothetical protein
1103	 33.63	0	1202183..1204177	+	664	21282832	-	MW1103	-	hypothetical protein
1104	 31.51	0	1204405..1205280	+	291	21282833	-	MW1104	-	hypothetical protein
1105	 33.02	0	1205281..1205925	+	214	21282834	cfxE	MW1105	-	hypothetical protein
1106	 32.87	0	1205932..1206573	+	213	21282835	-	MW1106	-	hypothetical protein
1107	 37.57	+1	1206954..1207142	-	62	21282836	rpmB	MW1107	-	50S ribosomal protein L28
1108	 32.80	0	1207585..1207959	+	124	21282837	-	MW1108	-	hypothetical protein
1109	 34.06	0	1207974..1209620	+	548	21282838	-	MW1109	-	hypothetical protein
1110	 33.77	0	1209810..1211870	+	686	21282839	recG	MW1110	-	ATP-dependent DNA helicase
1111	 31.54	0	1212088..1212645	+	185	21282840	-	MW1111	-	fatty acid biosynthesis transcriptional regulator
1112	 34.95	0	1212650..1213636	+	328	21282841	plsX	MW1112	-	putative glycerol-3-phosphate acyltransferase PlsX
1113	 33.55	0	1213629..1214555	+	308	21282842	fabD	MW1113	-	malonyl CoA-acyl carrier protein transacylase
1114	 36.57	+1	1214542..1215282	+	246	21282843	fabG	MW1114	-	3-oxoacyl- reductase (acyl-carrier protein)
1115	 34.19	0	1215716..1215949	+	77	21282844	hmrB	MW1115	-	acyl carrier protein
1116	 34.15	0	1216065..1216796	+	243	21282845	rnc	MW1116	-	RNase III
1117	 32.16	0	1216943..1220509	+	1188	21282846	smc	MW1117	-	chromosome segregation SMC protein
1118	 34.61	0	1220509..1221759	+	416	21282847	-	MW1118	-	signal recognition particle
1119	 27.03	-1	1221746..1222078	+	110	21282848	-	MW1119	-	hypothetical protein
1120	 34.87	0	1222104..1223471	+	455	21282849	ffh	MW1120	-	hypothetical protein
1121	 36.23	0	1223906..1224181	+	91	21282850	rpsP	MW1121	-	30S ribosomal protein S16
32.85	MEAN

3.41	STD DEV
