IslandPath Analysis: Streptococcus agalactiae 2603V/R

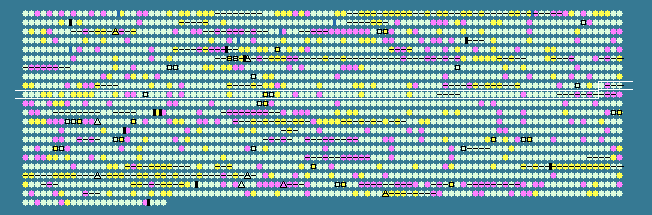

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
897	 38.61	0	925829..926302	-	157	22537082	-	SAG0919	-	Tn916 hypothetical protein
898	 29.17	-1	926480..926551	-	23	22537083	-	SAG0920	-	Tn916 hypothetical protein
899	 36.44	0	926756..927109	+	117	22537084	-	SAG0921	-	Tn916, transcriptional regulator, putative
900	 34.95	0	927169..927354	-	61	22537085	-	SAG0922	-	Tn916 hypothetical protein
901	 36.04	0	927455..929374	-	639	22537086	tetM	SAG0923	-	tetracycline resistance protein
902	 32.18	0	929390..929476	-	28	22537087	-	SAG0924	-	Tn916, tetM leader peptide
903	 37.41	0	929751..930683	-	310	22537088	-	SAG0925	-	Tn916 hypothetical protein
904	 42.71	+1	930680..931681	-	333	22537089	-	SAG0926	-	Tn916, NLP/P60 family protein
905	 41.74	+1	931678..933855	-	725	22537090	-	SAG0927	-	hypothetical protein
906	 38.86	0	936288..936794	-	168	22537091	-	SAG0929	-	Tn916 hypothetical protein
907	 40.36	+1	936769..937266	-	165	22537092	-	SAG0930	-	Tn916 hypothetical protein
908	 37.39	0	937383..937604	-	73	22537093	-	SAG0931	-	Tn916 hypothetical protein
909	 41.13	+1	937647..938852	-	401	22537094	-	SAG0932	-	Tn916, transcriptional regulator, putative
910	 39.97	+1	939030..940415	-	461	22537095	-	SAG0933	-	Tn916, FtsK/SpoIIIE family protein
911	 41.60	+1	940444..940830	-	128	22537096	-	SAG0934	-	Tn916 hypothetical protein
912	 40.32	+1	940846..941160	-	104	22537097	-	SAG0935	-	Tn916 hypothetical protein
913	 33.33	0	941183..941302	-	39	22537098	-	SAG0936	-	Tn916 hypothetical protein
914	 35.23	0	943034..943402	-	122	22537099	-	SAG0938	-	GntR family transcriptional regulator
915	 34.43	0	943547..946651	+	1034	22537100	dnaE	SAG0939	-	DNA polymerase III DnaE
916	 43.79	+2	946732..947754	+	340	22537101	pfkA	SAG0940	-	6-phosphofructokinase
917	 38.79	0	947803..949305	+	500	22537102	pyk	SAG0941	-	pyruvate kinase
918	 30.65	-1	949476..950033	+	185	22537103	-	SAG0942	-	signal peptidase I, putative
919	 21.53	-2	950047..950190	-	47	22537104	-	SAG0943	-	hypothetical protein
920	 37.41	0	950302..952116	+	604	22537105	glmS	SAG0944	-	D-fructose-6-phosphate amidotransferase
921	 37.92	0	952293..953426	+	377	22537106	-	SAG0945	-	IS1548 transposase
922	 34.85	0	953605..953934	+	109	22537107	phnA	SAG0946	-	phnA protein
923	 33.96	0	954069..954710	+	213	22537108	-	SAG0947	-	amino acid ABC transporter, permease protein
924	 34.60	0	954720..955349	+	209	22537109	-	SAG0948	-	amino acid ABC transporter, ATP-binding protein
925	 29.84	-1	955366..956196	+	276	22537110	-	SAG0949	-	amino acid ABC transporter, amino acid-binding protein
926	 38.46	0	956280..956513	-	77	161485614	rpsT	SAG0950	-	30S ribosomal protein S20
927	 29.86	-1	956582..957502	-	306	22537112	coaA	SAG0951	-	pantothenate kinase
928	 33.16	0	957608..958198	+	196	22537113	-	SAG0952	-	hypothetical protein
929	 36.41	0	958524..958913	+	129	22537114	cdd	SAG0953	-	cytidine deaminase
930	 38.00	0	958978..960027	+	349	22537115	-	SAG0954	-	protein of unknown function/lipoprotein, putative
931	 36.98	0	960172..961707	+	511	22537116	-	SAG0955	-	sugar ABC transporter, ATP-binding protein
932	 37.66	0	961700..962761	+	353	22537117	-	SAG0956	-	sugar ABC transporter, permease protein, putative
933	 36.05	0	962763..963719	+	318	22537118	-	SAG0957	-	sugar ABC transporter, permease protein, putative
934	 36.83	0	963924..965294	+	456	22537119	nox-2	SAG0958	-	NADH oxidase
935	 39.80	+1	965415..966404	-	329	22537120	ldh	SAG0959	-	L-lactate dehydrogenase
936	 38.46	0	966643..969102	+	819	22537121	gyrA	SAG0960	-	DNA gyrase subunit A
937	 34.14	0	969109..969852	+	247	22537122	srtA	SAG0961	-	sortase SrtA
938	 36.96	0	969868..970281	+	137	22537123	-	SAG0962	-	glyoxylase family protein
939	 32.50	0	970434..971396	+	320	22537124	-	SAG0963	-	hypothetical protein
940	 33.95	0	971459..972586	-	375	22537125	-	SAG0964	-	Na+/H+ exchanger family protein
941	 39.06	0	972846..973229	+	127	22537126	-	SAG0965	-	IS1381 transposase protein A
942	 38.46	0	973262..973651	+	129	22537127	-	SAG0966	-	IS1381 transposase protein B
943	 39.99	+1	973717..975279	-	520	22537128	guaA	SAG0967	-	bifunctional GMP synthase/glutamine amidotransferase protein
944	 36.48	0	975492..976190	+	232	22537129	-	SAG0968	-	GntR family transcriptional regulator
945	 38.65	0	976304..977638	+	444	22537130	gid	SAG0969	-	tRNA (uracil-5-)-methyltransferase Gid
946	 30.51	-1	977716..978459	+	247	22537131	-	SAG0970	-	acetyltransferase
947	 33.69	0	978592..979440	+	282	22537132	-	SAG0971	-	protein of unknown function/lipoprotein, putative
948	 34.06	0	980127..981089	+	320	22537133	-	SAG0973	-	nisin-resistance protein, putative
949	 34.79	0	981115..981867	+	250	22537134	-	SAG0974	-	ABC transporter, ATP-binding protein
950	 31.39	-1	981869..983824	+	651	22537135	-	SAG0975	-	ABC transporter, permease protein, putative
951	 32.44	0	983934..984602	+	222	22537136	-	SAG0976	-	DNA-binding response regulator
952	 32.69	0	984599..985537	+	312	22537137	-	SAG0977	-	sensor histidine kinase
953	 34.73	0	985580..986650	-	356	22537138	xerS	SAG0978	-	site-specific tyrosine recombinase XerS
954	 34.18	0	987103..988764	+	553	22537139	-	SAG0979	-	ABC transporter, substrate-binding protein
955	 32.30	0	988797..989570	-	257	22537140	-	SAG0980	-	hypothetical protein
956	 35.52	0	989560..990246	-	228	22537141	-	SAG0981	-	satD protein
957	 39.40	+1	990313..991878	-	521	22537142	ffh	SAG0982	-	signal recognition particle protein Ffh
958	 32.43	0	991896..992228	-	110	22537143	-	SAG0983	-	hypothetical protein
959	 33.33	0	992317..993630	-	437	22537144	-	SAG0984	-	sensor histidine kinase CiaH
960	 34.07	0	993614..994294	-	226	22537145	ciaR	SAG0985	-	DNA-binding response regulator CiaR
961	 36.04	0	994456..997005	-	849	22537146	pepN	SAG0986	-	aminopeptidase N
962	 36.24	0	997151..997804	-	217	22537147	phoU	SAG0987	-	phosphate transport system regulatory protein PhoU
963	 37.81	0	997838..998596	-	252	22537148	-	SAG0988	-	phosphate ABC transporter, ATP-binding protein PstB, putative
964	 36.32	0	998608..999411	-	267	22537149	-	SAG0989	-	phosphate ABC transporter, ATP-binding protein PstB, putative
965	 39.19	0	999423..1000310	-	295	22537150	-	SAG0990	-	phosphate ABC transporter, permease protein PstA, putative
966	 36.60	0	1000300..1001217	-	305	22537151	-	SAG0991	-	phosphate ABC transporter, permease protein
967	 37.05	0	1001263..1002123	-	286	22537152	-	SAG0992	-	phosphate ABC transporter, phosphate-binding protein
968	 36.54	0	1002308..1003618	-	436	22537153	-	SAG0993	-	NOL1/NOP2/sun family protein
969	 35.16	0	1003686..1004450	-	254	22537154	-	SAG0994	-	inositol monophosphatase family protein
970	 33.69	0	1004440..1004721	-	93	22537155	-	SAG0995	-	hypothetical protein
971	 35.27	0	1004714..1005127	-	137	22537156	spxA	SAG0996	-	transcriptional regulator Spx
972	 33.87	0	1005170..1006102	-	310	22537157	-	SAG0997	-	bifunctional riboflavin kinase/FMN adenylyltransferase
973	 35.25	0	1006115..1006999	-	294	22537158	truB	SAG0998	-	tRNA pseudouridine synthase B
974	 33.56	0	1007091..1007522	-	143	22537159	-	SAG0999	-	acetyltransferase
975	 32.63	0	1007535..1008806	-	423	22537160	-	SAG1000	-	hypothetical protein
976	 37.06	0	1008840..1009430	-	196	22537161	-	SAG1001	-	hypothetical protein
977	 37.54	0	1009537..1010415	-	292	22537162	-	SAG1002	-	protease, putative
978	 32.61	0	1010521..1013151	-	876	22537163	-	SAG1003	-	permease, putative
979	 38.18	0	1013163..1013864	-	233	22537164	-	SAG1004	-	ABC transporter, ATP-binding protein
980	 36.26	0	1014001..1016121	-	706	22537165	topA	SAG1005	-	DNA topoisomerase I
981	 34.28	0	1016216..1017058	-	280	22537166	dprA	SAG1006	-	DprA/SMF protein, putative DNA processing factor
982	 35.18	0	1017196..1018224	-	342	22537167	-	SAG1007	-	iron-compound ABC transporter, iron-compound-binding protein
983	 33.20	0	1018286..1019047	-	253	22537168	-	SAG1008	-	iron compound ABC transporter, ATP-binding protein
984	 31.28	-1	1019044..1020018	-	324	22537169	-	SAG1009	-	iron compound ABC transporter, permease protein
985	 35.41	0	1020015..1020977	-	320	22537170	-	SAG1010	-	iron compound ABC transporter, permease protein
986	 37.89	0	1021216..1021764	-	182	22537171	-	SAG1011	-	acetyltransferase
987	 33.60	0	1021785..1022546	-	253	22537172	rnhB	SAG1012	-	ribonuclease HII
988	 35.92	0	1022533..1023384	-	283	22537173	rbgA	SAG1013	-	ribosomal biogenesis GTPase
989	 36.30	0	1023660..1024232	-	190	22537174	-	SAG1014	-	hypothetical protein
990	 36.50	0	1024433..1025917	-	494	22537175	-	SAG1015	-	carbon starvation protein CstA, putative
991	 35.92	0	1026073..1026807	-	244	22537176	-	SAG1016	-	response regulator
992	 34.77	0	1026819..1028558	-	579	22537177	-	SAG1017	-	sensor histidine kinase, putative
993	 26.83	-2	1029094..1029216	-	40	22537178	-	SAG1018	-	putative lipoprotein
994	 34.17	0	1029739..1029858	-	39	22537179	-	SAG1019	-	hypothetical protein
995	 25.00	-2	1030102..1030785	-	227	22537180	-	SAG1020	-	putative lipoprotein
996	 36.42	0	1030871..1031194	-	107	22537181	-	SAG1021	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
