IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

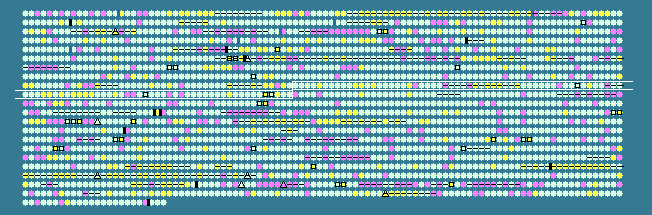

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
846	 33.80	0	867594..868451	+	285	22537031	endA	SAG0868	-	DNA-entry nuclease
847	 37.85	0	868743..869783	+	346	22537032	pheS	SAG0869	-	phenylalanyl-tRNA synthetase subunit alpha
848	 33.14	0	869866..870387	+	173	22537033	-	SAG0870	-	acetyltransferase
849	 37.91	0	870441..872846	+	801	22537034	pheT	SAG0871	-	phenylalanyl-tRNA synthetase subunit beta
850	 40.53	+1	872915..873817	-	300	22537035	-	SAG0872	-	hypothetical protein
851	 33.98	0	873995..877228	+	1077	22537036	rexB	SAG0873	-	exonuclease RexB
852	 34.22	0	877218..880841	+	1207	22537037	rexA	SAG0874	-	exonuclease RexA
853	 32.68	0	880854..881771	+	305	22537038	-	SAG0875	-	magnesium transporter CorA family protein
854	 36.67	0	881804..883180	-	458	22537039	trmE	SAG0876	-	tRNA modification GTPase TrmE
855	 35.01	0	883308..885218	+	636	22537040	-	SAG0877	-	ABC transporter, ATP-binding protein
856	 40.56	+1	885368..886336	+	322	22537041	-	SAG0878	-	acetoin dehydrogenase, thymine PPi dependent, E1 component, alpha subunit
857	 39.84	+1	886411..887409	+	332	22537042	-	SAG0879	-	acetoin dehydrogenase, thymine PPi dependent, E1 component, beta subunit
858	 38.30	0	887536..888924	+	462	22537043	-	SAG0880	-	branched-chain alpha-keto acid dehydrogenase subunit E2
859	 40.16	+1	888984..890741	+	585	22537044	-	SAG0881	-	acetoin dehydrogenase, thymine PPi dependent, E3 component, dihydrolipoamide dehydrogenase
860	 35.35	0	890839..891828	+	329	22537045	lplA-1	SAG0882	-	lipoate-protein ligase A
861	 35.11	0	891936..892721	-	261	22537046	-	SAG0883	-	cobyric acid synthase, putative
862	 37.95	0	892721..894064	-	447	22537047	-	SAG0884	-	mur ligase family protein
863	 35.56	0	894204..895055	+	283	22537048	-	SAG0885	-	hypothetical protein
864	 33.23	0	895058..896017	+	319	22537049	-	SAG0886	-	hypothetical protein
865	 39.17	0	896071..897423	+	450	22537050	-	SAG0887	-	phosphoglucomutase/phosphomannomutase family protein
866	 31.45	-1	897546..897917	+	123	22537051	-	SAG0888	-	hypothetical protein
867	 36.75	0	897942..898322	+	126	22537052	-	SAG0889	-	hypothetical protein
868	 34.92	0	898414..899544	+	376	22537053	-	SAG0890	-	coproporphyrinogen III oxidase
869	 32.38	0	899548..900285	+	245	22537054	-	SAG0891	-	hypothetical protein
870	 35.80	0	900286..901056	+	256	22537055	-	SAG0892	-	HAD superfamily hydrolase
871	 29.07	-1	901046..901702	+	218	22537056	-	SAG0893	-	hypothetical protein
872	 34.33	0	902090..906202	+	1370	22537057	-	SAG0894	-	hypothetical protein
873	 34.71	0	906204..907073	+	289	22537058	-	SAG0895	-	lipoyl-binding domain-containing protein
874	 35.78	0	907085..907411	+	108	22537059	-	SAG0896	-	oxidoreductase, putative
875	 30.78	-1	907398..908063	+	221	22537060	-	SAG0897	-	hypothetical protein
876	 40.48	+1	908175..908426	+	83	22537061	-	SAG0898	-	hypothetical protein
877	 37.93	0	908439..908612	+	57	22537062	-	SAG0899	-	hypothetical protein
878	 39.77	+1	908847..909017	+	56	22537063	-	SAG0900	-	hypothetical protein
879	 39.58	+1	909099..909482	+	127	22537064	-	SAG0901	-	hypothetical protein
880	 39.13	0	909460..909597	+	45	22537065	-	SAG0902	-	hypothetical protein
881	 38.52	0	909601..909735	+	44	22537066	-	SAG0903	-	hypothetical protein
882	 35.67	0	910104..910274	+	56	22537067	-	SAG0904	-	hypothetical protein
883	 40.77	+1	910407..910823	+	138	22537068	ndk	SAG0905	-	nucleoside diphosphate kinase
884	 37.59	0	910959..912791	+	610	22537069	lepA	SAG0906	-	GTP-binding protein LepA
885	 33.90	0	913038..915671	+	877	22537070	-	SAG0907	-	protein of unknown function/lipoprotein, putative
886	 34.97	0	915819..916430	+	203	22537071	-	SAG0908	-	HD domain-containing protein
887	 32.90	0	916439..916903	+	154	22537072	-	SAG0909	-	acetyltransferase
888	 38.39	0	916903..917337	+	144	22537073	-	SAG0910	-	methionine sulfoxide reductase B
889	 37.49	0	917489..920281	+	930	22537074	-	SAG0911	-	cation transporter E1-E2 family ATPase
890	 31.07	-1	920281..921384	+	367	22537075	-	SAG0912	-	hypothetical protein
891	 34.43	0	921505..922143	-	212	22537076	cat	SAG0913	-	chloramphenicol acetyltransferase
892	 33.01	0	922854..923465	+	203	22537077	-	SAG0914	-	hypothetical protein
893	 37.27	0	923639..924856	-	405	22537078	-	SAG0915	-	Tn916, transposase
894	 35.29	0	924938..925141	-	67	22537079	-	SAG0916	-	Tn916, excisionase
895	 42.46	+1	925125..925376	+	83	22537080	-	SAG0917	-	Tn916 hypothetical protein
896	 37.23	0	925602..925832	-	76	22537081	-	SAG0918	-	Tn916 hypothetical protein
897	 38.61	0	925829..926302	-	157	22537082	-	SAG0919	-	Tn916 hypothetical protein
898	 29.17	-1	926480..926551	-	23	22537083	-	SAG0920	-	Tn916 hypothetical protein
899	 36.44	0	926756..927109	+	117	22537084	-	SAG0921	-	Tn916, transcriptional regulator, putative
900	 34.95	0	927169..927354	-	61	22537085	-	SAG0922	-	Tn916 hypothetical protein
901	 36.04	0	927455..929374	-	639	22537086	tetM	SAG0923	-	tetracycline resistance protein
902	 32.18	0	929390..929476	-	28	22537087	-	SAG0924	-	Tn916, tetM leader peptide
903	 37.41	0	929751..930683	-	310	22537088	-	SAG0925	-	Tn916 hypothetical protein
904	 42.71	+1	930680..931681	-	333	22537089	-	SAG0926	-	Tn916, NLP/P60 family protein
905	 41.74	+1	931678..933855	-	725	22537090	-	SAG0927	-	hypothetical protein
906	 38.86	0	936288..936794	-	168	22537091	-	SAG0929	-	Tn916 hypothetical protein
907	 40.36	+1	936769..937266	-	165	22537092	-	SAG0930	-	Tn916 hypothetical protein
908	 37.39	0	937383..937604	-	73	22537093	-	SAG0931	-	Tn916 hypothetical protein
909	 41.13	+1	937647..938852	-	401	22537094	-	SAG0932	-	Tn916, transcriptional regulator, putative
910	 39.97	+1	939030..940415	-	461	22537095	-	SAG0933	-	Tn916, FtsK/SpoIIIE family protein
911	 41.60	+1	940444..940830	-	128	22537096	-	SAG0934	-	Tn916 hypothetical protein
912	 40.32	+1	940846..941160	-	104	22537097	-	SAG0935	-	Tn916 hypothetical protein
913	 33.33	0	941183..941302	-	39	22537098	-	SAG0936	-	Tn916 hypothetical protein
914	 35.23	0	943034..943402	-	122	22537099	-	SAG0938	-	GntR family transcriptional regulator
915	 34.43	0	943547..946651	+	1034	22537100	dnaE	SAG0939	-	DNA polymerase III DnaE
916	 43.79	+2	946732..947754	+	340	22537101	pfkA	SAG0940	-	6-phosphofructokinase
917	 38.79	0	947803..949305	+	500	22537102	pyk	SAG0941	-	pyruvate kinase
918	 30.65	-1	949476..950033	+	185	22537103	-	SAG0942	-	signal peptidase I, putative
919	 21.53	-2	950047..950190	-	47	22537104	-	SAG0943	-	hypothetical protein
920	 37.41	0	950302..952116	+	604	22537105	glmS	SAG0944	-	D-fructose-6-phosphate amidotransferase
921	 37.92	0	952293..953426	+	377	22537106	-	SAG0945	-	IS1548 transposase
922	 34.85	0	953605..953934	+	109	22537107	phnA	SAG0946	-	phnA protein
923	 33.96	0	954069..954710	+	213	22537108	-	SAG0947	-	amino acid ABC transporter, permease protein
924	 34.60	0	954720..955349	+	209	22537109	-	SAG0948	-	amino acid ABC transporter, ATP-binding protein
925	 29.84	-1	955366..956196	+	276	22537110	-	SAG0949	-	amino acid ABC transporter, amino acid-binding protein
926	 38.46	0	956280..956513	-	77	161485614	rpsT	SAG0950	-	30S ribosomal protein S20
927	 29.86	-1	956582..957502	-	306	22537112	coaA	SAG0951	-	pantothenate kinase
928	 33.16	0	957608..958198	+	196	22537113	-	SAG0952	-	hypothetical protein
929	 36.41	0	958524..958913	+	129	22537114	cdd	SAG0953	-	cytidine deaminase
930	 38.00	0	958978..960027	+	349	22537115	-	SAG0954	-	protein of unknown function/lipoprotein, putative
931	 36.98	0	960172..961707	+	511	22537116	-	SAG0955	-	sugar ABC transporter, ATP-binding protein
932	 37.66	0	961700..962761	+	353	22537117	-	SAG0956	-	sugar ABC transporter, permease protein, putative
933	 36.05	0	962763..963719	+	318	22537118	-	SAG0957	-	sugar ABC transporter, permease protein, putative
934	 36.83	0	963924..965294	+	456	22537119	nox-2	SAG0958	-	NADH oxidase
935	 39.80	+1	965415..966404	-	329	22537120	ldh	SAG0959	-	L-lactate dehydrogenase
936	 38.46	0	966643..969102	+	819	22537121	gyrA	SAG0960	-	DNA gyrase subunit A
937	 34.14	0	969109..969852	+	247	22537122	srtA	SAG0961	-	sortase SrtA
938	 36.96	0	969868..970281	+	137	22537123	-	SAG0962	-	glyoxylase family protein
939	 32.50	0	970434..971396	+	320	22537124	-	SAG0963	-	hypothetical protein
940	 33.95	0	971459..972586	-	375	22537125	-	SAG0964	-	Na+/H+ exchanger family protein
941	 39.06	0	972846..973229	+	127	22537126	-	SAG0965	-	IS1381 transposase protein A
942	 38.46	0	973262..973651	+	129	22537127	-	SAG0966	-	IS1381 transposase protein B
943	 39.99	+1	973717..975279	-	520	22537128	guaA	SAG0967	-	bifunctional GMP synthase/glutamine amidotransferase protein
944	 36.48	0	975492..976190	+	232	22537129	-	SAG0968	-	GntR family transcriptional regulator
945	 38.65	0	976304..977638	+	444	22537130	gid	SAG0969	-	tRNA (uracil-5-)-methyltransferase Gid
35.44	MEAN

3.78	STD DEV
