IslandPath Analysis: Streptococcus agalactiae 2603V/R

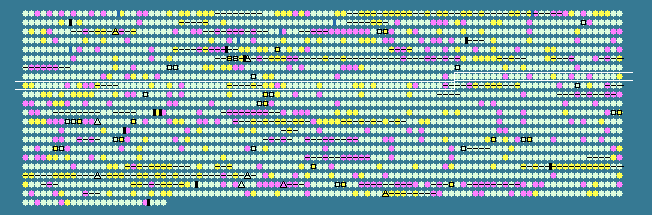

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
773	 38.35	0	794069..795325	+	418	22536958	-	SAG0794	-	GntP family permease
774	 34.55	0	795426..796490	+	354	22536959	-	SAG0795	-	hypothetical protein
775	 34.68	0	796545..796988	-	147	22536960	-	SAG0796	-	MarR family transcriptional regulator
776	 38.58	0	797069..798097	-	342	22536961	queA	SAG0797	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
777	 37.00	0	798250..798930	+	226	22536962	-	SAG0798	-	hypothetical protein
778	 34.47	0	799081..799782	+	233	22536963	nagB	SAG0799	-	glucosamine-6-phosphate isomerase
779	 35.42	0	799854..800810	-	318	22536964	-	SAG0800	-	glutathione S-transferase family protein
780	 35.56	0	800906..801625	+	239	22536965	-	SAG0801	-	ribosomal small subunit pseudouridine synthase A, putative
781	 27.35	-2	801600..801716	-	38	22536966	-	SAG0802	-	hypothetical protein
782	 32.55	0	801698..802849	+	383	22536967	-	SAG0803	-	major facilitator family protein
783	 33.65	0	802901..803848	+	315	22536968	coiA	SAG0804	-	competence protein CoiA
784	 36.54	0	803864..805669	+	601	22536969	pepB	SAG0805	-	group B oligopeptidase PepB
785	 31.42	-1	805864..806490	+	208	22536970	-	SAG0806	-	HAD superfamily hydrolase
786	 35.31	0	806564..807271	+	235	22536971	-	SAG0807	-	O-methyltransferase family protein
787	 33.76	0	807332..808261	+	309	22536972	prsA	SAG0808	-	foldase protein PrsA
788	 33.95	0	808503..808988	+	161	22536973	-	SAG0809	-	hypothetical protein
789	 42.04	+1	809004..811622	+	872	22536974	alaS	SAG0810	-	alanyl-tRNA synthetase
790	 33.75	0	811704..812420	+	238	22536975	-	SAG0811	-	hypothetical protein
791	 32.23	0	812508..813326	+	272	22536976	-	SAG0812	-	glycosyl transferase family protein
792	 31.30	-1	813470..813715	+	81	22536977	-	SAG0813	-	hypothetical protein
793	 36.81	0	813754..814041	+	95	22536978	-	SAG0814	-	hypothetical protein
794	 33.33	0	814086..814301	+	71	22536979	-	SAG0815	-	Cro/CI family transcriptional regulator
795	 27.56	-2	814301..815062	+	253	22536980	-	SAG0816	-	hypothetical protein
796	 34.75	0	815147..815710	-	187	22536981	-	SAG0817	-	hypothetical protein
797	 35.31	0	815951..816910	-	319	22536982	nrdF	SAG0818	-	ribonucleotide-diphosphate reductase subunit beta
798	 35.79	0	817113..819272	-	719	22536983	nrdE-2	SAG0819	-	ribonucleotide-diphosphate reductase subunit alpha
799	 33.78	0	819350..819574	-	74	22536984	nrdH	SAG0820	-	ribonucleoside-diphosphate reductase 2, NrdH-redoxin
800	 40.53	+1	819957..820220	+	87	22536985	ptsH	SAG0821	-	phosphocarrier protein HPr
801	 40.20	+1	820225..821958	+	577	22536986	ptsI	SAG0822	-	phosphoenolpyruvate-protein phosphotransferase
802	 38.94	0	822108..823535	+	475	22536987	gapN	SAG0823	-	glyceraldehyde-3-phosphate dehydrogenase, NADP-dependent
803	 32.46	0	823675..824928	+	417	22536988	-	SAG0824	-	polysaccharide deacetylase family protein
804	 34.35	0	824961..826043	-	360	22536989	-	SAG0825	-	DEAD-box ATP dependent DNA helicase
805	 34.44	0	826188..826817	+	209	22536990	udk	SAG0826	-	uridine kinase
806	 33.73	0	826904..827401	+	165	22536991	-	SAG0827	-	hypothetical protein
807	 35.32	0	827401..829065	+	554	22536992	dnaX	SAG0828	-	DNA polymerase III subunits gamma and tau
808	 31.79	0	829154..829348	+	64	22536993	-	SAG0829	-	hypothetical protein
809	 34.72	0	829329..830264	-	311	22536994	-	SAG0830	-	biotin--protein ligase
810	 40.77	+1	830449..831645	+	398	22536995	metK	SAG0831	-	S-adenosylmethionine synthetase
811	 31.30	-1	832166..834427	+	753	22536996	-	SAG0832	-	hypothetical protein
812	 31.32	-1	834494..835039	+	181	22536997	-	SAG0833	-	hypothetical protein
813	 43.41	+2	835199..835327	+	42	22536998	-	SAG0834	-	hypothetical protein
814	 37.92	0	835435..836001	+	188	22536999	-	SAG0835	-	hypothetical protein
815	 34.59	0	835998..836552	+	184	22537000	-	SAG0836	-	hypothetical protein
816	 33.72	0	836556..837842	+	428	22537001	-	SAG0837	-	ABC transporter, ATP-binding protein
817	 34.19	0	837797..838498	+	233	22537002	-	SAG0838	-	hypothetical protein
818	 34.36	0	838582..839262	+	226	22537003	-	SAG0839	-	TenA family transcription regulator
819	 38.85	0	839264..840061	+	265	22537004	thiD	SAG0840	-	phosphomethylpyrimidine kinase
820	 38.00	0	840063..840833	+	256	22537005	thiM	SAG0841	-	hydroxyethylthiazole kinase
821	 34.23	0	840847..841518	+	223	22537006	thiE	SAG0842	-	thiamine-phosphate pyrophosphorylase
822	 40.32	+1	841645..842904	+	419	22537007	murA-1	SAG0843	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
823	 34.77	0	843006..843560	+	184	22537008	-	SAG0844	-	acetyltransferase
824	 34.97	0	843553..844836	+	427	22537009	-	SAG0845	-	CBS domain-containing protein
825	 40.19	+1	844859..845719	+	286	22537010	map	SAG0846	-	methionine aminopeptidase
826	 33.33	0	845721..846641	+	306	22537011	-	SAG0847	-	ribonuclease BN, putative
827	 28.73	-1	846658..847113	-	151	22537012	-	SAG0848	-	GtrA family protein
828	 34.31	0	847295..847804	+	169	22537013	-	SAG0849	-	hypothetical protein
829	 37.06	0	847944..849902	+	652	22537014	ligA	SAG0850	-	NAD-dependent DNA ligase LigA
830	 35.29	0	849914..850933	+	339	22537015	-	SAG0851	-	putative lipid kinase
831	 35.51	0	850937..853237	+	766	22537016	-	SAG0852	-	pullulanase, putative
832	 35.10	0	853443..855311	+	622	22537017	glgB	SAG0853	-	glycogen branching enzyme
833	 37.54	0	855353..856492	+	379	22537018	glgC	SAG0854	-	glucose-1-phosphate adenylyltransferase
834	 35.43	0	857611..859041	+	476	22537019	glgA	SAG0856	-	glycogen synthase
835	 39.80	+1	859373..859573	+	66	22537020	atpE	SAG0857	-	F0F1 ATP synthase subunit C
836	 32.64	0	859606..860322	+	238	22537021	atpB	SAG0858	-	F0F1 ATP synthase subunit A
837	 34.54	0	860340..860837	+	165	22537022	atpF	SAG0859	-	F0F1 ATP synthase subunit B
838	 32.40	0	860837..861373	+	178	22537023	atpH	SAG0860	-	F0F1 ATP synthase subunit delta
839	 40.50	+1	861389..862894	+	501	22537024	atpA	SAG0861	-	F0F1 ATP synthase subunit alpha
840	 36.05	0	862910..863791	+	293	22537025	atpG	SAG0862	-	F0F1 ATP synthase subunit gamma
841	 41.08	+1	863865..865271	+	468	22537026	atpD	SAG0863	-	F0F1 ATP synthase subunit beta
842	 42.27	+1	865284..865697	+	137	22537027	atpC	SAG0864	-	F0F1 ATP synthase subunit epsilon
843	 26.41	-2	865762..865992	+	76	22537028	-	SAG0865	-	hypothetical protein
844	 39.78	+1	866055..867326	+	423	22537029	murA-2	SAG0866	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
845	 33.33	0	867328..867519	+	63	22537030	-	SAG0867	-	hypothetical protein
846	 33.80	0	867594..868451	+	285	22537031	endA	SAG0868	-	DNA-entry nuclease
847	 37.85	0	868743..869783	+	346	22537032	pheS	SAG0869	-	phenylalanyl-tRNA synthetase subunit alpha
848	 33.14	0	869866..870387	+	173	22537033	-	SAG0870	-	acetyltransferase
849	 37.91	0	870441..872846	+	801	22537034	pheT	SAG0871	-	phenylalanyl-tRNA synthetase subunit beta
850	 40.53	+1	872915..873817	-	300	22537035	-	SAG0872	-	hypothetical protein
851	 33.98	0	873995..877228	+	1077	22537036	rexB	SAG0873	-	exonuclease RexB
852	 34.22	0	877218..880841	+	1207	22537037	rexA	SAG0874	-	exonuclease RexA
853	 32.68	0	880854..881771	+	305	22537038	-	SAG0875	-	magnesium transporter CorA family protein
854	 36.67	0	881804..883180	-	458	22537039	trmE	SAG0876	-	tRNA modification GTPase TrmE
855	 35.01	0	883308..885218	+	636	22537040	-	SAG0877	-	ABC transporter, ATP-binding protein
856	 40.56	+1	885368..886336	+	322	22537041	-	SAG0878	-	acetoin dehydrogenase, thymine PPi dependent, E1 component, alpha subunit
857	 39.84	+1	886411..887409	+	332	22537042	-	SAG0879	-	acetoin dehydrogenase, thymine PPi dependent, E1 component, beta subunit
858	 38.30	0	887536..888924	+	462	22537043	-	SAG0880	-	branched-chain alpha-keto acid dehydrogenase subunit E2
859	 40.16	+1	888984..890741	+	585	22537044	-	SAG0881	-	acetoin dehydrogenase, thymine PPi dependent, E3 component, dihydrolipoamide dehydrogenase
860	 35.35	0	890839..891828	+	329	22537045	lplA-1	SAG0882	-	lipoate-protein ligase A
861	 35.11	0	891936..892721	-	261	22537046	-	SAG0883	-	cobyric acid synthase, putative
862	 37.95	0	892721..894064	-	447	22537047	-	SAG0884	-	mur ligase family protein
863	 35.56	0	894204..895055	+	283	22537048	-	SAG0885	-	hypothetical protein
864	 33.23	0	895058..896017	+	319	22537049	-	SAG0886	-	hypothetical protein
865	 39.17	0	896071..897423	+	450	22537050	-	SAG0887	-	phosphoglucomutase/phosphomannomutase family protein
866	 31.45	-1	897546..897917	+	123	22537051	-	SAG0888	-	hypothetical protein
867	 36.75	0	897942..898322	+	126	22537052	-	SAG0889	-	hypothetical protein
868	 34.92	0	898414..899544	+	376	22537053	-	SAG0890	-	coproporphyrinogen III oxidase
869	 32.38	0	899548..900285	+	245	22537054	-	SAG0891	-	hypothetical protein
870	 35.80	0	900286..901056	+	256	22537055	-	SAG0892	-	HAD superfamily hydrolase
871	 29.07	-1	901046..901702	+	218	22537056	-	SAG0893	-	hypothetical protein
872	 34.33	0	902090..906202	+	1370	22537057	-	SAG0894	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
