IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

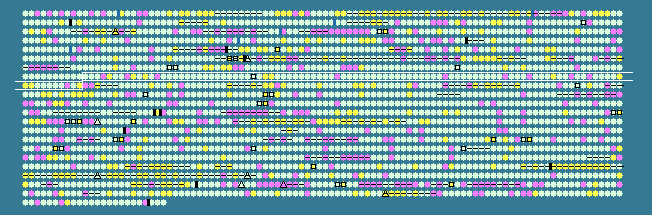

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
711	 36.11	0	727468..729630	+	720	22536896	-	SAG0732	-	transcriptional accessory protein Tex, putative
712	 35.66	0	729623..730051	+	142	22536897	-	SAG0733	-	hypothetical protein
713	 37.50	0	730132..730395	+	87	22536898	-	SAG0734	-	phage shock protein C, putative
714	 31.85	0	730373..730507	+	44	22536899	-	SAG0735	-	hypothetical protein
715	 39.64	+1	730623..731558	+	311	22536900	hprK	SAG0736	-	HPr kinase/phosphorylase
716	 38.24	0	731551..732324	+	257	22536901	lgt	SAG0737	-	prolipoprotein diacylglyceryl transferase
717	 32.58	0	732339..732737	+	132	22536902	-	SAG0738	-	hypothetical protein
718	 30.09	-1	732734..733165	+	143	22536903	-	SAG0739	-	hypothetical protein
719	 39.49	+1	733206..733481	-	91	22536904	-	SAG0740	-	hypothetical protein
720	 35.31	0	733836..734747	+	303	22536905	-	SAG0741	-	hypothetical protein
721	 39.32	+1	734877..736163	+	428	22536906	-	SAG0742	-	U32 family peptidase
722	 33.33	0	736290..736502	+	70	22536907	-	SAG0743	-	hypothetical protein
723	 30.95	-1	736626..737423	+	265	22536908	-	SAG0744	-	hypothetical protein
724	 36.32	0	737525..738865	-	446	22536909	-	SAG0745	-	Mn2+/Fe2+ transporter
725	 36.22	0	739594..740703	+	369	22536910	ribD	SAG0746	-	riboflavin biosynthesis protein RibD
726	 37.17	0	740684..741334	+	216	161485615	ribE	SAG0747	-	riboflavin synthase subunit alpha
727	 37.02	0	741352..742545	+	397	22536912	ribA	SAG0748	-	riboflavin biosynthesis protein RibA
728	 35.88	0	742560..743030	+	156	22536913	ribH	SAG0749	-	riboflavin synthase, beta subunit
729	 38.70	0	743105..744595	-	496	22536914	lysS	SAG0750	-	lysyl-tRNA synthetase
730	 34.22	0	744770..745672	+	300	22536915	-	SAG0751	-	HAD superfamily hydrolase
731	 37.23	0	745708..746349	-	213	22536916	-	SAG0752	-	phosphoglycerate mutase family protein
732	 32.49	0	746371..746844	-	157	22536917	-	SAG0753	-	ebsC family protein, putative
733	 35.60	0	747139..747756	+	205	22536918	-	SAG0754	-	hypothetical protein
734	 33.92	0	747789..748637	-	282	22536919	-	SAG0755	-	U32 family peptidase
735	 33.90	0	748793..749317	+	174	22536920	-	SAG0756	-	hypothetical protein
736	 32.31	0	749301..749690	+	129	22536921	-	SAG0757	-	protein of unknown function/lipoprotein, putative
737	 36.33	0	749749..751548	-	599	22536922	-	SAG0758	-	oligoendopeptidase F, putative
738	 34.33	0	751757..754552	+	931	22536923	ppc	SAG0759	-	phosphoenolpyruvate carboxylase
739	 37.92	0	754678..755811	+	377	22536924	-	SAG0760	-	IS1548 transposase
740	 35.30	0	755984..757252	+	422	22536925	ftsW	SAG0761	-	cell cycle protein FtsW
741	 42.94	+1	757604..758800	+	398	22536926	tuf	SAG0762	-	elongation factor Tu
742	 41.50	+1	758981..759739	+	252	22536927	tpiA	SAG0763	-	triosephosphate isomerase
743	 38.67	0	759916..760608	+	230	22536928	-	SAG0764	-	phosphoglyceromutase
744	 35.97	0	760737..762782	+	681	22536929	-	SAG0765	-	penicillin-binding protein 2b
745	 36.35	0	762797..763393	+	198	22536930	recR	SAG0766	-	recombination protein RecR
746	 35.82	0	763534..764580	+	348	22536931	ddl	SAG0767	-	D-alanyl-alanine synthetase A
747	 35.82	0	764727..766094	+	455	22536932	murF	SAG0768	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
748	 34.73	0	766281..767501	+	406	22536933	-	SAG0769	-	oxalate:formate antiporter
749	 33.33	0	767630..768316	+	228	22536934	-	SAG0770	-	hypothetical protein
750	 37.10	0	768495..770033	+	512	22536935	-	SAG0771	-	cell wall surface anchor family protein
751	 38.19	0	770210..771754	+	514	22536936	prfC	SAG0772	-	peptide chain release factor 3
752	 33.33	0	771840..772220	+	126	22536937	-	SAG0773	-	hypothetical protein
753	 30.48	-1	772341..773075	+	244	22536938	-	SAG0774	-	ABC transporter, ATP-binding protein
754	 33.48	0	773068..773730	+	220	22536939	-	SAG0775	-	ABC transporter, permease protein
755	 32.97	0	773746..774576	+	276	22536940	-	SAG0776	-	YaeC family protein
756	 37.87	0	774811..776397	+	528	22536941	-	SAG0777	-	DEAD-box ATP dependent DNA helicase
757	 32.96	0	776582..776848	-	88	22536942	-	SAG0778	-	hypothetical protein
758	 34.64	0	776841..777605	-	254	22536943	-	SAG0779	-	hypothetical protein
759	 35.63	0	777740..778480	+	246	22536944	-	SAG0780	-	acyltransferase family protein
760	 33.64	0	778580..779233	+	217	22536945	celA	SAG0781	-	competence protein CelA
761	 33.29	0	779217..781454	+	745	22536946	-	SAG0782	-	DNA internalization-related competence protein ComEC/Rec2
762	 33.83	0	781580..782389	+	269	22536947	-	SAG0783	-	HAD superfamily hydrolase
763	 35.13	0	782400..783344	+	314	22536948	-	SAG0784	-	LacI family sugar-binding transcriptional regulator
764	 32.33	0	783403..784395	-	330	22536949	-	SAG0785	-	hypothetical protein
765	 33.20	0	784571..785299	+	242	22536950	-	SAG0786	-	hypothetical protein
766	 33.33	0	785353..786390	+	345	22536951	holA	SAG0787	-	DNA polymerase III subunit delta
767	 38.59	0	786470..787078	+	202	22536952	sodA	SAG0788	-	superoxide dismutase, Fe-Mn
768	 32.51	0	787416..788267	+	283	22536953	-	SAG0789	-	transcriptional antiterminator LicT
769	 35.96	0	788260..790128	+	622	22536954	-	SAG0790	-	PTS system, beta-glucosides-specific IIABC components
770	 35.57	0	790145..791572	+	475	22536955	bglA	SAG0791	-	6-phospho-beta-glucosidase
771	 30.96	-1	791641..792735	-	364	22536956	-	SAG0792	-	hypothetical protein
772	 37.97	0	792902..794044	+	380	22536957	garK	SAG0793	-	glycerate kinase 2
773	 38.35	0	794069..795325	+	418	22536958	-	SAG0794	-	GntP family permease
774	 34.55	0	795426..796490	+	354	22536959	-	SAG0795	-	hypothetical protein
775	 34.68	0	796545..796988	-	147	22536960	-	SAG0796	-	MarR family transcriptional regulator
776	 38.58	0	797069..798097	-	342	22536961	queA	SAG0797	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
777	 37.00	0	798250..798930	+	226	22536962	-	SAG0798	-	hypothetical protein
778	 34.47	0	799081..799782	+	233	22536963	nagB	SAG0799	-	glucosamine-6-phosphate isomerase
779	 35.42	0	799854..800810	-	318	22536964	-	SAG0800	-	glutathione S-transferase family protein
780	 35.56	0	800906..801625	+	239	22536965	-	SAG0801	-	ribosomal small subunit pseudouridine synthase A, putative
781	 27.35	-2	801600..801716	-	38	22536966	-	SAG0802	-	hypothetical protein
782	 32.55	0	801698..802849	+	383	22536967	-	SAG0803	-	major facilitator family protein
783	 33.65	0	802901..803848	+	315	22536968	coiA	SAG0804	-	competence protein CoiA
784	 36.54	0	803864..805669	+	601	22536969	pepB	SAG0805	-	group B oligopeptidase PepB
785	 31.42	-1	805864..806490	+	208	22536970	-	SAG0806	-	HAD superfamily hydrolase
786	 35.31	0	806564..807271	+	235	22536971	-	SAG0807	-	O-methyltransferase family protein
787	 33.76	0	807332..808261	+	309	22536972	prsA	SAG0808	-	foldase protein PrsA
788	 33.95	0	808503..808988	+	161	22536973	-	SAG0809	-	hypothetical protein
789	 42.04	+1	809004..811622	+	872	22536974	alaS	SAG0810	-	alanyl-tRNA synthetase
790	 33.75	0	811704..812420	+	238	22536975	-	SAG0811	-	hypothetical protein
791	 32.23	0	812508..813326	+	272	22536976	-	SAG0812	-	glycosyl transferase family protein
792	 31.30	-1	813470..813715	+	81	22536977	-	SAG0813	-	hypothetical protein
793	 36.81	0	813754..814041	+	95	22536978	-	SAG0814	-	hypothetical protein
794	 33.33	0	814086..814301	+	71	22536979	-	SAG0815	-	Cro/CI family transcriptional regulator
795	 27.56	-2	814301..815062	+	253	22536980	-	SAG0816	-	hypothetical protein
796	 34.75	0	815147..815710	-	187	22536981	-	SAG0817	-	hypothetical protein
797	 35.31	0	815951..816910	-	319	22536982	nrdF	SAG0818	-	ribonucleotide-diphosphate reductase subunit beta
798	 35.79	0	817113..819272	-	719	22536983	nrdE-2	SAG0819	-	ribonucleotide-diphosphate reductase subunit alpha
799	 33.78	0	819350..819574	-	74	22536984	nrdH	SAG0820	-	ribonucleoside-diphosphate reductase 2, NrdH-redoxin
800	 40.53	+1	819957..820220	+	87	22536985	ptsH	SAG0821	-	phosphocarrier protein HPr
801	 40.20	+1	820225..821958	+	577	22536986	ptsI	SAG0822	-	phosphoenolpyruvate-protein phosphotransferase
802	 38.94	0	822108..823535	+	475	22536987	gapN	SAG0823	-	glyceraldehyde-3-phosphate dehydrogenase, NADP-dependent
803	 32.46	0	823675..824928	+	417	22536988	-	SAG0824	-	polysaccharide deacetylase family protein
804	 34.35	0	824961..826043	-	360	22536989	-	SAG0825	-	DEAD-box ATP dependent DNA helicase
805	 34.44	0	826188..826817	+	209	22536990	udk	SAG0826	-	uridine kinase
806	 33.73	0	826904..827401	+	165	22536991	-	SAG0827	-	hypothetical protein
807	 35.32	0	827401..829065	+	554	22536992	dnaX	SAG0828	-	DNA polymerase III subunits gamma and tau
808	 31.79	0	829154..829348	+	64	22536993	-	SAG0829	-	hypothetical protein
809	 34.72	0	829329..830264	-	311	22536994	-	SAG0830	-	biotin--protein ligase
810	 40.77	+1	830449..831645	+	398	22536995	metK	SAG0831	-	S-adenosylmethionine synthetase
35.44	MEAN

3.78	STD DEV
