IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

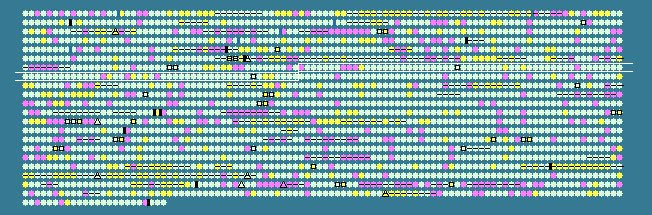

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
647	 31.70	0	650191..650496	+	101	22536832	-	SAG0665	-	acyl carrier protein AcpC
648	 35.22	0	650480..650956	+	158	22536833	-	SAG0666	-	cylZ protein
649	 33.44	0	650946..651875	+	309	22536834	cylA	SAG0667	-	cylA protein
650	 33.11	0	651868..652746	+	292	22536835	cylB	SAG0668	-	cylB protein
651	 32.29	0	652743..654746	+	667	22536836	cylE	SAG0669	-	cylE protein
652	 33.23	0	654743..655696	+	317	22536837	cylF	SAG0670	-	cylF protein
653	 36.25	0	655693..657888	+	731	22536838	cylI	SAG0671	-	cylI protein
654	 31.52	-1	657893..659104	+	403	22536839	cylJ	SAG0672	-	cylJ protein
655	 30.21	-1	659073..659648	+	191	22536840	cylK	SAG0673	-	cylK protein
656	 30.99	-1	659991..660332	+	113	22536841	-	SAG0674	-	hypothetical protein
657	 40.50	+1	660366..660881	+	171	22536842	-	SAG0675	-	secreted protein, putative
658	 36.16	0	660933..663590	+	885	22536843	-	SAG0676	-	proteinase, putative
659	 34.37	0	663693..666881	+	1062	22536844	-	SAG0677	-	hypothetical protein
660	 35.37	0	669128..670159	+	343	22536845	-	SAG0679	-	hypothetical protein
661	 36.08	0	670194..671213	+	339	22536846	-	SAG0680	-	hypothetical protein
662	 34.37	0	671248..672309	+	353	22536847	-	SAG0681	-	hypothetical protein
663	 34.55	0	672433..673662	+	409	22536848	-	SAG0682	-	permease, putative
664	 33.78	0	675121..675792	+	223	22536849	-	SAG0684	-	ABC transporter, ATP-binding protein
665	 35.24	0	675849..677267	-	472	22536850	-	SAG0685	-	hypothetical protein
666	 35.62	0	677555..678340	+	261	22536851	-	SAG0686	-	DNA-entry nuclease, putative
667	 35.37	0	678418..679056	-	212	22536852	-	SAG0687	-	DedA family protein, putative
668	 33.18	0	679273..679929	+	218	22536853	-	SAG0688	-	ABC transporter, ATP-binding protein
669	 32.69	0	679926..680699	+	257	22536854	-	SAG0689	-	hypothetical protein
670	 32.60	0	680863..681681	+	272	22536855	-	SAG0690	-	hypothetical protein
671	 34.01	0	681718..682602	-	294	22536856	-	SAG0691	-	LysR family transcriptional regulator
672	 38.49	0	682795..683376	+	193	22536857	-	SAG0692	-	regulatory protein, putative
673	 38.01	0	683390..684523	-	377	22536858	-	SAG0693	-	IS1548 transposase
674	 38.17	0	685192..686184	+	330	22536859	ldhA	SAG0695	-	D-lactate dehydrogenase
675	 34.24	0	686391..687941	+	516	22536860	-	SAG0696	-	sugar transporter, putative
676	 35.58	0	688008..689033	+	341	22536861	-	SAG0697	-	2-keto-3-deoxygluconate kinase
677	 35.39	0	689050..690849	+	599	22536862	-	SAG0698	-	beta-D-glucuronidase
678	 38.54	0	690878..691549	+	223	22536863	-	SAG0699	-	GntR family transcriptional regulator
679	 37.86	0	691666..692283	+	205	22536864	eda-1	SAG0700	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
680	 34.83	0	692300..693700	+	466	22536865	uxaC	SAG0701	-	glucuronate isomerase
681	 39.06	0	693718..694764	+	348	22536866	uxuA	SAG0702	-	mannonate dehydratase
682	 37.86	0	694888..695727	+	279	22536867	-	SAG0703	-	D-mannonate oxidoreductase
683	 36.65	0	695880..696692	+	270	22536868	-	SAG0704	-	HAD superfamily hydrolase
684	 39.36	+1	696708..698498	+	596	22536869	-	SAG0705	-	glycosy hydrolase family protein
685	 36.56	0	698556..699641	-	361	22536870	pepQ	SAG0706	-	proline dipeptidase
686	 38.51	0	699851..700855	+	334	22536871	-	SAG0707	-	RegM family transcriptional regulator
687	 35.24	0	700987..702453	+	488	22536872	-	SAG0708	-	cytoplasmic alpha-amylase
688	 36.74	0	702498..703496	+	332	22536873	-	SAG0709	-	glycosyl transferase, group 1 family protein
689	 35.88	0	703498..704832	+	444	22536874	-	SAG0710	-	glycosyl transferase, group 1 family protein
690	 38.12	0	705289..707232	+	647	22536875	thrS	SAG0711	-	threonyl-tRNA synthetase
691	 33.62	0	707454..708158	+	234	22536876	-	SAG0712	-	DNA-binding response regulator
692	 34.22	0	708256..709275	+	339	22536877	-	SAG0713	-	hypothetical protein
693	 31.39	-1	709443..710009	+	188	22536878	-	SAG0714	-	hypothetical protein
694	 32.26	0	710058..710708	-	216	22536879	-	SAG0715	-	amino acid ABC transporter, permease protein
695	 37.21	0	710720..711415	-	231	22536880	-	SAG0716	-	amino acid ABC transporter, permease protein
696	 34.71	0	711428..712228	-	266	22536881	-	SAG0717	-	amino acid ABC transporter, amino acid-binding protein
697	 36.38	0	712240..712995	-	251	22536882	-	SAG0718	-	amino acid ABC transporter, ATP-binding protein
698	 36.15	0	713335..714045	+	236	22536883	-	SAG0719	-	DNA-binding response regulator
699	 35.19	0	714038..715387	+	449	22536884	-	SAG0720	-	sensory box histidine kinase
700	 37.78	0	715391..716200	+	269	22536885	-	SAG0721	-	metallo-beta-lactamase superfamily protein
701	 33.88	0	716203..716571	+	122	22536886	-	SAG0722	-	hypothetical protein
702	 35.44	0	716723..717433	+	236	22536887	rnc	SAG0723	-	ribonuclease III
703	 35.59	0	717441..720980	+	1179	22536888	-	SAG0724	-	chromosome segregation SMC protein
704	 34.59	0	721071..721868	+	265	22536889	-	SAG0725	-	HAD superfamily hydrolase
705	 35.39	0	721868..722692	+	274	22536890	-	SAG0726	-	HAD superfamily hydrolase
706	 38.24	0	722692..724302	+	536	22536891	ftsY	SAG0727	-	signal recognition particle-docking protein FtsY
707	 33.46	0	724339..725151	-	270	22536892	-	SAG0728	-	hypothetical protein
708	 34.33	0	725151..726053	-	300	22536893	-	SAG0729	-	ABC transporter, permease protein, putative
709	 33.33	0	726059..726187	-	42	22536894	-	SAG0730	-	hypothetical protein
710	 38.89	0	726320..727363	+	347	22536895	-	SAG0731	-	luciferase family protein
711	 36.11	0	727468..729630	+	720	22536896	-	SAG0732	-	transcriptional accessory protein Tex, putative
712	 35.66	0	729623..730051	+	142	22536897	-	SAG0733	-	hypothetical protein
713	 37.50	0	730132..730395	+	87	22536898	-	SAG0734	-	phage shock protein C, putative
714	 31.85	0	730373..730507	+	44	22536899	-	SAG0735	-	hypothetical protein
715	 39.64	+1	730623..731558	+	311	22536900	hprK	SAG0736	-	HPr kinase/phosphorylase
716	 38.24	0	731551..732324	+	257	22536901	lgt	SAG0737	-	prolipoprotein diacylglyceryl transferase
717	 32.58	0	732339..732737	+	132	22536902	-	SAG0738	-	hypothetical protein
718	 30.09	-1	732734..733165	+	143	22536903	-	SAG0739	-	hypothetical protein
719	 39.49	+1	733206..733481	-	91	22536904	-	SAG0740	-	hypothetical protein
720	 35.31	0	733836..734747	+	303	22536905	-	SAG0741	-	hypothetical protein
721	 39.32	+1	734877..736163	+	428	22536906	-	SAG0742	-	U32 family peptidase
722	 33.33	0	736290..736502	+	70	22536907	-	SAG0743	-	hypothetical protein
723	 30.95	-1	736626..737423	+	265	22536908	-	SAG0744	-	hypothetical protein
724	 36.32	0	737525..738865	-	446	22536909	-	SAG0745	-	Mn2+/Fe2+ transporter
725	 36.22	0	739594..740703	+	369	22536910	ribD	SAG0746	-	riboflavin biosynthesis protein RibD
726	 37.17	0	740684..741334	+	216	161485615	ribE	SAG0747	-	riboflavin synthase subunit alpha
727	 37.02	0	741352..742545	+	397	22536912	ribA	SAG0748	-	riboflavin biosynthesis protein RibA
728	 35.88	0	742560..743030	+	156	22536913	ribH	SAG0749	-	riboflavin synthase, beta subunit
729	 38.70	0	743105..744595	-	496	22536914	lysS	SAG0750	-	lysyl-tRNA synthetase
730	 34.22	0	744770..745672	+	300	22536915	-	SAG0751	-	HAD superfamily hydrolase
731	 37.23	0	745708..746349	-	213	22536916	-	SAG0752	-	phosphoglycerate mutase family protein
732	 32.49	0	746371..746844	-	157	22536917	-	SAG0753	-	ebsC family protein, putative
733	 35.60	0	747139..747756	+	205	22536918	-	SAG0754	-	hypothetical protein
734	 33.92	0	747789..748637	-	282	22536919	-	SAG0755	-	U32 family peptidase
735	 33.90	0	748793..749317	+	174	22536920	-	SAG0756	-	hypothetical protein
736	 32.31	0	749301..749690	+	129	22536921	-	SAG0757	-	protein of unknown function/lipoprotein, putative
737	 36.33	0	749749..751548	-	599	22536922	-	SAG0758	-	oligoendopeptidase F, putative
738	 34.33	0	751757..754552	+	931	22536923	ppc	SAG0759	-	phosphoenolpyruvate carboxylase
739	 37.92	0	754678..755811	+	377	22536924	-	SAG0760	-	IS1548 transposase
740	 35.30	0	755984..757252	+	422	22536925	ftsW	SAG0761	-	cell cycle protein FtsW
741	 42.94	+1	757604..758800	+	398	22536926	tuf	SAG0762	-	elongation factor Tu
742	 41.50	+1	758981..759739	+	252	22536927	tpiA	SAG0763	-	triosephosphate isomerase
743	 38.67	0	759916..760608	+	230	22536928	-	SAG0764	-	phosphoglyceromutase
744	 35.97	0	760737..762782	+	681	22536929	-	SAG0765	-	penicillin-binding protein 2b
745	 36.35	0	762797..763393	+	198	22536930	recR	SAG0766	-	recombination protein RecR
746	 35.82	0	763534..764580	+	348	22536931	ddl	SAG0767	-	D-alanyl-alanine synthetase A
35.44	MEAN

3.78	STD DEV
