IslandPath Analysis: Streptococcus agalactiae 2603V/R

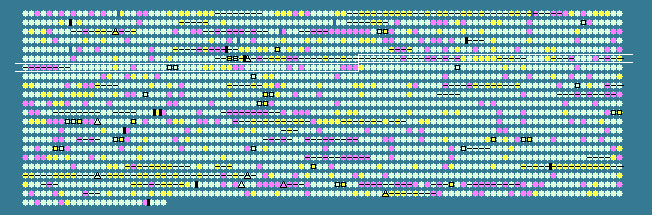

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
557	 32.92	0	567249..567731	+	160	22536742	-	SAG0564	-	hypothetical protein
558	 38.07	0	567732..568406	+	224	22536743	-	SAG0565	-	hypothetical protein
559	 37.41	0	568399..568815	+	138	22536744	ssb-2	SAG0566	-	prophage LambdaSa1, single-strand binding protein
560	 36.14	0	569396..570715	+	439	22536745	-	SAG0567	-	prophage LambdaSa1, reverse transcriptase/maturase family protein
561	 37.25	0	570841..571044	+	67	22536746	-	SAG0568	-	hypothetical protein
562	 36.27	0	571034..571510	+	158	22536747	-	SAG0569	-	hypothetical protein
563	 34.77	0	571500..571847	+	115	22536748	-	SAG0570	-	hypothetical protein
564	 29.55	-1	572165..572296	+	43	22536749	-	SAG0571	-	hypothetical protein
565	 35.97	0	572296..572712	+	138	22536750	-	SAG0572	-	hypothetical protein
566	 38.79	0	572709..572873	+	54	22536751	-	SAG0573	-	hypothetical protein
567	 38.15	0	572870..573139	+	89	22536752	-	SAG0574	-	hypothetical protein
568	 31.23	-1	573142..573474	+	110	22536753	-	SAG0575	-	hypothetical protein
569	 28.79	-1	573557..573688	+	43	22536754	-	SAG0576	-	hypothetical protein
570	 37.83	0	573781..574314	+	177	22536755	-	SAG0577	-	hypothetical protein
571	 26.22	-2	574311..574577	+	88	22536756	-	SAG0578	-	hypothetical protein
572	 36.83	0	574965..575393	+	142	22536757	-	SAG0579	-	hypothetical protein
573	 31.93	0	576505..576861	+	118	22536758	-	SAG0581	-	hypothetical protein
574	 41.29	+1	576858..578126	+	422	22536759	-	SAG0582	-	hypothetical protein
575	 36.94	0	578119..579339	+	406	22536760	-	SAG0583	-	hypothetical protein
576	 39.83	+1	579635..581050	+	471	22536761	-	SAG0585	-	hypothetical protein
577	 39.78	+1	581131..581595	+	154	22536762	-	SAG0586	-	hypothetical protein
578	 39.09	0	581598..582500	+	300	22536763	-	SAG0587	-	prophage LambdaSa1, structural protein, putative
579	 39.35	+1	582497..582712	+	71	22536764	-	SAG0588	-	hypothetical protein
580	 40.51	+1	582726..583157	+	143	22536765	-	SAG0589	-	hypothetical protein
581	 38.35	0	583108..583446	+	112	22536766	-	SAG0590	-	hypothetical protein
582	 41.77	+1	583439..583675	+	78	22536767	-	SAG0591	-	hypothetical protein
583	 35.42	0	583676..584011	+	111	22536768	-	SAG0592	-	hypothetical protein
584	 37.10	0	584021..584578	+	185	22536769	-	SAG0593	-	prophage LambdaSa1, structural protein
585	 36.18	0	584578..584823	+	81	22536770	-	SAG0594	-	hypothetical protein
586	 36.29	0	584838..585209	+	123	22536771	-	SAG0595	-	hypothetical protein
587	 38.70	0	585209..587221	+	670	22536772	-	SAG0596	-	prophage LambdaSa1, pblA protein, internal deletion
588	 38.99	0	587215..588735	+	506	22536773	-	SAG0597	-	prophage LambdaSa1, minor structural protein, putative
589	 39.83	+1	588736..592860	+	1374	22536774	-	SAG0598	-	prophage LambdaSa1, N-acetylmuramoyl-L-alanine amidase family protein
590	 36.57	0	592871..594877	+	668	22536775	-	SAG0599	-	prophage LambdaSa1, minor structural protein, putative
591	 33.64	0	594903..595232	+	109	22536776	-	SAG0600	-	hypothetical protein
592	 29.58	-1	595207..595419	+	70	22536777	-	SAG0601	-	hypothetical protein
593	 38.28	0	595432..595734	+	100	22536778	-	SAG0602	-	hypothetical protein
594	 33.93	0	595736..596071	+	111	22536779	-	SAG0603	-	hypothetical protein
595	 38.06	0	596073..596792	+	239	22536780	-	SAG0604	-	prophage LambdaSa1, lysin, putative
596	 29.32	-1	597125..598096	+	323	22536781	-	SAG0605	-	hypothetical protein
597	 35.82	0	598200..598400	+	66	22536782	-	SAG0606	-	hypothetical protein
598	 28.65	-1	598441..598611	-	56	22536783	-	SAG0607	-	hypothetical protein
599	 38.33	0	599028..599207	+	59	22536784	-	SAG0608	-	hypothetical protein
600	 40.74	+1	600190..600594	+	134	22536785	-	SAG0610	-	hypothetical protein
601	 34.57	0	601746..601907	-	53	22536786	-	SAG0612	-	hypothetical protein
602	 23.71	-2	602649..603926	+	425	22536787	vex1	SAG0613	-	transmembrane protein Vexp1
603	 29.68	-1	603936..604592	+	218	22536788	vex2	SAG0614	-	ABC transporter, ATP-binding protein Vexp2
604	 29.41	-1	604592..605968	+	458	22536789	vex3	SAG0615	-	transmembrane protein Vexp3
605	 26.91	-2	606065..606718	+	217	22536790	vncR	SAG0616	-	DNA-binding response regulator VncR
606	 22.27	-2	606715..608034	+	439	22536791	vncS	SAG0617	-	sensor histidine kinase VncS
607	 35.32	0	608911..609111	+	66	22536792	-	SAG0619	-	hypothetical protein
608	 35.98	0	609153..609341	+	62	22536793	-	SAG0620	-	hypothetical protein
609	 34.41	0	609766..610971	+	401	22536794	rodA	SAG0621	-	rod shape-determining protein RodA, putative
610	 33.87	0	611090..611650	+	186	22536795	-	SAG0622	-	HAD superfamily hydrolase
611	 37.79	0	611651..613603	+	650	22536796	gyrB	SAG0623	-	DNA gyrase subunit B
612	 34.90	0	613697..615421	+	574	22536797	-	SAG0624	-	septation ring formation regulator EzrA
613	 37.85	0	615515..616156	+	213	22536798	serB	SAG0625	-	phosphoserine phosphatase SerB
614	 35.60	0	616177..616662	-	161	22536799	-	SAG0626	-	MutT/nudix family protein
615	 33.33	0	616675..617130	-	151	22536800	-	SAG0627	-	hypothetical protein
616	 41.44	+1	617328..618635	+	435	22536801	eno	SAG0628	-	phosphopyruvate hydratase
617	 36.24	0	618743..619807	-	354	22536802	-	SAG0629	-	hypothetical protein
618	 38.55	0	620036..621319	+	427	22536803	aroA	SAG0630	-	3-phosphoshikimate 1-carboxyvinyltransferase
619	 30.99	-1	621312..621824	+	170	22536804	aroK	SAG0631	-	shikimate kinase
620	 35.30	0	621881..623254	+	457	22536805	-	SAG0632	-	psr protein
621	 35.03	0	623355..624710	+	451	22536806	-	SAG0633	-	RNA methyltransferase
622	 34.74	0	624827..625039	+	70	22536807	-	SAG0634	-	hypothetical protein
623	 34.82	0	625157..625894	+	245	22536808	aphA	SAG0635	-	acid phosphatase/phosphotransferase
624	 31.98	0	626215..626733	+	172	22536809	-	SAG0636	-	hypothetical protein
625	 32.36	0	628019..628840	-	273	22536810	-	SAG0639	-	IS5 family transposase orfB
626	 35.14	0	628888..629163	-	91	22536811	-	SAG0640	-	IS3 family transposase OrfA
627	 37.22	0	629519..629698	+	59	22536812	-	SAG0642	-	hypothetical protein
628	 35.40	0	630361..631569	-	402	22536813	-	SAG0644	-	AraC family transcriptional regulator
629	 36.04	0	631950..633614	+	554	22536814	-	SAG0645	-	cell wall surface anchor family protein
630	 38.85	0	633703..634626	+	307	22536815	-	SAG0646	-	cell wall surface anchor family protein
631	 41.94	+1	634628..635545	+	305	22536816	-	SAG0647	-	sortase family protein
632	 40.23	+1	635571..636353	+	260	22536817	-	SAG0648	-	sortase family protein
633	 33.37	0	636431..639103	+	890	22536818	-	SAG0649	-	cell wall surface anchor family protein, putative
634	 41.40	+1	639378..639947	+	189	22536819	-	SAG0650	-	sortase family protein
635	 42.08	+1	640196..640801	+	201	22536820	-	SAG0651	-	hypothetical protein
636	 26.67	-2	642197..642301	+	34	22536821	-	SAG0654	-	hypothetical protein
637	 27.01	-2	642734..642907	+	57	22536822	-	SAG0655	-	hypothetical protein
638	 33.33	0	643279..643389	-	36	22536823	-	SAG0656	-	hypothetical protein
639	 32.22	0	643420..643689	+	89	22536824	-	SAG0657	-	hypothetical protein
640	 34.03	0	643750..644901	+	383	22536825	-	SAG0658	-	putative lipoprotein
641	 36.05	0	645101..646093	+	330	22536826	-	SAG0659	-	ABC transporter, ATP-binding protein
642	 32.97	0	646096..646914	+	272	22536827	-	SAG0660	-	hypothetical protein
643	 32.95	0	646916..647701	+	261	22536828	-	SAG0661	-	hypothetical protein
644	 34.31	0	648326..648631	+	101	22536829	-	SAG0662	-	cylX protein
645	 31.92	0	648631..649479	+	282	22536830	cylD	SAG0663	-	cylD protein
646	 34.44	0	649476..650198	+	240	22536831	cylG	SAG0664	-	cylG protein
647	 31.70	0	650191..650496	+	101	22536832	-	SAG0665	-	acyl carrier protein AcpC
648	 35.22	0	650480..650956	+	158	22536833	-	SAG0666	-	cylZ protein
649	 33.44	0	650946..651875	+	309	22536834	cylA	SAG0667	-	cylA protein
650	 33.11	0	651868..652746	+	292	22536835	cylB	SAG0668	-	cylB protein
651	 32.29	0	652743..654746	+	667	22536836	cylE	SAG0669	-	cylE protein
652	 33.23	0	654743..655696	+	317	22536837	cylF	SAG0670	-	cylF protein
653	 36.25	0	655693..657888	+	731	22536838	cylI	SAG0671	-	cylI protein
654	 31.52	-1	657893..659104	+	403	22536839	cylJ	SAG0672	-	cylJ protein
655	 30.21	-1	659073..659648	+	191	22536840	cylK	SAG0673	-	cylK protein
656	 30.99	-1	659991..660332	+	113	22536841	-	SAG0674	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
