IslandPath Analysis: Streptococcus agalactiae 2603V/R

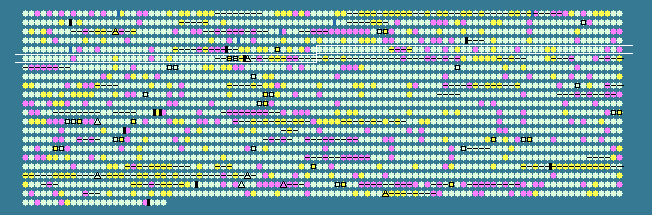

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
450	 34.64	0	468959..470032	+	357	22536635	-	SAG0455	-	hypothetical protein
451	 33.51	0	471508..472086	+	192	22536636	-	SAG0457	-	hypothetical protein
452	 37.04	0	472137..473243	+	368	22536637	-	SAG0458	-	hypothetical protein
453	 34.50	0	473243..473758	+	171	22536638	-	SAG0459	-	VanZF domain-containing protein
454	 37.06	0	473937..475682	+	581	22536639	-	SAG0460	-	ABC transporter, ATP-binding/permease protein
455	 35.11	0	475672..477411	+	579	22536640	-	SAG0461	-	ABC transporter, ATP-binding/permease protein
456	 36.51	0	477539..478105	+	188	22536641	trpG	SAG0462	-	anthranilate synthase component II
457	 38.33	0	478172..478711	-	179	22536642	-	SAG0463	-	BioY family protein
458	 37.16	0	478712..479704	-	330	22536643	bioB	SAG0464	-	biotin synthetase
459	 34.95	0	479828..480322	+	164	22536644	-	SAG0465	-	hypothetical protein
460	 36.47	0	480332..481447	+	371	22536645	-	SAG0466	-	thiolase
461	 35.28	0	481440..482669	+	409	22536646	-	SAG0467	-	AMP-binding domain-containing protein
462	 39.49	+1	482782..483414	+	210	22536647	nth	SAG0468	-	endonuclease III
463	 28.03	-1	483415..483810	-	131	22536648	-	SAG0469	-	type IV prepilin peptidase-related protein
464	 29.05	-1	483965..484174	+	69	22536649	-	SAG0470	-	hypothetical protein
465	 40.66	+1	484171..485139	+	322	22536650	glk	SAG0471	-	glucokinase
466	 37.53	0	485151..485531	+	126	22536651	-	SAG0472	-	rhodanese-like domain-containing protein
467	 38.60	0	485763..487604	+	613	22536652	-	SAG0473	-	elongation factor Tu family protein
468	 31.71	0	487649..487894	+	81	22536653	-	SAG0474	-	hypothetical protein
469	 36.80	0	488024..489379	+	451	22536654	murD	SAG0475	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
470	 33.43	0	489382..490458	+	358	22536655	murG	SAG0476	-	N-acetylglucosaminyl transferase
471	 31.66	0	490462..491598	+	378	22536656	-	SAG0477	-	cell division protein DivIB, putative
472	 38.37	0	491954..493243	+	429	22536657	ftsA	SAG0478	-	cell division protein FtsA
473	 40.05	+1	493265..494545	+	426	22536658	ftsZ	SAG0479	-	cell division protein FtsZ
474	 32.15	0	494551..495225	+	224	22536659	-	SAG0480	-	ylmE protein, putative
475	 37.95	0	495237..495842	+	201	22536660	ylmF	SAG0481	-	hypothetical protein
476	 29.80	-1	495845..496099	+	84	22536661	-	SAG0482	-	YGGT family protein
477	 33.46	0	496101..496889	+	262	22536662	ylmH	SAG0483	-	ylmH protein
478	 34.89	0	496899..497669	+	256	22536663	-	SAG0484	-	cell division protein DivIVA, putative
479	 39.28	+1	497954..500746	+	930	22536664	ileS	SAG0485	-	isoleucyl-tRNA synthetase
480	 32.01	0	500863..501165	-	100	22536665	-	SAG0486	-	hypothetical protein
481	 36.62	0	501229..501684	-	151	22536666	-	SAG0487	-	MutT/nudix family protein
482	 38.06	0	501870..504131	-	753	22536667	-	SAG0488	-	ATP-dependent Clp protease, ATP-binding subunit
483	 29.52	-1	504287..504391	+	34	22536668	-	SAG0489	-	hypothetical protein
484	 36.36	0	504429..504659	+	76	22536669	-	SAG0490	-	hypothetical protein
485	 33.91	0	504801..505493	+	230	22536670	-	SAG0491	-	amino acid ABC transporter, permease protein
486	 36.46	0	505486..506220	+	244	22536671	-	SAG0492	-	amino acid ABC transporter, ATP-binding protein
487	 36.05	0	506507..508201	+	564	22536672	-	SAG0493	-	phosphoglucomutase/phosphomannomutase family protein
488	 38.95	0	508340..509194	+	284	22536673	folD	SAG0494	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
489	 40.14	+1	509191..510027	+	278	22536674	-	SAG0495	-	hypothetical protein
490	 37.58	0	510153..511493	+	446	22536675	xseA	SAG0496	-	exodeoxyribonuclease VII large subunit
491	 35.19	0	511471..511686	+	71	22536676	xseB	SAG0497	-	exodeoxyribonuclease VII small subunit
492	 36.31	0	511686..512558	+	290	22536677	-	SAG0498	-	geranyltranstransferase, putative
493	 35.63	0	512551..513378	+	275	22536678	-	SAG0499	-	hemolysin A
494	 33.12	0	513365..513838	+	157	22536679	-	SAG0500	-	arginine repressor ArgR, putative
495	 34.06	0	513850..515508	+	552	22536680	recN	SAG0501	-	DNA repair protein RecN
496	 37.28	0	515621..516457	+	278	22536681	-	SAG0502	-	DegV family protein
497	 34.05	0	516450..517289	+	279	22536682	-	SAG0503	-	lipase/acylhydrolase
498	 30.18	-1	517264..517866	+	200	22536683	-	SAG0504	-	hypothetical protein
499	 38.04	0	517969..518244	+	91	22536684	hup	SAG0505	-	DNA-binding protein HU
500	 29.29	-1	518441..518638	+	65	22536685	-	SAG0506	-	hypothetical protein
501	 35.58	0	518682..519614	-	310	22536686	pyrDA	SAG0507	-	dihydroorotate dehydrogenase 1A
502	 35.28	0	519801..521036	-	411	22536687	fibB	SAG0508	-	beta-lactam resistance factor
503	 36.39	0	521055..522266	-	403	22536688	fibA	SAG0509	-	beta-lactam resistance factor
504	 35.87	0	522279..523499	-	406	22536689	-	SAG0510	-	murM protein, putative
505	 36.90	0	523499..524311	-	270	22536690	-	SAG0511	-	HAD superfamily hydrolase
506	 35.31	0	524382..525698	-	438	22536691	-	SAG0512	-	HD domain-containing protein
507	 34.63	0	525774..526160	+	128	22536692	-	SAG0513	-	hypothetical protein
508	 38.36	0	526504..529188	+	894	22536693	-	SAG0514	-	cation transporter E1-E2 family ATPase
509	 31.36	-1	529233..530093	-	286	22536694	-	SAG0515	-	hypothetical protein
510	 33.28	0	530245..532176	+	643	22536695	-	SAG0516	-	fructose-1,6-bisphosphatase, putative
511	 36.00	0	532266..533390	+	374	22536696	-	SAG0517	-	iron-sulfur cluster-binding protein, putative
512	 37.52	0	534576..535268	+	230	22536697	ftsE	SAG0519	-	cell division ABC transporter, ATP-binding protein FtsE
513	 33.66	0	535252..536181	+	309	22536698	ftsX	SAG0520	-	cell division ABC transporter, permease protein FtsX
514	 36.57	0	536234..536944	-	236	22536699	-	SAG0521	-	hypothetical protein
515	 36.19	0	536941..537639	-	232	22536700	-	SAG0522	-	metallo-beta-lactamase superfamily protein
516	 39.61	+1	537807..538571	+	254	22536701	-	SAG0523	-	acetoin reductase
517	 34.17	0	538679..541186	+	835	22536702	-	SAG0524	-	bifunctional ATP-dependent DNA helicase/DNA polymerase III subunit epsilon
518	 38.86	0	541272..542465	+	397	22536703	aspC	SAG0525	-	aspartate aminotransferase
519	 38.46	0	542486..543832	+	448	22536704	asnC	SAG0526	-	asparaginyl-tRNA synthetase
520	 35.48	0	543872..544429	-	185	22536705	-	SAG0527	-	hypothetical protein
521	 35.06	0	544426..545409	-	327	22536706	-	SAG0528	-	inosine-uridine preferring nucleoside hydrolase
522	 28.21	-1	545442..545558	-	38	22536707	-	SAG0529	-	hypothetical protein
523	 34.06	0	545655..546068	-	137	22536708	-	SAG0530	-	OsmC/Ohr family protein
524	 36.81	0	546222..547112	+	296	22536709	-	SAG0531	-	hypothetical protein
525	 38.97	0	547109..548083	+	324	22536710	-	SAG0532	-	hypothetical protein
526	 34.21	0	548080..548991	+	303	22536711	-	SAG0533	-	hypothetical protein
527	 37.48	0	549006..550403	+	465	22536712	-	SAG0534	-	dipeptidase
528	 34.98	0	550545..552065	+	506	22536713	-	SAG0535	-	zinc ABC transporter, zinc-binding adhesion liprotein
529	 37.16	0	552178..552438	-	86	22536714	rpmE2	SAG0536	-	50S ribosomal protein L31 type B
530	 37.93	0	552547..553482	-	311	22536715	-	SAG0537	-	DHH family protein
531	 36.95	0	553748..554770	+	340	22536716	-	SAG0538	-	adenosine deaminase
532	 37.84	0	554829..555272	+	147	22536717	-	SAG0539	-	flavodoxin
533	 32.25	0	555349..555624	+	91	22536718	-	SAG0540	-	hypothetical protein
534	 36.93	0	555617..556813	+	398	22536719	-	SAG0541	-	voltage-gated chloride channel family protein
535	 39.06	0	557266..557649	+	127	22536720	-	SAG0542	-	IS1381 transposase protein A
536	 38.46	0	557682..558071	+	129	22536721	-	SAG0543	-	IS1381 transposase protein B
537	 40.80	+1	558254..558601	+	115	22536722	rplS	SAG0544	-	50S ribosomal protein L19
538	 34.44	0	558826..559905	-	359	22536723	-	SAG0545	-	prophage LambdaSa1, site-specific recombinase phage integrase family protein
539	 37.25	0	560028..560231	-	67	22536724	-	SAG0546	-	hypothetical protein
540	 31.72	0	560334..560891	-	185	22536725	-	SAG0547	-	hypothetical protein
541	 35.46	0	560893..561690	-	265	22536726	-	SAG0548	-	prophage LambdaSa1, repressor protein, putative
542	 39.58	+1	562051..562194	+	47	22536727	-	SAG0549	-	hypothetical protein
543	 44.44	+2	562191..562415	-	74	22536728	-	SAG0550	-	hypothetical protein
544	 40.88	+1	562474..562632	+	52	22536729	-	SAG0551	-	hypothetical protein
545	 28.04	-1	562662..562850	+	62	22536730	-	SAG0552	-	hypothetical protein
546	 27.88	-1	562833..563639	-	268	22536731	-	SAG0553	-	hypothetical protein
547	 33.33	0	563691..563882	+	63	22536732	-	SAG0554	-	prophage LambdaSa1, Cro/CI family transcriptional regulator
548	 37.07	0	563950..564699	+	249	22536733	-	SAG0555	-	prophage LambdaSa1, antirepressor, putative
549	 37.50	0	564711..564854	+	47	22536734	-	SAG0556	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
