IslandPath Analysis: Streptococcus agalactiae 2603V/R

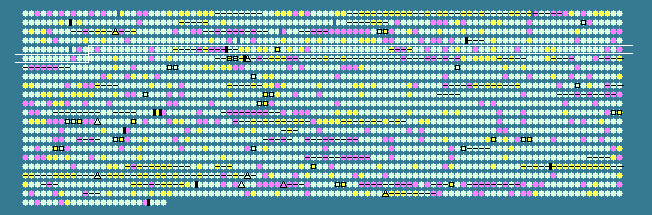

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
412	 33.33	0	426216..426677	+	153	22536597	-	SAG0414	-	hypothetical protein
413	 31.47	-1	426820..427248	+	142	22536598	-	SAG0415	-	acetyltransferase
414	 35.09	0	427436..431137	+	1233	22536599	-	SAG0416	-	protease, putative
415	 34.54	0	431347..432255	+	302	22536600	-	SAG0417	-	glycosyl transferase, group 2 family protein
416	 36.30	0	432807..433817	+	336	22536601	nrdF	SAG0418	-	ribonucleotide-diphosphate reductase subunit beta
417	 36.96	0	433818..434231	+	137	22536602	nrdI	SAG0419	-	ribonucleotide reductase stimulatory protein
418	 36.61	0	434233..436398	+	721	22536603	nrdE-1	SAG0420	-	ribonucleotide-diphosphate reductase subunit alpha
419	 35.32	0	436461..439628	+	1055	22536604	-	SAG0421	-	hypothetical protein
420	 37.18	0	439641..440030	+	129	22536605	-	SAG0422	-	hypothetical protein
421	 35.84	0	440074..440472	-	132	22536606	-	SAG0423	-	hypothetical protein
422	 31.23	-1	440744..441028	-	94	22536607	-	SAG0424	-	hypothetical protein
423	 34.91	0	441115..441432	-	105	22536608	-	SAG0425	-	carboxymuconolactone decarboxylase family protein
424	 37.88	0	441456..441851	-	131	22536609	-	SAG0426	-	hypothetical protein
425	 35.64	0	441861..442250	-	129	22536610	-	SAG0427	-	MerR family transcriptional regulator
426	 40.08	+1	442266..443303	-	345	22536611	-	SAG0428	-	alcohol dehydrogenase, zinc-containing
427	 33.57	0	443413..444267	-	284	22536612	-	SAG0429	-	aldo/keto reductase family oxidoreductase
428	 32.41	0	444352..445215	-	287	22536613	-	SAG0430	-	cation efflux system protein
429	 32.00	0	445347..445871	+	174	22536614	-	SAG0431	-	TetR family transcriptional regulator
430	 30.99	-1	446066..447259	-	397	22536615	-	SAG0432	-	AraC family transcriptional regulator
431	 41.68	+1	447507..451676	+	1389	22536616	-	SAG0433	-	surface protein Rib
432	 29.59	-1	452388..452681	+	97	22536617	-	SAG0435	-	DNA-damage-inducible protein J, putative
433	 28.04	-1	452678..452866	+	62	22536618	-	SAG0436	-	hypothetical protein
434	 25.81	-2	453019..453390	+	123	22536619	-	SAG0437	-	putative lipoprotein
435	 34.90	0	455763..456017	+	84	22536620	-	SAG0440	-	hypothetical protein
436	 37.50	0	456126..456437	+	103	22536621	-	SAG0441	-	hypothetical protein
437	 43.51	+2	456705..457274	+	189	22536622	-	SAG0442	-	acetyltransferase
438	 41.37	+1	457372..457956	+	194	22536623	-	SAG0443	-	acetyltransferase
439	 34.04	0	457953..458519	+	188	22536624	-	SAG0444	-	hypothetical protein
440	 41.74	+1	458519..461170	+	883	22536625	valS	SAG0445	-	valyl-tRNA synthetase
441	 39.90	+1	461341..462300	+	319	22536626	-	SAG0446	-	Gfo/Idh/MocA family oxidoreductase
442	 33.80	0	462461..463324	+	287	22536627	-	SAG0447	-	magnesium transporter CorA family protein
443	 40.99	+1	463371..464546	-	391	22536628	-	SAG0448	-	IS256 family transposase
444	 34.93	0	464852..465916	+	354	22536629	-	SAG0449	-	hypothetical protein
445	 39.27	+1	466030..467022	+	330	22536630	asnA	SAG0450	-	asparagine synthetase AsnA
446	 32.00	0	467067..467516	-	149	22536631	-	SAG0451	-	hypothetical protein
447	 39.07	0	467646..468185	+	179	22536632	-	SAG0452	-	type II DNA modification methyltransferase, putative
448	 31.96	0	468197..468487	+	96	22536633	-	SAG0453	-	hypothetical protein
449	 36.63	0	468484..468969	+	161	22536634	coaD	SAG0454	-	phosphopantetheine adenylyltransferase
450	 34.64	0	468959..470032	+	357	22536635	-	SAG0455	-	hypothetical protein
451	 33.51	0	471508..472086	+	192	22536636	-	SAG0457	-	hypothetical protein
452	 37.04	0	472137..473243	+	368	22536637	-	SAG0458	-	hypothetical protein
453	 34.50	0	473243..473758	+	171	22536638	-	SAG0459	-	VanZF domain-containing protein
454	 37.06	0	473937..475682	+	581	22536639	-	SAG0460	-	ABC transporter, ATP-binding/permease protein
455	 35.11	0	475672..477411	+	579	22536640	-	SAG0461	-	ABC transporter, ATP-binding/permease protein
456	 36.51	0	477539..478105	+	188	22536641	trpG	SAG0462	-	anthranilate synthase component II
457	 38.33	0	478172..478711	-	179	22536642	-	SAG0463	-	BioY family protein
458	 37.16	0	478712..479704	-	330	22536643	bioB	SAG0464	-	biotin synthetase
459	 34.95	0	479828..480322	+	164	22536644	-	SAG0465	-	hypothetical protein
460	 36.47	0	480332..481447	+	371	22536645	-	SAG0466	-	thiolase
461	 35.28	0	481440..482669	+	409	22536646	-	SAG0467	-	AMP-binding domain-containing protein
462	 39.49	+1	482782..483414	+	210	22536647	nth	SAG0468	-	endonuclease III
463	 28.03	-1	483415..483810	-	131	22536648	-	SAG0469	-	type IV prepilin peptidase-related protein
464	 29.05	-1	483965..484174	+	69	22536649	-	SAG0470	-	hypothetical protein
465	 40.66	+1	484171..485139	+	322	22536650	glk	SAG0471	-	glucokinase
466	 37.53	0	485151..485531	+	126	22536651	-	SAG0472	-	rhodanese-like domain-containing protein
467	 38.60	0	485763..487604	+	613	22536652	-	SAG0473	-	elongation factor Tu family protein
468	 31.71	0	487649..487894	+	81	22536653	-	SAG0474	-	hypothetical protein
469	 36.80	0	488024..489379	+	451	22536654	murD	SAG0475	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
470	 33.43	0	489382..490458	+	358	22536655	murG	SAG0476	-	N-acetylglucosaminyl transferase
471	 31.66	0	490462..491598	+	378	22536656	-	SAG0477	-	cell division protein DivIB, putative
472	 38.37	0	491954..493243	+	429	22536657	ftsA	SAG0478	-	cell division protein FtsA
473	 40.05	+1	493265..494545	+	426	22536658	ftsZ	SAG0479	-	cell division protein FtsZ
474	 32.15	0	494551..495225	+	224	22536659	-	SAG0480	-	ylmE protein, putative
475	 37.95	0	495237..495842	+	201	22536660	ylmF	SAG0481	-	hypothetical protein
476	 29.80	-1	495845..496099	+	84	22536661	-	SAG0482	-	YGGT family protein
477	 33.46	0	496101..496889	+	262	22536662	ylmH	SAG0483	-	ylmH protein
478	 34.89	0	496899..497669	+	256	22536663	-	SAG0484	-	cell division protein DivIVA, putative
479	 39.28	+1	497954..500746	+	930	22536664	ileS	SAG0485	-	isoleucyl-tRNA synthetase
480	 32.01	0	500863..501165	-	100	22536665	-	SAG0486	-	hypothetical protein
481	 36.62	0	501229..501684	-	151	22536666	-	SAG0487	-	MutT/nudix family protein
482	 38.06	0	501870..504131	-	753	22536667	-	SAG0488	-	ATP-dependent Clp protease, ATP-binding subunit
483	 29.52	-1	504287..504391	+	34	22536668	-	SAG0489	-	hypothetical protein
484	 36.36	0	504429..504659	+	76	22536669	-	SAG0490	-	hypothetical protein
485	 33.91	0	504801..505493	+	230	22536670	-	SAG0491	-	amino acid ABC transporter, permease protein
486	 36.46	0	505486..506220	+	244	22536671	-	SAG0492	-	amino acid ABC transporter, ATP-binding protein
487	 36.05	0	506507..508201	+	564	22536672	-	SAG0493	-	phosphoglucomutase/phosphomannomutase family protein
488	 38.95	0	508340..509194	+	284	22536673	folD	SAG0494	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
489	 40.14	+1	509191..510027	+	278	22536674	-	SAG0495	-	hypothetical protein
490	 37.58	0	510153..511493	+	446	22536675	xseA	SAG0496	-	exodeoxyribonuclease VII large subunit
491	 35.19	0	511471..511686	+	71	22536676	xseB	SAG0497	-	exodeoxyribonuclease VII small subunit
492	 36.31	0	511686..512558	+	290	22536677	-	SAG0498	-	geranyltranstransferase, putative
493	 35.63	0	512551..513378	+	275	22536678	-	SAG0499	-	hemolysin A
494	 33.12	0	513365..513838	+	157	22536679	-	SAG0500	-	arginine repressor ArgR, putative
495	 34.06	0	513850..515508	+	552	22536680	recN	SAG0501	-	DNA repair protein RecN
496	 37.28	0	515621..516457	+	278	22536681	-	SAG0502	-	DegV family protein
497	 34.05	0	516450..517289	+	279	22536682	-	SAG0503	-	lipase/acylhydrolase
498	 30.18	-1	517264..517866	+	200	22536683	-	SAG0504	-	hypothetical protein
499	 38.04	0	517969..518244	+	91	22536684	hup	SAG0505	-	DNA-binding protein HU
500	 29.29	-1	518441..518638	+	65	22536685	-	SAG0506	-	hypothetical protein
501	 35.58	0	518682..519614	-	310	22536686	pyrDA	SAG0507	-	dihydroorotate dehydrogenase 1A
502	 35.28	0	519801..521036	-	411	22536687	fibB	SAG0508	-	beta-lactam resistance factor
503	 36.39	0	521055..522266	-	403	22536688	fibA	SAG0509	-	beta-lactam resistance factor
504	 35.87	0	522279..523499	-	406	22536689	-	SAG0510	-	murM protein, putative
505	 36.90	0	523499..524311	-	270	22536690	-	SAG0511	-	HAD superfamily hydrolase
506	 35.31	0	524382..525698	-	438	22536691	-	SAG0512	-	HD domain-containing protein
507	 34.63	0	525774..526160	+	128	22536692	-	SAG0513	-	hypothetical protein
508	 38.36	0	526504..529188	+	894	22536693	-	SAG0514	-	cation transporter E1-E2 family ATPase
509	 31.36	-1	529233..530093	-	286	22536694	-	SAG0515	-	hypothetical protein
510	 33.28	0	530245..532176	+	643	22536695	-	SAG0516	-	fructose-1,6-bisphosphatase, putative
511	 36.00	0	532266..533390	+	374	22536696	-	SAG0517	-	iron-sulfur cluster-binding protein, putative
35.44	MEAN

3.78	STD DEV
