IslandPath Analysis: Streptococcus agalactiae 2603V/R

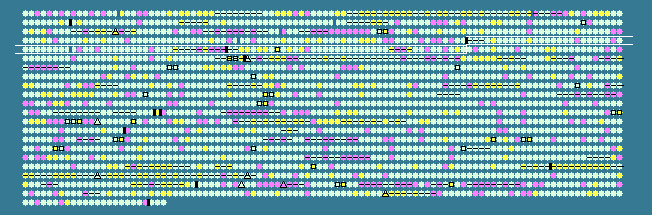

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
375	 37.24	0	385898..386281	+	127	22536560	-	SAG0377	-	hypothetical protein
376	 38.28	0	386317..387468	+	383	161485616	nusA	SAG0378	-	transcription elongation factor NusA
377	 35.35	0	387490..387786	+	98	22536562	-	SAG0379	-	hypothetical protein
378	 36.96	0	387779..388081	+	100	22536563	-	SAG0380	-	hypothetical protein
379	 39.87	+1	388101..390884	+	927	22536564	infB	SAG0381	-	translation initiation factor IF-2
380	 32.79	0	390975..391343	+	122	22536565	rbfA	SAG0382	-	ribosome-binding factor A
381	 37.31	0	391427..392431	-	334	22536566	-	SAG0383	-	protein of unknown function/lipoprotein, putative
382	 36.93	0	392595..393011	+	138	22536567	-	SAG0384	-	transcriptional repressor CopY
383	 36.69	0	393024..395258	+	744	22536568	-	SAG0385	-	copper-transporter ATPase CopA
384	 32.37	0	395299..395505	+	68	22536569	-	SAG0386	-	copper-transporter protein CopZ
385	 39.02	0	395615..396229	+	204	22536570	-	SAG0387	-	hypothetical protein
386	 34.07	0	396244..397056	+	270	22536571	-	SAG0388	-	HAD superfamily hydrolase
387	 35.19	0	397169..399811	+	880	22536572	polA	SAG0389	-	DNA polymerase I
388	 33.79	0	399841..400281	+	146	22536573	-	SAG0390	-	CoA-binding domain-containing protein
389	 37.71	0	400363..400842	+	159	22536574	-	SAG0391	-	FUR family transcriptional regulator
390	 35.63	0	400995..402560	+	521	22536575	-	SAG0392	-	cell wall surface anchor family protein
391	 34.35	0	402673..403359	+	228	22536576	-	SAG0393	-	DNA-binding response regulator
392	 32.08	0	403361..404398	+	345	22536577	-	SAG0394	-	sensor histidine kinase
393	 30.36	-1	404412..405152	-	246	22536578	-	SAG0395	-	hypothetical protein
394	 37.80	0	405339..406481	+	380	22536579	tgt	SAG0396	-	queuine tRNA-ribosyltransferase
395	 34.95	0	406591..406899	+	102	22536580	-	SAG0397	-	hypothetical protein
396	 36.67	0	406906..407445	+	179	22536581	-	SAG0398	-	BioY family protein
397	 36.94	0	407584..408360	+	258	22536582	-	SAG0399	-	AtsA/ElaC family protein
398	 35.90	0	408360..408866	+	168	22536583	-	SAG0400	-	cytidine/deoxycytidylate deaminase family protein
399	 23.70	-2	408968..409102	+	44	22536584	-	SAG0401	-	hypothetical protein
400	 38.37	0	409138..410487	+	449	22536585	pgi	SAG0402	-	glucose-6-phosphate isomerase
401	 32.39	0	410809..411336	+	175	22536586	-	SAG0403	-	5-formyltetrahydrofolate cyclo-ligase family protein
402	 33.48	0	411327..412004	+	225	22536587	-	SAG0404	-	rhomboid family protein
403	 36.78	0	412136..413179	+	347	22536588	-	SAG0405	-	protein of unknown function/lipoprotein, putative
404	 34.78	0	413270..414169	-	299	22536589	galU	SAG0406	-	UTP-glucose-1-phosphate uridylyltransferase
405	 37.17	0	414206..415222	-	338	22536590	gpsA	SAG0407	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
406	 32.42	0	415392..415721	+	109	22536591	rnpA	SAG0408	-	ribonuclease P
407	 34.93	0	415734..416549	+	271	22536592	-	SAG0409	-	SpoIIIJ family protein
408	 34.55	0	416557..417378	+	273	22536593	-	SAG0410	-	R3H domain-containing protein
409	 35.39	0	423100..423633	-	177	22536594	-	SAG0411	-	hypothetical protein
410	 27.54	-2	423717..424493	-	258	22536595	recX	SAG0412	-	recombination regulator RecX
411	 36.06	0	424592..425947	+	451	22536596	-	SAG0413	-	RNA methyltransferase
412	 33.33	0	426216..426677	+	153	22536597	-	SAG0414	-	hypothetical protein
413	 31.47	-1	426820..427248	+	142	22536598	-	SAG0415	-	acetyltransferase
414	 35.09	0	427436..431137	+	1233	22536599	-	SAG0416	-	protease, putative
415	 34.54	0	431347..432255	+	302	22536600	-	SAG0417	-	glycosyl transferase, group 2 family protein
416	 36.30	0	432807..433817	+	336	22536601	nrdF	SAG0418	-	ribonucleotide-diphosphate reductase subunit beta
417	 36.96	0	433818..434231	+	137	22536602	nrdI	SAG0419	-	ribonucleotide reductase stimulatory protein
418	 36.61	0	434233..436398	+	721	22536603	nrdE-1	SAG0420	-	ribonucleotide-diphosphate reductase subunit alpha
419	 35.32	0	436461..439628	+	1055	22536604	-	SAG0421	-	hypothetical protein
420	 37.18	0	439641..440030	+	129	22536605	-	SAG0422	-	hypothetical protein
421	 35.84	0	440074..440472	-	132	22536606	-	SAG0423	-	hypothetical protein
422	 31.23	-1	440744..441028	-	94	22536607	-	SAG0424	-	hypothetical protein
423	 34.91	0	441115..441432	-	105	22536608	-	SAG0425	-	carboxymuconolactone decarboxylase family protein
424	 37.88	0	441456..441851	-	131	22536609	-	SAG0426	-	hypothetical protein
425	 35.64	0	441861..442250	-	129	22536610	-	SAG0427	-	MerR family transcriptional regulator
426	 40.08	+1	442266..443303	-	345	22536611	-	SAG0428	-	alcohol dehydrogenase, zinc-containing
427	 33.57	0	443413..444267	-	284	22536612	-	SAG0429	-	aldo/keto reductase family oxidoreductase
428	 32.41	0	444352..445215	-	287	22536613	-	SAG0430	-	cation efflux system protein
429	 32.00	0	445347..445871	+	174	22536614	-	SAG0431	-	TetR family transcriptional regulator
430	 30.99	-1	446066..447259	-	397	22536615	-	SAG0432	-	AraC family transcriptional regulator
431	 41.68	+1	447507..451676	+	1389	22536616	-	SAG0433	-	surface protein Rib
432	 29.59	-1	452388..452681	+	97	22536617	-	SAG0435	-	DNA-damage-inducible protein J, putative
433	 28.04	-1	452678..452866	+	62	22536618	-	SAG0436	-	hypothetical protein
434	 25.81	-2	453019..453390	+	123	22536619	-	SAG0437	-	putative lipoprotein
435	 34.90	0	455763..456017	+	84	22536620	-	SAG0440	-	hypothetical protein
436	 37.50	0	456126..456437	+	103	22536621	-	SAG0441	-	hypothetical protein
437	 43.51	+2	456705..457274	+	189	22536622	-	SAG0442	-	acetyltransferase
438	 41.37	+1	457372..457956	+	194	22536623	-	SAG0443	-	acetyltransferase
439	 34.04	0	457953..458519	+	188	22536624	-	SAG0444	-	hypothetical protein
440	 41.74	+1	458519..461170	+	883	22536625	valS	SAG0445	-	valyl-tRNA synthetase
441	 39.90	+1	461341..462300	+	319	22536626	-	SAG0446	-	Gfo/Idh/MocA family oxidoreductase
442	 33.80	0	462461..463324	+	287	22536627	-	SAG0447	-	magnesium transporter CorA family protein
443	 40.99	+1	463371..464546	-	391	22536628	-	SAG0448	-	IS256 family transposase
444	 34.93	0	464852..465916	+	354	22536629	-	SAG0449	-	hypothetical protein
445	 39.27	+1	466030..467022	+	330	22536630	asnA	SAG0450	-	asparagine synthetase AsnA
446	 32.00	0	467067..467516	-	149	22536631	-	SAG0451	-	hypothetical protein
447	 39.07	0	467646..468185	+	179	22536632	-	SAG0452	-	type II DNA modification methyltransferase, putative
448	 31.96	0	468197..468487	+	96	22536633	-	SAG0453	-	hypothetical protein
449	 36.63	0	468484..468969	+	161	22536634	coaD	SAG0454	-	phosphopantetheine adenylyltransferase
450	 34.64	0	468959..470032	+	357	22536635	-	SAG0455	-	hypothetical protein
451	 33.51	0	471508..472086	+	192	22536636	-	SAG0457	-	hypothetical protein
452	 37.04	0	472137..473243	+	368	22536637	-	SAG0458	-	hypothetical protein
453	 34.50	0	473243..473758	+	171	22536638	-	SAG0459	-	VanZF domain-containing protein
454	 37.06	0	473937..475682	+	581	22536639	-	SAG0460	-	ABC transporter, ATP-binding/permease protein
455	 35.11	0	475672..477411	+	579	22536640	-	SAG0461	-	ABC transporter, ATP-binding/permease protein
456	 36.51	0	477539..478105	+	188	22536641	trpG	SAG0462	-	anthranilate synthase component II
457	 38.33	0	478172..478711	-	179	22536642	-	SAG0463	-	BioY family protein
458	 37.16	0	478712..479704	-	330	22536643	bioB	SAG0464	-	biotin synthetase
459	 34.95	0	479828..480322	+	164	22536644	-	SAG0465	-	hypothetical protein
460	 36.47	0	480332..481447	+	371	22536645	-	SAG0466	-	thiolase
461	 35.28	0	481440..482669	+	409	22536646	-	SAG0467	-	AMP-binding domain-containing protein
462	 39.49	+1	482782..483414	+	210	22536647	nth	SAG0468	-	endonuclease III
463	 28.03	-1	483415..483810	-	131	22536648	-	SAG0469	-	type IV prepilin peptidase-related protein
464	 29.05	-1	483965..484174	+	69	22536649	-	SAG0470	-	hypothetical protein
465	 40.66	+1	484171..485139	+	322	22536650	glk	SAG0471	-	glucokinase
466	 37.53	0	485151..485531	+	126	22536651	-	SAG0472	-	rhodanese-like domain-containing protein
467	 38.60	0	485763..487604	+	613	22536652	-	SAG0473	-	elongation factor Tu family protein
468	 31.71	0	487649..487894	+	81	22536653	-	SAG0474	-	hypothetical protein
469	 36.80	0	488024..489379	+	451	22536654	murD	SAG0475	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
470	 33.43	0	489382..490458	+	358	22536655	murG	SAG0476	-	N-acetylglucosaminyl transferase
471	 31.66	0	490462..491598	+	378	22536656	-	SAG0477	-	cell division protein DivIB, putative
472	 38.37	0	491954..493243	+	429	22536657	ftsA	SAG0478	-	cell division protein FtsA
473	 40.05	+1	493265..494545	+	426	22536658	ftsZ	SAG0479	-	cell division protein FtsZ
474	 32.15	0	494551..495225	+	224	22536659	-	SAG0480	-	ylmE protein, putative
35.44	MEAN

3.78	STD DEV
