IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

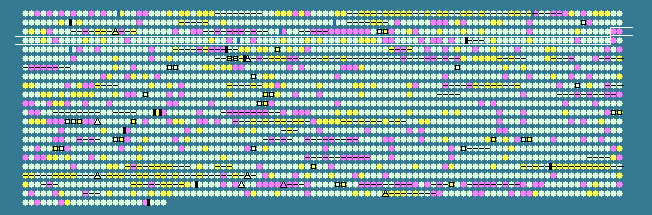

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
299	 31.41	-1	310678..311196	+	172	22536484	-	SAG0300	-	hypothetical protein
300	 26.02	-2	311177..311299	+	40	22536485	-	SAG0301	-	hypothetical protein
301	 33.33	0	311317..311649	+	110	22536486	-	SAG0302	-	hypothetical protein
302	 37.32	0	312119..313273	+	384	22536487	-	SAG0303	-	hypothetical protein
303	 35.38	0	313286..314749	+	487	22536488	-	SAG0304	-	hypothetical protein
304	 40.58	+1	314974..315456	-	160	22536489	luxS	SAG0305	-	S-ribosylhomocysteinase
305	 38.18	0	315645..317252	+	535	22536490	-	SAG0306	-	hypothetical protein
306	 21.57	-2	317299..317400	+	33	22536491	-	SAG0307	-	hypothetical protein
307	 36.01	0	317381..318277	+	298	22536492	-	SAG0308	-	ABC transporter, ATP-binding protein
308	 34.14	0	318264..319004	+	246	22536493	-	SAG0309	-	hypothetical protein
309	 32.50	0	319001..320086	+	361	22536494	-	SAG0310	-	hypothetical protein
310	 35.04	0	320728..321432	+	234	22536495	-	SAG0312	-	hypothetical protein
311	 40.00	+1	321599..322228	+	209	22536496	gmk	SAG0313	-	guanylate kinase
312	 37.46	0	322251..322565	+	104	22536497	-	SAG0314	-	DNA-directed RNA polymerase subunit omega
313	 35.59	0	322639..325029	+	796	22536498	priA	SAG0315	-	primosome assembly protein PriA
314	 39.53	+1	325076..326011	+	311	22536499	fmt	SAG0316	-	methionyl-tRNA formyltransferase
315	 36.13	0	326001..327323	+	440	22536500	sun	SAG0317	-	sun protein
316	 37.13	0	327361..328098	+	245	22536501	-	SAG0318	-	serine/threonine phosphatase, putative
317	 37.53	0	328098..330053	+	651	22536502	-	SAG0319	-	serine/threonine protein kinase
318	 30.17	-1	330214..330909	+	231	22536503	-	SAG0320	-	hypothetical protein
319	 33.24	0	330906..331925	+	339	22536504	-	SAG0321	-	sensor histidine kinase, putative
320	 35.98	0	331918..332559	+	213	22536505	-	SAG0322	-	DNA-binding response regulator
321	 37.54	0	332601..334001	+	466	22536506	-	SAG0323	-	peptidyl-prolyl cis-trans isomerase
322	 35.47	0	333985..334359	+	124	22536507	-	SAG0324	-	hypothetical protein
323	 35.65	0	334406..335182	-	258	22536508	pflA-1	SAG0325	-	pyruvate formate-lyase-activating enzyme
324	 35.19	0	335303..336058	+	251	22536509	-	SAG0326	-	DeoR family transcriptional regulator
325	 35.57	0	336177..337160	+	327	22536510	-	SAG0327	-	transcriptional regulator, putative
326	 34.57	0	337364..337687	+	107	22536511	celC	SAG0328	-	PTS system, cellobiose-specific IIA component
327	 34.27	0	337704..338024	+	106	22536512	-	SAG0329	-	PTS system, cellobiose-specific IIB component
328	 36.71	0	338026..339327	+	433	22536513	celB	SAG0330	-	PTS system, cellobiose-specific IIC component
329	 37.73	0	339508..341964	+	818	22536514	pflD-1	SAG0331	-	formate acetyltransferase
330	 38.57	0	341974..342642	+	222	22536515	-	SAG0332	-	fructose-6-phosphate aldolase
331	 38.48	0	342710..343798	+	362	22536516	gldA	SAG0333	-	glycerol dehydrogenase
332	 39.70	+1	343950..344876	-	308	22536517	cysK	SAG0334	-	cysteine synthase A
333	 38.29	0	344967..345611	-	214	22536518	-	SAG0335	-	hypothetical protein
334	 35.19	0	345667..346956	+	429	22536519	-	SAG0336	-	helicase, putative
335	 31.23	-1	346956..347621	+	221	22536520	-	SAG0337	-	competence protein F, putative
336	 33.33	0	347698..348252	+	184	22536521	yfiA	SAG0338	-	ribosomal subunit interface protein
337	 34.81	0	353792..355144	-	450	22536522	-	SAG0339	-	aspartate kinase
338	 32.26	0	355238..355888	+	216	22536523	-	SAG0340	-	HAD superfamily hydrolase
339	 24.00	-2	355874..356023	-	49	22536524	-	SAG0341	-	hypothetical protein
340	 35.61	0	356025..356816	+	263	22536525	-	SAG0342	-	enoyl-CoA hydratase
341	 33.10	0	356912..357346	+	144	22536526	-	SAG0343	-	MarR family transcriptional regulator
342	 35.91	0	357346..358317	+	323	22536527	fabH	SAG0344	-	3-oxoacyl-(acyl carrier protein) synthase III
343	 32.00	0	358375..358599	+	74	22536528	acpP	SAG0345	-	acyl carrier protein
344	 40.21	+1	358754..359713	+	319	22536529	fabK	SAG0346	-	enoyl-(acyl-carrier-protein) reductase II
345	 35.28	0	359733..360659	+	308	22536530	fabD	SAG0347	-	acyl-carrier-protein S-malonyltransferase
346	 37.14	0	360668..361402	+	244	22536531	fabG	SAG0348	-	3-ketoacyl-(acyl-carrier-protein) reductase
347	 38.28	0	361418..362650	+	410	22536532	fabF	SAG0349	-	3-oxoacyl-(acyl carrier protein) synthase II
348	 40.12	+1	362652..363152	+	166	22536533	accB	SAG0350	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
349	 35.70	0	363149..363571	+	140	22536534	fabZ	SAG0351	-	(3R)-hydroxymyristoyl-ACP dehydratase
350	 39.31	+1	363609..364979	+	456	22536535	accC	SAG0352	-	acetyl-CoA carboxylase biotin carboxylase subunit
351	 38.36	0	364988..365863	+	291	22536536	accD	SAG0353	-	acetyl-CoA carboxylase subunit beta
352	 38.50	0	365856..366629	+	257	22536537	accA	SAG0354	-	acetyl-CoA carboxylase subunit alpha
353	 37.91	0	367099..367731	+	210	22536538	-	SAG0355	-	hypothetical protein
354	 41.00	+1	367777..369054	-	425	22536539	serS	SAG0356	-	seryl-tRNA synthetase
355	 32.93	0	369420..370412	+	330	22536540	-	SAG0357	-	hypothetical protein
356	 32.78	0	370450..370812	-	120	22536541	-	SAG0358	-	hypothetical protein
357	 40.24	+1	370931..371842	-	303	22536542	-	SAG0359	-	PTS system, mannose-specific IID component
358	 43.30	+2	371857..372669	-	270	22536543	manM	SAG0360	-	PTS system, mannose-specific IIC component
359	 39.47	+1	372702..373712	-	336	22536544	manL	SAG0361	-	PTS system, mannose-specific IIAB components
360	 34.81	0	374015..374827	-	270	22536545	-	SAG0362	-	HAD superfamily hydrolase
361	 30.77	-1	374916..375500	+	194	22536546	-	SAG0363	-	hypothetical protein
362	 29.74	-1	375590..376201	+	203	22536547	-	SAG0364	-	hypothetical protein
363	 37.06	0	376304..377725	+	473	22536548	-	SAG0365	-	xanthine/uracil permease family protein
364	 37.06	0	377808..378317	+	169	22536549	-	SAG0366	-	hypothetical protein
365	 35.12	0	378271..378831	+	186	22536550	-	SAG0367	-	acetyltransferase
366	 33.87	0	378840..380147	+	435	22536551	-	SAG0368	-	hypothetical protein
367	 27.95	-1	380211..380507	-	98	22536552	-	SAG0369	-	hypothetical protein
368	 37.62	0	380504..380923	-	139	22536553	hit	SAG0370	-	HIT family protein
369	 28.37	-1	381259..381762	+	167	22536554	-	SAG0371	-	hypothetical protein
370	 30.62	-1	381814..382071	-	85	22536555	-	SAG0372	-	hypothetical protein
371	 34.57	0	382071..382796	+	241	22536556	-	SAG0373	-	ABC transporter, ATP-binding protein
372	 29.57	-1	382798..383832	+	344	22536557	-	SAG0374	-	ABC transporter, permease protein
373	 35.71	0	383890..384690	+	266	22536558	-	SAG0375	-	hypothetical protein
374	 35.53	0	384680..385315	+	211	22536559	trmB	SAG0376	-	tRNA (guanine-N(7))-methyltransferase
375	 37.24	0	385898..386281	+	127	22536560	-	SAG0377	-	hypothetical protein
376	 38.28	0	386317..387468	+	383	161485616	nusA	SAG0378	-	transcription elongation factor NusA
377	 35.35	0	387490..387786	+	98	22536562	-	SAG0379	-	hypothetical protein
378	 36.96	0	387779..388081	+	100	22536563	-	SAG0380	-	hypothetical protein
379	 39.87	+1	388101..390884	+	927	22536564	infB	SAG0381	-	translation initiation factor IF-2
380	 32.79	0	390975..391343	+	122	22536565	rbfA	SAG0382	-	ribosome-binding factor A
381	 37.31	0	391427..392431	-	334	22536566	-	SAG0383	-	protein of unknown function/lipoprotein, putative
382	 36.93	0	392595..393011	+	138	22536567	-	SAG0384	-	transcriptional repressor CopY
383	 36.69	0	393024..395258	+	744	22536568	-	SAG0385	-	copper-transporter ATPase CopA
384	 32.37	0	395299..395505	+	68	22536569	-	SAG0386	-	copper-transporter protein CopZ
385	 39.02	0	395615..396229	+	204	22536570	-	SAG0387	-	hypothetical protein
386	 34.07	0	396244..397056	+	270	22536571	-	SAG0388	-	HAD superfamily hydrolase
387	 35.19	0	397169..399811	+	880	22536572	polA	SAG0389	-	DNA polymerase I
388	 33.79	0	399841..400281	+	146	22536573	-	SAG0390	-	CoA-binding domain-containing protein
389	 37.71	0	400363..400842	+	159	22536574	-	SAG0391	-	FUR family transcriptional regulator
390	 35.63	0	400995..402560	+	521	22536575	-	SAG0392	-	cell wall surface anchor family protein
391	 34.35	0	402673..403359	+	228	22536576	-	SAG0393	-	DNA-binding response regulator
392	 32.08	0	403361..404398	+	345	22536577	-	SAG0394	-	sensor histidine kinase
393	 30.36	-1	404412..405152	-	246	22536578	-	SAG0395	-	hypothetical protein
394	 37.80	0	405339..406481	+	380	22536579	tgt	SAG0396	-	queuine tRNA-ribosyltransferase
395	 34.95	0	406591..406899	+	102	22536580	-	SAG0397	-	hypothetical protein
396	 36.67	0	406906..407445	+	179	22536581	-	SAG0398	-	BioY family protein
397	 36.94	0	407584..408360	+	258	22536582	-	SAG0399	-	AtsA/ElaC family protein
398	 35.90	0	408360..408866	+	168	22536583	-	SAG0400	-	cytidine/deoxycytidylate deaminase family protein
35.44	MEAN

3.78	STD DEV
