IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

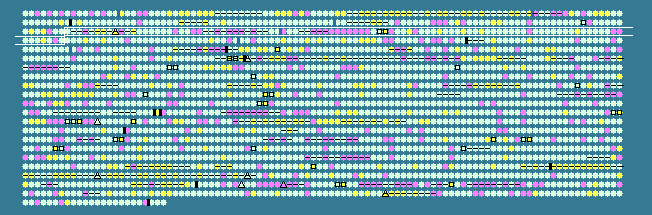

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
208	 37.57	0	227705..228460	+	251	22536393	-	SAG0209	-	RNA methyltransferase
209	 37.19	0	228457..228975	+	172	22536394	-	SAG0210	-	hypothetical protein
210	 37.86	0	229068..229928	+	286	22536395	-	SAG0211	-	DegV family protein
211	 28.28	-1	230061..230159	+	32	22536396	-	SAG0212	-	hypothetical protein
212	 34.17	0	230273..230392	+	39	22536397	-	SAG0213	-	hypothetical protein
213	 39.60	+1	230809..231255	+	148	22536398	rplM	SAG0214	-	50S ribosomal protein L13
214	 43.77	+2	231276..231668	+	130	22536399	rpsI	SAG0215	-	30S ribosomal protein S9
215	 35.29	0	231682..231783	-	33	22536400	-	SAG0216	-	hypothetical protein
216	 39.39	+1	231796..232950	-	384	22536401	-	SAG0217	-	phage integrase family site specific recombinase
217	 29.56	-1	233015..233491	-	158	22536402	-	SAG0218	-	Cro/CI family transcriptional regulator
218	 33.66	0	233645..233950	+	101	22536403	-	SAG0219	-	hypothetical protein
219	 42.29	+1	234087..234365	+	92	22536404	-	SAG0220	-	hypothetical protein
220	 34.20	0	234376..234606	+	76	22536405	-	SAG0221	-	hypothetical protein
221	 33.94	0	234619..234945	+	108	22536406	-	SAG0222	-	hypothetical protein
222	 35.87	0	234949..235578	+	209	22536407	-	SAG0223	-	hypothetical protein
223	 37.24	0	235768..236766	+	332	22536408	-	SAG0224	-	replication initiation protein, putative
224	 34.48	0	236802..237236	+	144	22536409	-	SAG0225	-	hypothetical protein
225	 33.41	0	237552..238808	+	418	22536410	-	SAG0226	-	recombination protein
226	 31.63	-1	238976..239446	+	156	22536411	-	SAG0227	-	hypothetical protein
227	 34.52	0	239751..240086	-	111	22536412	-	SAG0228	-	hypothetical protein
228	 33.68	0	240076..240363	-	95	22536413	-	SAG0229	-	hypothetical protein
229	 31.62	-1	240870..241160	+	96	22536414	-	SAG0230	-	hypothetical protein
230	 25.25	-2	241262..241669	+	135	22536415	-	SAG0231	-	hypothetical protein
231	 33.69	0	241669..242229	+	186	22536416	-	SAG0232	-	hypothetical protein
232	 33.04	0	242202..242882	+	226	22536417	-	SAG0233	-	hypothetical protein
233	 29.20	-1	242867..243253	+	128	22536418	-	SAG0234	-	hypothetical protein
234	 32.62	0	243287..243568	+	93	22536419	-	SAG0235	-	hypothetical protein
235	 19.19	-2	243659..243757	+	32	22536420	-	SAG0236	-	hypothetical protein
236	 28.57	-1	244185..244289	+	34	22536421	-	SAG0237	-	hypothetical protein
237	 23.81	-2	244286..244411	+	41	22536422	-	SAG0238	-	hypothetical protein
238	 33.57	0	244411..245271	+	286	22536423	-	SAG0239	-	MutR family transcriptional regulator
239	 31.64	-1	245344..246525	+	393	22536424	-	SAG0240	-	transporter, putative
240	 38.01	0	246587..247228	-	213	22536425	-	SAG0241	-	amino acid ABC transporter, permease protein
241	 34.52	0	247238..248164	-	308	22536426	-	SAG0242	-	amino acid ABC transporter, amino acid-binding protein
242	 35.38	0	248167..248802	-	211	22536427	-	SAG0243	-	amino acid ABC transporter, permease protein
243	 35.69	0	248802..249947	-	381	22536428	-	SAG0244	-	amino acid ABC transporter, ATP-binding protein
244	 29.85	-1	256634..257092	+	152	22536429	-	SAG0245	-	protein of unknown function/lipoprotein, putative
245	 37.55	0	257156..257962	+	268	22536430	-	SAG0246	-	hypothetical protein
246	 35.90	0	258440..258790	+	116	22536431	-	SAG0247	-	hypothetical protein
247	 37.73	0	258809..259081	+	90	22536432	-	SAG0248	-	hypothetical protein
248	 33.33	0	259091..259441	+	116	22536433	-	SAG0249	-	hypothetical protein
249	 27.66	-2	260302..260883	+	193	22536434	-	SAG0250	-	hypothetical protein
250	 31.51	-1	260886..261104	+	72	22536435	-	SAG0251	-	Cro/CI family transcriptional regulator
251	 30.48	-1	261677..262237	+	186	22536436	-	SAG0252	-	acetyltransferase
252	 28.50	-1	262337..262915	+	192	22536437	-	SAG0253	-	acetyltransferase
253	 30.98	-1	262958..263638	+	226	22536438	-	SAG0254	-	acetyltransferase
254	 28.16	-1	263898..264845	-	315	22536439	-	SAG0255	-	hypothetical protein
255	 26.42	-2	264842..265333	-	163	22536440	-	SAG0256	-	ECF subfamily RNA polymerase sigma factor
256	 29.63	-1	265617..265778	+	53	22536441	-	SAG0257	-	putative lipoprotein
257	 28.41	-1	265913..266521	-	202	22536442	-	SAG0258	-	TetR family transcriptional regulator
258	 30.69	-1	266545..267642	-	365	22536443	-	SAG0259	-	ABC transporter
259	 33.61	0	267645..268361	-	238	22536444	-	SAG0260	-	ABC transporter, ATP-binding protein
260	 38.46	0	268657..269046	-	129	22536445	-	SAG0261	-	IS1381 transposase protein B
261	 39.06	0	269079..269462	-	127	22536446	-	SAG0262	-	IS1381 transposase protein A
262	 29.46	-1	269498..270013	-	171	22536447	-	SAG0263	-	hypothetical protein
263	 34.29	0	270190..270501	-	103	22536448	-	SAG0264	-	hypothetical protein
264	 34.60	0	270693..271400	+	235	22536449	-	SAG0265	-	hypothetical protein
265	 40.47	+1	271678..272826	+	382	22536450	nagA	SAG0266	-	N-acetylglucosamine-6-phosphate deacetylase
266	 29.47	-1	272945..273487	+	180	22536451	-	SAG0267	-	hypothetical protein
267	 38.58	0	273800..274714	+	304	22536452	glyQ	SAG0268	-	glycyl-tRNA synthetase subunit alpha
268	 32.24	0	274714..275355	+	213	22536453	-	SAG0269	-	acyl carrier protein phosphodiesterase, putative
269	 36.62	0	275359..277398	+	679	22536454	glyS	SAG0270	-	glycyl-tRNA synthetase subunit beta
270	 40.31	+1	277410..277667	+	85	22536455	-	SAG0271	-	hypothetical protein
271	 32.95	0	277756..278019	+	87	22536456	-	SAG0272	-	hypothetical protein
272	 38.57	0	278134..279642	+	502	22536457	glpK	SAG0273	-	glycerol kinase
273	 38.25	0	279655..281484	+	609	22536458	-	SAG0274	-	alpha-glycerophosphate oxidase
274	 39.77	+1	281496..282194	+	232	22536459	glpF-1	SAG0275	-	glycerol uptake facilitator protein
275	 36.25	0	282282..283619	+	445	22536460	-	SAG0276	-	NADH oxidase, putative
276	 32.84	0	283610..285040	+	476	22536461	-	SAG0277	-	hypothetical protein
277	 41.29	+1	285165..287150	+	661	22536462	tkt	SAG0278	-	transketolase
278	 33.99	0	287363..287668	+	101	22536463	-	SAG0279	-	hypothetical protein
279	 34.97	0	287688..288422	+	244	22536464	-	SAG0280	-	ABC transporter, ATP-binding protein
280	 32.40	0	288426..290030	+	534	22536465	-	SAG0281	-	hypothetical protein
281	 37.09	0	290238..291623	-	461	22536466	-	SAG0282	-	PTS system, IIBC components
282	 36.07	0	291764..292567	+	267	22536467	proB	SAG0283	-	gamma-glutamyl kinase
283	 37.40	0	292577..293830	+	417	22536468	proA	SAG0284	-	gamma-glutamyl phosphate reductase
284	 37.55	0	293913..294860	+	315	161485617	mraW	SAG0285	-	S-adenosyl-methyltransferase MraW
285	 31.19	-1	294875..295201	+	108	22536470	-	SAG0286	-	cell division protein FtsL, putative
286	 36.74	0	295205..297463	+	752	22536471	pbpX	SAG0287	-	penicillin-binding protein 2X
287	 34.92	0	297465..298475	+	336	22536472	mraY	SAG0288	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
288	 36.98	0	298573..299916	+	447	22536473	-	SAG0289	-	DEAD-box ATP dependent DNA helicase
289	 32.60	0	300054..300866	+	270	22536474	-	SAG0290	-	ABC transporter, substrate-binding protein
290	 37.19	0	300961..301764	+	267	22536475	-	SAG0291	-	amino acid ABC transporter, permease protein
291	 35.48	0	301764..302507	+	247	22536476	-	SAG0292	-	amino acid ABC transporter, ATP-binding protein
292	 34.22	0	302629..302853	+	74	22536477	-	SAG0293	-	hypothetical protein
293	 39.67	+1	302922..303836	+	304	22536478	trxB	SAG0294	-	thioredoxin reductase
294	 36.96	0	303994..305454	+	486	22536479	-	SAG0295	-	nicotinate phosphoribosyltransferase
295	 36.98	0	305451..306272	+	273	22536480	nadE	SAG0296	-	NAD synthetase
296	 35.96	0	306385..307719	+	444	22536481	pepC	SAG0297	-	aminopeptidase C
297	 37.59	0	307765..310017	-	750	22536482	pbp1A	SAG0298	-	penicillin-binding protein 1A
298	 34.50	0	310004..310603	-	199	22536483	recU	SAG0299	-	Holliday junction-specific endonuclease
299	 31.41	-1	310678..311196	+	172	22536484	-	SAG0300	-	hypothetical protein
300	 26.02	-2	311177..311299	+	40	22536485	-	SAG0301	-	hypothetical protein
301	 33.33	0	311317..311649	+	110	22536486	-	SAG0302	-	hypothetical protein
302	 37.32	0	312119..313273	+	384	22536487	-	SAG0303	-	hypothetical protein
303	 35.38	0	313286..314749	+	487	22536488	-	SAG0304	-	hypothetical protein
304	 40.58	+1	314974..315456	-	160	22536489	luxS	SAG0305	-	S-ribosylhomocysteinase
305	 38.18	0	315645..317252	+	535	22536490	-	SAG0306	-	hypothetical protein
306	 21.57	-2	317299..317400	+	33	22536491	-	SAG0307	-	hypothetical protein
307	 36.01	0	317381..318277	+	298	22536492	-	SAG0308	-	ABC transporter, ATP-binding protein
35.44	MEAN

3.78	STD DEV
