IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

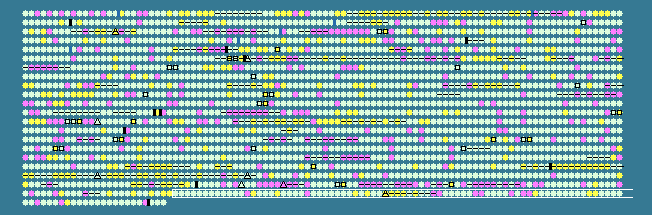

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2026	 38.68	0	2058317..2059120	-	267	22538211	-	SAG2076	-	ABC transporter, ATP-binding protein
2027	 36.01	0	2059125..2060021	-	298	22538212	-	SAG2077	-	ABC transporter, permease protein
2028	 35.20	0	2060037..2060999	-	320	22538213	-	SAG2078	-	protein of unknown function/lipoprotein, putative
2029	 34.46	0	2061464..2062261	-	265	22538214	-	SAG2079	-	HAD superfamily hydrolase
2030	 34.49	0	2062447..2063307	+	286	22538215	-	SAG2080	-	glyoxalase family protein
2031	 32.38	0	2063350..2064081	+	243	22538216	-	SAG2081	-	hypothetical protein
2032	 37.06	0	2064438..2065055	-	205	22538217	nrdG	SAG2082	-	anaerobic ribonucleoside-triphosphate reductase activating protein
2033	 35.57	0	2065128..2065619	-	163	22538218	-	SAG2083	-	acetyltransferase
2034	 36.23	0	2065628..2066560	-	310	22538219	-	SAG2084	-	virulence factor MviM, putative
2035	 34.72	0	2066573..2066716	-	47	22538220	-	SAG2085	-	hypothetical protein
2036	 36.60	0	2066791..2068962	-	723	22538221	nrdD	SAG2086	-	anaerobic ribonucleoside triphosphate reductase
2037	 31.99	0	2069088..2070575	-	495	22538222	-	SAG2087	-	hypothetical protein
2038	 31.71	0	2070675..2070797	-	40	22538223	-	SAG2088	-	hypothetical protein
2039	 38.99	0	2070879..2071196	-	105	22538224	-	SAG2089	-	hypothetical protein
2040	 37.71	0	2071222..2071632	-	136	22538225	-	SAG2090	-	Holliday junction resolvase-like protein
2041	 33.71	0	2071641..2071907	-	88	22538226	-	SAG2091	-	hypothetical protein
2042	 32.33	0	2072109..2072507	-	132	22538227	spxA	SAG2092	-	transcriptional regulator Spx
2043	 39.65	+1	2072723..2073862	-	379	22538228	recA	SAG2093	-	recombinase A
2044	 34.78	0	2075285..2075836	-	183	22538229	tag	SAG2095	-	DNA-3-methyladenine glycosylase I
2045	 35.36	0	2075859..2076449	-	196	22538230	ruvA	SAG2096	-	Holliday junction DNA helicase motor protein
2046	 35.48	0	2076451..2077707	-	418	22538231	-	SAG2097	-	transporter, putative
2047	 35.71	0	2077715..2079694	-	659	22538232	mutL	SAG2098	-	DNA mismatch repair protein
2048	 23.53	-2	2079819..2079920	-	33	22538233	-	SAG2099	-	hypothetical protein
2049	 34.80	0	2079914..2080117	+	67	22538234	-	SAG2100	-	CSD family cold shock protein
2050	 37.76	0	2080174..2082750	-	858	22538235	hexA	SAG2101	-	DNA mismatch repair protein
2051	 35.39	0	2082807..2083244	-	145	22538236	-	SAG2102	-	arginine repressor ArgR, putative
2052	 38.12	0	2083466..2085157	+	563	22538237	argS	SAG2103	-	arginyl-tRNA synthetase
2053	 35.28	0	2085245..2085553	+	102	22538238	-	SAG2104	-	hypothetical protein
2054	 35.17	0	2085580..2086452	-	290	22538239	-	SAG2105	-	hypothetical protein
2055	 33.23	0	2086560..2087504	-	314	22538240	-	SAG2106	-	hypothetical protein
2056	 39.44	+1	2087494..2089245	-	583	22538241	aspS	SAG2107	-	aspartyl-tRNA synthetase
2057	 35.91	0	2089338..2090618	-	426	22538242	hisS	SAG2108	-	histidyl-tRNA synthetase
2058	 40.98	+1	2090838..2091020	+	60	22538243	rpmF	SAG2109	-	50S ribosomal protein L32
2059	 34.00	0	2091036..2091185	+	49	22538244	rpmG	SAG2110	-	50S ribosomal protein L33
2060	 36.21	0	2091333..2091854	-	173	22538245	-	SAG2111	-	hypothetical protein
2061	 40.67	+1	2091952..2093436	-	494	22538246	-	SAG2112	-	phage integrase family site specific recombinase
2062	 42.97	+1	2093446..2093694	-	82	22538247	-	SAG2113	-	hypothetical protein
2063	 41.50	+1	2093760..2094788	-	342	22538248	-	SAG2114	-	hypothetical protein
2064	 39.58	+1	2094791..2095222	-	143	22538249	-	SAG2115	-	hypothetical protein
2065	 38.16	0	2095498..2095953	-	151	22538250	-	SAG2116	-	hypothetical protein
2066	 40.28	+1	2095953..2096168	-	71	22538251	-	SAG2117	-	hypothetical protein
2067	 35.18	0	2096491..2097411	+	306	22538252	-	SAG2118	-	Cro/CI family transcriptional regulator
2068	 34.85	0	2097432..2098553	+	373	22538253	-	SAG2119	-	hypothetical protein
2069	 30.99	-1	2098781..2099590	+	269	22538254	-	SAG2120	-	hypothetical protein
2070	 30.51	-1	2100041..2100712	+	223	22538255	-	SAG2121	-	hypothetical protein
2071	 36.01	0	2100797..2101468	+	223	22538256	-	SAG2122	-	DNA-binding response regulator
2072	 32.89	0	2101452..2102816	+	454	22538257	-	SAG2123	-	sensor histidine kinase
2073	 36.16	0	2102926..2104479	-	517	22538258	-	SAG2124	-	hypothetical protein
2074	 37.22	0	2104573..2105499	-	308	22538259	arcC-1	SAG2125	-	carbamate kinase
2075	 37.64	0	2105511..2106509	-	332	22538260	argF-1	SAG2126	-	ornithine carbamoyltransferase
2076	 30.94	-1	2106612..2107907	+	431	22538261	-	SAG2127	-	sensor histidine kinase
2077	 29.74	-1	2107904..2108737	+	277	22538262	-	SAG2128	-	response regulator
2078	 38.59	0	2108959..2109681	+	240	22538263	-	SAG2129	-	amino acid ABC transporter, ATP-binding protein
2079	 34.92	0	2109684..2111198	+	504	22538264	-	SAG2130	-	amino acid ABC transporter, amino acid-binding protein/permease protein
2080	 34.16	0	2111277..2113820	-	847	22538265	-	SAG2131	-	hypothetical protein
2081	 34.54	0	2113801..2114544	-	247	22538266	-	SAG2132	-	hypothetical protein
2082	 29.69	-1	2114678..2115034	-	118	22538267	-	SAG2133	-	hypothetical protein
2083	 36.05	0	2115101..2117419	-	772	22538268	-	SAG2134	-	hypothetical protein
2084	 31.48	-1	2117558..2118097	+	179	22538269	-	SAG2135	-	TetR family transcriptional regulator
2085	 31.65	-1	2118183..2118479	-	98	22538270	-	SAG2136	-	hypothetical protein
2086	 40.52	+1	2118723..2119334	-	203	22538271	rpsD	SAG2137	-	30S ribosomal protein S4
2087	 34.38	0	2119664..2119951	-	95	22538272	-	SAG2138	-	hypothetical protein
2088	 37.46	0	2119963..2121318	-	451	22538273	dnaC-2	SAG2139	-	replicative DNA helicase
2089	 34.66	0	2121361..2121813	-	150	22538274	rplI	SAG2140	-	50S ribosomal protein L9
2090	 33.33	0	2121819..2123801	-	660	22538275	-	SAG2141	-	DHH family protein
2091	 38.22	0	2123868..2125709	-	613	22538276	gidA	SAG2142	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2092	 34.31	0	2125938..2126549	-	203	22538277	-	SAG2143	-	hypothetical protein
2093	 37.25	0	2126581..2127702	-	373	22538278	trmU	SAG2144	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2094	 34.38	0	2127948..2128616	+	222	22538279	sdhB	SAG2145	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
2095	 41.70	+1	2128631..2129503	+	290	22538280	sdhA	SAG2146	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
2096	 40.28	+1	2129638..2130342	-	234	22538281	-	SAG2147	-	protein of unknown function/lipoprotein, putative
2097	 36.48	0	2130448..2130987	-	179	22538282	-	SAG2148	-	LysM domain-containing protein
2098	 34.59	0	2131203..2131997	-	264	22538283	-	SAG2149	-	cobalt transport family protein
2099	 35.82	0	2131990..2132832	-	280	22538284	-	SAG2150	-	cobalt transporter ATP-binding subunit
2100	 37.62	0	2132808..2133647	-	279	22538285	-	SAG2151	-	cobalt transporter ATP-binding subunit
2101	 34.25	0	2133647..2134189	-	180	22538286	pgsA	SAG2152	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2102	 32.71	0	2134312..2135595	-	427	22538287	-	SAG2153	-	M16 family peptidase
2103	 30.44	-1	2135597..2136841	-	414	22538288	-	SAG2154	-	hypothetical protein
2104	 33.05	0	2137080..2137433	+	117	22538289	-	SAG2155	-	hypothetical protein
2105	 32.61	0	2137436..2138545	+	369	22538290	recF	SAG2156	-	recombination protein F
2106	 37.16	0	2138557..2139393	-	278	22538291	-	SAG2157	-	transporter, putative
2107	 29.71	-1	2139479..2140141	-	220	22538292	-	SAG2158	-	Cro/CI family transcriptional regulator
2108	 39.74	+1	2140216..2141697	-	493	22538293	guaB	SAG2159	-	inositol-5-monophosphate dehydrogenase
2109	 35.19	0	2141854..2142339	-	161	22538294	-	SAG2160	-	ArgR family transcriptional regulator
2110	 32.89	0	2142349..2143029	-	226	22538295	-	SAG2161	-	Crp/FNR family transcriptional regulator
2111	 33.05	0	2143237..2143941	+	234	22538296	-	SAG2162	-	hypothetical protein
2112	 37.15	0	2144208..2145440	+	410	22538297	arcA	SAG2163	-	arginine deiminase
2113	 35.52	0	2145467..2145877	+	136	22538298	-	SAG2164	-	acetyltransferase
2114	 38.46	0	2145893..2146906	+	337	22538299	argF-2	SAG2165	-	ornithine carbamoyltransferase
2115	 35.29	0	2146969..2148396	+	475	22538300	arcD	SAG2166	-	arginine/ornithine antiporter
2116	 37.41	0	2148417..2149373	+	318	22538301	arcC-2	SAG2167	-	carbamate kinase
2117	 35.28	0	2149483..2150508	-	341	22538302	trpS	SAG2168	-	tryptophanyl-tRNA synthetase II
2118	 32.18	0	2150616..2151308	-	230	22538303	-	SAG2169	-	hypothetical protein
2119	 34.94	0	2151552..2152424	+	290	22538304	-	SAG2170	-	hypothetical protein
2120	 36.17	0	2152490..2154109	+	539	22538305	-	SAG2171	-	ABC transporter, ATP-binding protein
2121	 30.16	-1	2154232..2156811	+	859	22538306	-	SAG2172	-	hypothetical protein
2122	 32.50	0	2157390..2157869	-	159	22538307	-	SAG2173	-	SPOUT methyltransferase superfamily protein
2123	 35.37	0	2158070..2159299	+	409	22538308	-	SAG2174	-	serine protease
2124	 34.24	0	2159397..2160170	+	257	22538309	-	SAG2175	-	ParB family partitioning protein
35.44	MEAN

3.78	STD DEV
