IslandPath Analysis: Streptococcus agalactiae 2603V/R

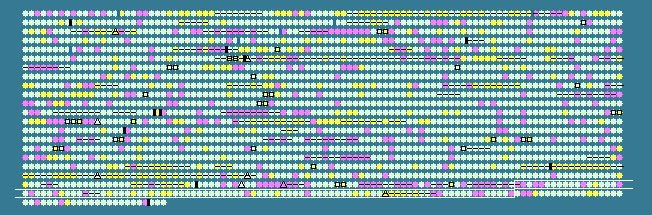

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.44   STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1983	 29.24	-1	2009125..2009613	-	162	22538168	-	SAG2033	-	acetyltransferase
1984	 29.57	-1	2009782..2010525	-	247	22538169	-	SAG2034	-	hypothetical protein
1985	 32.78	0	2010540..2011442	-	300	22538170	-	SAG2035	-	ABC transporter, ATP-binding protein
1986	 29.95	-1	2011439..2011645	-	68	22538171	-	SAG2036	-	hypothetical protein
1987	 31.94	0	2011647..2012723	-	358	22538172	-	SAG2037	-	Cro/CI family transcriptional regulator
1988	 32.03	0	2012972..2013586	-	204	22538173	-	SAG2038	-	PAP2 family protein
1989	 33.33	0	2013800..2014096	+	98	22538174	-	SAG2039	-	hypothetical protein
1990	 36.72	0	2014113..2014673	+	186	22538175	-	SAG2040	-	hypothetical protein
1991	 32.18	0	2014978..2015841	+	287	22538176	-	SAG2041	-	protease, putative
1992	 37.62	0	2015998..2016300	-	100	22538177	-	SAG2042	-	rhodanese-like domain-containing protein
1993	 33.33	0	2016473..2017240	-	255	22538178	cfb	SAG2043	-	cAMP factor
1994	 20.63	-2	2017460..2017648	-	62	22538179	-	SAG2044	-	hypothetical protein
1995	 35.93	0	2018009..2018548	+	179	22538180	-	SAG2045	-	topology modulation protein
1996	 39.13	0	2018749..2019834	+	361	22538181	-	SAG2046	-	glycerol dehydrogenase, putative
1997	 34.04	0	2019999..2020706	-	235	22538182	-	SAG2047	-	hypothetical protein
1998	 35.66	0	2021053..2022897	-	614	22538183	-	SAG2048	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
1999	 37.22	0	2022942..2025179	-	745	22538184	metE	SAG2049	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2000	 31.17	-1	2025549..2025872	-	107	22538185	-	SAG2050	-	hypothetical protein
2001	 37.81	0	2025862..2026554	-	230	22538186	-	SAG2051	-	branched-chain amino acid transport protein AzlC, putative
2002	 21.43	-2	2026789..2026914	+	41	22538187	-	SAG2052	-	hypothetical protein
2003	 36.62	0	2026877..2031589	+	1570	22538188	-	SAG2053	-	serine protease
2004	 33.62	0	2031822..2032508	+	228	22538189	-	SAG2054	-	DNA-binding response regulator
2005	 33.33	0	2032505..2033893	+	462	22538190	-	SAG2055	-	sensor histidine kinase
2006	 29.56	-1	2033986..2034594	+	202	22538191	-	SAG2056	-	hypothetical protein
2007	 45.92	+2	2034681..2037182	-	833	22538192	leuS	SAG2057	-	leucyl-tRNA synthetase
2008	 38.54	0	2037559..2038806	+	415	22538193	-	SAG2058	-	major facilitator family protein
2009	 35.82	0	2038849..2039694	-	281	22538194	-	SAG2059	-	hypothetical protein
2010	 32.41	0	2039899..2041095	+	398	22538195	-	SAG2060	-	glycosyl transferase family protein
2011	 31.51	-1	2041160..2042365	+	401	22538196	-	SAG2061	-	glycosyl transferase family protein
2012	 36.85	0	2042412..2042951	-	179	22538197	nusG	SAG2062	-	transcription antitermination protein NusG
2013	 36.61	0	2043157..2045049	-	630	22538198	-	SAG2063	-	pathogenicity protein, putative
2014	 35.06	0	2045361..2045534	-	57	22538199	secE	SAG2064	-	preprotein translocase subunit SecE
2015	 39.22	0	2045570..2045722	-	50	22538200	rpmG	SAG2065	-	50S ribosomal protein L33
2016	 36.48	0	2045771..2048092	-	773	22538201	pbp2A	SAG2066	-	penicillin-binding protein 2A
2017	 35.48	0	2048136..2049020	+	294	22538202	-	SAG2067	-	ribosomal large subunit pseudouridine synthase D
2018	 33.46	0	2049045..2050685	-	546	22538203	-	SAG2068	-	hypothetical protein
2019	 41.67	+1	2050855..2052066	-	403	22538204	deoB-2	SAG2069	-	phosphopentomutase
2020	 37.20	0	2052133..2052804	-	223	22538205	deoC	SAG2070	-	deoxyribose-phosphate aldolase
2021	 35.83	0	2052834..2054036	-	400	22538206	-	SAG2071	-	Na+ dependent nucleoside transporter
2022	 40.90	+1	2054057..2054836	-	259	22538207	udp	SAG2072	-	uridine phosphorylase
2023	 34.15	0	2054994..2055731	+	245	22538208	-	SAG2073	-	GntR family transcriptional regulator
2024	 40.73	+1	2056140..2057762	-	540	22538209	groEL	SAG2074	-	chaperonin GroEL
2025	 43.51	+2	2057858..2058142	-	94	22538210	groES	SAG2075	-	co-chaperonin GroES
2026	 38.68	0	2058317..2059120	-	267	22538211	-	SAG2076	-	ABC transporter, ATP-binding protein
2027	 36.01	0	2059125..2060021	-	298	22538212	-	SAG2077	-	ABC transporter, permease protein
2028	 35.20	0	2060037..2060999	-	320	22538213	-	SAG2078	-	protein of unknown function/lipoprotein, putative
2029	 34.46	0	2061464..2062261	-	265	22538214	-	SAG2079	-	HAD superfamily hydrolase
2030	 34.49	0	2062447..2063307	+	286	22538215	-	SAG2080	-	glyoxalase family protein
2031	 32.38	0	2063350..2064081	+	243	22538216	-	SAG2081	-	hypothetical protein
2032	 37.06	0	2064438..2065055	-	205	22538217	nrdG	SAG2082	-	anaerobic ribonucleoside-triphosphate reductase activating protein
2033	 35.57	0	2065128..2065619	-	163	22538218	-	SAG2083	-	acetyltransferase
2034	 36.23	0	2065628..2066560	-	310	22538219	-	SAG2084	-	virulence factor MviM, putative
2035	 34.72	0	2066573..2066716	-	47	22538220	-	SAG2085	-	hypothetical protein
2036	 36.60	0	2066791..2068962	-	723	22538221	nrdD	SAG2086	-	anaerobic ribonucleoside triphosphate reductase
2037	 31.99	0	2069088..2070575	-	495	22538222	-	SAG2087	-	hypothetical protein
2038	 31.71	0	2070675..2070797	-	40	22538223	-	SAG2088	-	hypothetical protein
2039	 38.99	0	2070879..2071196	-	105	22538224	-	SAG2089	-	hypothetical protein
2040	 37.71	0	2071222..2071632	-	136	22538225	-	SAG2090	-	Holliday junction resolvase-like protein
2041	 33.71	0	2071641..2071907	-	88	22538226	-	SAG2091	-	hypothetical protein
2042	 32.33	0	2072109..2072507	-	132	22538227	spxA	SAG2092	-	transcriptional regulator Spx
2043	 39.65	+1	2072723..2073862	-	379	22538228	recA	SAG2093	-	recombinase A
2044	 34.78	0	2075285..2075836	-	183	22538229	tag	SAG2095	-	DNA-3-methyladenine glycosylase I
2045	 35.36	0	2075859..2076449	-	196	22538230	ruvA	SAG2096	-	Holliday junction DNA helicase motor protein
2046	 35.48	0	2076451..2077707	-	418	22538231	-	SAG2097	-	transporter, putative
2047	 35.71	0	2077715..2079694	-	659	22538232	mutL	SAG2098	-	DNA mismatch repair protein
2048	 23.53	-2	2079819..2079920	-	33	22538233	-	SAG2099	-	hypothetical protein
2049	 34.80	0	2079914..2080117	+	67	22538234	-	SAG2100	-	CSD family cold shock protein
2050	 37.76	0	2080174..2082750	-	858	22538235	hexA	SAG2101	-	DNA mismatch repair protein
2051	 35.39	0	2082807..2083244	-	145	22538236	-	SAG2102	-	arginine repressor ArgR, putative
2052	 38.12	0	2083466..2085157	+	563	22538237	argS	SAG2103	-	arginyl-tRNA synthetase
2053	 35.28	0	2085245..2085553	+	102	22538238	-	SAG2104	-	hypothetical protein
2054	 35.17	0	2085580..2086452	-	290	22538239	-	SAG2105	-	hypothetical protein
2055	 33.23	0	2086560..2087504	-	314	22538240	-	SAG2106	-	hypothetical protein
2056	 39.44	+1	2087494..2089245	-	583	22538241	aspS	SAG2107	-	aspartyl-tRNA synthetase
2057	 35.91	0	2089338..2090618	-	426	22538242	hisS	SAG2108	-	histidyl-tRNA synthetase
2058	 40.98	+1	2090838..2091020	+	60	22538243	rpmF	SAG2109	-	50S ribosomal protein L32
2059	 34.00	0	2091036..2091185	+	49	22538244	rpmG	SAG2110	-	50S ribosomal protein L33
2060	 36.21	0	2091333..2091854	-	173	22538245	-	SAG2111	-	hypothetical protein
2061	 40.67	+1	2091952..2093436	-	494	22538246	-	SAG2112	-	phage integrase family site specific recombinase
2062	 42.97	+1	2093446..2093694	-	82	22538247	-	SAG2113	-	hypothetical protein
2063	 41.50	+1	2093760..2094788	-	342	22538248	-	SAG2114	-	hypothetical protein
2064	 39.58	+1	2094791..2095222	-	143	22538249	-	SAG2115	-	hypothetical protein
2065	 38.16	0	2095498..2095953	-	151	22538250	-	SAG2116	-	hypothetical protein
2066	 40.28	+1	2095953..2096168	-	71	22538251	-	SAG2117	-	hypothetical protein
2067	 35.18	0	2096491..2097411	+	306	22538252	-	SAG2118	-	Cro/CI family transcriptional regulator
2068	 34.85	0	2097432..2098553	+	373	22538253	-	SAG2119	-	hypothetical protein
2069	 30.99	-1	2098781..2099590	+	269	22538254	-	SAG2120	-	hypothetical protein
2070	 30.51	-1	2100041..2100712	+	223	22538255	-	SAG2121	-	hypothetical protein
2071	 36.01	0	2100797..2101468	+	223	22538256	-	SAG2122	-	DNA-binding response regulator
2072	 32.89	0	2101452..2102816	+	454	22538257	-	SAG2123	-	sensor histidine kinase
2073	 36.16	0	2102926..2104479	-	517	22538258	-	SAG2124	-	hypothetical protein
2074	 37.22	0	2104573..2105499	-	308	22538259	arcC-1	SAG2125	-	carbamate kinase
2075	 37.64	0	2105511..2106509	-	332	22538260	argF-1	SAG2126	-	ornithine carbamoyltransferase
2076	 30.94	-1	2106612..2107907	+	431	22538261	-	SAG2127	-	sensor histidine kinase
2077	 29.74	-1	2107904..2108737	+	277	22538262	-	SAG2128	-	response regulator
2078	 38.59	0	2108959..2109681	+	240	22538263	-	SAG2129	-	amino acid ABC transporter, ATP-binding protein
2079	 34.92	0	2109684..2111198	+	504	22538264	-	SAG2130	-	amino acid ABC transporter, amino acid-binding protein/permease protein
2080	 34.16	0	2111277..2113820	-	847	22538265	-	SAG2131	-	hypothetical protein
2081	 34.54	0	2113801..2114544	-	247	22538266	-	SAG2132	-	hypothetical protein
2082	 29.69	-1	2114678..2115034	-	118	22538267	-	SAG2133	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
