IslandPath Analysis: Streptococcus agalactiae 2603V/R

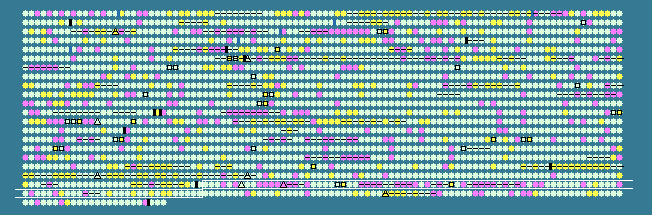

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1931	 37.98	0	1963155..1964057	-	300	22538116	-	SAG1980	-	ABC transporter, ATP-binding protein
1932	 33.33	0	1964054..1964260	-	68	22538117	-	SAG1981	-	hypothetical protein
1933	 37.13	0	1964250..1965329	-	359	22538118	-	SAG1982	-	Cro/CI family transcriptional regulator
1934	 29.87	-1	1965710..1966027	+	105	22538119	-	SAG1983	-	hypothetical protein
1935	 34.22	0	1966024..1966590	+	188	22538120	-	SAG1984	-	hypothetical protein
1936	 20.51	-2	1966644..1966799	-	51	22538121	-	SAG1985	-	hypothetical protein
1937	 32.18	0	1966825..1967952	-	375	22538122	-	SAG1986	-	phage integrase family site specific recombinase
1938	 34.41	0	1967956..1968141	-	61	22538123	-	SAG1987	-	hypothetical protein
1939	 35.57	0	1968202..1969230	-	342	22538124	-	SAG1988	-	hypothetical protein
1940	 30.48	-1	1969233..1969652	-	139	22538125	-	SAG1989	-	hypothetical protein
1941	 30.99	-1	1969978..1970361	-	127	22538126	-	SAG1990	-	hypothetical protein
1942	 30.57	-1	1970585..1971199	+	204	22538127	-	SAG1991	-	Cro/CI family transcriptional regulator
1943	 28.32	-1	1971372..1972928	-	518	22538128	-	SAG1992	-	hypothetical protein
1944	 29.50	-1	1973269..1974390	-	373	22538129	-	SAG1993	-	phage integrase family site specific recombinase
1945	 25.99	-2	1974440..1974766	-	108	22538130	-	SAG1994	-	hypothetical protein
1946	 28.12	-1	1974959..1975591	-	210	22538131	-	SAG1995	-	hypothetical protein
1947	 35.73	0	1975672..1976463	-	263	22538132	-	SAG1996	-	cell wall surface anchor family protein, putative
1948	 30.05	-1	1976480..1977028	-	182	22538133	-	SAG1997	-	hypothetical protein
1949	 36.61	0	1977028..1978401	-	457	22538134	-	SAG1998	-	hypothetical protein
1950	 37.50	0	1978564..1978707	+	47	22538135	-	SAG1999	-	hypothetical protein
1951	 32.68	0	1978897..1980897	-	666	22538136	-	SAG2000	-	hypothetical protein
1952	 34.48	0	1980913..1983183	-	756	22538137	-	SAG2001	-	conjugal transfer protein, interruption-C
1953	 38.46	0	1983230..1983619	-	129	22538138	-	SAG2002	-	IS1381 transposase protein B
1954	 39.06	0	1983652..1984035	-	127	22538139	-	SAG2003	-	IS1381 transposase protein A
1955	 32.60	0	1984296..1984706	-	136	22538140	-	SAG2005	-	hypothetical protein
1956	 33.71	0	1984717..1984983	-	88	22538141	-	SAG2006	-	hypothetical protein
1957	 30.19	-1	1985004..1985957	-	317	22538142	-	SAG2007	-	hypothetical protein
1958	 30.20	-1	1986010..1986264	-	84	22538143	-	SAG2008	-	hypothetical protein
1959	 28.46	-1	1986257..1986523	-	88	22538144	-	SAG2009	-	hypothetical protein
1960	 28.06	-1	1986668..1987141	-	157	22538145	-	SAG2010	-	hypothetical protein
1961	 35.82	0	1987149..1987631	-	160	22538146	-	SAG2011	-	hypothetical protein
1962	 35.53	0	1987684..1987956	-	90	22538147	-	SAG2012	-	hypothetical protein
1963	 29.30	-1	1988091..1988660	-	189	22538148	-	SAG2013	-	hypothetical protein
1964	 26.30	-2	1988663..1990012	-	449	22538149	-	SAG2014	-	hypothetical protein
1965	 26.33	-2	1990209..1990508	-	99	22538150	-	SAG2015	-	Cro/CI family transcriptional regulator
1966	 29.63	-1	1990492..1990869	-	125	22538151	-	SAG2016	-	hypothetical protein
1967	 33.64	0	1990885..1992174	-	429	22538152	-	SAG2017	-	Cro/CI family transcriptional regulator
1968	 31.17	-1	1992405..1994066	-	553	22538153	-	SAG2018	-	FtsK/SpoIIIE family protein
1969	 32.90	0	1994143..1994604	-	153	22538154	-	SAG2019	-	hypothetical protein
1970	 30.30	-1	1994626..1994922	-	98	22538155	-	SAG2020	-	hypothetical protein
1971	 35.79	0	1994982..1997462	-	826	22538156	-	SAG2021	-	cell wall surface anchor family protein
1972	 39.47	+1	1997467..1998720	-	417	22538157	-	SAG2022	-	ISL3 family transposase
1973	 36.62	0	1998880..2000520	-	546	22538158	merA-2	SAG2023	-	mercuric reductase
1974	 31.81	0	2000549..2000941	-	130	22538159	merR-2	SAG2024	-	mercuric resistance operon regulatory protein MerR
1975	 32.06	0	2001647..2003215	+	522	22538160	-	SAG2025	-	Mn2+/Fe2+ transporter
1976	 26.83	-2	2003783..2004505	-	240	22538161	-	SAG2026	-	hypothetical protein
1977	 26.21	-2	2004509..2005126	-	205	22538162	-	SAG2027	-	ABC transporter, ATP-binding protein
1978	 28.83	-1	2005184..2005294	-	36	22538163	-	SAG2028	-	hypothetical protein
1979	 26.78	-2	2005813..2006667	-	284	22538164	-	SAG2029	-	streptomycin resistance protein
1980	 32.32	0	2006846..2007238	-	130	22538165	-	SAG2030	-	hypothetical protein
1981	 30.71	-1	2007673..2008281	-	202	22538166	-	SAG2031	-	hypothetical protein
1982	 33.04	0	2008268..2008603	-	111	22538167	-	SAG2032	-	hypothetical protein
1983	 29.24	-1	2009125..2009613	-	162	22538168	-	SAG2033	-	acetyltransferase
1984	 29.57	-1	2009782..2010525	-	247	22538169	-	SAG2034	-	hypothetical protein
1985	 32.78	0	2010540..2011442	-	300	22538170	-	SAG2035	-	ABC transporter, ATP-binding protein
1986	 29.95	-1	2011439..2011645	-	68	22538171	-	SAG2036	-	hypothetical protein
1987	 31.94	0	2011647..2012723	-	358	22538172	-	SAG2037	-	Cro/CI family transcriptional regulator
1988	 32.03	0	2012972..2013586	-	204	22538173	-	SAG2038	-	PAP2 family protein
1989	 33.33	0	2013800..2014096	+	98	22538174	-	SAG2039	-	hypothetical protein
1990	 36.72	0	2014113..2014673	+	186	22538175	-	SAG2040	-	hypothetical protein
1991	 32.18	0	2014978..2015841	+	287	22538176	-	SAG2041	-	protease, putative
1992	 37.62	0	2015998..2016300	-	100	22538177	-	SAG2042	-	rhodanese-like domain-containing protein
1993	 33.33	0	2016473..2017240	-	255	22538178	cfb	SAG2043	-	cAMP factor
1994	 20.63	-2	2017460..2017648	-	62	22538179	-	SAG2044	-	hypothetical protein
1995	 35.93	0	2018009..2018548	+	179	22538180	-	SAG2045	-	topology modulation protein
1996	 39.13	0	2018749..2019834	+	361	22538181	-	SAG2046	-	glycerol dehydrogenase, putative
1997	 34.04	0	2019999..2020706	-	235	22538182	-	SAG2047	-	hypothetical protein
1998	 35.66	0	2021053..2022897	-	614	22538183	-	SAG2048	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
1999	 37.22	0	2022942..2025179	-	745	22538184	metE	SAG2049	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2000	 31.17	-1	2025549..2025872	-	107	22538185	-	SAG2050	-	hypothetical protein
2001	 37.81	0	2025862..2026554	-	230	22538186	-	SAG2051	-	branched-chain amino acid transport protein AzlC, putative
2002	 21.43	-2	2026789..2026914	+	41	22538187	-	SAG2052	-	hypothetical protein
2003	 36.62	0	2026877..2031589	+	1570	22538188	-	SAG2053	-	serine protease
2004	 33.62	0	2031822..2032508	+	228	22538189	-	SAG2054	-	DNA-binding response regulator
2005	 33.33	0	2032505..2033893	+	462	22538190	-	SAG2055	-	sensor histidine kinase
2006	 29.56	-1	2033986..2034594	+	202	22538191	-	SAG2056	-	hypothetical protein
2007	 45.92	+2	2034681..2037182	-	833	22538192	leuS	SAG2057	-	leucyl-tRNA synthetase
2008	 38.54	0	2037559..2038806	+	415	22538193	-	SAG2058	-	major facilitator family protein
2009	 35.82	0	2038849..2039694	-	281	22538194	-	SAG2059	-	hypothetical protein
2010	 32.41	0	2039899..2041095	+	398	22538195	-	SAG2060	-	glycosyl transferase family protein
2011	 31.51	-1	2041160..2042365	+	401	22538196	-	SAG2061	-	glycosyl transferase family protein
2012	 36.85	0	2042412..2042951	-	179	22538197	nusG	SAG2062	-	transcription antitermination protein NusG
2013	 36.61	0	2043157..2045049	-	630	22538198	-	SAG2063	-	pathogenicity protein, putative
2014	 35.06	0	2045361..2045534	-	57	22538199	secE	SAG2064	-	preprotein translocase subunit SecE
2015	 39.22	0	2045570..2045722	-	50	22538200	rpmG	SAG2065	-	50S ribosomal protein L33
2016	 36.48	0	2045771..2048092	-	773	22538201	pbp2A	SAG2066	-	penicillin-binding protein 2A
2017	 35.48	0	2048136..2049020	+	294	22538202	-	SAG2067	-	ribosomal large subunit pseudouridine synthase D
2018	 33.46	0	2049045..2050685	-	546	22538203	-	SAG2068	-	hypothetical protein
2019	 41.67	+1	2050855..2052066	-	403	22538204	deoB-2	SAG2069	-	phosphopentomutase
2020	 37.20	0	2052133..2052804	-	223	22538205	deoC	SAG2070	-	deoxyribose-phosphate aldolase
2021	 35.83	0	2052834..2054036	-	400	22538206	-	SAG2071	-	Na+ dependent nucleoside transporter
2022	 40.90	+1	2054057..2054836	-	259	22538207	udp	SAG2072	-	uridine phosphorylase
2023	 34.15	0	2054994..2055731	+	245	22538208	-	SAG2073	-	GntR family transcriptional regulator
2024	 40.73	+1	2056140..2057762	-	540	22538209	groEL	SAG2074	-	chaperonin GroEL
2025	 43.51	+2	2057858..2058142	-	94	22538210	groES	SAG2075	-	co-chaperonin GroES
2026	 38.68	0	2058317..2059120	-	267	22538211	-	SAG2076	-	ABC transporter, ATP-binding protein
2027	 36.01	0	2059125..2060021	-	298	22538212	-	SAG2077	-	ABC transporter, permease protein
2028	 35.20	0	2060037..2060999	-	320	22538213	-	SAG2078	-	protein of unknown function/lipoprotein, putative
2029	 34.46	0	2061464..2062261	-	265	22538214	-	SAG2079	-	HAD superfamily hydrolase
2030	 34.49	0	2062447..2063307	+	286	22538215	-	SAG2080	-	glyoxalase family protein
35.44	MEAN

3.78	STD DEV
