IslandPath Analysis: Streptococcus agalactiae 2603V/R

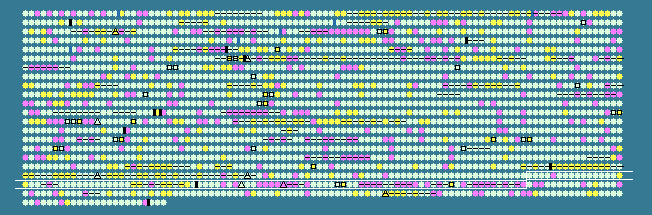

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1885	 34.48	0	1916030..1918480	-	816	22538070	-	SAG1932	-	neuraminidase-related protein
1886	 36.71	0	1918719..1920167	-	482	22538071	-	SAG1933	-	PTS system, IIC component, putative
1887	 35.29	0	1920207..1920512	-	101	22538072	-	SAG1934	-	PTS system, IIB component, putative
1888	 32.07	0	1920514..1920987	-	157	22538073	-	SAG1935	-	PTS system, IIA component, putative
1889	 31.40	-1	1921197..1921973	+	258	22538074	lacR-2	SAG1936	-	lactose phosphotransferase system repressor
1890	 36.36	0	1924811..1925734	-	307	22538075	-	SAG1938	-	adhesion lipoprotein
1891	 34.46	0	1925989..1926432	-	147	22538076	-	SAG1939	-	D-tyrosyl-tRNA deacylase
1892	 37.35	0	1926442..1928658	-	738	22538077	-	SAG1940	-	GTP pyrophosphokinase family protein
1893	 37.62	0	1928918..1931320	+	800	22538078	cpdB	SAG1941	-	2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase bifunctional periplasmic precursor protein
1894	 37.06	0	1931477..1931932	+	151	22538079	nrdI-2	SAG1942	-	hypothetical protein
1895	 38.73	0	1931943..1932980	+	345	22538080	-	SAG1943	-	hypothetical protein
1896	 34.74	0	1932980..1933477	+	165	22538081	-	SAG1944	-	hypothetical protein
1897	 35.45	0	1933699..1934736	-	345	22538082	-	SAG1945	-	iron ABC transporter, iron-binding protein
1898	 33.59	0	1934748..1935521	-	257	22538083	-	SAG1946	-	DNA-binding response regulator
1899	 32.79	0	1935525..1937174	-	549	22538084	-	SAG1947	-	hypothetical protein
1900	 39.13	0	1937312..1938139	-	275	22538085	-	SAG1948	-	PTS system, IID component
1901	 40.00	+1	1938136..1938945	-	269	22538086	-	SAG1949	-	PTS system, IIC component
1902	 36.59	0	1938961..1939452	-	163	22538087	-	SAG1950	-	PTS system, IIB component
1903	 36.38	0	1939470..1939895	-	141	22538088	-	SAG1951	-	PTS system, IIA component, putative
1904	 33.52	0	1940142..1941203	-	353	22538089	-	SAG1952	-	hypothetical protein
1905	 29.51	-1	1941228..1941410	+	60	22538090	-	SAG1953	-	hypothetical protein
1906	 33.42	0	1941405..1942559	-	384	22538091	-	SAG1954	-	hypothetical protein
1907	 36.28	0	1942565..1943413	-	282	22538092	-	SAG1955	-	ABC transporter, ATP-binding protein
1908	 32.01	0	1943904..1944656	-	250	22538093	-	SAG1957	-	response regulator
1909	 38.39	0	1944933..1945763	-	276	22538094	-	SAG1958	-	hypothetical protein
1910	 37.73	0	1945802..1947985	-	727	22538095	-	SAG1959	-	PTS system, IIABC components
1911	 35.08	0	1948143..1949798	-	551	22538096	-	SAG1960	-	sensor histidine kinase
1912	 37.76	0	1949791..1950468	-	225	22538097	phoB	SAG1961	-	phosphate regulon response regulator PhoB
1913	 35.46	0	1950468..1951124	-	218	22538098	-	SAG1962	-	phosphate transport system regulatory protein PhoU, putative
1914	 38.06	0	1951121..1951882	-	253	22538099	-	SAG1963	-	phosphate ABC transporter, ATP-binding protein
1915	 35.84	0	1951863..1952741	-	292	22538100	-	SAG1964	-	phosphate ABC transporter, permease protein
1916	 38.53	0	1952743..1953588	-	281	22538101	-	SAG1965	-	phosphate ABC transporter, permease protein
1917	 35.49	0	1953603..1954484	-	293	22538102	-	SAG1966	-	hemolysin precursor, putative
1918	 31.97	0	1954685..1955272	-	195	22538103	-	SAG1967	-	hypothetical protein
1919	 47.37	+2	1955269..1956009	-	246	22538104	-	SAG1968	-	hypothetical protein
1920	 47.17	+2	1956009..1956962	-	317	22538105	prmA	SAG1969	-	ribosomal protein L11 methyltransferase
1921	 35.60	0	1956959..1957267	-	102	22538106	-	SAG1970	-	hypothetical protein
1922	 30.16	-1	1957329..1957454	+	41	22538107	-	SAG1971	-	hypothetical protein
1923	 37.94	0	1957541..1958257	+	238	22538108	-	SAG1972	-	MerR family transcriptional regulator
1924	 40.34	+1	1958296..1958766	-	156	22538109	-	SAG1973	-	acetyltransferase
1925	 39.87	+1	1958738..1959196	-	152	22538110	-	SAG1974	-	MutT/nudix family protein
1926	 34.72	0	1959183..1959326	-	47	22538111	-	SAG1975	-	hypothetical protein
1927	 43.74	+2	1959332..1959802	-	156	22538112	-	SAG1976	-	hypothetical protein
1928	 45.53	+2	1960129..1960620	+	163	22538113	-	SAG1977	-	acetyltransferase
1929	 38.77	0	1960613..1961881	+	422	22538114	-	SAG1978	-	recombination factor protein RarA
1930	 34.25	0	1962397..1963158	-	253	22538115	-	SAG1979	-	hypothetical protein
1931	 37.98	0	1963155..1964057	-	300	22538116	-	SAG1980	-	ABC transporter, ATP-binding protein
1932	 33.33	0	1964054..1964260	-	68	22538117	-	SAG1981	-	hypothetical protein
1933	 37.13	0	1964250..1965329	-	359	22538118	-	SAG1982	-	Cro/CI family transcriptional regulator
1934	 29.87	-1	1965710..1966027	+	105	22538119	-	SAG1983	-	hypothetical protein
1935	 34.22	0	1966024..1966590	+	188	22538120	-	SAG1984	-	hypothetical protein
1936	 20.51	-2	1966644..1966799	-	51	22538121	-	SAG1985	-	hypothetical protein
1937	 32.18	0	1966825..1967952	-	375	22538122	-	SAG1986	-	phage integrase family site specific recombinase
1938	 34.41	0	1967956..1968141	-	61	22538123	-	SAG1987	-	hypothetical protein
1939	 35.57	0	1968202..1969230	-	342	22538124	-	SAG1988	-	hypothetical protein
1940	 30.48	-1	1969233..1969652	-	139	22538125	-	SAG1989	-	hypothetical protein
1941	 30.99	-1	1969978..1970361	-	127	22538126	-	SAG1990	-	hypothetical protein
1942	 30.57	-1	1970585..1971199	+	204	22538127	-	SAG1991	-	Cro/CI family transcriptional regulator
1943	 28.32	-1	1971372..1972928	-	518	22538128	-	SAG1992	-	hypothetical protein
1944	 29.50	-1	1973269..1974390	-	373	22538129	-	SAG1993	-	phage integrase family site specific recombinase
1945	 25.99	-2	1974440..1974766	-	108	22538130	-	SAG1994	-	hypothetical protein
1946	 28.12	-1	1974959..1975591	-	210	22538131	-	SAG1995	-	hypothetical protein
1947	 35.73	0	1975672..1976463	-	263	22538132	-	SAG1996	-	cell wall surface anchor family protein, putative
1948	 30.05	-1	1976480..1977028	-	182	22538133	-	SAG1997	-	hypothetical protein
1949	 36.61	0	1977028..1978401	-	457	22538134	-	SAG1998	-	hypothetical protein
1950	 37.50	0	1978564..1978707	+	47	22538135	-	SAG1999	-	hypothetical protein
1951	 32.68	0	1978897..1980897	-	666	22538136	-	SAG2000	-	hypothetical protein
1952	 34.48	0	1980913..1983183	-	756	22538137	-	SAG2001	-	conjugal transfer protein, interruption-C
1953	 38.46	0	1983230..1983619	-	129	22538138	-	SAG2002	-	IS1381 transposase protein B
1954	 39.06	0	1983652..1984035	-	127	22538139	-	SAG2003	-	IS1381 transposase protein A
1955	 32.60	0	1984296..1984706	-	136	22538140	-	SAG2005	-	hypothetical protein
1956	 33.71	0	1984717..1984983	-	88	22538141	-	SAG2006	-	hypothetical protein
1957	 30.19	-1	1985004..1985957	-	317	22538142	-	SAG2007	-	hypothetical protein
1958	 30.20	-1	1986010..1986264	-	84	22538143	-	SAG2008	-	hypothetical protein
1959	 28.46	-1	1986257..1986523	-	88	22538144	-	SAG2009	-	hypothetical protein
1960	 28.06	-1	1986668..1987141	-	157	22538145	-	SAG2010	-	hypothetical protein
1961	 35.82	0	1987149..1987631	-	160	22538146	-	SAG2011	-	hypothetical protein
1962	 35.53	0	1987684..1987956	-	90	22538147	-	SAG2012	-	hypothetical protein
1963	 29.30	-1	1988091..1988660	-	189	22538148	-	SAG2013	-	hypothetical protein
1964	 26.30	-2	1988663..1990012	-	449	22538149	-	SAG2014	-	hypothetical protein
1965	 26.33	-2	1990209..1990508	-	99	22538150	-	SAG2015	-	Cro/CI family transcriptional regulator
1966	 29.63	-1	1990492..1990869	-	125	22538151	-	SAG2016	-	hypothetical protein
1967	 33.64	0	1990885..1992174	-	429	22538152	-	SAG2017	-	Cro/CI family transcriptional regulator
1968	 31.17	-1	1992405..1994066	-	553	22538153	-	SAG2018	-	FtsK/SpoIIIE family protein
1969	 32.90	0	1994143..1994604	-	153	22538154	-	SAG2019	-	hypothetical protein
1970	 30.30	-1	1994626..1994922	-	98	22538155	-	SAG2020	-	hypothetical protein
1971	 35.79	0	1994982..1997462	-	826	22538156	-	SAG2021	-	cell wall surface anchor family protein
1972	 39.47	+1	1997467..1998720	-	417	22538157	-	SAG2022	-	ISL3 family transposase
1973	 36.62	0	1998880..2000520	-	546	22538158	merA-2	SAG2023	-	mercuric reductase
1974	 31.81	0	2000549..2000941	-	130	22538159	merR-2	SAG2024	-	mercuric resistance operon regulatory protein MerR
1975	 32.06	0	2001647..2003215	+	522	22538160	-	SAG2025	-	Mn2+/Fe2+ transporter
1976	 26.83	-2	2003783..2004505	-	240	22538161	-	SAG2026	-	hypothetical protein
1977	 26.21	-2	2004509..2005126	-	205	22538162	-	SAG2027	-	ABC transporter, ATP-binding protein
1978	 28.83	-1	2005184..2005294	-	36	22538163	-	SAG2028	-	hypothetical protein
1979	 26.78	-2	2005813..2006667	-	284	22538164	-	SAG2029	-	streptomycin resistance protein
1980	 32.32	0	2006846..2007238	-	130	22538165	-	SAG2030	-	hypothetical protein
1981	 30.71	-1	2007673..2008281	-	202	22538166	-	SAG2031	-	hypothetical protein
1982	 33.04	0	2008268..2008603	-	111	22538167	-	SAG2032	-	hypothetical protein
1983	 29.24	-1	2009125..2009613	-	162	22538168	-	SAG2033	-	acetyltransferase
1984	 29.57	-1	2009782..2010525	-	247	22538169	-	SAG2034	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
