IslandPath Analysis: Streptococcus agalactiae 2603V/R

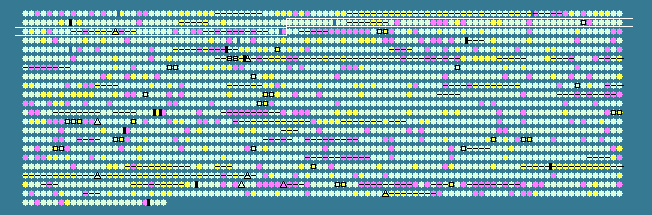

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
145	 36.86	0	154818..156236	+	472	22536330	-	SAG0145	-	hypothetical protein
146	 36.45	0	156308..157495	-	395	22536331	-	SAG0146	-	penicillin-binding protein 4, putative
147	 35.84	0	157648..158883	-	411	22536332	-	SAG0147	-	D-alanyl-D-alanine carboxypeptidase family protein
148	 37.38	0	159124..160779	+	551	22536333	-	SAG0148	-	oligopeptide ABC transporter, substrate-binding protein, putative
149	 38.14	0	160898..161812	+	304	22536334	-	SAG0149	-	oligopeptide ABC transporter, permease protein
150	 36.14	0	161822..162853	+	343	22536335	-	SAG0150	-	oligopeptide ABC transporter, permease protein
151	 38.11	0	162866..163912	+	348	22536336	-	SAG0151	-	oligopeptide ABC transporter, ATP-binding protein
152	 36.01	0	163912..164844	+	310	22536337	-	SAG0152	-	oligopeptide ABC transporter, ATP-binding protein
153	 32.63	0	170382..171233	+	283	22536338	ispE	SAG0153	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
154	 32.21	0	171319..171762	+	147	22536339	adcR	SAG0154	-	adc operon repressor AdcR
155	 38.12	0	171765..172475	+	236	22536340	-	SAG0155	-	zinc ABC transporter, ATP-binding protein
156	 36.04	0	172465..173277	+	270	22536341	-	SAG0156	-	zinc ABC transporter, permease protein
157	 36.11	0	175097..176356	-	419	22536342	tyrS	SAG0158	-	tyrosyl-tRNA synthetase
158	 36.77	0	176467..178764	+	765	22536343	-	SAG0159	-	penicillin-binding protein 1B, putative
159	 40.41	+1	179288..182863	+	1191	22536344	rpoB	SAG0160	-	DNA-directed RNA polymerase subunit beta
160	 41.66	+1	182980..186630	+	1216	22536345	rpoC	SAG0161	-	DNA-directed RNA polymerase subunit beta'
161	 35.79	0	186744..187109	+	121	22536346	-	SAG0162	-	hypothetical protein
162	 35.80	0	187282..188253	+	323	22536347	cglA	SAG0163	-	competence protein CglA
163	 31.33	-1	188342..189190	+	282	22536348	cglB	SAG0164	-	competence protein CglB
164	 32.46	0	189187..189642	+	151	22536349	-	SAG0165	-	hypothetical protein
165	 34.14	0	189620..189991	+	123	22536350	-	SAG0166	-	hypothetical protein
166	 34.26	0	190106..191080	+	324	22536351	-	SAG0167	-	hypothetical protein
167	 36.77	0	191112..192305	+	397	22536352	ackA	SAG0168	-	acetate kinase
168	 32.85	0	192457..192663	+	68	22536353	-	SAG0169	-	Cro/CI family transcriptional regulator
169	 31.16	-1	192722..192859	+	45	22536354	-	SAG0170	-	hypothetical protein
170	 28.07	-1	192900..193355	+	151	22536355	-	SAG0171	-	hypothetical protein
171	 30.93	-1	193424..194089	+	221	22536356	-	SAG0172	-	protease, putative
172	 36.84	0	194110..194880	-	256	22536357	proC	SAG0173	-	pyrroline-5-carboxylate reductase
173	 40.07	+1	194950..196017	-	355	22536358	pepA	SAG0174	-	glutamyl-aminopeptidase
174	 30.42	-1	196202..196441	-	79	22536359	-	SAG0175	-	hypothetical protein
175	 35.09	0	196602..196886	+	94	22536360	-	SAG0176	-	hypothetical protein
176	 32.72	0	196883..197206	+	107	22536361	-	SAG0177	-	thioredoxin family protein
177	 37.96	0	197239..197865	+	208	22536362	-	SAG0178	-	tRNA-binding domain-containing protein
178	 32.08	0	197919..198635	-	238	22536363	-	SAG0179	-	hypothetical protein
179	 41.67	+1	198716..199111	+	131	22536364	ssb-1	SAG0180	-	single-strand DNA-binding protein
180	 40.00	+1	199235..199879	+	214	22536365	-	SAG0181	-	HAD superfamily hydrolase
181	 36.77	0	199906..201651	+	581	22536366	-	SAG0182	-	sensor histidine kinase, putative
182	 35.90	0	201632..202372	+	246	22536367	-	SAG0183	-	response regulator
183	 34.65	0	202542..202997	+	151	22536368	-	SAG0184	-	hypothetical protein
184	 36.90	0	202999..203727	+	242	22536369	-	SAG0185	-	hypothetical protein
185	 18.02	-2	203839..203949	-	36	22536370	-	SAG0186	-	hypothetical protein
186	 37.75	0	203970..205598	+	542	22536371	-	SAG0187	-	oligopeptide ABC transporter, oligopeptide-binding protein
187	 38.34	0	205711..206688	+	325	22536372	-	SAG0188	-	oligopeptide ABC transporter, permease protein
188	 37.47	0	206685..207506	+	273	22536373	-	SAG0189	-	oligopeptide ABC transporter, permease protein
189	 36.82	0	207518..208321	+	267	22536374	-	SAG0190	-	peptide ABC transporter, ATP-binding protein
190	 35.89	0	208305..208931	+	208	22536375	-	SAG0191	-	peptide ABC transporter, ATP-binding protein
191	 38.36	0	209214..211244	+	676	22536376	-	SAG0192	-	PTS system, IIABC components
192	 36.41	0	211466..213091	+	541	22536377	-	SAG0193	-	alpha amylase family protein
193	 34.58	0	213307..215226	+	639	22536378	-	SAG0194	-	BglG family transcriptional antiterminator
194	 38.01	0	215240..216373	-	377	22536379	-	SAG0195	-	IS1548 transposase
195	 31.84	0	216468..216668	+	66	22536380	-	SAG0196	-	hypothetical protein
196	 37.89	0	216671..216955	+	94	22536381	-	SAG0197	-	PTS system, IIB component, putative
197	 38.64	0	216968..218323	+	451	22536382	ulaA	SAG0198	-	ascorbate-specific PTS system enzyme IIC
198	 36.13	0	218326..219183	+	285	22536383	-	SAG0199	-	transketolase, N-terminal subunit
199	 38.49	0	219180..220109	+	309	22536384	-	SAG0200	-	transketolase, C-terminal subunit
200	 32.46	0	220218..221477	+	419	22536385	-	SAG0201	-	oxidoreductase, putative
201	 38.89	0	221565..221834	+	89	22536386	rpsO	SAG0202	-	30S ribosomal protein S15
202	 40.19	+1	222215..224344	+	709	22536387	pnp	SAG0203	-	polynucleotide phosphorylase/polyadenylase
203	 37.05	0	224346..225098	+	250	22536388	-	SAG0204	-	hypothetical protein
204	 41.54	+1	225107..225691	+	194	22536389	cysE	SAG0205	-	serine O-acetyltransferase
205	 31.69	0	225701..225883	+	60	22536390	-	SAG0206	-	putative lipoprotein
206	 35.49	0	225880..227223	+	447	22536391	cysS	SAG0207	-	cysteinyl-tRNA synthetase
207	 34.63	0	227216..227602	+	128	22536392	-	SAG0208	-	hypothetical protein
208	 37.57	0	227705..228460	+	251	22536393	-	SAG0209	-	RNA methyltransferase
209	 37.19	0	228457..228975	+	172	22536394	-	SAG0210	-	hypothetical protein
210	 37.86	0	229068..229928	+	286	22536395	-	SAG0211	-	DegV family protein
211	 28.28	-1	230061..230159	+	32	22536396	-	SAG0212	-	hypothetical protein
212	 34.17	0	230273..230392	+	39	22536397	-	SAG0213	-	hypothetical protein
213	 39.60	+1	230809..231255	+	148	22536398	rplM	SAG0214	-	50S ribosomal protein L13
214	 43.77	+2	231276..231668	+	130	22536399	rpsI	SAG0215	-	30S ribosomal protein S9
215	 35.29	0	231682..231783	-	33	22536400	-	SAG0216	-	hypothetical protein
216	 39.39	+1	231796..232950	-	384	22536401	-	SAG0217	-	phage integrase family site specific recombinase
217	 29.56	-1	233015..233491	-	158	22536402	-	SAG0218	-	Cro/CI family transcriptional regulator
218	 33.66	0	233645..233950	+	101	22536403	-	SAG0219	-	hypothetical protein
219	 42.29	+1	234087..234365	+	92	22536404	-	SAG0220	-	hypothetical protein
220	 34.20	0	234376..234606	+	76	22536405	-	SAG0221	-	hypothetical protein
221	 33.94	0	234619..234945	+	108	22536406	-	SAG0222	-	hypothetical protein
222	 35.87	0	234949..235578	+	209	22536407	-	SAG0223	-	hypothetical protein
223	 37.24	0	235768..236766	+	332	22536408	-	SAG0224	-	replication initiation protein, putative
224	 34.48	0	236802..237236	+	144	22536409	-	SAG0225	-	hypothetical protein
225	 33.41	0	237552..238808	+	418	22536410	-	SAG0226	-	recombination protein
226	 31.63	-1	238976..239446	+	156	22536411	-	SAG0227	-	hypothetical protein
227	 34.52	0	239751..240086	-	111	22536412	-	SAG0228	-	hypothetical protein
228	 33.68	0	240076..240363	-	95	22536413	-	SAG0229	-	hypothetical protein
229	 31.62	-1	240870..241160	+	96	22536414	-	SAG0230	-	hypothetical protein
230	 25.25	-2	241262..241669	+	135	22536415	-	SAG0231	-	hypothetical protein
231	 33.69	0	241669..242229	+	186	22536416	-	SAG0232	-	hypothetical protein
232	 33.04	0	242202..242882	+	226	22536417	-	SAG0233	-	hypothetical protein
233	 29.20	-1	242867..243253	+	128	22536418	-	SAG0234	-	hypothetical protein
234	 32.62	0	243287..243568	+	93	22536419	-	SAG0235	-	hypothetical protein
235	 19.19	-2	243659..243757	+	32	22536420	-	SAG0236	-	hypothetical protein
236	 28.57	-1	244185..244289	+	34	22536421	-	SAG0237	-	hypothetical protein
237	 23.81	-2	244286..244411	+	41	22536422	-	SAG0238	-	hypothetical protein
238	 33.57	0	244411..245271	+	286	22536423	-	SAG0239	-	MutR family transcriptional regulator
239	 31.64	-1	245344..246525	+	393	22536424	-	SAG0240	-	transporter, putative
240	 38.01	0	246587..247228	-	213	22536425	-	SAG0241	-	amino acid ABC transporter, permease protein
241	 34.52	0	247238..248164	-	308	22536426	-	SAG0242	-	amino acid ABC transporter, amino acid-binding protein
242	 35.38	0	248167..248802	-	211	22536427	-	SAG0243	-	amino acid ABC transporter, permease protein
243	 35.69	0	248802..249947	-	381	22536428	-	SAG0244	-	amino acid ABC transporter, ATP-binding protein
244	 29.85	-1	256634..257092	+	152	22536429	-	SAG0245	-	protein of unknown function/lipoprotein, putative
35.44	MEAN

3.78	STD DEV
