IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

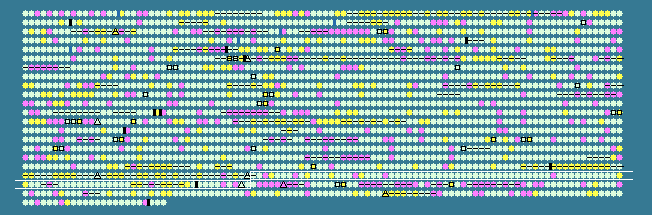

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1839	 36.36	0	1867119..1867217	+	32	22538024	-	SAG1886	-	hypothetical protein
1840	 34.54	0	1867260..1869329	-	689	22538025	-	SAG1887	-	Na+/H+ exchanger family protein
1841	 26.58	-2	1869331..1869567	-	78	22538026	-	SAG1888	-	hypothetical protein
1842	 39.31	+1	1869734..1870687	+	317	22538027	-	SAG1889	-	microcin immunity protein MccF, putative
1843	 36.97	0	1870737..1872632	-	631	22538028	pepO	SAG1890	-	endopeptidase O
1844	 37.60	0	1872780..1873763	+	327	22538029	-	SAG1891	-	Gfo/Idh/MocA family oxidoreductase
1845	 35.28	0	1873809..1874885	-	358	22538030	-	SAG1892	-	hypothetical protein
1846	 28.33	-1	1874869..1875048	-	59	22538031	-	SAG1893	-	hypothetical protein
1847	 35.04	0	1875084..1875728	+	214	22538032	-	SAG1894	-	cyclic nucleotide-binding domain-containing protein
1848	 39.35	+1	1875794..1876408	+	204	22538033	def	SAG1895	-	peptide deformylase
1849	 33.73	0	1876479..1877480	-	333	22538034	regR	SAG1896	-	sugar-binding transcriptional regulator RegR
1850	 32.86	0	1877560..1879464	-	634	22538035	-	SAG1897	-	hypothetical protein
1851	 36.40	0	1879544..1880359	-	271	22538036	-	SAG1898	-	PTS system, IID component
1852	 41.52	+1	1880346..1881212	-	288	22538037	-	SAG1899	-	PTS system, IIC component
1853	 34.14	0	1881248..1881742	-	164	22538038	-	SAG1900	-	PTS system, IIB component
1854	 36.51	0	1881797..1882993	-	398	22538039	-	SAG1901	-	glucuronyl hydrolase
1855	 34.02	0	1882996..1883430	-	144	22538040	-	SAG1902	-	PTS system, IIA component
1856	 21.90	-2	1883531..1883635	+	34	22538041	-	SAG1903	-	hypothetical protein
1857	 41.57	+1	1883708..1884520	+	270	22538042	-	SAG1904	-	gluconate 5-dehydrogenase
1858	 37.25	0	1884537..1885175	+	212	22538043	-	SAG1905	-	hypothetical protein
1859	 37.60	0	1885201..1886208	+	335	22538044	-	SAG1906	-	carbohydrate kinase
1860	 38.03	0	1886220..1886858	+	212	22538045	eda-2	SAG1907	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1861	 28.67	-1	1887919..1889418	+	499	22538046	-	SAG1908	-	hypothetical protein
1862	 37.56	0	1889589..1890203	-	204	22538047	-	SAG1909	-	nitroreductase family protein
1863	 32.86	0	1890336..1890761	-	141	22538048	-	SAG1910	-	MarR family transcriptional regulator
1864	 38.08	0	1890888..1895294	-	1468	22538049	polC	SAG1911	-	DNA polymerase III PolC
1865	 35.04	0	1895417..1896001	-	194	22538050	-	SAG1912	-	N-acetylmuramoyl-L-alanine amidase
1866	 38.35	0	1896126..1897979	-	617	22538051	proS	SAG1913	-	prolyl-tRNA synthetase
1867	 36.27	0	1898071..1899330	-	419	22538052	-	SAG1914	-	membrane-associated zinc metalloprotease, putative
1868	 37.23	0	1899361..1900155	-	264	22538053	cdsA	SAG1915	-	phosphatidate cytidylyltransferase
1869	 36.65	0	1900170..1900922	-	250	22538054	uppS	SAG1916	-	undecaprenyl diphosphate synthase
1870	 35.96	0	1901089..1901430	-	113	22538055	yajC	SAG1917	-	preprotein translocase subunit YajC
1871	 32.46	0	1901507..1901851	-	114	22538056	-	SAG1918	-	hypothetical protein
1872	 38.75	0	1902042..1903205	-	387	22538057	-	SAG1919	-	malate oxidoreductase
1873	 36.32	0	1903230..1904567	-	445	22538058	-	SAG1920	-	CCS family citrate carrier protein
1874	 32.87	0	1904721..1906247	+	508	22538059	-	SAG1921	-	sensor histidine kinase
1875	 33.77	0	1906249..1906938	+	229	22538060	-	SAG1922	-	response regulator
1876	 38.15	0	1906951..1907946	-	331	22538061	galE	SAG1923	-	UDP-glucose 4-epimerase
1877	 37.06	0	1908034..1909641	-	535	22538062	dexB	SAG1924	-	glucan 1,6-alpha-glucosidase
1878	 37.30	0	1909769..1910902	-	377	22538063	-	SAG1925	-	sugar ABC transporter, ATP-binding protein
1879	 35.68	0	1911003..1911854	-	283	22538064	-	SAG1926	-	helix-turn-helix domain-containing protein
1880	 34.78	0	1911949..1912845	-	298	22538065	-	SAG1927	-	lacX protein
1881	 38.04	0	1912899..1913876	-	325	22538066	lacD	SAG1928	-	tagatose 1,6-diphosphate aldolase
1882	 37.41	0	1913878..1914810	-	310	22538067	lacC	SAG1929	-	tagatose-6-phosphate kinase
1883	 35.85	0	1914821..1915336	-	171	22538068	lacB	SAG1930	-	galactose-6-phosphate isomerase subunit LacB
1884	 38.03	0	1915357..1915782	-	141	22538069	lacA	SAG1931	-	galactose-6-phosphate isomerase subunit LacA
1885	 34.48	0	1916030..1918480	-	816	22538070	-	SAG1932	-	neuraminidase-related protein
1886	 36.71	0	1918719..1920167	-	482	22538071	-	SAG1933	-	PTS system, IIC component, putative
1887	 35.29	0	1920207..1920512	-	101	22538072	-	SAG1934	-	PTS system, IIB component, putative
1888	 32.07	0	1920514..1920987	-	157	22538073	-	SAG1935	-	PTS system, IIA component, putative
1889	 31.40	-1	1921197..1921973	+	258	22538074	lacR-2	SAG1936	-	lactose phosphotransferase system repressor
1890	 36.36	0	1924811..1925734	-	307	22538075	-	SAG1938	-	adhesion lipoprotein
1891	 34.46	0	1925989..1926432	-	147	22538076	-	SAG1939	-	D-tyrosyl-tRNA deacylase
1892	 37.35	0	1926442..1928658	-	738	22538077	-	SAG1940	-	GTP pyrophosphokinase family protein
1893	 37.62	0	1928918..1931320	+	800	22538078	cpdB	SAG1941	-	2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase bifunctional periplasmic precursor protein
1894	 37.06	0	1931477..1931932	+	151	22538079	nrdI-2	SAG1942	-	hypothetical protein
1895	 38.73	0	1931943..1932980	+	345	22538080	-	SAG1943	-	hypothetical protein
1896	 34.74	0	1932980..1933477	+	165	22538081	-	SAG1944	-	hypothetical protein
1897	 35.45	0	1933699..1934736	-	345	22538082	-	SAG1945	-	iron ABC transporter, iron-binding protein
1898	 33.59	0	1934748..1935521	-	257	22538083	-	SAG1946	-	DNA-binding response regulator
1899	 32.79	0	1935525..1937174	-	549	22538084	-	SAG1947	-	hypothetical protein
1900	 39.13	0	1937312..1938139	-	275	22538085	-	SAG1948	-	PTS system, IID component
1901	 40.00	+1	1938136..1938945	-	269	22538086	-	SAG1949	-	PTS system, IIC component
1902	 36.59	0	1938961..1939452	-	163	22538087	-	SAG1950	-	PTS system, IIB component
1903	 36.38	0	1939470..1939895	-	141	22538088	-	SAG1951	-	PTS system, IIA component, putative
1904	 33.52	0	1940142..1941203	-	353	22538089	-	SAG1952	-	hypothetical protein
1905	 29.51	-1	1941228..1941410	+	60	22538090	-	SAG1953	-	hypothetical protein
1906	 33.42	0	1941405..1942559	-	384	22538091	-	SAG1954	-	hypothetical protein
1907	 36.28	0	1942565..1943413	-	282	22538092	-	SAG1955	-	ABC transporter, ATP-binding protein
1908	 32.01	0	1943904..1944656	-	250	22538093	-	SAG1957	-	response regulator
1909	 38.39	0	1944933..1945763	-	276	22538094	-	SAG1958	-	hypothetical protein
1910	 37.73	0	1945802..1947985	-	727	22538095	-	SAG1959	-	PTS system, IIABC components
1911	 35.08	0	1948143..1949798	-	551	22538096	-	SAG1960	-	sensor histidine kinase
1912	 37.76	0	1949791..1950468	-	225	22538097	phoB	SAG1961	-	phosphate regulon response regulator PhoB
1913	 35.46	0	1950468..1951124	-	218	22538098	-	SAG1962	-	phosphate transport system regulatory protein PhoU, putative
1914	 38.06	0	1951121..1951882	-	253	22538099	-	SAG1963	-	phosphate ABC transporter, ATP-binding protein
1915	 35.84	0	1951863..1952741	-	292	22538100	-	SAG1964	-	phosphate ABC transporter, permease protein
1916	 38.53	0	1952743..1953588	-	281	22538101	-	SAG1965	-	phosphate ABC transporter, permease protein
1917	 35.49	0	1953603..1954484	-	293	22538102	-	SAG1966	-	hemolysin precursor, putative
1918	 31.97	0	1954685..1955272	-	195	22538103	-	SAG1967	-	hypothetical protein
1919	 47.37	+2	1955269..1956009	-	246	22538104	-	SAG1968	-	hypothetical protein
1920	 47.17	+2	1956009..1956962	-	317	22538105	prmA	SAG1969	-	ribosomal protein L11 methyltransferase
1921	 35.60	0	1956959..1957267	-	102	22538106	-	SAG1970	-	hypothetical protein
1922	 30.16	-1	1957329..1957454	+	41	22538107	-	SAG1971	-	hypothetical protein
1923	 37.94	0	1957541..1958257	+	238	22538108	-	SAG1972	-	MerR family transcriptional regulator
1924	 40.34	+1	1958296..1958766	-	156	22538109	-	SAG1973	-	acetyltransferase
1925	 39.87	+1	1958738..1959196	-	152	22538110	-	SAG1974	-	MutT/nudix family protein
1926	 34.72	0	1959183..1959326	-	47	22538111	-	SAG1975	-	hypothetical protein
1927	 43.74	+2	1959332..1959802	-	156	22538112	-	SAG1976	-	hypothetical protein
1928	 45.53	+2	1960129..1960620	+	163	22538113	-	SAG1977	-	acetyltransferase
1929	 38.77	0	1960613..1961881	+	422	22538114	-	SAG1978	-	recombination factor protein RarA
1930	 34.25	0	1962397..1963158	-	253	22538115	-	SAG1979	-	hypothetical protein
1931	 37.98	0	1963155..1964057	-	300	22538116	-	SAG1980	-	ABC transporter, ATP-binding protein
1932	 33.33	0	1964054..1964260	-	68	22538117	-	SAG1981	-	hypothetical protein
1933	 37.13	0	1964250..1965329	-	359	22538118	-	SAG1982	-	Cro/CI family transcriptional regulator
1934	 29.87	-1	1965710..1966027	+	105	22538119	-	SAG1983	-	hypothetical protein
1935	 34.22	0	1966024..1966590	+	188	22538120	-	SAG1984	-	hypothetical protein
1936	 20.51	-2	1966644..1966799	-	51	22538121	-	SAG1985	-	hypothetical protein
1937	 32.18	0	1966825..1967952	-	375	22538122	-	SAG1986	-	phage integrase family site specific recombinase
1938	 34.41	0	1967956..1968141	-	61	22538123	-	SAG1987	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
