IslandPath Analysis: Streptococcus agalactiae 2603V/R

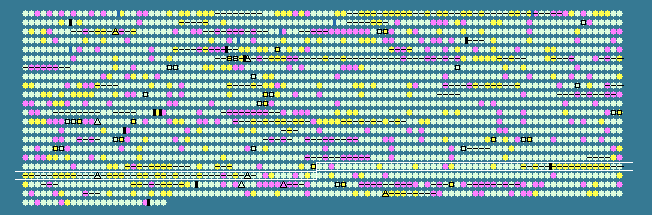

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1750	 35.94	0	1789082..1790809	-	575	22537935	-	SAG1796	-	amino acid ABC transporter, permease protein
1751	 37.58	0	1790828..1792051	-	407	22537936	-	SAG1797	-	amino acid ABC transporter, ATP-binding protein
1752	 25.83	-2	1792194..1792313	+	39	22537937	-	SAG1798	-	hypothetical protein
1753	 38.50	0	1792428..1794806	-	792	22537938	xfp	SAG1799	-	putative phosphoketolase
1754	 37.45	0	1794896..1795987	-	363	22537939	-	SAG1800	-	putative L-ascorbate 6-phosphate lactonase
1755	 35.12	0	1796304..1797983	-	559	22537940	-	SAG1801	-	BglG family transcriptional antiterminator
1756	 34.25	0	1798049..1798810	-	253	22537941	-	SAG1802	-	hypothetical protein
1757	 37.68	0	1798830..1800347	-	505	22537942	-	SAG1803	-	carbohydrate kinase
1758	 36.87	0	1800413..1801402	-	329	22537943	-	SAG1804	-	hypothetical protein
1759	 38.71	0	1801424..1802875	-	483	22537944	-	SAG1805	-	PTS system, IIC component, putative
1760	 38.98	0	1802973..1803929	-	318	22537945	-	SAG1806	-	glyoxylate reductase, NADH-dependent
1761	 36.57	0	1803948..1804967	-	339	22537946	-	SAG1807	-	hypothetical protein
1762	 34.04	0	1805202..1806185	-	327	22537947	-	SAG1808	-	LacI family sugar-binding transcriptional regulator
1763	 38.58	0	1806349..1806996	-	215	22537948	-	SAG1809	-	putative translaldolase
1764	 38.91	0	1807007..1807723	-	238	22537949	araD	SAG1810	-	L-ribulose-5-phosphate 4-epimerase
1765	 37.62	0	1807725..1808588	-	287	22537950	-	SAG1811	-	putative L-xylulose 5-phosphate 3-epimerase
1766	 41.29	+1	1808592..1809257	-	221	22537951	ulaD	SAG1812	-	3-keto-L-gulonate-6-phosphate decarboxylase
1767	 37.45	0	1809370..1809855	-	161	22537952	-	SAG1813	-	PTS system, IIA component
1768	 38.35	0	1809922..1810200	-	92	22537953	-	SAG1814	-	PTS system, IIB component
1769	 38.33	0	1810228..1811667	-	479	22537954	ulaA	SAG1815	-	ascorbate-specific PTS system enzyme IIC
1770	 35.60	0	1811835..1812452	-	205	22537955	-	SAG1816	-	hypothetical protein
1771	 29.32	-1	1812611..1813084	+	157	22537956	-	SAG1817	-	hypothetical protein
1772	 39.13	0	1813107..1814399	-	430	22537957	purA	SAG1818	-	adenylosuccinate synthetase
1773	 38.03	0	1814769..1815791	-	340	22537958	pfoR	SAG1819	-	perfringolysin O regulator protein
1774	 32.30	0	1816153..1816827	+	224	22537959	-	SAG1820	-	hypothetical protein
1775	 37.37	0	1816997..1819249	+	750	22537960	-	SAG1821	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
1776	 33.21	0	1819373..1820191	+	272	22537961	-	SAG1822	-	hypothetical protein
1777	 37.79	0	1820188..1821444	+	418	22537962	-	SAG1823	-	hypothetical protein
1778	 37.33	0	1821584..1822459	+	291	22537963	hslO	SAG1824	-	Hsp33-like chaperonin
1779	 39.78	+1	1822443..1823420	+	325	22537964	-	SAG1825	-	NifR3/Smm1 family protein
1780	 34.74	0	1823541..1824182	+	213	22537965	-	SAG1826	-	deoxynucleoside kinase family protein
1781	 34.76	0	1824196..1824687	+	163	22537966	pat	SAG1827	-	phosphinothricin N-acetyltransferase
1782	 37.25	0	1824907..1827354	-	815	22537967	-	SAG1828	-	ATP-dependent Clp protease, ATP-binding subunit
1783	 35.05	0	1827351..1827815	-	154	22537968	ctsR	SAG1829	-	transcriptional regulator CtsR
1784	 41.13	+1	1827988..1828449	+	153	22537969	-	SAG1830	-	hypothetical protein
1785	 38.81	0	1828608..1829648	-	346	22537970	tsf	SAG1831	-	elongation factor Ts
1786	 40.21	+1	1829742..1830512	-	256	22537971	rpsB	SAG1832	-	30S ribosomal protein S2
1787	 38.32	0	1830789..1831349	+	186	22537972	ahpC	SAG1833	-	alkyl hydroperoxide reductase, subunit C
1788	 38.16	0	1831367..1832899	+	510	22537973	ahpF	SAG1834	-	alkyl hydroperoxide reductase, subunit F
1789	 40.00	+1	1833318..1833722	-	134	22537974	-	SAG1835	-	hypothetical protein
1790	 42.47	+1	1833783..1833968	-	61	22537975	-	SAG1836	-	hypothetical protein
1791	 46.27	+2	1834175..1835581	-	468	22537976	-	SAG1837	-	prophage LambdaSa2, lysin, putative
1792	 41.21	+1	1835585..1835914	-	109	22537977	-	SAG1838	-	prophage LambdaSa2, holin, putative
1793	 41.36	+1	1835917..1836327	-	136	22537978	-	SAG1839	-	hypothetical protein
1794	 43.36	+2	1836362..1836700	-	112	22537979	-	SAG1840	-	hypothetical protein
1795	 43.29	+2	1836703..1836933	-	76	22537980	-	SAG1841	-	hypothetical protein
1796	 43.27	+2	1836950..1840624	-	1224	22537981	-	SAG1842	-	prophage LambdaSa2, PblB, putative
1797	 41.49	+1	1840625..1841347	-	240	22537982	-	SAG1843	-	hypothetical protein
1798	 42.76	+1	1841344..1844079	-	911	22537983	-	SAG1844	-	hypothetical protein
1799	 37.98	0	1844098..1844226	-	42	22537984	-	SAG1845	-	hypothetical protein
1800	 38.16	0	1844265..1844741	-	158	22537985	-	SAG1846	-	hypothetical protein
1801	 41.23	+1	1844741..1845424	-	227	22537986	-	SAG1847	-	hypothetical protein
1802	 40.87	+1	1845439..1845783	-	114	22537987	-	SAG1848	-	hypothetical protein
1803	 38.22	0	1845770..1846117	-	115	22537988	-	SAG1849	-	hypothetical protein
1804	 38.89	0	1846117..1846422	-	101	22537989	-	SAG1850	-	hypothetical protein
1805	 38.10	0	1846419..1846754	-	111	22537990	-	SAG1851	-	hypothetical protein
1806	 39.75	+1	1846775..1848037	-	420	22537991	-	SAG1852	-	hypothetical protein
1807	 40.15	+1	1848048..1848590	-	180	22537992	-	SAG1853	-	prophage LambdaSa2, protease, putative
1808	 41.29	+1	1848640..1849782	-	380	22537993	-	SAG1854	-	hypothetical protein
1809	 41.68	+1	1849791..1851503	-	570	22537994	-	SAG1855	-	prophage LambdaSa2, terminase large subunit, putative
1810	 36.83	0	1851496..1851981	-	161	22537995	-	SAG1856	-	hypothetical protein
1811	 33.89	0	1852069..1852428	-	119	22537996	-	SAG1857	-	prophage LambdaSa2, HNH endonuclease family protein
1812	 32.99	0	1852428..1852715	-	95	22537997	-	SAG1858	-	hypothetical protein
1813	 38.31	0	1853005..1853547	-	180	22537998	-	SAG1859	-	prophage LambdaSa2, site-specific recombinase phage integrase family protein
1814	 38.92	0	1853657..1854121	-	154	22537999	-	SAG1860	-	hypothetical protein
1815	 41.67	+1	1854118..1854477	-	119	22538000	-	SAG1861	-	prophage LambdaSa2, Cro/CI family transcriptional regulator
1816	 41.38	+1	1854462..1854722	-	86	22538001	-	SAG1862	-	hypothetical protein
1817	 42.21	+1	1854732..1855148	-	138	22538002	ssb-4	SAG1863	-	prophage LambdaSa2, single-strand binding protein
1818	 35.27	0	1855138..1855344	-	68	22538003	-	SAG1864	-	hypothetical protein
1819	 38.22	0	1855341..1855565	-	74	22538004	-	SAG1865	-	hypothetical protein
1820	 39.70	+1	1855697..1856026	-	109	22538005	-	SAG1866	-	hypothetical protein
1821	 41.67	+1	1856026..1856517	-	163	22538006	-	SAG1867	-	hypothetical protein
1822	 34.07	0	1856510..1856914	-	134	22538007	-	SAG1868	-	hypothetical protein
1823	 41.17	+1	1856911..1858224	-	437	22538008	-	SAG1869	-	prophage LambdaSa2, type II DNA modification methyltransferase, putative
1824	 43.07	+2	1858224..1859045	-	273	22538009	-	SAG1870	-	prophage LambdaSa2, DNA replication protein DnaC, putative
1825	 34.83	0	1859770..1860372	-	200	22538010	-	SAG1872	-	hypothetical protein
1826	 43.84	+2	1860374..1861705	-	443	22538011	dnaC-1	SAG1873	-	prophage LambdaSa2, replicative DNA helicase
1827	 37.88	0	1861714..1861977	-	87	22538012	-	SAG1874	-	hypothetical protein
1828	 37.89	0	1861956..1862240	-	94	22538013	-	SAG1875	-	hypothetical protein
1829	 35.03	0	1862240..1862770	-	176	22538014	-	SAG1876	-	prophage LambdaSa2, HNH endonuclease family protein
1830	 40.93	+1	1862833..1863543	-	236	22538015	-	SAG1877	-	prophage LambdaSa2, antirepressor protein, putative
1831	 36.89	0	1863546..1863854	-	102	22538016	-	SAG1878	-	hypothetical protein
1832	 35.46	0	1863816..1864286	+	156	22538017	-	SAG1879	-	hypothetical protein
1833	 36.36	0	1864269..1864433	-	54	22538018	-	SAG1880	-	hypothetical protein
1834	 31.41	-1	1864415..1864570	-	51	22538019	-	SAG1881	-	hypothetical protein
1835	 37.19	0	1864719..1865081	+	120	22538020	-	SAG1882	-	prophage LambdaSa2, repressor protein, putative
1836	 39.28	+1	1865082..1865468	+	128	22538021	-	SAG1883	-	hypothetical protein
1837	 34.57	0	1865521..1865925	+	134	22538022	-	SAG1884	-	hypothetical protein
1838	 36.60	0	1866047..1867117	+	356	22538023	-	SAG1885	-	prophage LambdaSa2, site-specific recombinase phage integrase family protein
1839	 36.36	0	1867119..1867217	+	32	22538024	-	SAG1886	-	hypothetical protein
1840	 34.54	0	1867260..1869329	-	689	22538025	-	SAG1887	-	Na+/H+ exchanger family protein
1841	 26.58	-2	1869331..1869567	-	78	22538026	-	SAG1888	-	hypothetical protein
1842	 39.31	+1	1869734..1870687	+	317	22538027	-	SAG1889	-	microcin immunity protein MccF, putative
1843	 36.97	0	1870737..1872632	-	631	22538028	pepO	SAG1890	-	endopeptidase O
1844	 37.60	0	1872780..1873763	+	327	22538029	-	SAG1891	-	Gfo/Idh/MocA family oxidoreductase
1845	 35.28	0	1873809..1874885	-	358	22538030	-	SAG1892	-	hypothetical protein
1846	 28.33	-1	1874869..1875048	-	59	22538031	-	SAG1893	-	hypothetical protein
1847	 35.04	0	1875084..1875728	+	214	22538032	-	SAG1894	-	cyclic nucleotide-binding domain-containing protein
1848	 39.35	+1	1875794..1876408	+	204	22538033	def	SAG1895	-	peptide deformylase
1849	 33.73	0	1876479..1877480	-	333	22538034	regR	SAG1896	-	sugar-binding transcriptional regulator RegR
35.44	MEAN

3.78	STD DEV
